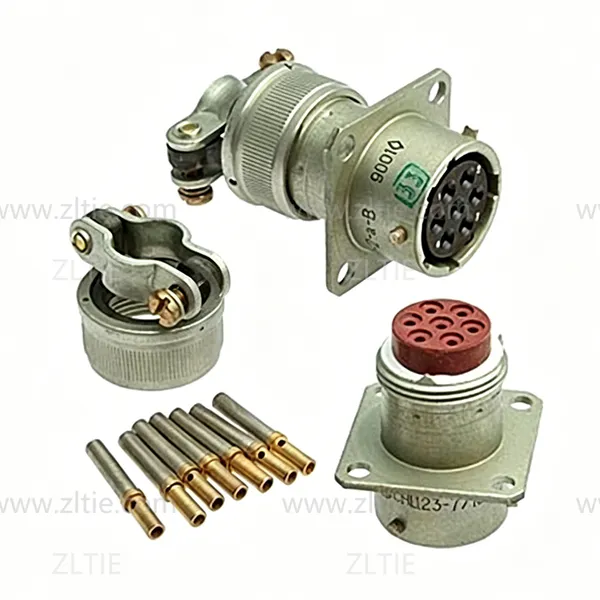

Help CenterZH23 Series Shell Size 18 7 Pin Female Plug With Angled Tail Attachment (Key Position: A) – СНЦ23-7/18Р-8А-В ZH23-7/18P-8a-B
Related Products
-
ZH23 Series Shell Size 18 10 Pin Male Socket With Simple Tail Attachment (Key Position: B) – СНЦ23-10/18В-1Б-В ZH23-10/18B-1b-BNegotiableMOQ: 200 Units -
ZH23 Series Shell Size 22 10 Pin Male Plug With Simple Tail Attachment (Key Position: B) – СНЦ23-10/22В-11Б-В ZH23-10/22B-11b-BNegotiableMOQ: 200 Units
-
2PM-33 Series 7Pin Male Panel Socket – 2РМДТ33Б7Ш9В1В 2PM33J7Z2NegotiableMOQ: 200 Units
-
ZH127 Series Connector Shell Size 14 10pin Male Flange Socket Solder – СНЦ127-10/14ВП127-1-ВNegotiableMOQ: 200 Units
-
2PM-18 Series 7Pin Male Straight Cable Plug Unshielded – 2РМТ18КПН7Ш1В1В 2PM18J7QB2NegotiableMOQ: 200 Units
PRODUCT DETAILS:
ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.
ATTRIBUTES:
Connector Type: Plug
Contact Type: Female
Number of Positions: 7 Pin
Orientation: Right Angle
Shell Size: 18
Fastening Type: Bayonet Connection
Contact Material: Copper Alloy Gold
Insulating Materials: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Operating Temperature: -60℃ – +200℃
Vibration: Acceleration 40g (1-5000HZ)
Impact: Acceleration 500g (Once); 150g (Multiple Times)
Salt Spray Resistance: 96h
Relative Humidity: 40℃-65℃ 95%-98%
Insulation Impedance: ≥5000MQ
Mechanical and Working Life: 500 Cycles
