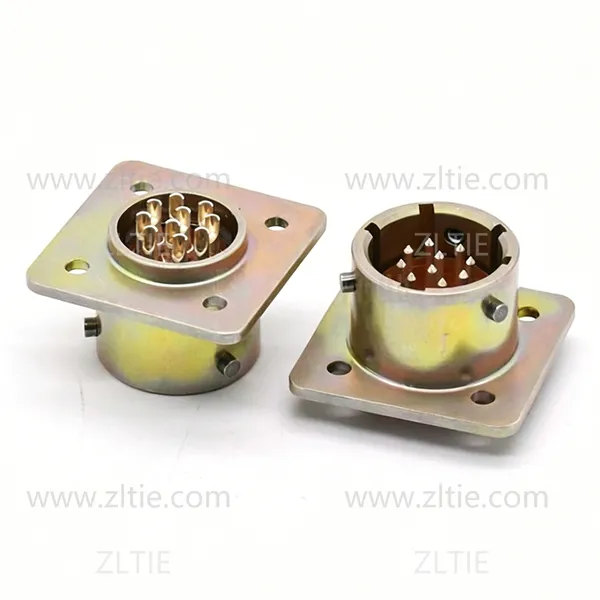

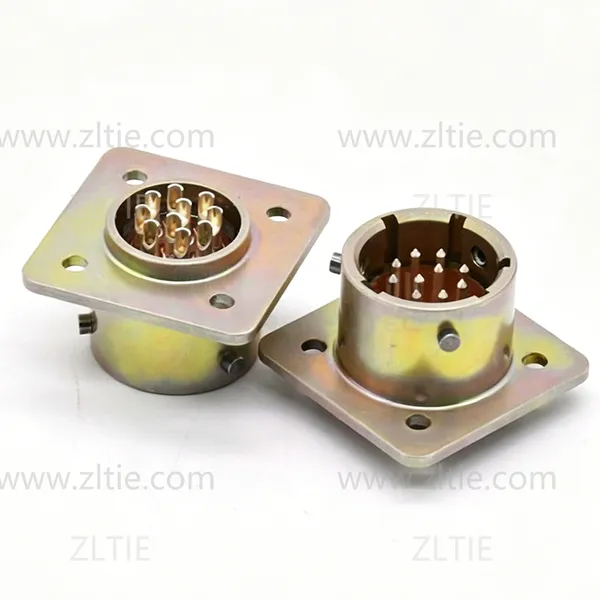

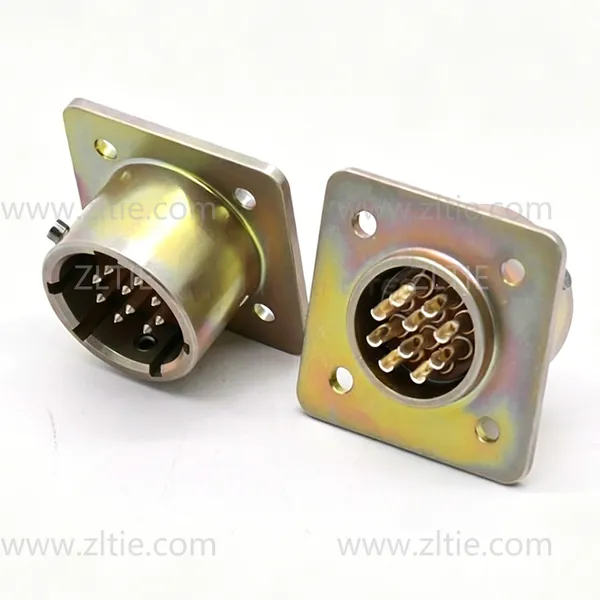

Help CenterZH127 Series Connector Shell Size 14 10pin Male Flange Socket Solder – СНЦ127-10/14ВП127-1-В
Related Products
-
2PM-18 Series 7Pin Male Straight Cable Plug Unshielded – 2РМТ18КПН7Ш1В1В 2PM18J7QB2NegotiableMOQ: 200 Units -
2PM-18 Series 4Pin Female Panel Socket – 2РМДТ18Б4Г1В1ВNegotiableMOQ: 200 Units
-
2PM-22 Series 4Pin Male Panel Socket With Gold Plated Pin – 2РМТ22Б4Ш3А1В 2PM22J4Z1NegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Bayonet Ultra-small Connector Shell Size 12 7 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-7/12-P12-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-BNegotiableMOQ: 200 Units
Product Details:
ZH127 series bayonet connectors mainly adopt Russian connector technology. It is engineered for reliable performance in both DC and AC circuits, supporting frequencies up to 3 MHz and voltages up to 700 V (amplitude). It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The Socket without tail attachment and the Plug with metal tail attachment.This type of connectors are widely used in low-frequency electronic systems, including a large number of electrical equipment.
ZH127 are interchangeable & intermateable with connectors of OHS-BC, Ohs-BC, ONTs-BS, ONTs-BS, SNTs127, SNC127.
ATTRIBUTES:
Connector Type: Plug
Contact Material: Gold/Silver plating
Contact Type: Female
Fastening Type: Bayonet Connection
Termination: Solder
Mounting Type: Cable Mount
Insulating Materials: Bakelite
Insulation Impedance: ≥5000MΩ
Mechanical and Working Life: 500 Cycles
Number of Positions: 10
Operating Temperature: -60 ℃ ～ +105 ℃
Orientation: Straight
Shell Material: Aluminum Alloy
Shell Size: 14
Vibration: 1-5000Hz 20g
Contact Dia.: 6 contacts Ø 1.0mm
Operating Current: 3 A
Operating Voltage: 250V
Contact Resistance: ≤5MΩ
