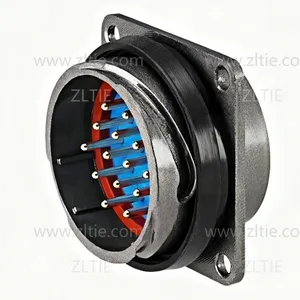

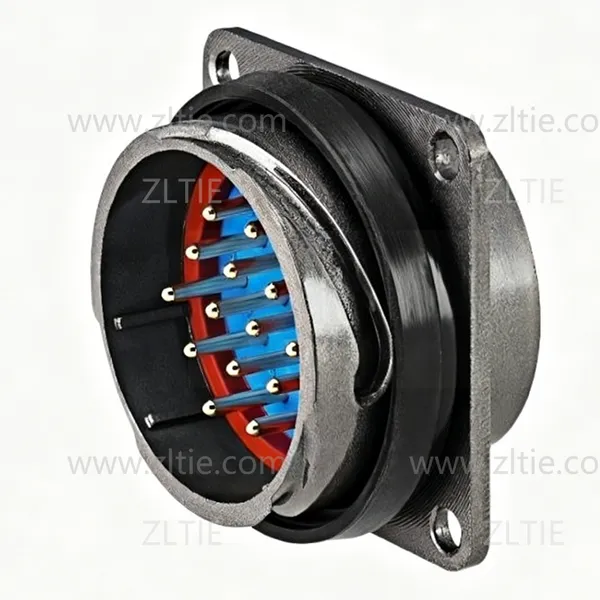

Help CenterFQ30 Series 14-Pin Square Flange Male Socket FQ30-14ZJ
Related Products
-
P16 Series 2-Pin Straight Male Cable Plug With Shielded Tail Attachment P16J1PNegotiableMOQ: 200 Units -
ZH23 Series Shell Size 22 10 Pin Male Plug With Angled Tail Attachment – СНЦ23-10/22В-8-В ZH23-10/18B-1b-BNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 22 7 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-7/22В-6А-В ZH23-7/22B-6a-BNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 18 10 Pin Female Socket With Straight Tail Attachment – СНЦ23-10/18Р-2-ВNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 18 7 Pin Female Plug With Angled Tail Attachment (Key Position: A) – СНЦ23-7/18Р-8А-В ZH23-7/18P-8a-BNegotiableMOQ: 200 Units
Product Details:
FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
ATTRIBUTES:
Connector Type: Socket
Shell Size: 30
Contact Size: 14*1.5m
Nummber of Positions: 14 Pin
Connection Method: Bayonet Connection
Terminal Method: Solder
Rated Current: 10A
Contact Resistance: ≤2.5MΩ
Rated Voltage: 400V
Material of Contacts: Copper with Gold Plated
Copper with Gold Plated: PBT
Shell Material: Aluminum Alloy Surface Anodizing Treatment
Ambient Temperature: -55°C~+100°C
Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
Atmospheric: 1Kpa
Vibration: 10 ~ 200Hz, 150M/S²
IP Rating: IP67
Life Duration: 500 Cycles
