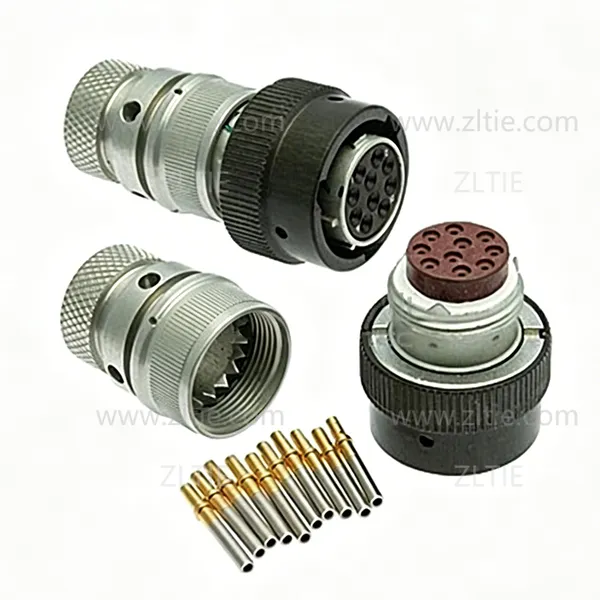

Help CenterZH23 Series Shell Size 18 10 Pin Female Plug With Type 09 Thermoplastic Sleeve Type Tail Attachment – СНЦ23-10/18Р-13-В
Related Products
-
2PM-33 Series 32Pin Female Panel Socket With Gold-Plated Pin – 2РМДТ33Б32Г1А1ВNegotiableMOQ: 200 Units -
2PM-22 Series 4Pin Female Panel Socket – 2РМТ22Б4Г3В1ВNegotiableMOQ: 200 Units
-
2РМГ14Б4Ш1Е2 2PM Russian Connector Shell Size 14 4 Pin Flange Male Socket, Sealed Type Threaded Back End 2PM33J7QB2NegotiableMOQ: 200 Units
-
2PM-14 Series 4Pin Female Panel Socket – 2РМТ14Б4Г1В1ВNegotiableMOQ: 200 Units
-
ZH127 Series Connector Shell Size 12 8pin Female Plug With Straight Tail Attachment – СНЦ127-8/12РП126-1-ВNegotiableMOQ: 200 Units
Product Details:
ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.
ATTRIBUTES:
Connector Type: Plug
Contact Type: Female
Number of Positions: 10 Pin
Orientation: Straight
Shell Size: 18
Fastening Type: Bayonet Connection
Contact Material: Copper Alloy Gold
Insulating Materials: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Operating Temperature: -60℃ – +200℃
Vibration: Acceleration 40g (1-5000HZ)
Impact: Acceleration 500g (Once); 150g (Multiple Times)
Salt Spray Resistance: 96h
Relative Humidity: 40℃-65℃ 95%-98%
Insulation Impedance: ≥5000MQ
Mechanical and Working Life: 500 Cycles
