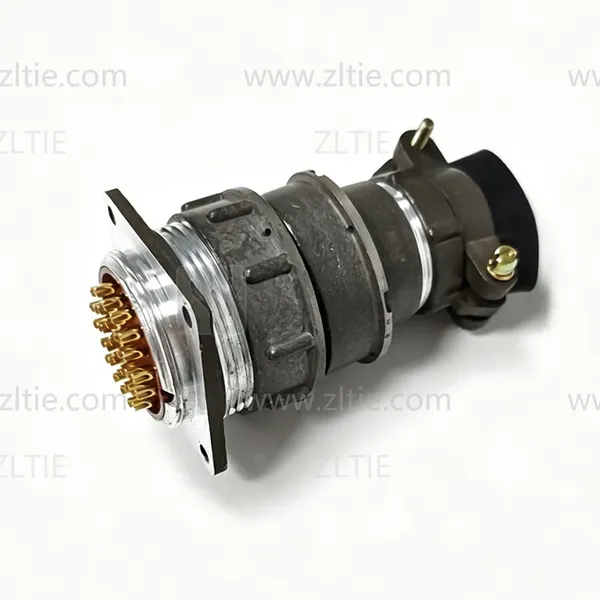

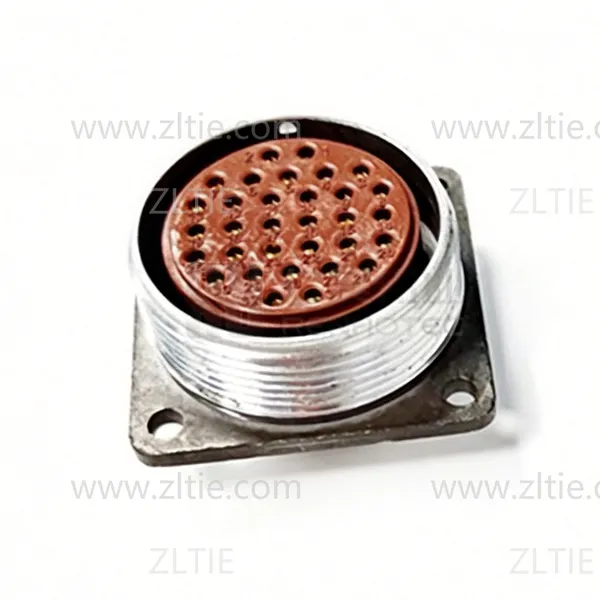

Help Center2PM-33 Series 32Pin Female Panel Socket With Gold-Plated Pin – 2РМДТ33Б32Г1А1В
Related Products
-
2РМГ14Б4Ш1Е2 2PM Russian Connector Shell Size 14 4 Pin Flange Male Socket, Sealed Type Threaded Back End 2PM33J7QB2NegotiableMOQ: 200 Units -
P40 Series 9-Pin Female Socket SealedNegotiableMOQ: 200 Units
-
2PM-33 Series 7Pin Male Straight Cable Plug Unshielded – 2РМДТ33КПН7Ш9В1В 2PM33J7QB2NegotiableMOQ: 200 Units
-
FQ14 Series 6-Pin Square Flange Male Socket FQ14-6ZJNegotiableMOQ: 200 Units
-
P16 Series 3-Pin Female Socket Non-Sealed P16K2ANegotiableMOQ: 200 Units
Product Details:
2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.
ATTRIBUTES:
Connector Type: Plug
Orientation: Straight
Number of Positions: 32 Pin
Contact Size:Φ1.5
Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish: Silver/Gold
Fastening Type: Threaded
Rated Current: 10A
Rated Voltage: ≤700V (AC)
Operating Temperature: -60℃ – +200℃
Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance: 0.8-5MΩ
