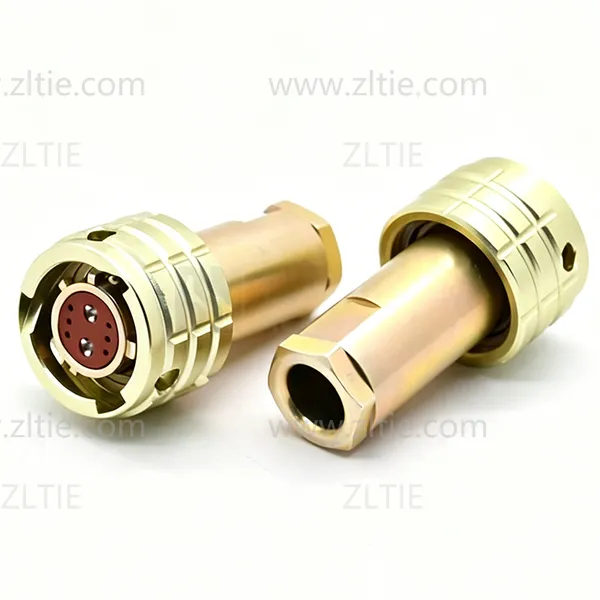

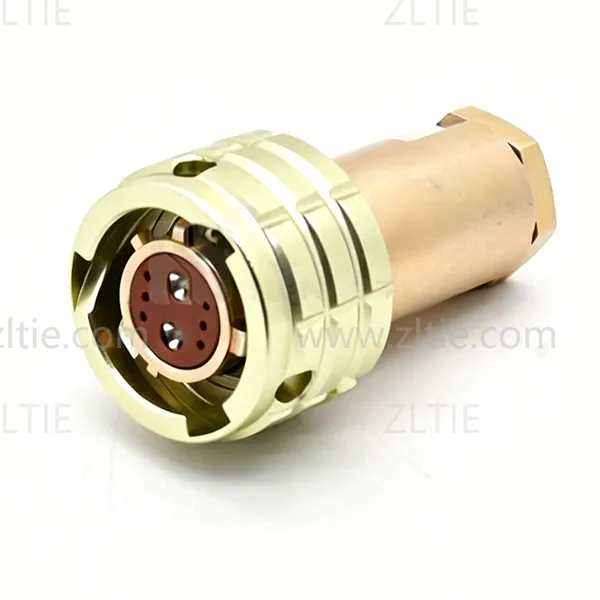

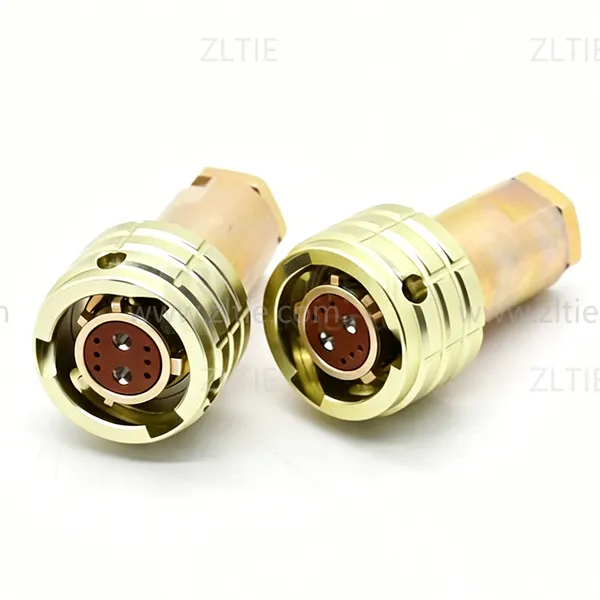

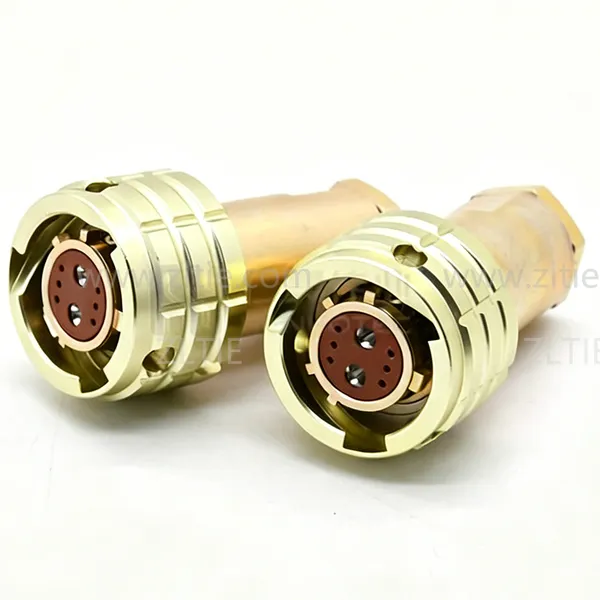

Help CenterZH127 Series Connector Shell Size 12 8pin Female Plug With Straight Tail Attachment – СНЦ127-8/12РП126-1-В
Related Products
-
2PM-14 Series 4Pin Female Straight Cable Plug Unshielded – 2РМТ14КПН4Г1В1В 2PM14K4QB2NegotiableMOQ: 200 Units -
P40 Series 9-Pin Female Socket SealedNegotiableMOQ: 200 Units
-
2PM-33 Series 7Pin Male Straight Cable Plug Unshielded – 2РМДТ33КПН7Ш9В1В 2PM33J7QB2NegotiableMOQ: 200 Units
-
2PM-27 Series 19Pin Female Straight Cable Plug Unshielded – 2РМДТ27КПН19Г5В1ВNegotiableMOQ: 200 Units
-
FQ14 Series 6-Pin Square Flange Male Socket FQ14-6ZJNegotiableMOQ: 200 Units
Product Details:
ZH127 series bayonet connectors mainly adopt Russian connector technology. It is engineered for reliable performance in both DC and AC circuits, supporting frequencies up to 3 MHz and voltages up to 700 V (amplitude). It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The Socket without tail attachment and the Plug with metal tail attachment.This type of connectors are widely used in low-frequency electronic systems, including a large number of electrical equipment.
ZH127 are interchangeable & intermateable with connectors of OHS-BC, Ohs-BC, ONTs-BS, ONTs-BS, SNTs127, SNC127.
ATTRIBUTES:
Connector Type: Plug
Contact Material: Gold/Silver plating
Contact Type: Female
Fastening Type: Bayonet Connection
Mounting Type: Cable Mount
Insulating Materials: Bakelite
Insulation Impedance: ≥5000MΩ
Mechanical and Working Life: 500 Cycles
Number of Positions: 8
Operating Temperature: -60 ℃ ～ +105 ℃
Orientation: Straight
Shell Material: Aluminum Alloy
Shell Size: 12
Vibration: 1-5000Hz 20g
Contact Dia.: Ø 0.6 mm
Operating Current: 0.5/10.0 A
Operating Voltage: 150V
Contact Resistance: ≤5MΩ
