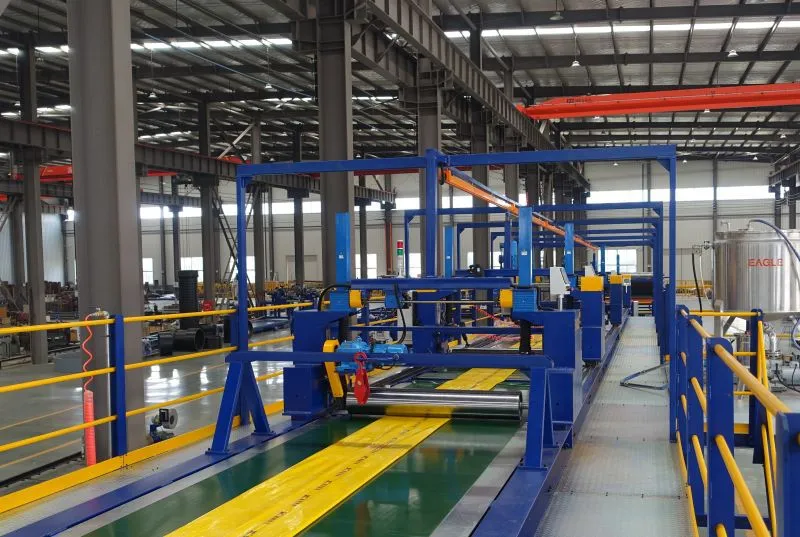

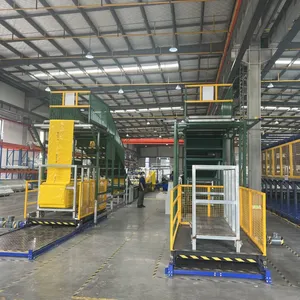

As a leading manufacturer in pipeline rehabilitation technology, Qingdao Yongke Machinery Co., Ltd. brings over a decade of expertise to the market with our advanced CIPP Liner Machine. Designed for the efficient and trenchless rehabilitation of municipal sewers and pipelines, this system embodies our commitment to innovation and quality, honed since our establishment in 2010. Operating from our expansive 10,000-30,000 square meter facility, we engineer solutions that minimize urban disruption while maximizing pipeline longevity and performance. Our machine is the cornerstone for contractors and municipalities seeking a reliable, non-invasive method to restore critical underground infrastructure to its optimal condition.
Product Features & Technical Advantages:
Trenchless Rehabilitation Technology: Our CIPP Liner Machine enables the cured-in-place pipe (CIPP) method, eliminating the need for extensive excavation. This significantly reduces project timelines, lowers labor costs, and minimizes environmental and social disruption in urban areas.
High-Efficiency Impregnation System: The core of the machine features a precision-engineered impregnation system that uniformly saturates the liner felt with resin. This ensures a consistent, high-strength bond between the liner and the host pipe, creating a seamless, jointless, and corrosion-resistant new pipe within the old one.
-
Adaptable and Scalable Design: The system is highly customizable to suit a wide range of project requirements.
Parameter Specification Range Applicable Pipe Diameter 100 mm to 2000 mm (customizable) Standard Liner Length Capacity Up to 200 meters per run (configurable) Resin Mixing & Heating System Programmable temperature control Winch Pulling Force Adjustable, based on liner weight and friction Control System User-friendly PLC with touchscreen interface PLC-Based Control for Precision: Equipped with a Programmable Logic Controller (PLC) and an intuitive touchscreen interface, the machine offers precise control over the impregnation process, resin ratio, liner speed, and curing parameters. This automation enhances repeatability, reduces human error, and ensures consistent, high-quality results on every project.
Robust Construction for Durability: Built with high-strength steel frames and corrosion-resistant components, the machine is designed for the demanding conditions of construction sites and long-term operation, ensuring reliability and a lower total cost of ownership.
Enhanced Safety Features: The design incorporates multiple safety mechanisms, including emergency stop buttons, pressure relief valves, and system monitoring alarms, prioritizing operator safety during the liner installation process.
Benefits for Your Business:
Cost Reduction: Drastically cuts costs associated with traditional dig-and-replace methods, including excavation, backfilling, traffic management, and surface restoration.
Extended Asset Life: Rehabilitates aging pipelines, effectively doubling or tripling their service life with a structurally sound, leak-proof liner, deferring the need for costly complete replacements.
Minimized Operational Downtime: The fast installation process allows for quicker return-to-service of critical pipelines, reducing inconvenience for residents and businesses.
Versatile Application: Suitable for a variety of pipe materials (clay, concrete, cast iron, PVC) and shapes (circular, egg-shaped), making it a versatile asset for your rehabilitation toolkit.
Environmental Sustainability: The trenchless method preserves the surrounding landscape, reduces carbon footprint from heavy machinery, and minimizes waste generation compared to open-cut excavation.
Backed by our comprehensive quality management (ISO9001), environmental management (ISO14000), and occupational health and safety (OHSAS18001) systems, every CIPP Liner Machine is a product of rigorous manufacturing standards. With an annual export value of US$1-1.5 Million and a strong presence across North America, South America, Europe, Asia, Africa, and Oceania, our global clientele trusts us for durable and effective pipeline solutions. Our strategic location in Qingdao, a major port city, ensures efficient logistics and timely delivery worldwide. Invest in a Qingdao Yongke CIPP Liner Machine to equip your team with a proven, efficient, and reliable technology that transforms pipeline rehabilitation projects, delivering superior results and a strong return on investment.
Frequently Asked Questions (FAQ)
Q1: What is the maximum pipeline diameter and length your CIPP machine can handle?
A1: Our standard machine configurations are adaptable for pipelines ranging from 100mm to 2000mm in diameter. The liner length capacity per installation run is typically up to 200 meters, but we can customize the winch and impregnation system for longer runs based on specific project requirements.
Q2: Is specialized training required to operate this machine?
A2: While the PLC control system is designed for user-friendliness, we strongly recommend and provide comprehensive operational training for your team. This ensures safe, efficient, and optimal use of the equipment, covering setup, operation, maintenance, and troubleshooting.
Q3: Can this machine be used for pressure pipelines or only for gravity sewers?
A3: Our standard CIPP Liner Machine is primarily engineered for the rehabilitation of non-pressure, gravity-flow sewer and pipeline systems. For pressure pipe rehabilitation (e.g., potable water lines), specific liner materials and installation protocols are required, which we can discuss as a potential customization.
Q4: What types of resin can be used with your impregnation system?
A4: The system is compatible with common thermosetting resins used in CIPP, such as epoxy, vinyl ester, and polyester resins. The mixing and metering units can be adjusted to handle the viscosity and curing characteristics of different resins.
Q5: How is the liner inversion or pull-in method performed with your equipment?
A5: Our machine is primarily designed for the pull-in and subsequent cure method. It features a powerful winch system to accurately pull the resin-impregnated liner through the host pipe. We provide guidance on the installation methodology best suited for your project conditions.
Q6: What is the typical lead time for delivery after ordering?
A6: Lead time depends on the specific configuration and customization level. For standard models, delivery can typically be arranged within 60-90 days after order confirmation. We utilize the Port of Qingdao for efficient international shipping to our global markets.
Q7: Do you offer after-sales support and spare parts?
A7: Absolutely. As a manufacturer, we provide comprehensive after-sales support, including technical assistance, a supply of genuine spare parts, and maintenance guidance to ensure the long-term performance and uptime of your investment.
Q8: Is the machine suitable for use in different climatic conditions?
A8: Yes, the machine is built with robust components suitable for various site conditions. However, the curing process of the resin-impregnated liner is temperature-sensitive. We provide operational guidelines for adjusting procedures in extreme hot or cold climates to ensure optimal results.
