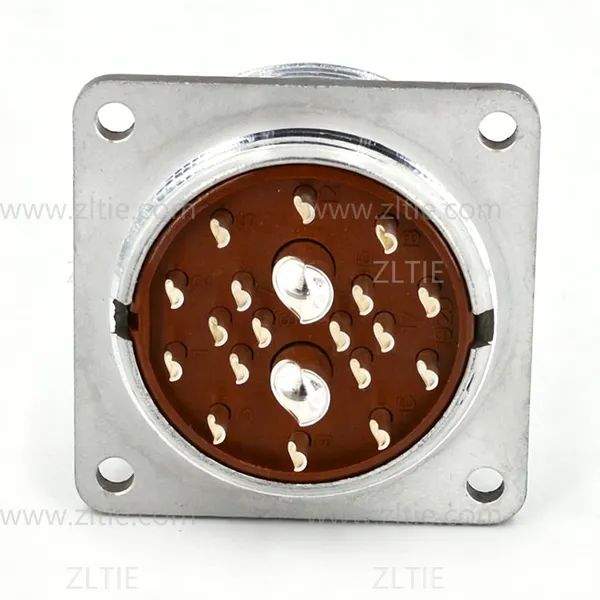

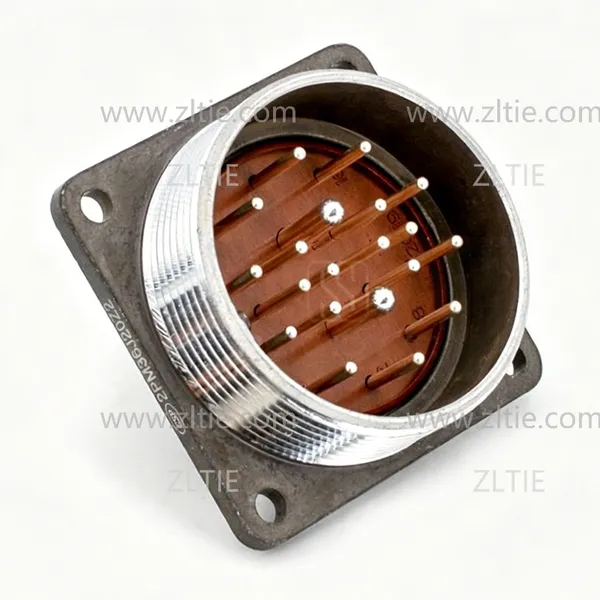

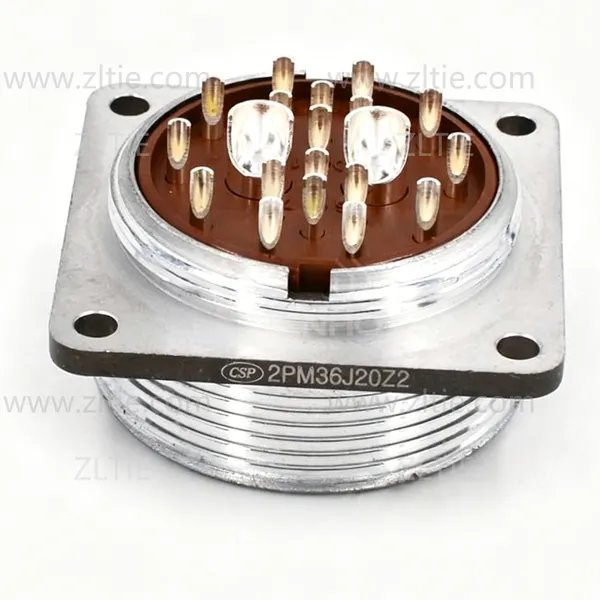

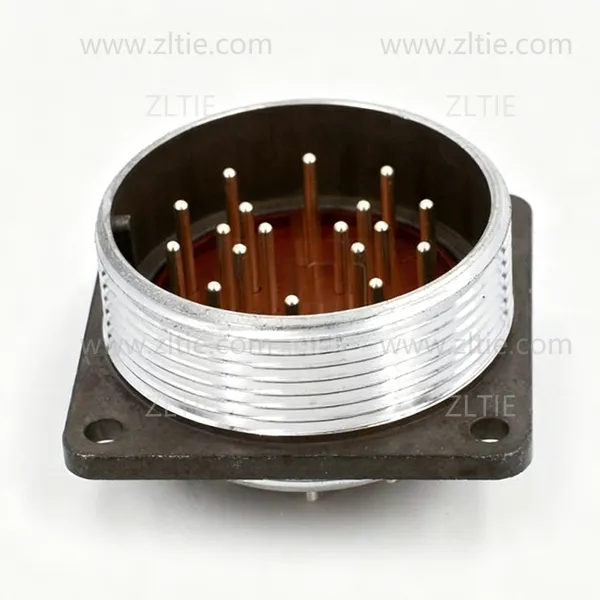

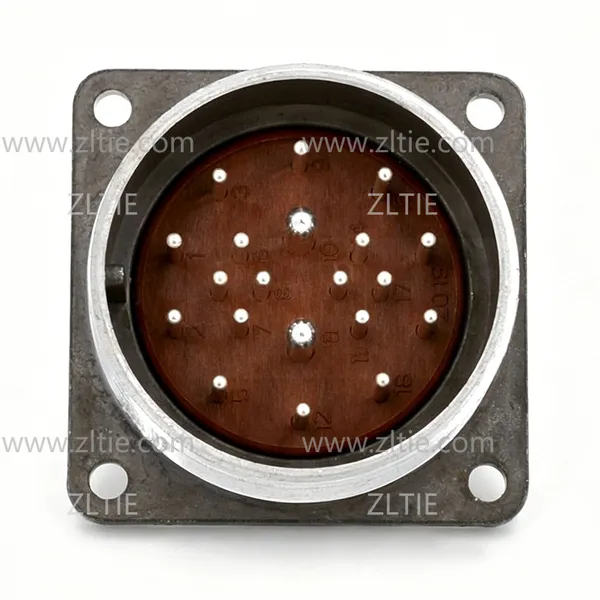

Help Center2PM-36 Series 20Pin Male Panel Socket – 2РМДТ36Б20Ш6В1В
Related Products
-
ZH23 Series Shell Size 22 7 Pin Male Socket With Straight Tail Attachment (Key Position: A) – СНЦ23-7/22В-2А-ВNegotiableMOQ: 200 Units -
FQ18 Series 7-Pin Square Flange Male SocketNegotiableMOQ: 200 Units
-
FQ14 Series 7-Pin Straight Wire Spring Female PlugNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 18 10 Pin Female Plug With Straight Tail Attachment – СНЦ23-10/18Р-6-ВNegotiableMOQ: 200 Units
-
P40 Series 9-Pin Straight Male Cable Plug With Shielded Tail Attachment P40J2PNegotiableMOQ: 200 Units
Product Details:
2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.
ATTRIBUTES:
Connector Type: Receptacle
Orientation: Straight
Number of Positions: 20 Pin
Contact Size:Φ1.5+Φ3.0
Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish: Silver/Gold
Fastening Type: Threaded
Rated Current: Φ1.5(10A)Φ3.0(30A)
Rated Voltage: ≤700V (AC)
Operating Temperature: -60℃ – +200℃
Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance: 0.8-5MΩ
