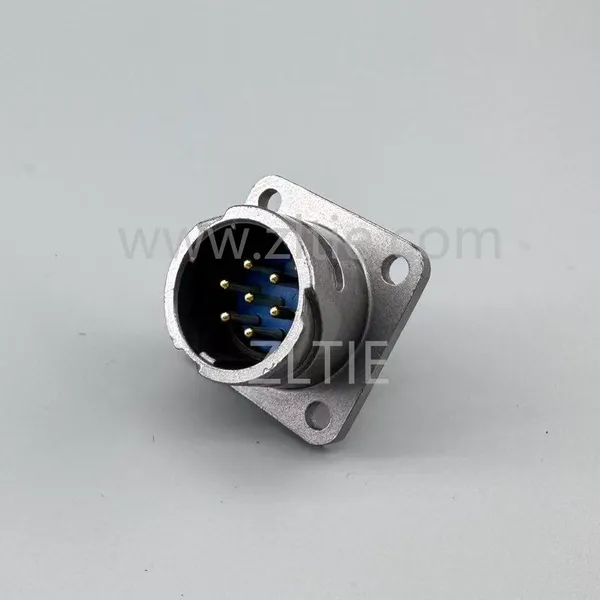

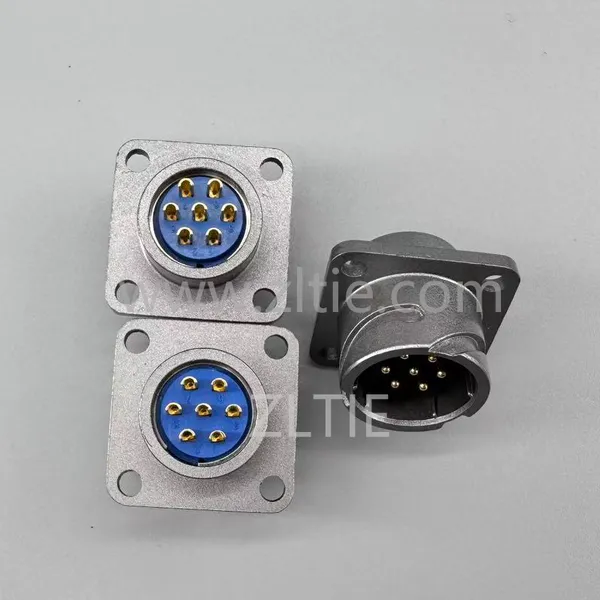

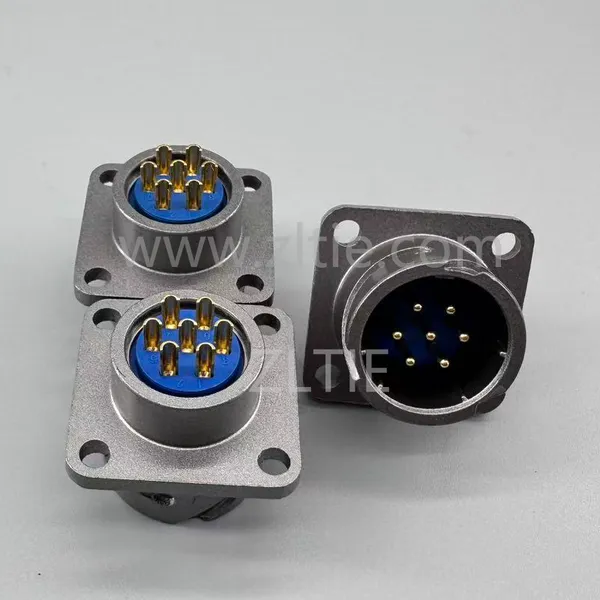

Help CenterFQ18 Series 7-Pin Square Flange Male Socket
Related Products
-
FQ14 Series 7-Pin Straight Wire Spring Female PlugNegotiableMOQ: 200 Units -
ZH23 Series Shell Size 18 10 Pin Female Plug With Straight Tail Attachment – СНЦ23-10/18Р-6-ВNegotiableMOQ: 200 Units
-
P40 Series 9-Pin Straight Male Cable Plug With Shielded Tail Attachment P40J2PNegotiableMOQ: 200 Units
-
P32 Series 10-Pin Male Socket Non-SealedNegotiableMOQ: 200 Units
-
2PM-27 Series 19Pin Female Panel Socket – 2РМДТ27Б19Г5В1ВNegotiableMOQ: 200 Units
Product Details:
FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
ATTRIBUTES:
Connector Type: Socket
Shell Size: 18
Contact Size: 7*1.5m
Nummber of Positions: 7 Pin
Connection Method: Bayonet Connection
Terminal Method: Solder
Rated Current: 10A
Contact Resistance: ≤2.5MΩ
Rated Voltage: 400V
Material of Contacts: Copper with Gold Plated
Copper with Gold Plated: PBT
Shell Material: Aluminum Alloy Surface Anodizing Treatment
Ambient Temperature: -55°C~+100°C
Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
Atmospheric: 1Kpa
Vibration: 10 ~ 200Hz, 150M/S²
IP Rating: IP67
Life Duration: 500 Cycles
