Help CenterNXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN6-1500 Pressure 3000-9000lb ASME B16.11 Nickel Alloy Forging Socket Welding Cap
Product Spotlights
Power Industry: Sealing auxiliary lines in high-pressure steam piping systems.
HVAC: Terminating small-bore water or gas piping.
Marine and Offshore Engineering: Sealing piping in space-constrained areas.
Related Products
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy 90/45 Deg LR/SR Butt Welding ElbowUS$ 6.5 - 8MOQ: 10 Pieces -
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy BW Concentric or Eccentric ReducerUS$ 5 - 6.4MOQ: 10 Pieces
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Nickel Alloy Butt Welding Straight or Reducing TeeUS$ 4.5 - 5MOQ: 10 Pieces
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy Butt Welding CapUS$ 5 - 7MOQ: 10 Pieces
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy Butt Welding Lap Joint Stub EndUS$ 4.5 - 5MOQ: 10 Pieces
C276 Introduction
Super alloys or high performance alloys are available in a variety of shapes and contain elements in different combinations to obtain a specific result. These alloys are of three types that include iron-based, cobalt-based and
nickel-based alloys. The nickel-based and cobalt-based super alloys are available as cast or wrought based alloys according to composition and application. Super alloys have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. They can also function under high mechanical stress and high temperatures and also in places that require high surface stability. HASTELLOY(r) C276 is a wrought corrosion-resistant alloy that resists the development of grain boundary precipitates that degrade corrosion resistance. The following datasheet provides an overview of HASTELLOY(r) C276.
Forging Socket Welding Cap Introduction
Description
A cap is a type of fitting used to close the end of a pipeline. They are primarily used to terminate a pipe run and prevent fluid or gas from leaking out. Caps can be either permanent or semi-permanent.
Socket weld pipe connections are used in high temperature and high-pressure environments. Socket weld pipe connections feature a smooth internal bore sized to match the outer diameter of the pipe. The pipe end is inserted into the socket and then fillet welded around the joint, forming a strong, leak-tight seal. Socket weld connections are popular in smaller sized fittings and are permanent.
Forged Carbon Steel Components are manufactured via a process known as forging. Carbon Steel is the most common and widely used
form of steel worldwide due to its strength, workability, and cost. Carbon Steel is an alloy of Iron that uses carbon as the
primary alloying element.Unlike cast steel, forged steel components are created by direct manipulation of the metal by compressive tools like a hammer or a press. Forged Steel is generally stronger than cast steel and has a lower rate of defects.
Cap Applications
Pipeline Terminations
Testing and Maintenance
Advantages of Socket Weld Connections
Easy Installation
Leak-Proof
Cost Effective
Resistant to Loosening
Applications of Socket Weld Connections
High-Pressure Systems
Hazardous Fluids
Forged Carbon Steel Applications
High Stress Applications
Tooling and Hardware
Marine and Commercial

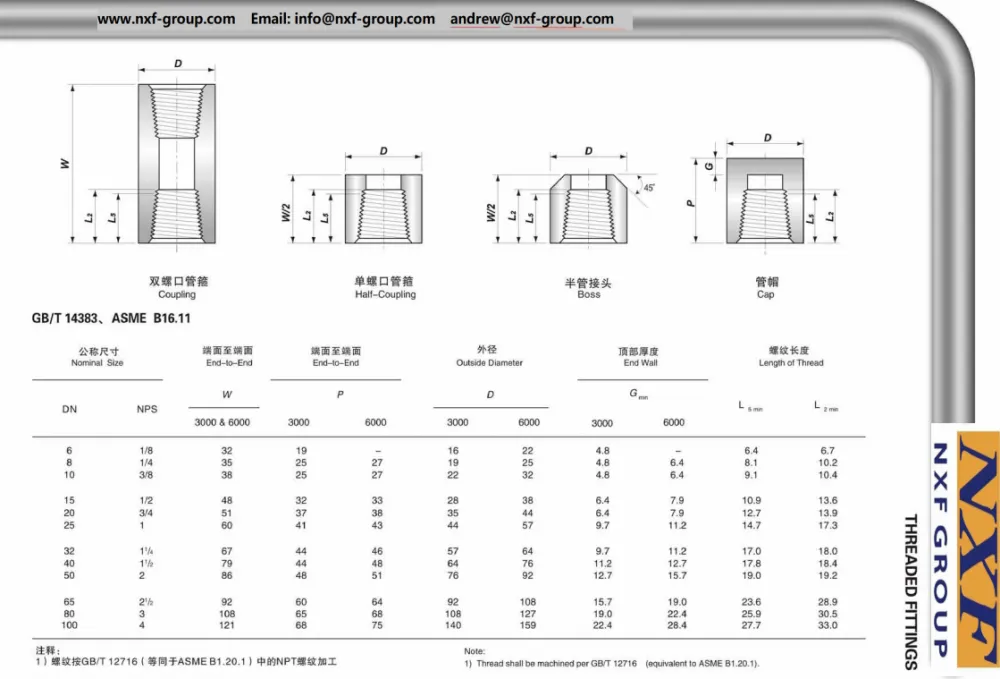

C276 Forging Socket Welding Cap Drawing

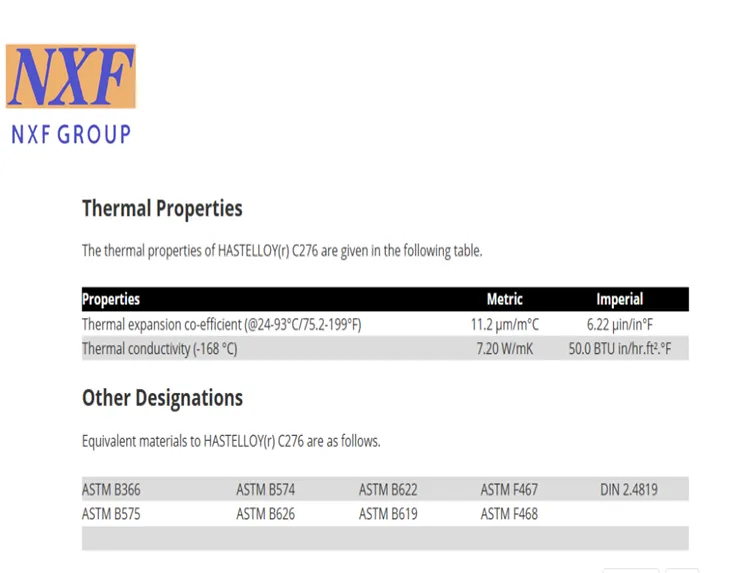

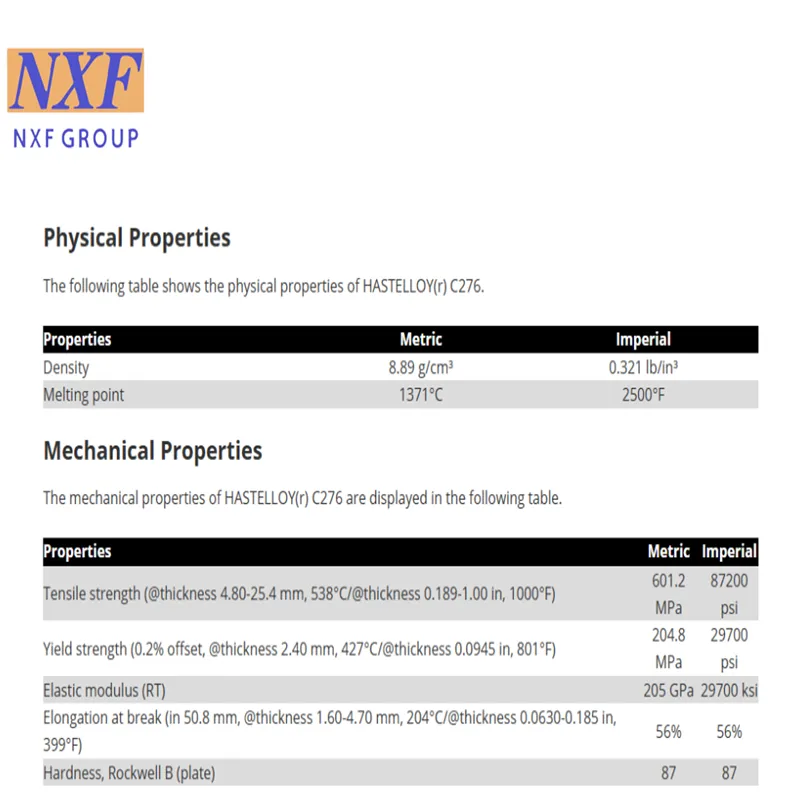

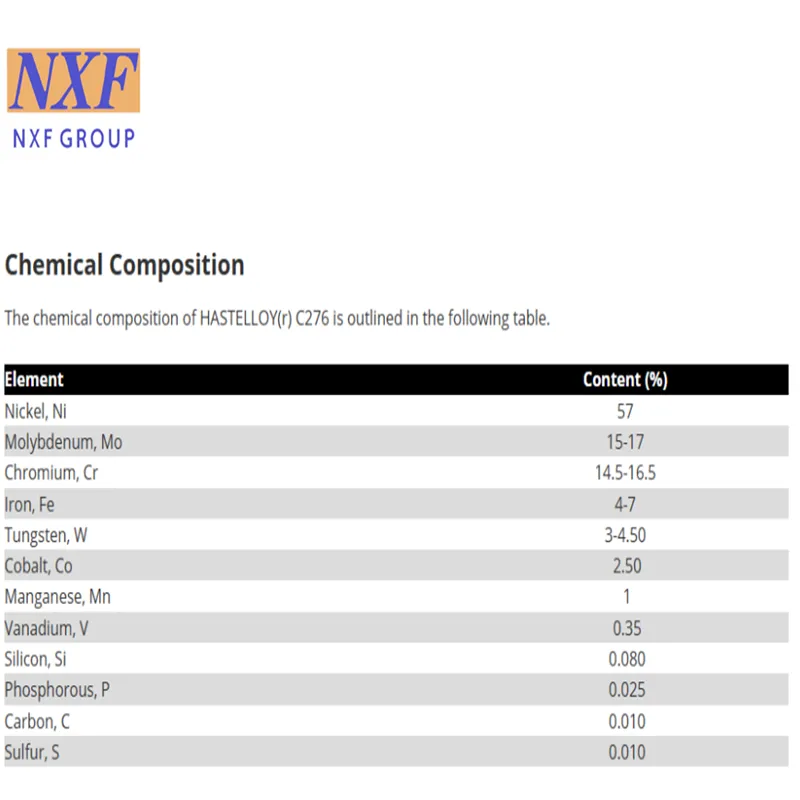

C276 Chemical composition and mechanical properties
Factory and Product Pictures

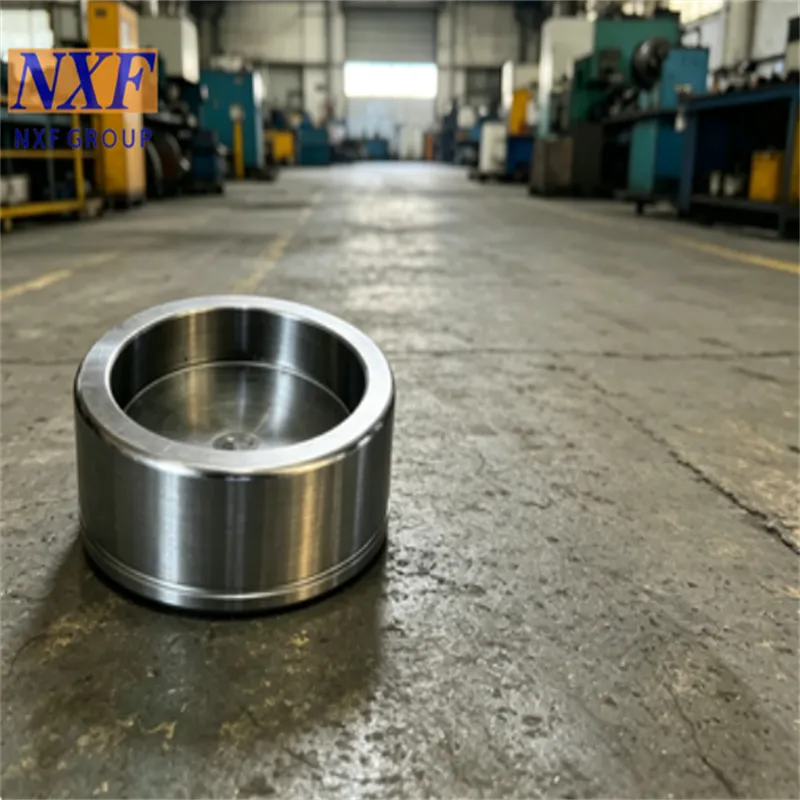

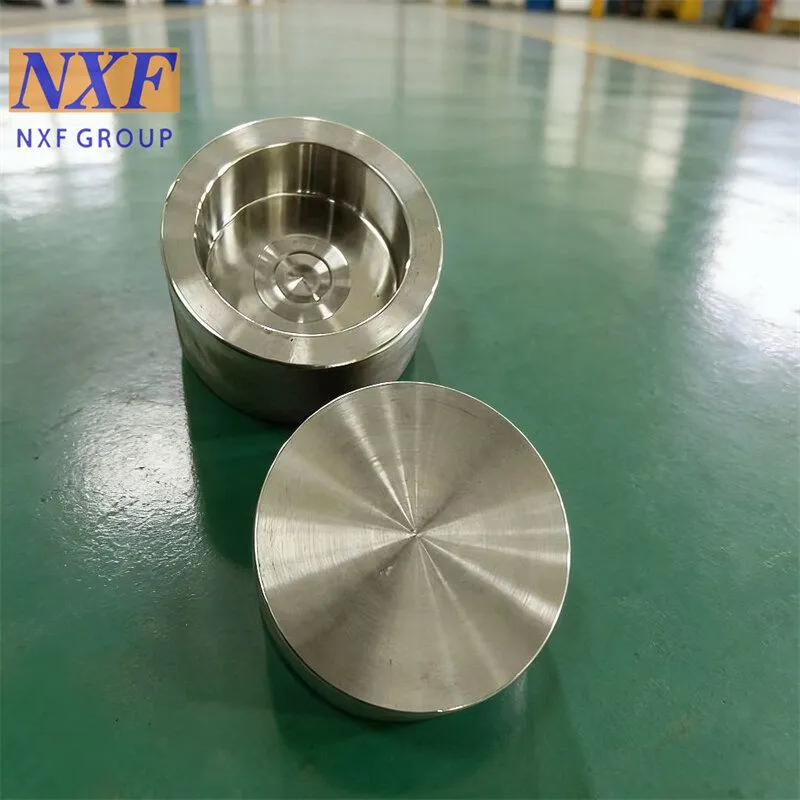

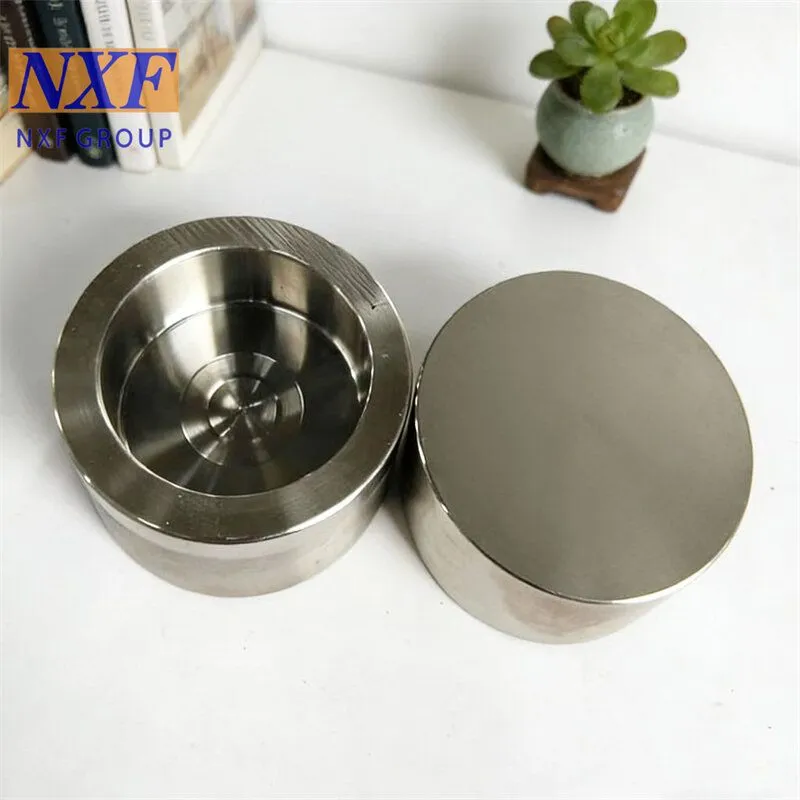

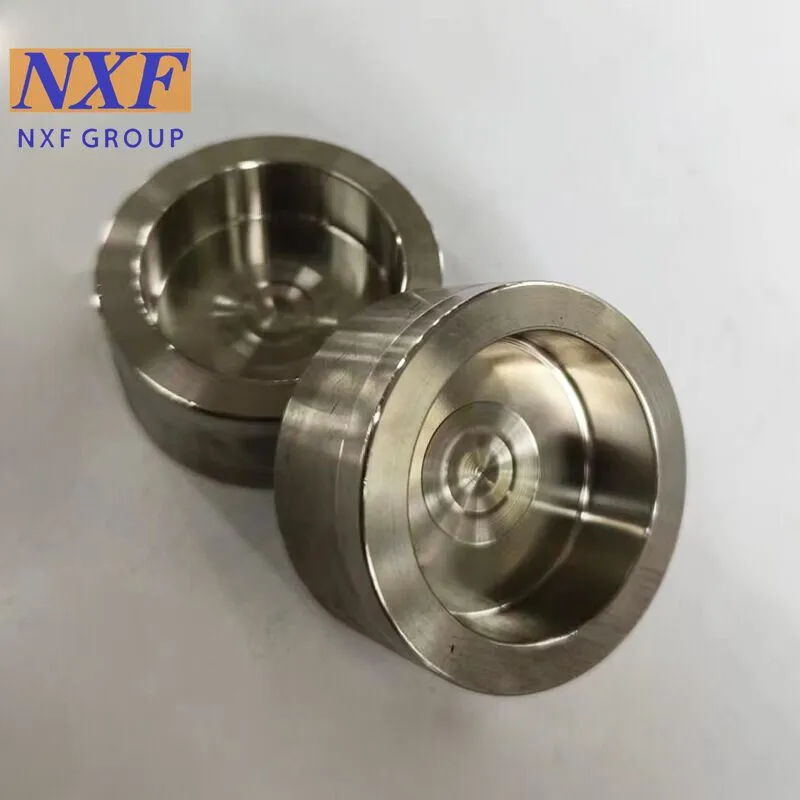

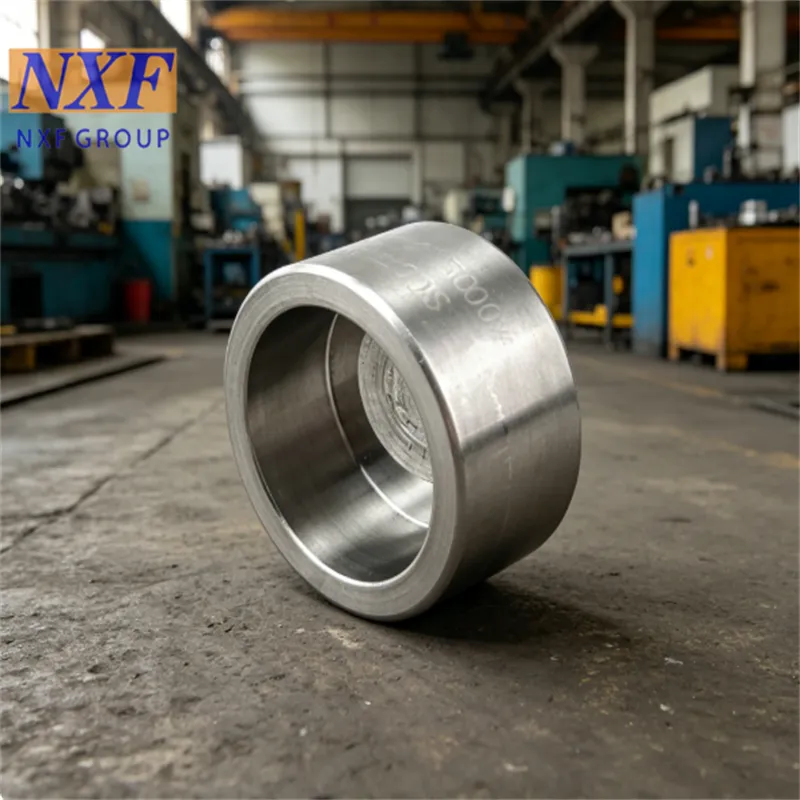

Forging Socket Welding Cap Factory and Product Pictures

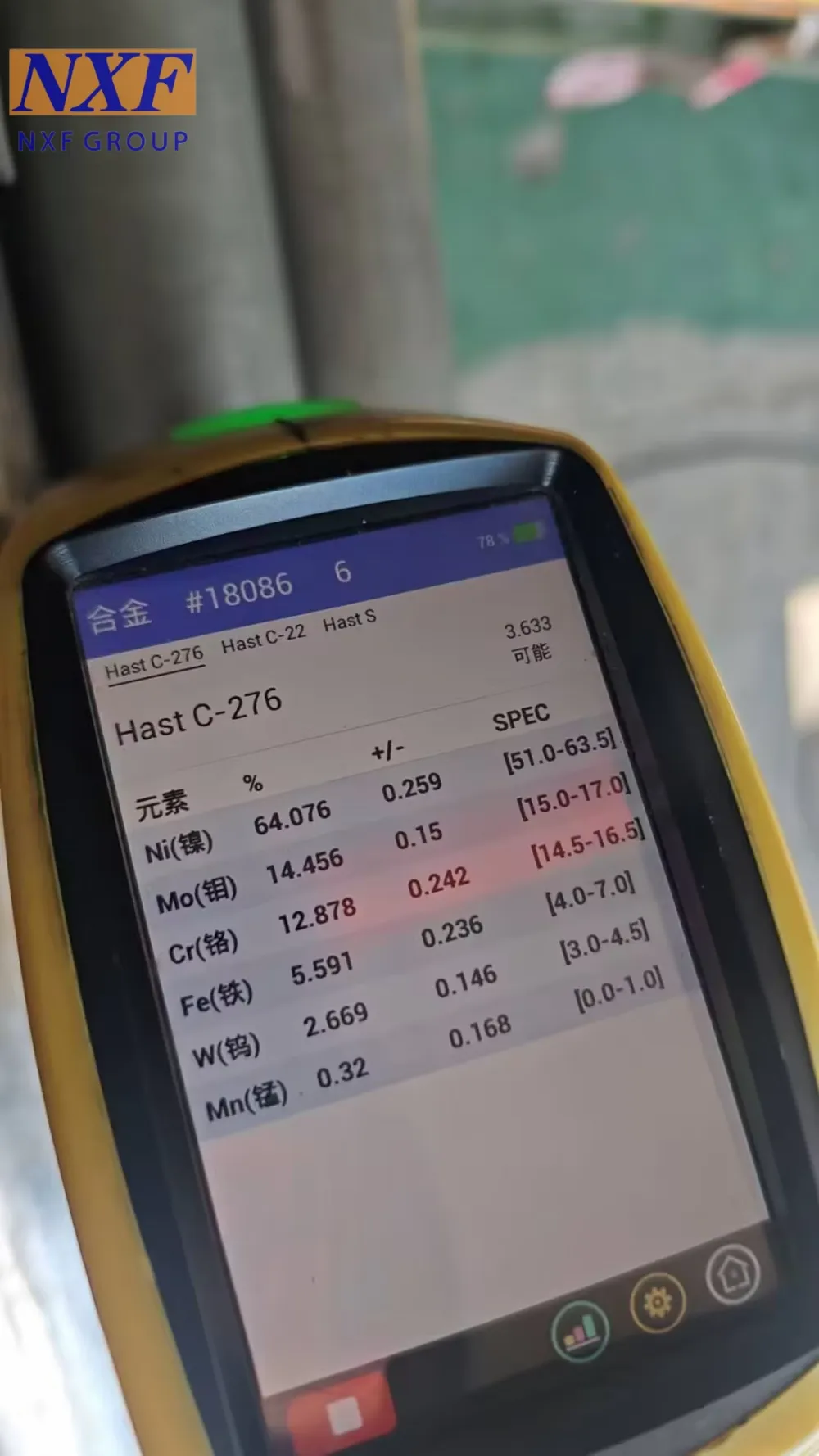

C276 PMI spectral testing proves

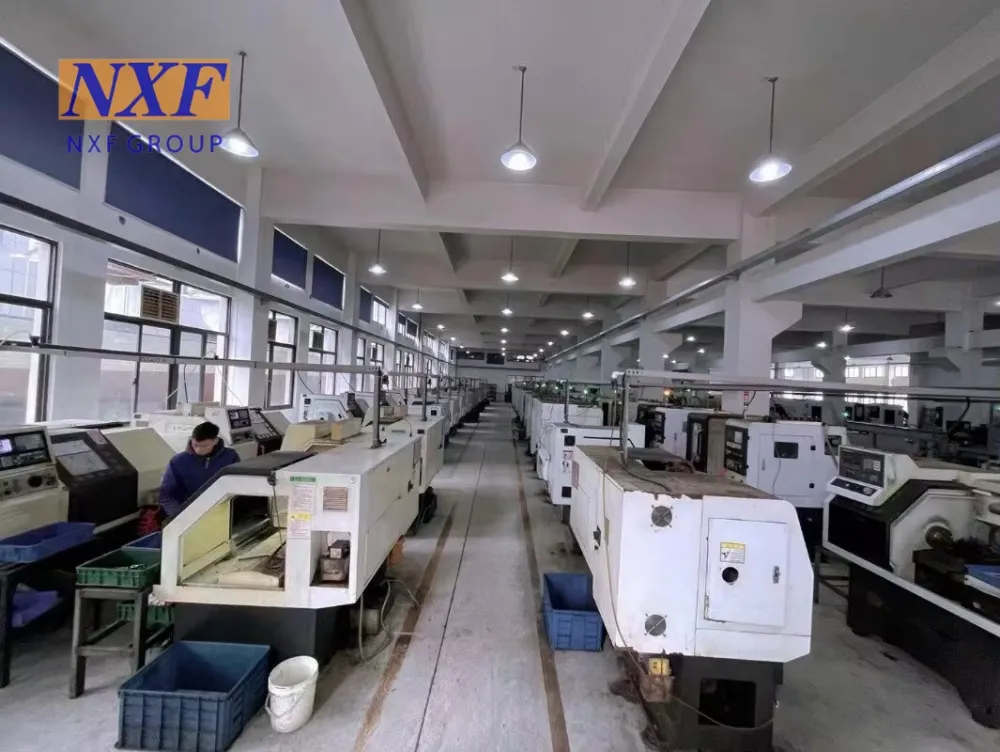

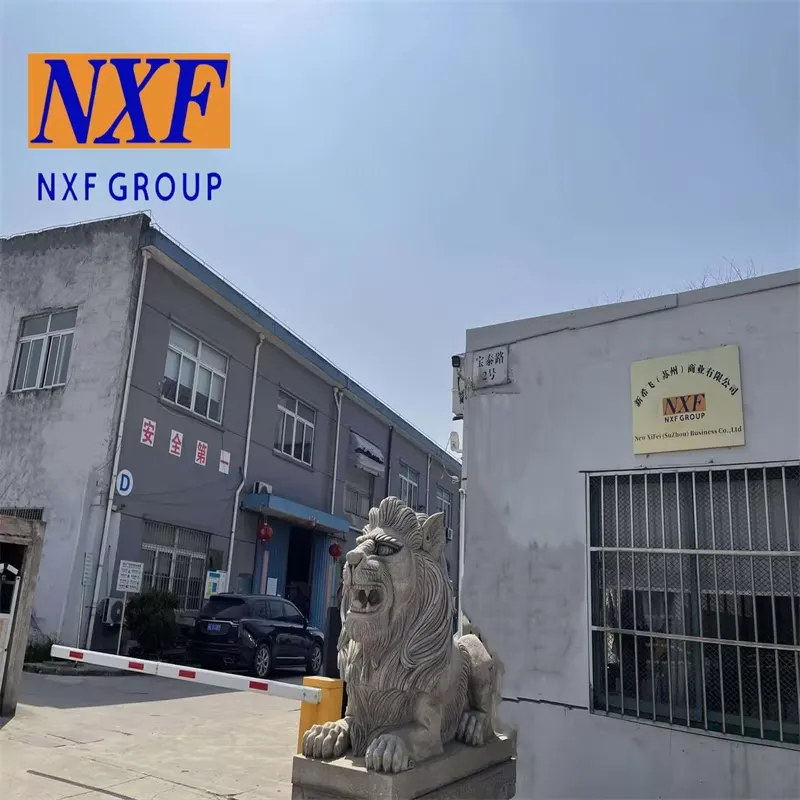

Our Factory
Forging Socket Welding Cap Processing
Raw Material Incoming Inspection Select round bars or ingots (e.g., A105, 304/316L forged stock) and verify that their chemical composition, mechanical properties, and surface quality comply with applicable standards (e.g., ASTM
A105/A182).
Cutting and Heating: Cut the raw stock to the specified dimensions, then heat it via induction or furnace to the
appropriate forging temperature (approx. 1100–1250°C for carbon steel; approx. 1000–1150°C for stainless steel).
Die Forging: Form the rough workpiece—featuring a socket bore and external threads (if required)—using dies on a forging hammer or hydraulic press, ensuring a continuous grain flow and the absence of folds or cracks.
Heat Treatment (Material-dependent): Carbon steel typically undergoes normalizing, or normalizing followed by tempering, to refine its grain structure; stainless steel (e.g., 304) requires solution annealing (at approx. 1050°C) to enhance its corrosion resistance and toughness.
Trimming and Shot Blasting:Remove flash and burrs, then perform shot blasting to remove scale and surface oxides while simultaneously surface-hardening the component.
Machining: Use a lathe to machine the inner diameter of the socket bore, the outer diameter, the end face, and the bevel (if applicable for butt-weld ends). The socket depth and wall thickness are precisely controlled in accordance with relevant standards (e.g., ASME B16.11), typically maintaining an insertion clearance of approximately 1.6 mm.
Inspection and Marking: Conduct dimensional checks, surface non-destructive testing (PT/MT), and hardness testing. Apply standard markings via steel stamping (indicating material grade, pressure rating, standard number, and heat/batch number).
Corrosion Protection and Packaging: Carbon steel components may be coated with rust-inhibiting oil or galvanized; stainless steel components undergo pickling and passivation. Finally, pack the finished products into crates, accompanied by the corresponding Material Test Report (MTR).
Note: Socket-weld caps are not manufactured using stamping or welded-end processes (which are the methods used for butt-weld caps/ends); their core manufacturing process consists of forging followed by machining
Our NXF GROUP advantage as follow
1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.
2.Our NXF GROUP can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.
3.Our NXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.
4.Our NXF GROUP have excellent quality certificate system and trademark certificate
5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by International Station, as well as remote technical guidance and services.
6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you with a one-stop service.
Trade Show Participation
Packing & Delivery
Company Profile
New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals,machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories.Established in1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolutecustomer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."
Our advantage:
3S Service(Small Quantity/Short Time/Special Material)
Certifications
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Pipe,Flange,Steel plate,Pipe fittings,Alloy products
4. why should you buy from us not from other suppliers? Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA； Accepted Payment Currency:USD,EUR,CAD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A; Language Spoken:English,Chinese
6. Are you trading company or manufacturer ? We are manufacturer.
7. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not
in stock, it is according to quantity.
8. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
9. What is your terms of payment ? Payment
