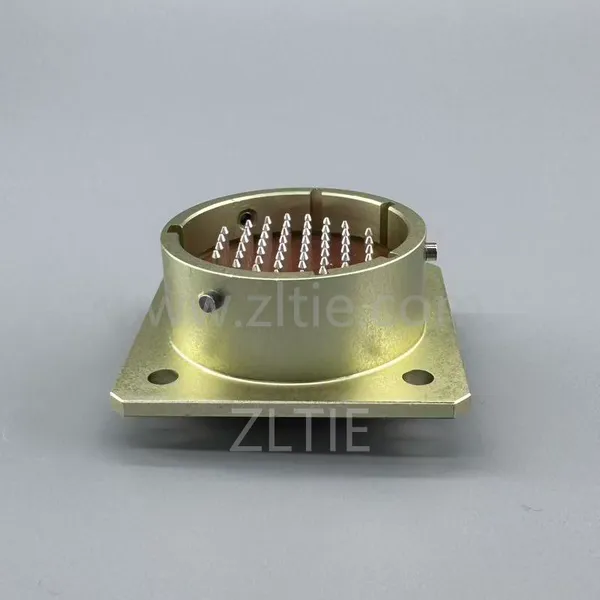

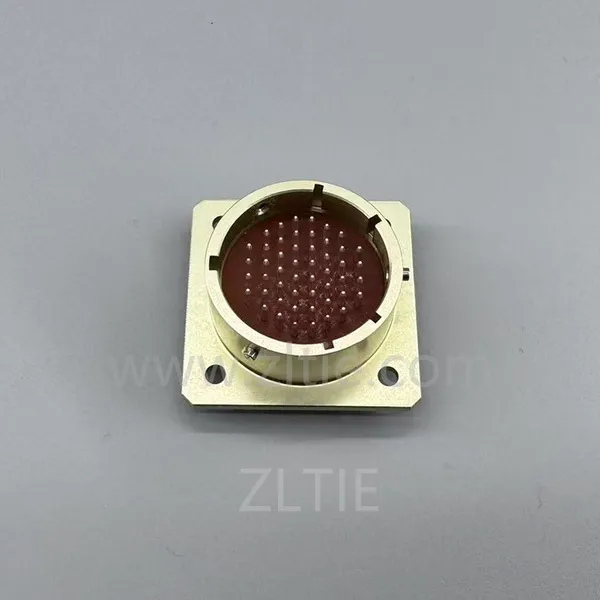

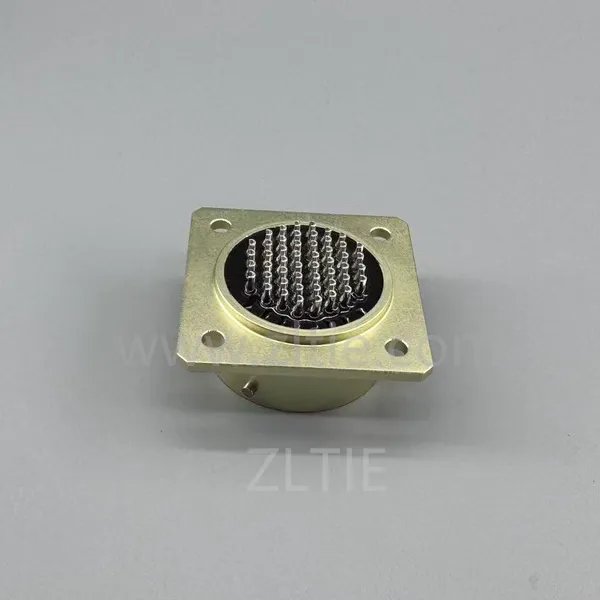

Help CenterОНS-BC-1-50/27-B1-1-B Circular Connector 50 Pin Male Socket Shell Size 27 Electrical Aviation Connector
Related Products
-
FQ14 Series 3-Pin Circular Flange Female Socket With Wire Spring Tail AttachmentNegotiableMOQ: 200 Units -
2PM-27 Series 7Pin Male Straight Cable Plug Unshielded – 2РМДТ27КПН7Ш5В1ВNegotiableMOQ: 200 Units
-
2PM-36 Series 20Pin Male Panel Socket – 2РМДТ36Б20Ш6В1ВNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 22 7 Pin Male Socket With Straight Tail Attachment (Key Position: A) – СНЦ23-7/22В-2А-ВNegotiableMOQ: 200 Units
-
FQ18 Series 7-Pin Square Flange Male SocketNegotiableMOQ: 200 Units
Product Details:
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНS-BС-1(2) series.
ATTRIBUTES:
Connector Type: Receptacle
Contact Type: Male
Number of Positions: 50 Pin
Shell Size: 27
Contact Material: Copper Alloy Gold/Silver Plating
Fastening Type: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Contact Size: Φ1.0
Maximum current per contact: 1.5A
Sum of Currents: 75A
Rated Voltage: 250V
Contact Resistance: ≤5MΩ
Contact Termination: Solder
Fastening Type: Bayonet Connection
Number of Insertions and Removals: 250
Operating Temperature: -60℃ – +85℃
