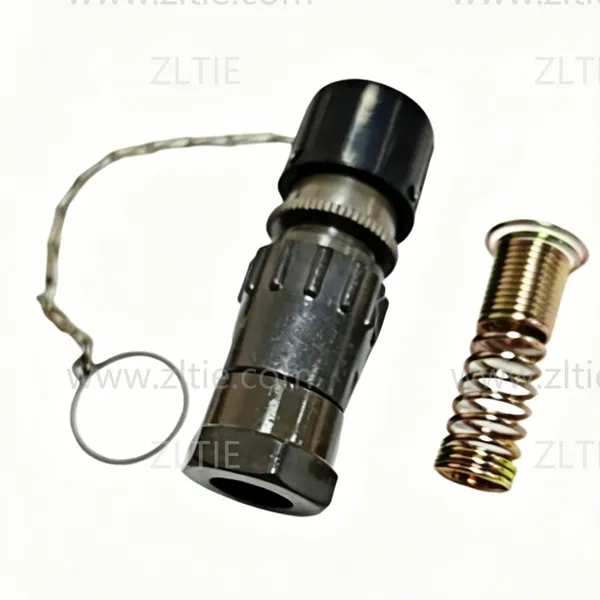

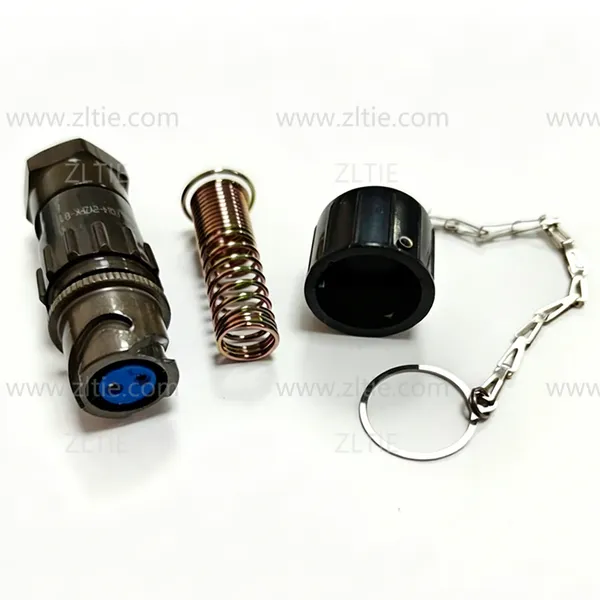

Help CenterFQ14 Series 3-Pin Circular Flange Female Socket With Wire Spring Tail Attachment
Related Products
-
2PM-27 Series 7Pin Male Straight Cable Plug Unshielded – 2РМДТ27КПН7Ш5В1ВNegotiableMOQ: 200 Units -
2PM-36 Series 20Pin Male Panel Socket – 2РМДТ36Б20Ш6В1ВNegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 22 7 Pin Male Socket With Straight Tail Attachment (Key Position: A) – СНЦ23-7/22В-2А-ВNegotiableMOQ: 200 Units
-
FQ18 Series 7-Pin Square Flange Male SocketNegotiableMOQ: 200 Units
-
FQ14 Series 7-Pin Straight Wire Spring Female PlugNegotiableMOQ: 200 Units
Product Details:
FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
ATTRIBUTES:
Connector Type: Plug
Shell Size: 14
Contact Size: 3*1.0mm
Nummber of Positions: 3 Pin
Connection Method: Bayonet Connection
Terminal Method: SolderRated Current: 5A
Contact Resistance: ≤5MΩ
Rated Voltage: 400V
Material of Contacts: Copper with Gold Plated
Copper with Gold Plated: PBT
Shell Material: Aluminum Alloy Surface Anodizing Treatment
Ambient Temperature: -55°C~+100°C
Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
Atmospheric: 1Kpa
Vibration: 10 ~ 200Hz, 150M/S²
IP Rating: IP67
Life Duration: 500 Cycles
