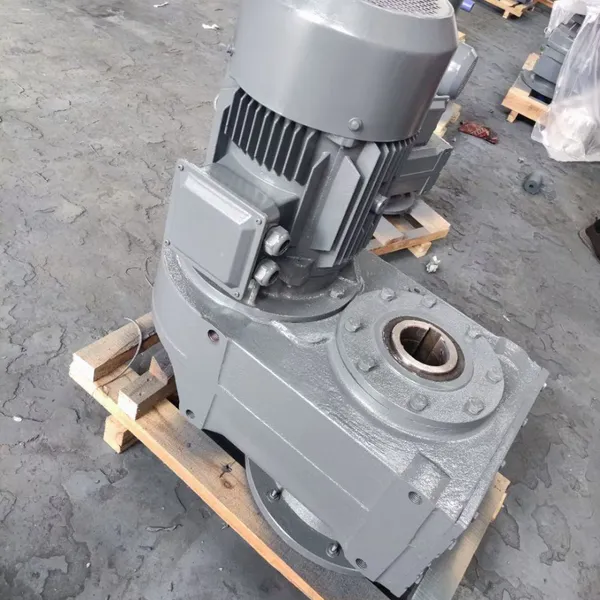

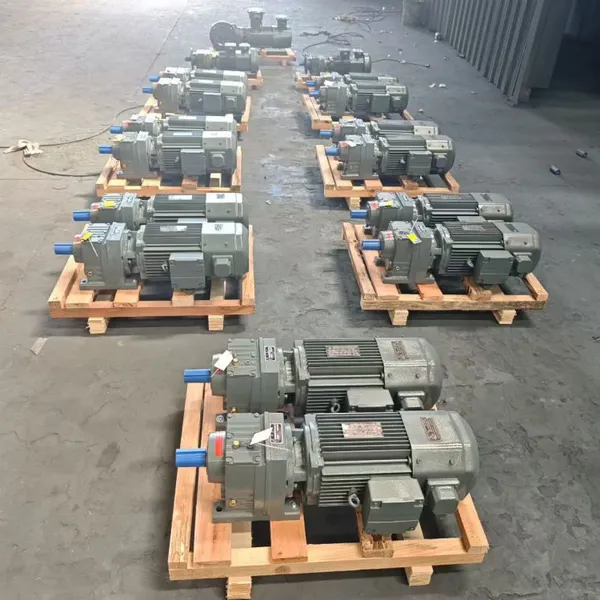

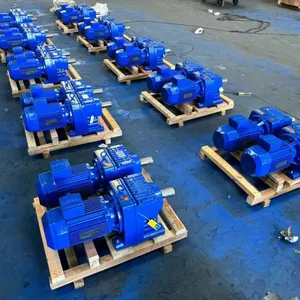

Help CenterIndustrial Mixer Drive Solution With F Series Parallel Shaft Geared Motors F57 to F97
Product Spotlights
Related Products
-
Reliable Drive for Automated Material Handling, S Series Worm Helical GearmotorNegotiableMOQ: 1 Set -
S Series Geared Motor With Helical-Worm Gearing, Output Torque up to 2800 NmNegotiableMOQ: 1 Set
-
S Series Worm Helical Geared Motor S57 S67 S77 S87 S97 S107 With Cast Iron HousingNegotiableMOQ: 1 Set
-
S Series Geared Motor With B5 Flange Mounting, IEC Standard Foot and FlangeNegotiableMOQ: 1 Set
-
Durable S Series Motor for Mixing and Agitation Applications, IP55 ProtectionNegotiableMOQ: 1 Set
As a specialized manufacturer based in Suzhou, Jiangsu, Jiangsu Manqi Machinery Co., Ltd. is dedicated to providing robust and reliable power transmission solutions for demanding industrial applications. Our Industrial Mixer Drive Solution with F Series Parallel Shaft Geared Motors represents a culmination of engineering focus and manufacturing expertise developed since our establishment in 2017. Designed specifically for the rigorous requirements of mixing processes across various industries, this solution delivers consistent torque, reliable operation, and long service life, helping you maintain productivity and reduce downtime.
The core of this solution is our F Series parallel shaft helical gear motor, available in sizes from F57 to F97. This design is favored for industrial mixers due to its high efficiency, excellent torque transmission capability, and compact footprint. Operating from our 10,000-30,000 square meter facility, we control the manufacturing process to ensure each unit meets stringent quality standards before shipment from the Port of Shanghai to markets including Eastern Europe, Southeast Asia, Africa, and South Asia.
Key Features and Technical Advantages:
- Robust Construction for Demanding Duty: The gearbox housing is manufactured from high-grade cast iron, providing superior rigidity and vibration damping, which is critical for the variable loads encountered in mixing applications.
- High-Efficiency Helical Gearing: The parallel shaft design incorporates precision-cut helical gears. This geometry ensures smooth, quiet operation and high mechanical efficiency, translating to lower energy consumption over the drive's lifetime.
- Optimized Thermal Management: The design includes efficient heat dissipation features and reliable oil bath lubrication, ensuring stable performance and extended lubricant life even during continuous operation in industrial environments.
- Flexible Configuration and Integration: The solution is designed for seamless integration with standard industrial mixers. Various mounting options (foot or flange) and a wide range of standard gear ratios provide the flexibility needed to match specific process speed and torque requirements.
- Dependable Sealing System: Multi-layered sealing at input and output shafts effectively prevents lubricant leakage and ingress of contaminants, protecting the internal gearing and bearings in challenging plant conditions.
Technical Specifications Overview:
| Parameter | Description / Range |
| Product Series | F Series Parallel Shaft Geared Motors |
| Frame Sizes Available | F57, F67, F77, F87, F97 |
| Gear Type | Helical Gears, Hardened and Ground |
| Housing Material | Cast Iron (GGG-40 or equivalent) |
| Input Configuration | IEC Standard Motor Flange (B5, B14) |
| Output Shaft | Solid Shaft, Keyed (optional hollow shaft) |
| Lubrication | Synthetic Industrial Gear Oil (initial fill) |
Benefits for Your Mixing Operation:
- Enhanced Process Reliability: Consistent torque output ensures uniform mixing quality, batch after batch, reducing product variability.
- Reduced Operational Costs: High mechanical efficiency lowers energy consumption. The durable construction minimizes the frequency and cost of maintenance interventions.
- Extended Equipment Lifecycle: The robust design and protective features guard against premature failure, extending the service interval of both the drive and the mixer itself.
- Simplified Maintenance: Standardized components and accessible design make routine checks and lubrication straightforward, keeping your maintenance team efficient.
Application Versatility:
This drive solution is engineered to perform in a diverse array of mixing applications, handling mediums from low-viscosity liquids to high-viscosity pastes and slurries. It is suitable for industries including:
- Chemical Processing: Agitating reactors, blending tanks.
- Food & Beverage: Mixing ingredients, homogenizing products.
- Pharmaceuticals: Stirring vessels for drug formulation.
- Water & Wastewater Treatment: Flocculation and mixing tanks.
- Paints & Coatings: Dispersing pigments and resins.
Backed by the focused manufacturing capabilities of Jiangsu Manqi Machinery, this solution is built for performance. With a dedicated team of 11-50 professionals overseeing production and quality, we ensure each unit is ready for the challenges of your industrial environment. Our experience in exporting to diverse international markets means we understand the requirements for reliable shipment and documentation. Choose a drive solution engineered for durability and efficiency. Contact us today to discuss how our F Series mixer drive can be configured for your specific application requirements and to request detailed technical data.
Frequently Asked Questions (FAQ)
-
What is the main advantage of a parallel shaft design for mixer applications?
The parallel shaft configuration offers high torque density and efficiency in a compact form factor. It is known for its robustness and ability to handle the shock loads and continuous operation typical in mixing, making it a reliable choice for industrial duty. -
Can this drive solution be matched with my existing mixer and motor?
Yes, the F Series gearboxes are designed with standard IEC motor flanges and output shaft dimensions. Providing your mixer's shaft size and the desired output speed/torque allows us to recommend a suitable model and ratio from the F57-F97 range. -
What types of mixing processes are these geared motors suitable for?
They are well-suited for a wide spectrum, including low to high-speed agitation, blending of liquids and semi-solids, and dispersing operations in industries like chemicals, food, pharmaceuticals, and wastewater treatment. -
How is the gear motor lubricated, and what is the maintenance interval?
The unit utilizes an oil bath lubrication system with high-quality synthetic gear oil. The initial oil change interval is typically recommended after the first 500 hours of operation, with subsequent intervals based on operating conditions, which can be detailed in the product manual. -
Are custom modifications, like special output shafts or mounting configurations, available?
Customizable options are often available upon request. This can include specific shaft dimensions, special coatings for corrosion resistance, or alternative mounting arrangements to fit unique machinery layouts. -
What information do I need to provide to get an accurate quotation for this drive solution?
To provide a precise recommendation and quote, please share your application's required output speed (RPM), output torque (Nm), the power of your motor (kW/HP), duty cycle, and any specific environmental conditions (e.g., temperature, exposure). -
What is the typical lead time for an order of these geared motors?
Lead times can vary based on the specific model, ratio, and order quantity. Standard configurations generally have shorter lead times, while custom options may require additional engineering and manufacturing time. -
Do you provide technical support for installation and integration?
We supply comprehensive installation manuals and dimensional drawings with each unit. For complex integration projects, further technical consultation regarding installation and setup can be arranged.
