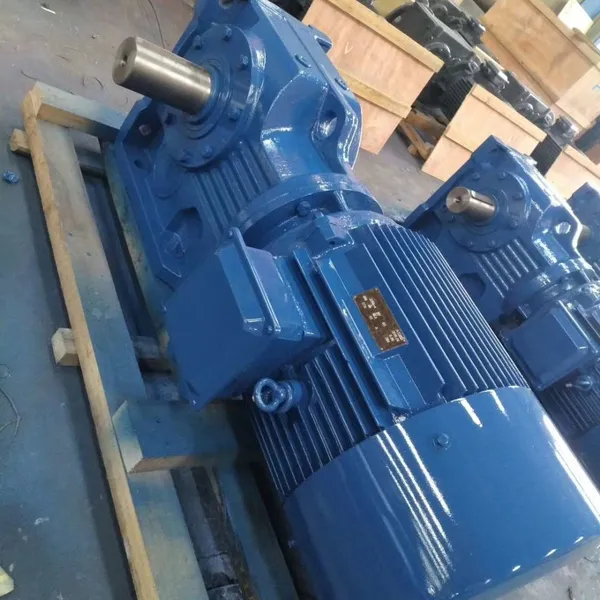

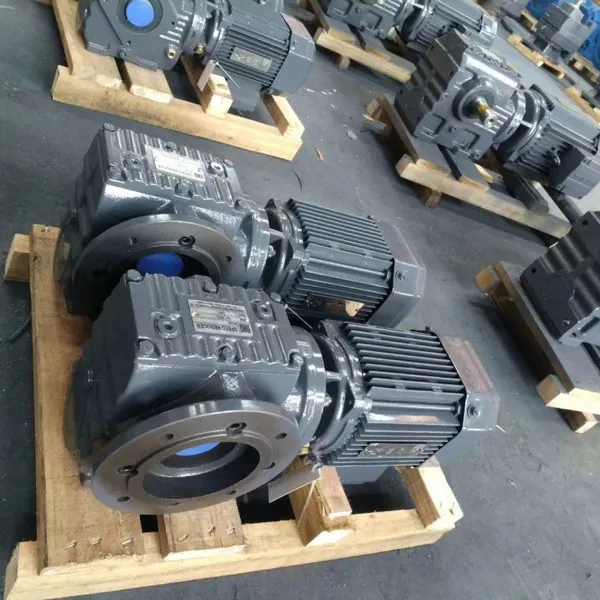

Help CenterReliable Drive for Automated Material Handling, S Series Worm Helical Gearmotor
Product Spotlights
Related Products
-
S Series Geared Motor With Helical-Worm Gearing, Output Torque up to 2800 NmNegotiableMOQ: 1 Set -
S Series Worm Helical Geared Motor S57 S67 S77 S87 S97 S107 With Cast Iron HousingNegotiableMOQ: 1 Set
-
S Series Geared Motor With B5 Flange Mounting, IEC Standard Foot and FlangeNegotiableMOQ: 1 Set
-
Durable S Series Motor for Mixing and Agitation Applications, IP55 ProtectionNegotiableMOQ: 1 Set
-
S Series Motor Compliant With International Standards, Performance Data ProvidedNegotiableMOQ: 1 Set
As a dedicated manufacturer, Jiangsu Manqi Machinery Co., Ltd. brings over seven years of precision engineering expertise to the industrial automation sector. Our S Series Worm Helical Gearmotor is engineered specifically for the demanding environments of automated material handling. Designed in our Suzhou facility, which spans over 10,000 square meters, this gearmotor combines the robustness of worm gear technology with the efficiency of helical gears to deliver a reliable, high-torque drive solution for conveyors, lifts, sorting systems, and robotic transfer units.
The core value of this product lies in its balanced performance. It offers the high reduction ratios and self-locking capability inherent to worm gears, which are crucial for safety in vertical lifting applications, while integrating helical gears to improve transmission efficiency and reduce operational noise and heat generation. This hybrid design makes it a versatile and dependable choice for continuous operation in warehouses, distribution centers, and manufacturing plants.
We understand that reliability is paramount in material handling systems. Downtime can disrupt entire operations. Therefore, the S Series gearmotor is built with high-quality components and undergoes rigorous testing to ensure it meets the sustained performance demands of your automated processes.
Hybrid Gear Design for Optimal Performance: The combination of worm and helical gears provides a unique advantage. The worm gear offers high torque multiplication and a natural braking effect (self-locking in many configurations), essential for holding loads securely. The helical gear stage enhances overall efficiency, leading to lower energy consumption over long running periods compared to pure worm gearmotors.
Engineered for Automated Material Handling: This gearmotor is tailored for applications such as:
Conveyor belt drives for horizontal and inclined transport.
Drive units for palletizers, depalletizers, and sorting machines.
Power source for automated guided vehicle (AGV) lifting mechanisms.
Actuation for robotic pick-and-place arms and transfer stations.
Robust Construction and Durability: Manufactured with high-strength alloy gears and precision-machined housings, the unit is designed to withstand the shock loads, vibration, and continuous duty cycles common in material handling. The housing provides effective protection against dust and moisture ingress.
Configurable and Flexible: The S Series is designed to be integrated with various standard IEC motors. Key parameters can be customized to match your specific system requirements.
Technical Specifications & Customization Options:
| Parameter | Description / Range |
| Gear Type | Worm Helical (Combination) |
| Model Series | S Series |
| Mounting Style | Foot-mounted (standard), Flange-mounted (optional) |
| Input Power (Motor) | Customizable; compatible with standard AC motors (e.g., 0.12kW to 7.5kW range typical) |
| Output Torque | Available upon request based on motor power and reduction ratio |
| Reduction Ratio | Standard ratios available (e.g., from 5:1 to 100:1). Custom ratios can be engineered. |
| Enclosure Protection (IP Rating) | IP55 (standard), higher ratings (IP65/IP66) available upon request |
| Operating Temperature Range | Standard industrial range (-10°C to +40°C). Special lubrication available for extended ranges. |
| Lubrication | High-performance synthetic grease (standard), oil bath optional for specific needs |
Benefits for Your Operation:
Enhanced System Reliability: The durable design and hybrid gear technology reduce the risk of unexpected failure, contributing to higher overall equipment effectiveness (OEE) for your material handling lines.
Improved Energy Efficiency: The helical gear stage offers better efficiency than a standalone worm gear, which can lead to measurable savings in electricity costs for systems running 24/7.
Quieter Operation: Reduced noise levels compared to some pure worm gear units create a better working environment and may help meet specific workplace noise regulations.
Safety through Self-Locking Potential: In appropriate ratio configurations, the worm gear provides a inherent locking feature, preventing back-driving, which is a critical safety factor in lifting and holding applications.
Simplified Integration & Maintenance: The standardized mounting interfaces and design facilitate easier installation into new or existing systems. Accessible design also supports straightforward maintenance procedures.
Jiangsu Manqi Machinery operates from a modern 10,000-30,000 square meter manufacturing base in Suzhou, a hub for advanced industrial production. Since our establishment in 2017, we have focused on building robust mechanical drive components, supported by a team of 11-50 skilled professionals. Our products, including the S Series Worm Helical Gearmotor, have gained trust in markets across Eastern Europe, Southeast Asia, Africa, and South Asia, with shipments efficiently handled from the Port of Shanghai. This global reach and dedicated manufacturing capability underscore our commitment to delivering reliable, performance-driven solutions. We invite you to leverage our engineering expertise to find the precise drive solution for your automated material handling challenges. Contact us to discuss your torque, speed, and mounting requirements—we are ready to provide a gearmotor that enhances the reliability and efficiency of your operations.
Frequently Asked Questions (FAQ)
Q: What is the main advantage of a worm helical combination over a standard worm gearmotor?
A: The primary advantage is improved overall efficiency. A pure worm gearmotor can have lower efficiency, especially at higher reduction ratios, leading to more heat and energy loss. The helical gear stage in our S Series improves this efficiency, resulting in better energy consumption and often lower operating temperatures, while still retaining the high torque and self-locking benefits of the worm gear.Q: Is this gearmotor suitable for vertical lifting applications where load holding is critical?
A: Yes, it is well-suited for such applications. The worm gear portion can provide a self-locking effect (depending on the specific reduction ratio), which prevents the load from driving the motor backwards if power is cut, adding a layer of mechanical safety. However, the exact self-locking capability should be verified based on your selected ratio and load.Q: Can I customize the output shaft configuration?
A: Yes, customization is available. Output shaft dimensions (diameter, length), keyway specifications, and even dual output shaft configurations can be discussed and engineered based on your system's coupling or direct drive requirements.Q: What is the typical service life, and what maintenance is required?
A: Under normal operating conditions within specified load and temperature ranges, the gearmotor is designed for a long service life. Regular maintenance typically involves checking lubrication levels and condition at recommended intervals (e.g., annually or per operating hours). The unit is designed for easy access to lubrication points.Q: How do I select the right reduction ratio and motor power for my application?
A: Selection depends on your required output speed, torque, and the input motor speed. We provide technical support to help you calculate these parameters. You can share your application details—load weight, desired movement speed, duty cycle—and we can recommend suitable combinations from our standard offerings or propose a custom design.Q: Are these units compatible with variable frequency drives (VFDs) for speed control?
A: Yes, when paired with a standard AC induction motor, the gearmotor can be used with a VFD. The gearbox itself is a fixed ratio, but the input motor speed can be varied via the VFD to achieve a range of output speeds. It's important to ensure the motor is suitable for VFD operation.Q: What environmental protections are standard?
A: The standard enclosure protection is IP55, which protects against dust and water jets from any direction. For more harsh environments (e.g., frequent washdown, heavy dust), higher IP ratings such as IP65 or IP66 can be requested.Q: What is the lead time for standard and customized orders?
A: Lead times vary. For standard models with common ratios, lead time is typically shorter. For fully customized units involving specific ratios, shaft designs, or special protections, engineering and manufacturing time will be longer. We provide estimated lead times upon receipt of your specific requirements.
