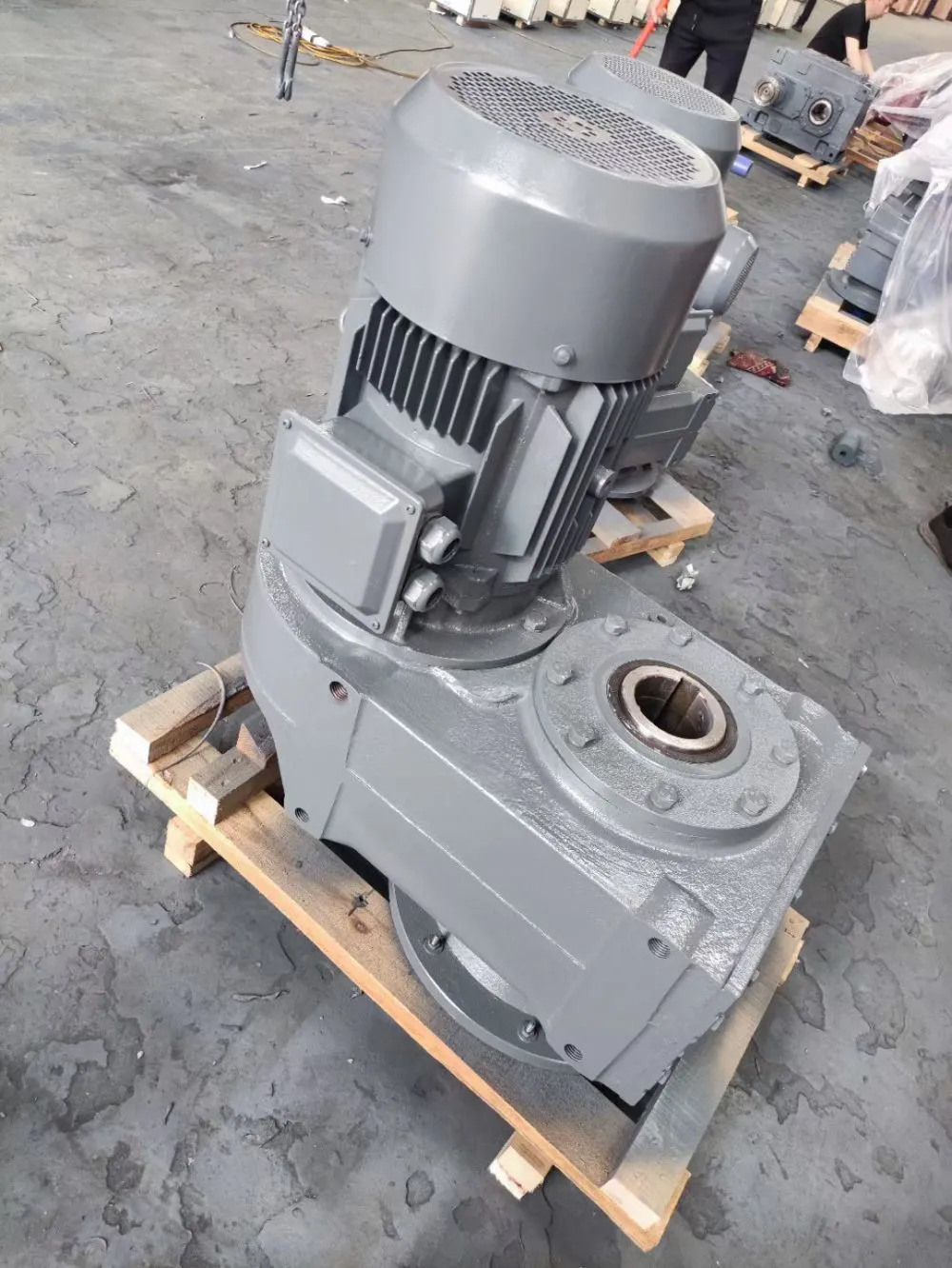

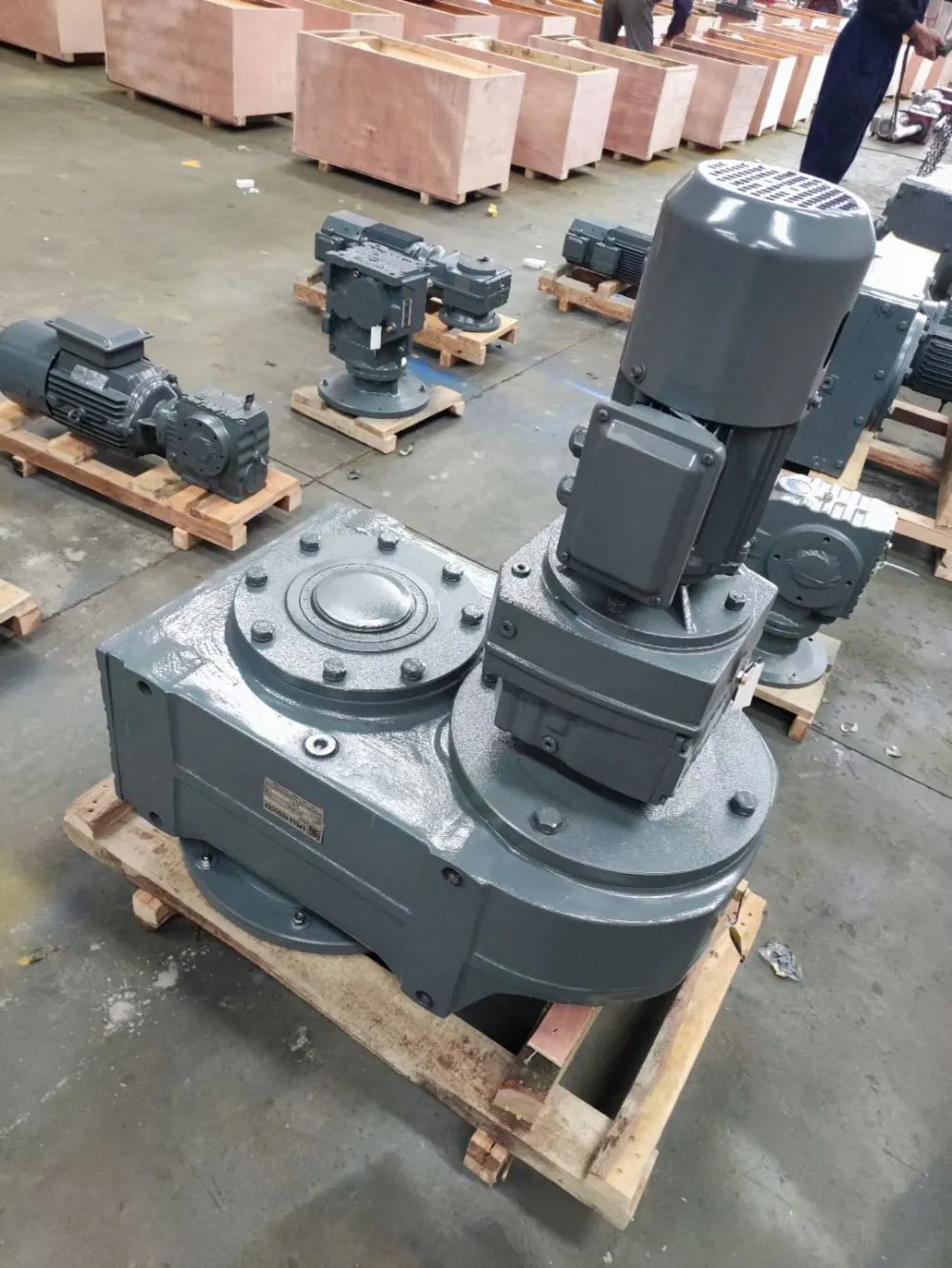

As a dedicated manufacturer, Jiangsu Manqi Machinery Co., Ltd. specializes in providing robust and efficient power transmission solutions. Our G3 Series Flange Mounted Helical Gear Motor Speed Reducer with Bevel Gearbox represents our commitment to engineering excellence, designed to deliver reliable performance in demanding industrial environments. Established in 2017 and operating from a substantial facility in Suzhou, we combine precise manufacturing with a deep understanding of global market needs, serving regions like Eastern Europe, Southeast Asia, Africa, and South Asia. This product integrates a helical gear motor with a bevel gearbox into a compact, flange-mounted unit, offering a versatile and powerful solution for applications requiring torque multiplication and directional change.
The core value of this gear motor lies in its integrated design and high torque transmission capability. It simplifies installation by combining the motor and reducer, reducing alignment issues and saving space. The helical gears provide smooth, efficient power transfer with high load capacity, while the bevel gearbox allows for a change in the direction of shaft rotation, typically 90 degrees, making it ideal for complex drive layouts.
- Durable Construction: The housing is typically made from high-strength cast iron, offering excellent resistance to shock loads and environmental factors. Internal gears are crafted from hardened alloy steel for long service life and minimal wear.
- Flange Mounting Design: This mounting method provides a secure and stable connection to driven equipment, facilitating easy installation and maintenance. It ensures a rigid assembly that minimizes vibration and misalignment.
- Efficient Helical Gear Technology: Helical gears operate with less noise and higher efficiency compared to spur gears. Their gradual tooth engagement results in smoother torque transmission and the ability to handle higher loads.
- Versatile Bevel Gearbox Integration: The integrated bevel gearbox allows the output shaft direction to be changed, offering flexibility in machinery design. This is crucial for applications where the motor and driven shaft are not in parallel alignment.
- Customizable Performance Parameters: Key specifications such as reduction ratio, output torque, and input power can be tailored to meet specific application requirements. This ensures optimal performance for your unique operational needs.
- Broad Application Compatibility: Designed for heavy-duty use, this unit is suitable for a wide range of industries including material handling, food processing, packaging, and construction machinery.
Below is a table outlining common technical specifications and configurations available. Please note that specific values are customizable based on your project requirements.
| Parameter | Typical Range / Description | Notes |
|---|---|---|
| Series Model | G3 | Design series identifier |
| Mounting Style | Flange Mounted | Secure equipment attachment |
| Gear Combination | Helical + Bevel | For efficiency and directional change |
| Input Power (Motor) | 0.5 kW to 30 kW (example range) | Available upon request |
| Reduction Ratio | Customizable (e.g., 5:1 to 100:1) | Tailored to speed/torque needs |
| Output Torque | Depends on ratio and input power | Calculated for application load |
| Input Speed | Standard motor speeds (e.g., 1500 RPM) | Based on attached motor |
| Housing Material | High-Strength Cast Iron | For durability and protection |
| Sealing Option | Optional IP65 or similar | For dust/water protection |
The advantages of choosing our G3 Series Gear Motor extend beyond its specifications:
- Space Optimization: The integrated design eliminates the need for separate motor and reducer alignment, saving valuable space in compact machinery layouts.
- Enhanced Reliability: The robust construction and precision machining reduce failure risks, leading to lower maintenance costs and higher operational uptime.
- Operational Smoothness: The helical gear design minimizes vibration and noise, contributing to a smoother and quieter working environment.
- Design Flexibility: The bevel gear output allows engineers to design drive systems where the input and output shafts are perpendicular, solving complex spatial constraints.
- Cost-Effectiveness: By providing a ready-to-install unit, you save on purchasing separate components, assembly time, and potential alignment errors.
Backed by the manufacturing expertise of Jiangsu Manqi Machinery, which operates from a factory spanning 10,000-30,000 square meters and employs a skilled team of 11-50 people, this product is built with quality control at every stage. Our annual export experience, though below US$1 Million, reflects a focused approach to serving international clients efficiently, with shipments readily arranged from the Port of Shanghai. This gear motor is not just a component; it's a reliable partner for your machinery, engineered to perform consistently under pressure. We invite you to consult with us to tailor the G3 Series unit to your exact torque, speed, and mounting requirements, ensuring it integrates seamlessly into your operation and drives your productivity forward.
Frequently Asked Questions (FAQ)
-
What is the primary advantage of a flange-mounted design?
The flange mounting provides a rigid and direct connection to the driven machine frame. It simplifies installation, improves stability, reduces vibration transmission, and often allows for easier access for maintenance compared to foot-mounted designs. -
How does the combination of helical and bevel gears benefit the application?
The helical gears offer high efficiency, smooth operation, and good load capacity. The bevel gearbox then changes the direction of power transmission (usually by 90 degrees). This combination is ideal for applications requiring both speed reduction and a change in shaft orientation. -
Can the input motor specifications be customized?
Yes. While the unit comes as an integrated motor and reducer, the electric motor's power rating, speed, voltage, and protection class can typically be specified to match your power supply and operational needs. -
What industries commonly use this type of gear motor?
It is widely used in industries such as conveyor systems, mixing and agitation equipment, packaging machinery, construction equipment (e.g., winches), and material handling systems where robust, directional power transmission is required. -
How is the reduction ratio determined and selected?
The reduction ratio is chosen based on your required output speed and torque. You provide the input motor speed and the desired output speed or torque, and we can calculate and supply the appropriate ratio from our customizable range. -
What maintenance does this gear motor require?
Regular maintenance typically involves checking and replenishing lubricant (oil or grease) according to the service intervals, inspecting seals for integrity, and monitoring for unusual noise or vibration. The robust design aims to minimize frequent maintenance needs. -
Are different output shaft configurations available?
Yes. Output shaft details such as diameter, length, keyway specifications, and even dual-shaft options can often be customized to interface correctly with your driven equipment. -
What is the typical lead time for ordering a customized unit?
Lead times vary based on the customization level and order quantity. As a manufacturer with control over production, we can provide estimated timelines upon receipt of your specific requirements, aiming for efficient turnaround.
