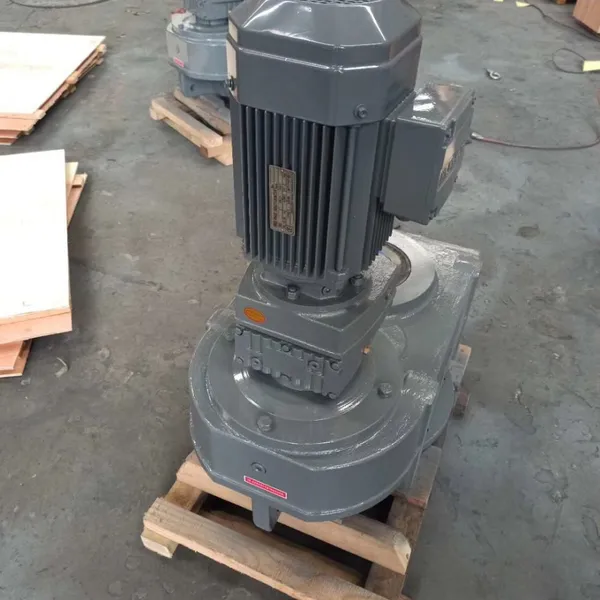

K Series Power Transmission Bevel Helical Gear Motor With Customizable Speed
Product Spotlights
K Series Bevel Helical Gear Motor offers high-efficiency right-angle power transmission with fully customizable output speeds (0.1-600 RPM) to perfectly match your machinery. Built with a robust cast iron housing for durability, it provides high torque, smooth operation, and multiple mounting options. Ideal for demanding industrial applications, it reduces system complexity and energy costs while ensuring reliable, long-lasting performance.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other, Industrial power transmission systems
Gear Type:
Bevel Helical
Series:
K Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Kf127 Series Helical-Bevel Gear Motors for Industrial Power TransmissionNegotiableMOQ: 1 Set -
Gearmotor Converter System R/F/K/S Series Coaxial Parallel Shaft Gearbox Spiral Bevel MotorNegotiableMOQ: 1 Set
-
AC/DC Parallel Shaft Helical Gear Motor R/F/K/S Series Coaxial Gearbox Custom Speed ReducerNegotiableMOQ: 1 Set
-
R77 Coaxial Helical Geared Motor Cast Iron Housing IEC Standard TransmissionNegotiableMOQ: 1 Set
-
R137 Big Torque Inline Geared Motor for Industrial Automation LineNegotiableMOQ: 1 Set
Application
Other, Industrial power transmission systems
Gear Type
Bevel Helical
Series
K Series
Input Power
Customizable upon request
Output Torque Range
Available upon request
Output Speed Range
Customizable
Mounting Position
Foot-mounted or flange-mounted
Housing Material
High-grade cast iron
Lubrication
Oil bath lubrication
Cooling Method
Natural cooling or fan cooling
As a dedicated manufacturer with a modern facility in Suzhou, Jiangsu, Jiangsu Manqi Machinery Co., Ltd. specializes in delivering robust and reliable power transmission solutions. Our K Series Bevel Helical Gear Motor is engineered to meet the demanding requirements of diverse industrial applications, offering exceptional durability and performance. This gear motor combines the high efficiency of helical gears with the right-angle power transmission capability of bevel gears, making it an ideal choice for complex drive systems. We understand that every application is unique, which is why we offer fully customizable output speeds to ensure optimal integration with your machinery. Backed by our commitment to quality and customer-centric approach since 2017, this product is designed to enhance your operational efficiency and reliability.
Core Features and Technical Advantages:
- Versatile and Efficient Design: The integration of bevel and helical gears provides a compact, high-torque solution with smooth operation and reduced noise levels compared to traditional worm gear units.
- Customizable Performance: The defining feature of this series is its customizable output speed. We can tailor the gear ratio to achieve your specific RPM requirements, ensuring perfect synchronization with your process.
- Robust Construction for Longevity: The gearbox housing is manufactured from high-grade cast iron, offering superior strength, vibration dampening, and resistance to wear and environmental factors.
- High Load Capacity: Precision-engineered gears and bearings are designed to handle significant radial and axial loads, ensuring stable performance under continuous heavy-duty operation.
- Multiple Mounting Options: Available in foot-mounted (F) and flange-mounted (FF, FAF) configurations, providing flexible installation possibilities to suit various spatial constraints.
- Optimal Thermal Management: Designed for efficient heat dissipation. Standard models use natural cooling, while fan cooling is available for high-duty cycle applications to prevent overheating.
- Low Maintenance: Features oil bath lubrication for the gears and high-quality sealed bearings, minimizing the need for frequent maintenance and reducing downtime.
Technical Specifications Table:
| Parameter | Description / Range |
|---|---|
| Gear Arrangement | Bevel-Helical, Shaft Mounted |
| Input Power Range | 0.12 kW to 200 kW (Customizable) |
| Output Torque Range | Up to 18,000 Nm (Available upon request) |
| Output Speed | Fully customizable from 0.1 to 600 RPM |
| Reduction Ratio Range | Approximately 1:1.1 to 1:300 (Customizable) |
| Efficiency | Up to 96% per stage |
| Input Configuration | IEC standard foot-mounted motor or direct input shaft |
Benefits for Your Business:
- Enhanced System Compatibility: The customizable speed eliminates the need for external speed variators, simplifying your system design and reducing overall costs.
- Improved Process Control: Achieve precise speed matching for conveyors, mixers, agitators, and other equipment, leading to better product quality and consistency.
- Reduced Energy Consumption: The high mechanical efficiency of the bevel-helical design translates directly into lower power consumption and operational costs.
- Increased Uptime: The durable construction and reliable components ensure a long service life with minimal unscheduled maintenance, maximizing your production availability.
- Global Application Support: With export experience to markets like Eastern Europe, Southeast Asia, and Africa, our products are designed to perform reliably in diverse operating conditions.
Frequently Asked Questions (FAQ):
-
What is the lead time for a custom speed configuration?
Standard configurations are typically ready for shipment quickly. For fully customized speed ratios, the lead time depends on the specific requirements but generally ranges from 15 to 30 working days after order confirmation. -
Can this gear motor be used in harsh environments?
Yes. The cast iron housing provides good corrosion resistance. For particularly harsh conditions (dust, moisture, chemicals), optional sealing upgrades and surface treatments are available upon request. -
Do you provide the electric motor as well?
We can supply the complete gearmotor unit with a matched IEC standard motor. Alternatively, we can provide the gearbox only for integration with your existing motor, specifying the required input shaft dimensions. -
How do I determine the correct gear ratio and motor power for my application?
Our technical team can assist you. Please provide key parameters such as required output speed, torque, duty cycle, and ambient conditions. We will recommend the optimal configuration. -
What maintenance is required?
Maintenance is minimal. Primary tasks involve periodic checking of the oil level and condition (initial oil change recommended after 500 hours, then as per operational intensity), and ensuring ventilation openings are clean. -
What are the available mounting positions?
The K Series offers multiple mounting possibilities: foot mounting (M1), flange mounting (M2, M3, M4), and shaft mounting. The exact options depend on the size and configuration selected. -
Is reverse operation possible?
Yes, the gear motor is designed for bidirectional operation. The input rotation direction can be clockwise or counterclockwise. -
What is your shipping and warranty policy?
We ship globally from the Port of Shanghai. Our standard warranty covers manufacturing defects for 12 months from the date of shipment under normal operating conditions. Specific warranty terms are provided with the commercial invoice.
Trust in a manufacturer with a proven track record. Operating from a 10,000-30,000 square meter facility, our focused team of 11-50 professionals ensures strict quality control from raw material to final testing. Our annual export activities, serving markets across Eastern Europe, Southeast Asia, Africa, and South Asia, demonstrate our product's global reliability and adaptability. The K Series Bevel Helical Gear Motor is more than a component; it's a customizable power core designed to drive your productivity forward. Contact us today to discuss your specific speed and torque requirements, and let us provide you with a tailored solution that delivers performance and value.
