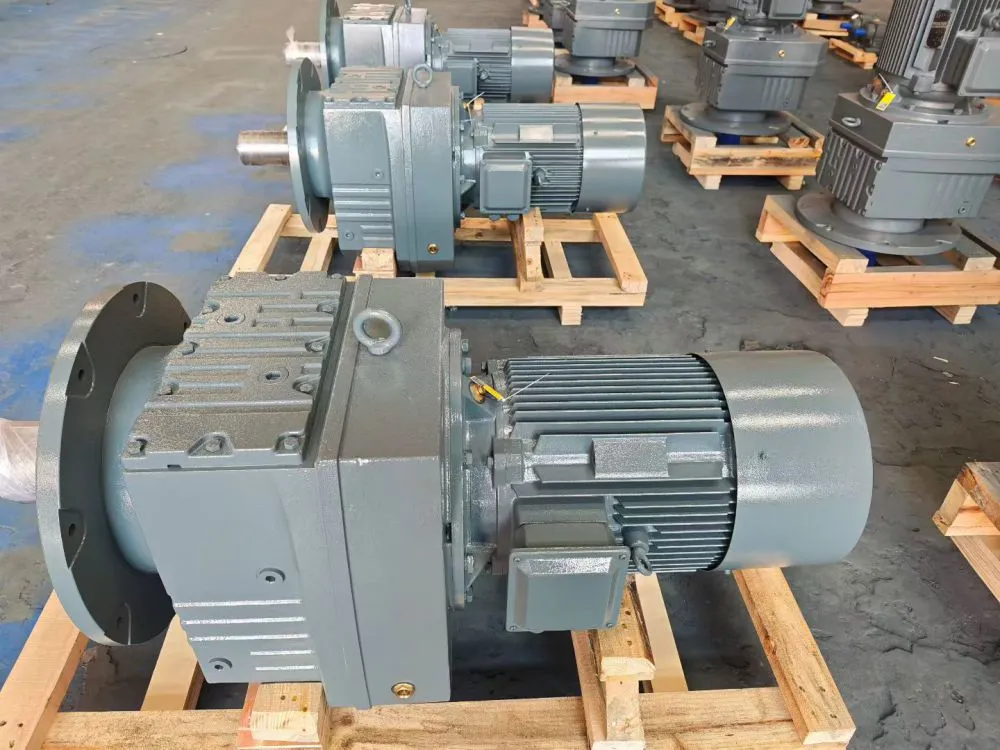

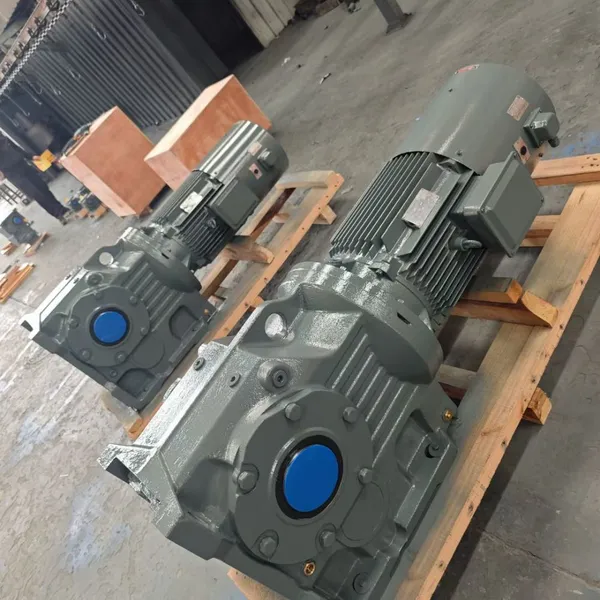

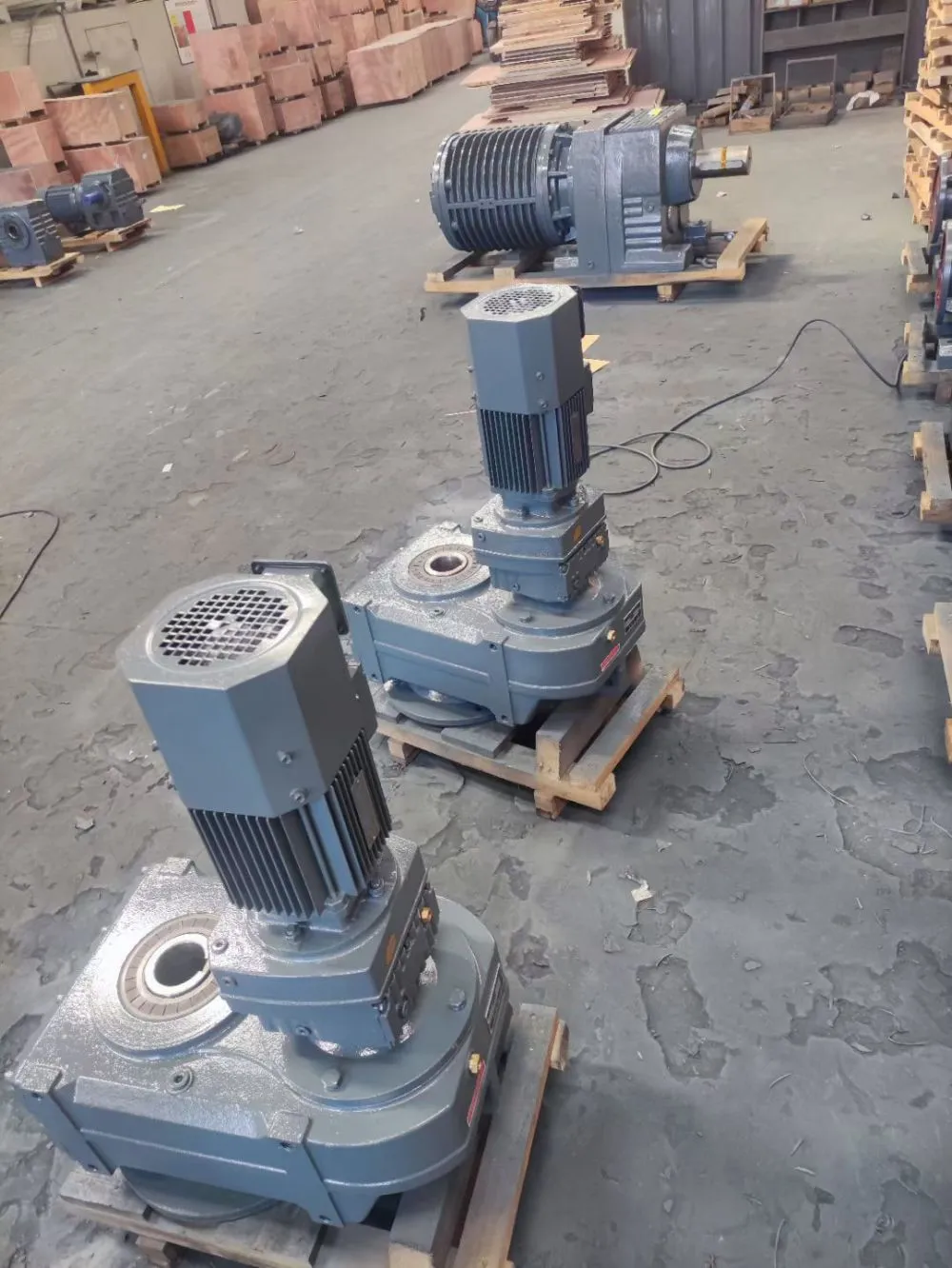

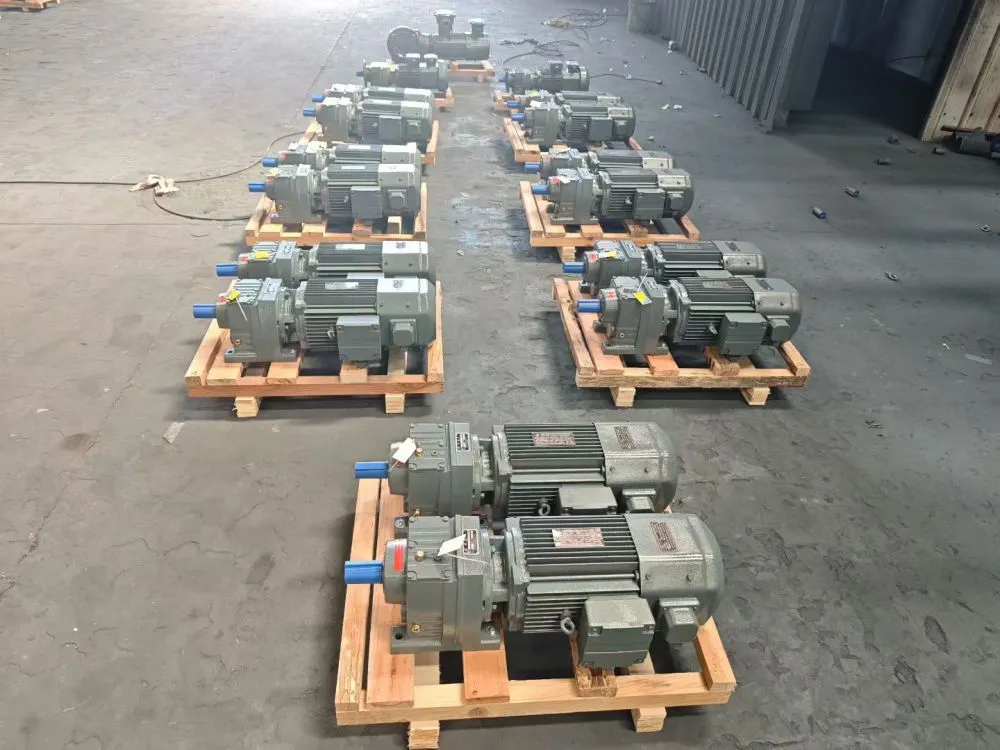

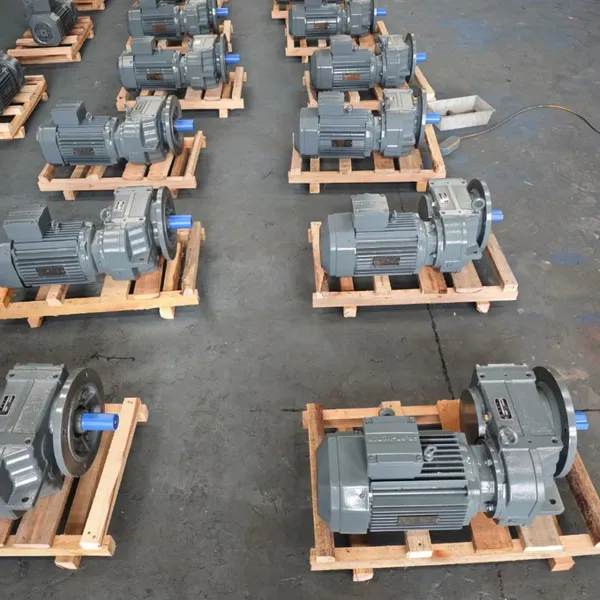

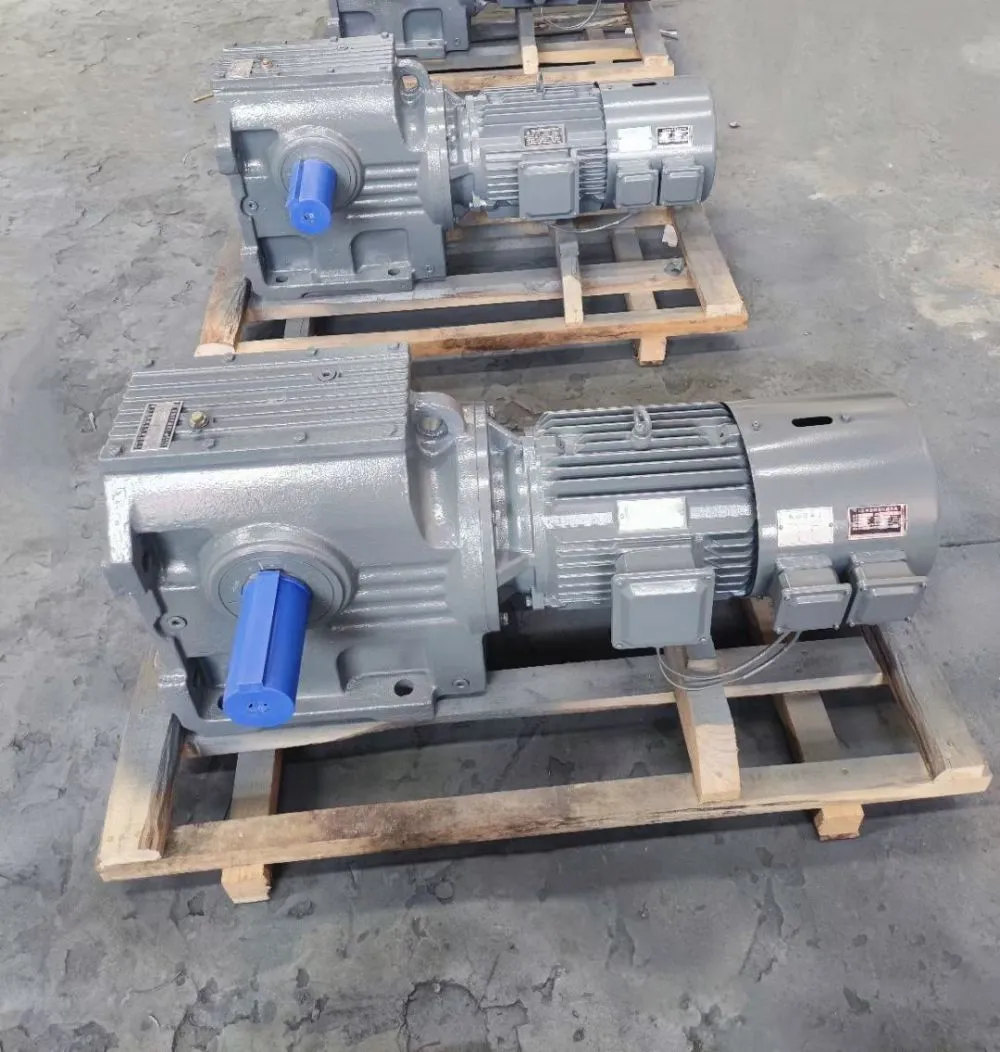

Help CenterHigh-Performance Parallel-Shaft Helical Gear Motors for Industrial Applications
Product Spotlights
Related Products
-
R87 Compact Inline Gear Motor Low Noise for Conveyor EquipmentNegotiableMOQ: 1 Set -
Coaxial Parallel Shaft Gearbox Systems With Right Angle Spiral Bevel Helical Gear MotorsNegotiableMOQ: 1 Set
-
F Series Parallel Shaft Gearmotor for Conveyor Systems, Models F57 F67 F77 F87 F97NegotiableMOQ: 1 Set
-
F Series Geared Motor With Parallel Shaft, F57 to F97, Output Torque 70-1800 NmNegotiableMOQ: 1 Set
-
Parallel Shaft Geared Motor F Series, F57-F97 With C-face Input Flange, 220V/380V OptionsNegotiableMOQ: 1 Set
As a dedicated manufacturer with a modern facility in Suzhou, Jiangsu, Jiangsu Manqi Machinery Co., Ltd. specializes in engineering robust power transmission solutions for demanding global markets. Our High-Performance Parallel-Shaft Helical Gear Motors are engineered to deliver reliable torque and speed control in diverse industrial environments, from Eastern European manufacturing plants to Southeast Asian processing facilities. We combine precision manufacturing with a focus on durability to provide a core component that enhances the operational efficiency and longevity of your machinery.
These gear motors integrate a high-efficiency electric motor with a parallel-shaft helical gear reducer into a compact unit. The parallel shaft design offers a straightforward and robust configuration, making them suitable for a wide array of applications where space and reliability are key considerations.
Key Features and Technical Advantages:
- Superior Power Transmission: The helical gear design ensures smooth, quiet, and efficient power transfer with high torque capacity and excellent load distribution across the gear teeth.
- Enhanced Durability: Gears are typically manufactured from case-hardened and precision-ground alloy steel, offering high resistance to wear and fatigue for extended service life under continuous operation.
- Compact and Versatile Design: The parallel shaft configuration allows for a space-saving footprint. Multiple mounting options (foot, flange, or shaft mount) provide flexibility for integration into various machine layouts.
- High Efficiency: Optimized gear geometry and high-quality bearings minimize energy losses, contributing to lower operational costs and improved overall system efficiency.
- Robust Construction: The gear housing is commonly made from high-grade cast iron, providing excellent rigidity, vibration damping, and protection for internal components. Aluminum alloy housings are available for applications requiring lighter weight.
- Customizable Performance: Available in a broad range of power ratings, output speeds, and torque values to match specific application requirements. Reduction ratios can be tailored through single or double-stage gearing.
Technical Specifications Overview:
The table below outlines common standard specifications. Custom parameters are available upon request.
| Parameter | Typical Range / Description |
| Motor Power | 0.12 kW to 200 kW |
| Output Speed | 0.1 RPM to 373 RPM |
| Output Torque | Up to 18,000 Nm (Standard models) |
| Reduction Ratio Range | ~5:1 to ~200:1 (Single Stage) Higher ratios with double stage |
| Mounting Position | M1, M2, M3, M4, M5, M6 (Foot/Flange) |
| Lubrication | Synthetic Industrial Gear Oil |
Benefits for Your Operations:
- Increased Machine Uptime: Reliable performance reduces unexpected breakdowns and maintenance intervals.
- Cost-Effective Operation: High mechanical efficiency translates to lower energy consumption over the motor's lifespan.
- Reduced Noise Pollution: The helical gear operation is notably quieter than some other gear types, contributing to a better working environment.
- Simplified Sourcing and Inventory: As a direct manufacturer, we offer competitive pricing and can tailor products to your needs, simplifying your supply chain.
Common Application Areas:
These motors are versatile components found in numerous industries:
• Material Handling: Conveyor systems, palletizers, stacker cranes.
• Food & Beverage: Mixers, agitators, packaging machines.
• Construction: Concrete mixers, hoists, winches.
• General Manufacturing: Machine tools, extruders, textile machinery.
• Agricultural Machinery: Feed mixers, irrigation systems.
Backed by our manufacturing expertise since 2017 and a factory equipped for quality production, Jiangsu Manqi Machinery is committed to delivering dependable power transmission solutions. Our experience in serving markets across Eastern Europe, Southeast Asia, Africa, and South Asia has honed our ability to meet diverse industrial requirements. We ensure efficient logistics through the Port of Shanghai. For a durable, efficient, and application-matched parallel-shaft helical gear motor that can withstand the rigors of your industrial application, contact us to discuss your specifications and request a quotation.
Frequently Asked Questions (FAQ)
Q1: What are the main advantages of a parallel-shaft design compared to a right-angle gearmotor?
A1: Parallel-shaft gear motors typically offer higher mechanical efficiency and can handle higher input speeds in a compact length. They are often chosen for applications where the motor and driven equipment shafts are aligned, eliminating the need for additional couplings or space for a 90-degree turn.
Q2: Can these gear motors be used in outdoor or washdown environments?
A2: Yes, with appropriate protection. Standard models often feature IP55 protection against dust and water jets. For more demanding environments like food processing washdowns, IP65 or IP66 protection is available as an option to prevent ingress of water and contaminants.
Q3: What lubrication is required, and what are the maintenance intervals?
A3: They are typically filled with a high-quality synthetic gear oil at the factory. Maintenance intervals depend on operating conditions (temperature, load, duty cycle) but generally, an oil check is recommended at 6-month intervals, with a full change potentially every 10,000 operating hours or as specified in the manual.
Q4: Are brake motors or variable speed drives compatible with this product?
A4: Absolutely. We can supply motors equipped with integral brakes for holding loads. Furthermore, these gear motors are fully compatible with being driven by AC variable frequency drives (VFDs) for precise speed control, though it's important to specify this requirement for appropriate motor selection.
Q5: How do I select the correct size and ratio for my application?
A5: Selection requires key parameters: required output speed (RPM), output torque (Nm), duty cycle, and ambient conditions. Our technical team can assist you with this process. Please provide your application details, including the machine type and load characteristics, for a precise recommendation.
Q6: What is the typical lead time for standard and customized orders?
A6: Lead times vary based on specifications and order volume. Standard models may have shorter availability, while customized units (special ratios, voltages, mounts) require additional engineering and manufacturing time. We provide estimated lead times upon quotation to help with your planning.
Q7: Do you provide technical drawings and installation manuals?
A7: Yes, comprehensive documentation including 2D/3D CAD drawings (upon request), dimensional diagrams, installation instructions, and maintenance guidelines are provided with the product to facilitate correct and safe integration into your system.
Q8: What after-sales support is available?
A8: We offer technical support for installation and troubleshooting. While we strive for product reliability, we also can provide guidance on spare parts identification and availability to ensure long-term operability of your equipment.
