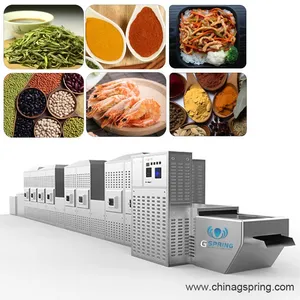

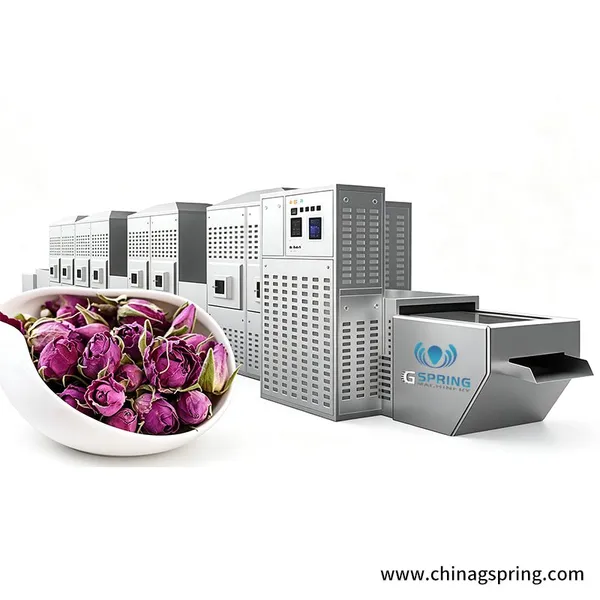

Industrial Microwave Drying Line for Food Manufacturing Plant
High-Efficiency Continuous Microwave Drying Equipment for Food Processing Industry
Product Introduction
The Industrial Microwave Drying Line is a highly efficient continuous drying system specially designed for food manufacturing plants. Utilizing advanced microwave heating technology, the equipment rapidly removes moisture from food products while preserving natural color, flavor, nutrients, and texture. Compared with conventional hot-air drying methods, microwave drying significantly reduces processing time, improves product quality, and lowers energy consumption.
This industrial microwave dryer is widely used for drying vegetables, fruits, herbs, spices, grains, snacks, seafood, pet food, meat products, and other food materials. The system can be customized according to different production capacities and product requirements.
Main Advantages of Industrial Microwave Drying Line
1. Fast and Uniform Drying
Microwave energy penetrates directly into the material, generating heat internally and externally at the same time. This results in rapid moisture evaporation and uniform drying without overheating the product surface.
2. Higher Production Efficiency
Compared with traditional drying equipment, microwave drying can reduce drying time by 50%-90%, greatly increasing production efficiency and factory output.
3. Better Product Quality
The low-temperature drying process helps maintain:
Natural color
Original flavor
Nutritional value
Active ingredients
Product appearance
This is especially important for high-value food products and ingredients.
4. Energy Saving and Environmental Protection
Microwave energy is directly absorbed by the material, reducing heat loss and improving energy utilization efficiency. The system consumes less energy than conventional drying methods.
5. Continuous Automatic Operation
The microwave drying line features:
Automatic feeding system
Continuous conveyor transmission
PLC intelligent control
Adjustable microwave power
Adjustable conveyor speed
Automatic discharge system
This minimizes labor requirements and ensures stable production.
6. Food-Grade Hygienic Design
The entire machine is manufactured from food-grade stainless steel, meeting food safety and hygiene standards required by modern food processing factories.
Working Principle
The Industrial Microwave Drying Line uses electromagnetic waves at 2450MHz frequency to generate molecular friction within water molecules contained in food materials. The internal heat generated causes rapid moisture evaporation.
The drying process includes:
Automatic Feeding
Microwave Heating
Moisture Evaporation
Ventilation and Dehumidification
Continuous Drying
Automatic Discharge
This process achieves fast, efficient, and uniform drying while maintaining excellent product quality.
Microwave Food Dryer Application：
1.Evaporate Water: Microwave machine can evaporate water rapidly , 30-50% more efficiency than traditional heat-transfer drying. Especially to work on kind of
grains & cash crop(beans, wheat), seasoning & herbs drying (moringa leaves, pepper, cumin); Nuts(Cashews, Pistachios), Nutritional power etc.
2.Sterilization: Microwave machine directly work on food inside, it can sterilize food, kill insect eggs, bacteria & other microorganisms, especially for tea industry,
grain industry, medical herbs, pickle industry etc.
3. Thawing: Microwave generator can directly work on inside & outside food, so it can be widely used to thaw frozen food, like poultry, aquatic products,
prefabricated products.
4. Grill: Microwave can work on some meat to keep its own natural nutritional, such as beef, pork, shrimp, fish etc. after microwave grill, they can be a
popular nutritional protein snack;
5. Color Protect: Microwave is especially better work on heat-sensitive food compared to traditional heating, such as flower tea, spices etc
6. Puff: Microwave can work on food inside moisture and puff food under some extrusion food, such as pellet snack, pet food etc.
7. Cook: Microwave can cook instant heat food to take a important role on the pre-prepared food industry. Box-lunch etc.
Food Industry
Fruits
Vegetables
Garlic
Onion
Ginger
Chili Pepper
Mushroom
Seafood
Shrimp
Fish Fillets
Meat Products
Snack Foods
Instant Foods
Agricultural Products：
Corn
Soybeans
Rice
Wheat
Grain Products
Seeds
Herbal and Botanical Products：
Tea Leaves
Herbal Extracts
Medicinal Herbs
Flower Tea
Plant Leaves
Botanical Materials
Pet Food Industry：
Pet Snacks
Dog Treats
Cat Food
Fish Feed
Aquatic Feed
Technical Features：
Continuous Belt Conveyor Design
PLC Touch Screen Control System
Adjustable Microwave Power Output
Variable Speed Conveyor System
Automatic Temperature Monitoring
Moisture Removal System
Stainless Steel Structure
Low Maintenance Cost
Easy Cleaning and Operation
CE Standard Available
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
Why Choose Our Industrial Microwave Drying Line?
✔ More than 20 years manufacturing experience
✔ Customized solutions for different products
✔ Energy-saving microwave technology
✔ Stable continuous production
✔ Professional installation support
✔ Technical training service
✔ Global export experience
✔ CE certified equipment
✔ Competitive factory direct price
Industrial Microwave Drying Line for Food Manufacturing Plant with continuous conveyor system, PLC control, energy-saving operation, and uniform drying performance. Ideal for fruits, vegetables, herbs, seafood, snacks, grains, and food processing factories worldwide.
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
