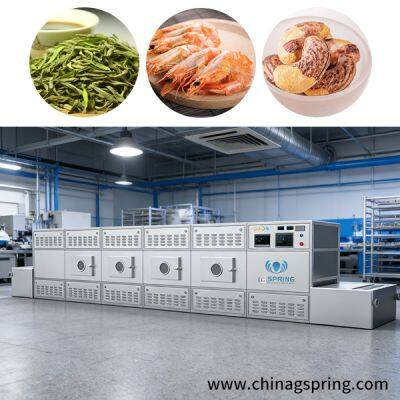

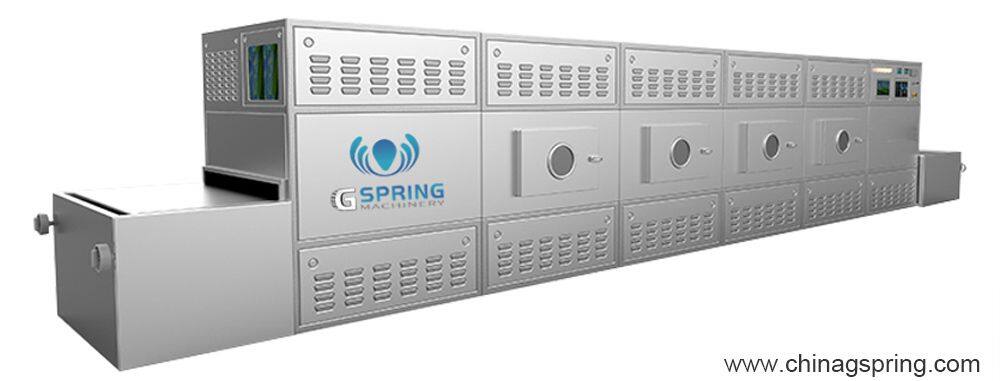

Automatic Industrial Microwave Oven Machine for Food Drying Sterilization Processing Equipment
Product Introduction

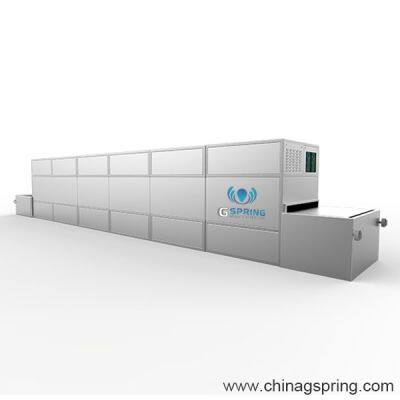

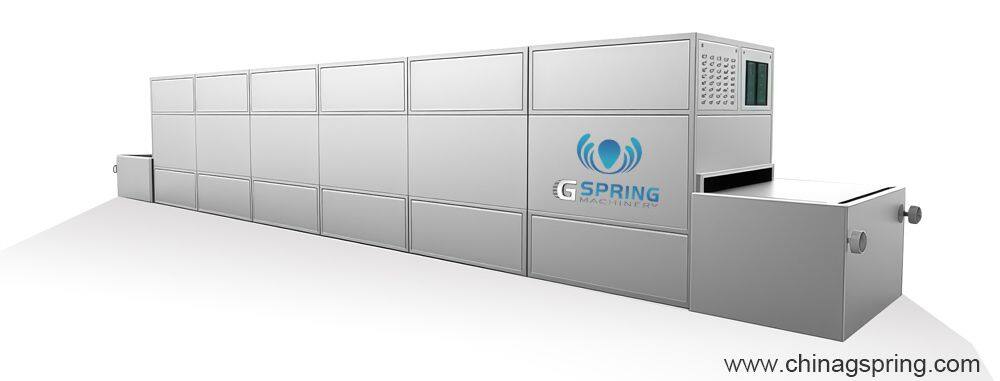

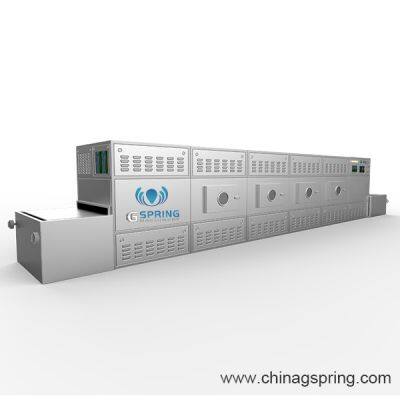

The New Design Industrial Microwave Oven Machine is an advanced drying and sterilization solution developed for modern food processing industries.
With improved structure and optimized microwave distribution, it ensures higher efficiency, better energy utilization, and superior product quality.
Working Principle
The machine uses microwave electromagnetic waves to penetrate materials and generate heat internally.
This allows fast and uniform heating, significantly reducing drying time while maintaining product quality.
Key Features
✔ New upgraded design with improved efficiency
✔ Fast and uniform heating
✔ Energy-saving and environmentally friendly
✔ Continuous operation for industrial production
✔ Adjustable power control system
✔ Suitable for drying and sterilization
Advantages of Industrial Microwave Machine in Food Processing
Industrial microwave machines are widely used in the food industry due to their numerous advantages in efficiency, quality, and processing performance.
1. Fast Heating Speed
Microwave energy directly heats the moisture inside the food, enabling rapid and efficient heating.
Compared with conventional heating methods, this significantly reduces processing time and improves production efficiency.
2. High Energy Efficiency
Microwave systems convert most electrical energy directly into heat within the product, minimizing energy loss.
Unlike hot air drying or heat-transfer methods, there is no need for intermediate heating media, resulting in lower energy consumption and
higher efficiency.
3. Superior Product Quality
Microwave processing helps preserve the natural color, flavor, texture, and nutritional value of food.
Low-temperature operation makes it especially suitable for heat-sensitive materials and products with poor thermal conductivity.
5. Reduced Processing Time
The rapid heating capability significantly shortens the production cycle.This leads to higher production capacity, lower processing costs, and improved operational efficiency.
6. Sterilization & Pasteurization
Microwave technology can effectively eliminate bacteria and microorganisms, enhancing food safety and extending shelf life.
It is widely used for grains, tea, spices, packaged foods, pickles, and beverages.
7. Flexible Design & Customization
Gspring provides customized microwave solutions to meet different industrial requirements.The system capacity can be flexibly adjusted
by configuring the number of microwave generators, making it suitable for various production scales.

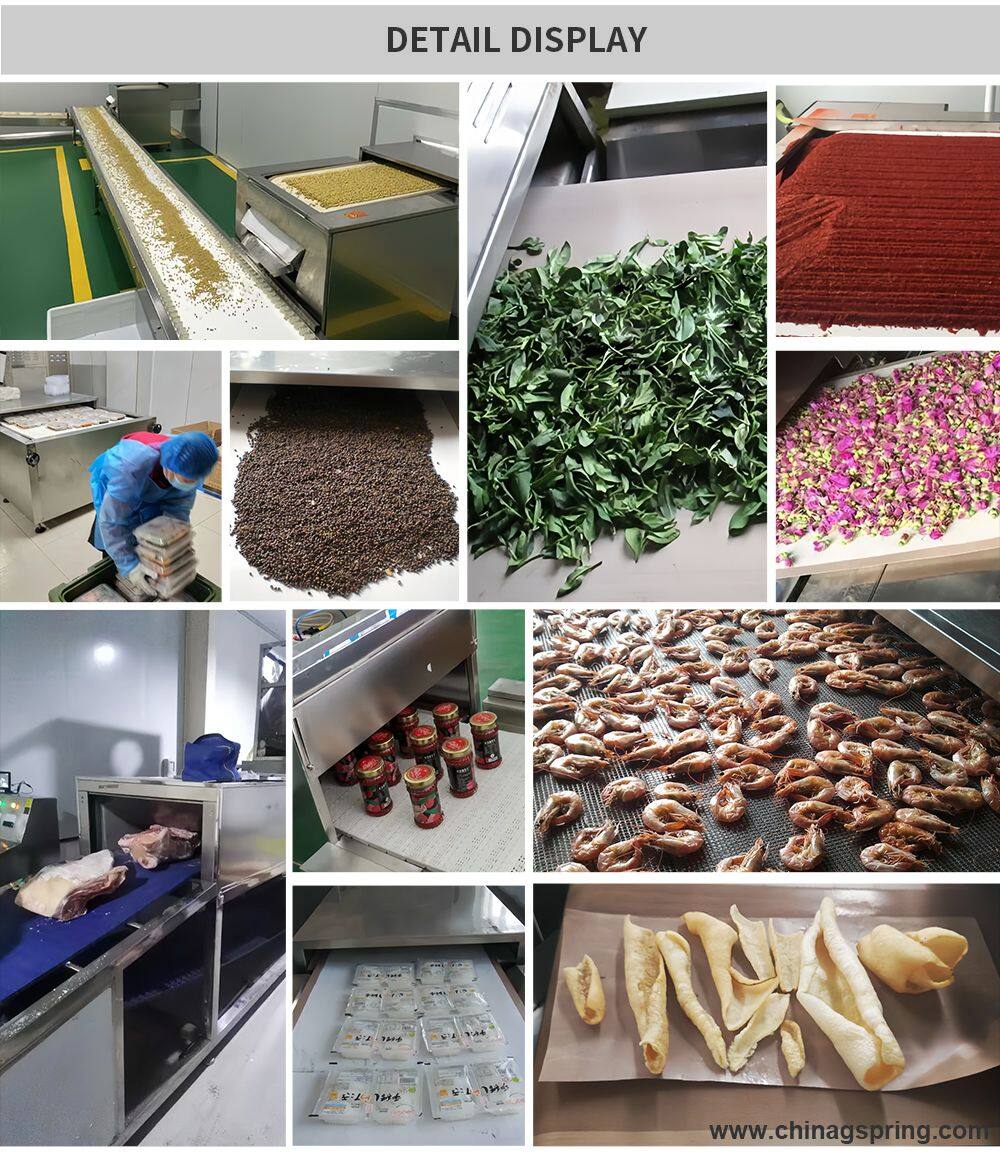

Microwave Food Dryer Application
1.Evaporate Water: Microwave machine can evaporate water rapidly , 30-50% more efficiency than traditional heat-transfer drying. Especially to
work on kind of grains & cash crop(beans, wheat), seasoning & herbs drying (moringa leaves, pepper, cumin); Nuts(Cashews, Pistachios), Nutritional
power etc.
2.Sterilization: Microwave machine directly work on food inside, it can sterilize food, kill insect eggs, bacteria & other microorganisms, especially for tea industry,
grain industry, medical herbs, pickle industry etc.
3. Thawing: Microwave generator can directly work on inside & outside food, so it can be widely used to thaw frozen food, like poultry, aquatic products,
prefabricated products.
4. Grill: Microwave can work on some meat to keep its own natural nutritional, such as beef, pork, shrimp, fish etc. after microwave grill, they can be a
popular nutritional protein snack;
5. Color Protect: Microwave is especially better work on heat-sensitive food compared to traditional heating, such as flower tea, spices etc
6. Puff: Microwave can work on food inside moisture and puff food under some extrusion food, such as pellet snack, pet food etc.
7. Cook: Microwave can cook instant heat food to take a important role on the pre-prepared food industry. Box-lunch etc.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
grace@chinagspring.com.
