High Capacity Microwave Drying Machine for Corn Beans Grains Low Energy Consumption Dryer

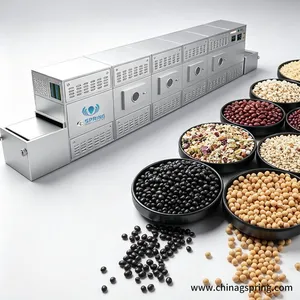

Low Energy Industrial Microwave Drying Machine for Corn, Bean & Grain
Our Industrial Microwave Drying Machine is specially designed for corn, beans, grains, seeds, cereals, and other agricultural products. The advanced microwave drying technology provides fast, uniform moisture removal and optional sterilization, helping improve storage stability, processing efficiency, and product quality.
Compared with conventional hot-air drying systems, microwave drying offers shorter processing times and more efficient energy utilization for suitable applications. The continuous conveyor system supports automated, large-capacity production while maintaining consistent drying performance.
Key Features
Continuous automatic drying
Fast and uniform moisture removal
High production capacity
Lower energy consumption compared with many conventional drying methods*
Optional drying and sterilization in one process
PLC touch-screen intelligent control
Adjustable microwave power
Adjustable conveyor speed
Food-grade SUS304 stainless steel contact parts
Stable 24-hour continuous operation
Easy maintenance and cleaning
OEM & ODM customization
CE-compliant design available
*Actual energy savings depend on the material, moisture content, production conditions, and operating parameters.
Suitable Materials:
Suitable for drying and moisture reduction of:
Corn
Maize
Soybeans
Kidney Beans
Mung Beans
Peas
Wheat
Rice
Barley
Oats
Sorghum
Millet
Coffee Beans
Cocoa Beans
Sunflower Seeds
Pumpkin Seeds
Sesame Seeds
Other grains and agricultural products
Why Choose Our Microwave Drying Machine?
Professional industrial microwave equipment manufacturer
Factory-direct pricing
Customized drying solutions for different crops
High automation and reliable performance
Advanced PLC control system
Installation guidance and technical training
One-year warranty
Lifetime technical support
Exported to more than 100 countries worldwide
FAQ
Q1: Which agricultural products can this machine process?
It is suitable for corn, beans, wheat, rice, barley, oats, seeds, coffee beans, cocoa beans, and many other grains and agricultural products.
Q2: Can the machine provide large-capacity production?
Yes. We offer customized production capacities ranging from pilot-scale systems to large industrial production lines.
Q3: Can the equipment also perform sterilization?
Yes. Depending on the product and process settings, the system can combine moisture removal with microbial reduction in a single continuous process.
Q4: Do you provide OEM & ODM services?
Yes. We offer complete OEM & ODM services, including customized machine dimensions, voltage, microwave power, branding, and turnkey production line solutions.
Corn Microwave Drying Machine
Grain Microwave Dryer
Bean Drying Machine
Agricultural Product Dryer
Industrial Microwave Dryer
Grain Moisture Removal Machine
Corn Drying Equipment
Bean Processing Equipment
Microwave Sterilization Machine
Continuous Microwave Dryer
Agricultural Drying Equipment
Grain Processing Machine
Low Energy Microwave Dryer
Industrial Grain Dryer
Food Processing Equipment
Continuous Belt Dryer
PLC Microwave Dryer
OEM Microwave Dryer
High Capacity Grain Dryer
Agricultural Microwave Drying System
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
grace@chinagspring.com.
