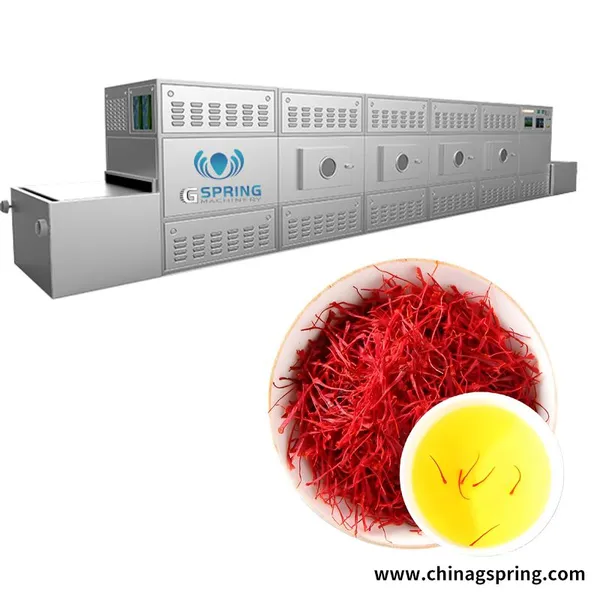

Agricultural Product Microwave Drying Machine for Saffron Moisture Removal
Our Industrial Microwave Drying Machine is specially engineered for the drying, moisture removal, and sterilization of saffron and other high-value agricultural products. The advanced microwave heating technology enables rapid and uniform drying while helping preserve the natural color, aroma, texture, and valuable active compounds of saffron.
Compared with conventional hot-air drying, the microwave system provides shorter drying cycles, improved energy efficiency, and more consistent product quality. The continuous conveyor design supports automatic production and can be customized for different processing capacities.
Key Features:
Fast and uniform moisture removal
Simultaneous drying and sterilization
Low-temperature drying process
Continuous automatic production
PLC intelligent touch-screen control
Adjustable microwave power
Adjustable conveyor speed
Helps preserve natural color and aroma
Food-grade SUS304 stainless steel construction
Energy-efficient operation
Easy cleaning and maintenance
OEM & ODM customization available
CE-compliant design available
Suitable Materials
The machine is suitable for processing:
Saffron
Rose Petals
Chamomile
Lavender
Jasmine Flowers
Herbal Tea
Medicinal Herbs
Edible Flowers
Spices
Fruits
Vegetables
Other high-value agricultural products
Working Principle
Microwave energy penetrates directly into the material, heating internal moisture from the inside outward. Water evaporates rapidly and evenly, reducing drying time while improving moisture uniformity. The process can also assist in reducing microbial contamination during drying, making it suitable for food and agricultural processing applications.
Applications
Widely used in:
Saffron processing plants
Agricultural product processing factories
Herbal medicine manufacturers
Herbal tea processing facilities
Botanical product companies
Food processing enterprises
Export-oriented agricultural businesses
Why Choose Our Microwave Drying Machine?
Professional industrial microwave equipment manufacturer
Factory-direct competitive pricing
Customized solutions for different agricultural products
High-efficiency microwave drying technology
Stable continuous production
Installation guidance and technical training
One-year warranty
Lifetime technical support
Exported to customers worldwide
FAQ
Q1: Is this machine suitable for premium saffron?
Yes. With optimized process settings, it can provide rapid and gentle moisture removal to help maintain the quality characteristics of premium saffron.
Q2: Can it process other agricultural products?
Yes. It is also suitable for herbs, flowers, spices, fruits, vegetables, and other agricultural products after appropriate parameter adjustment.
Q3: Can the machine be customized?
Yes. We customize production capacity, microwave power, conveyor dimensions, and control systems according to customer requirements.
Q4: Do you provide OEM & ODM services?
Yes. We offer customized equipment design, branding, voltage options, and complete production line solutions.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
