- Product introduction:
-- Product introduction

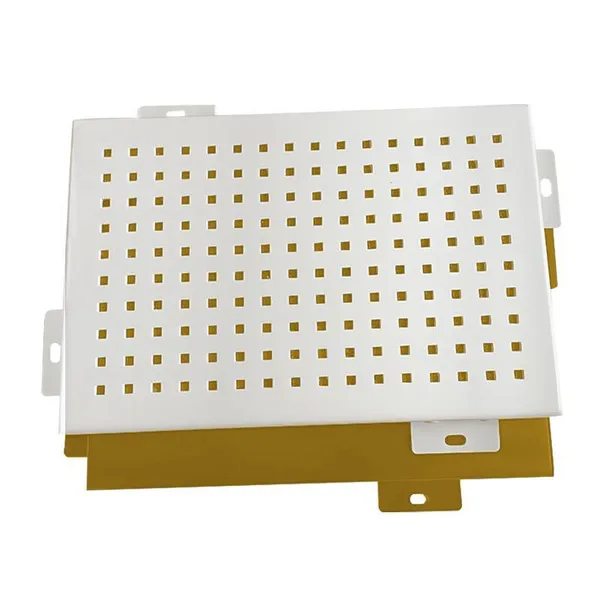

Perforated aluminum veneer is a modular product made by punching holes in aluminum alloy sheets, followed by bending and spraying. It combines three core advantages of artistic appearance, sound absorption and noise reduction, and ventilation and light transmission. It is the mainstream choice for commercial and public spaces.
- Product features:
Perforated aluminum veneer ceiling has excellent sound absorption and heat insulation effects.
It can effectively improve the comfort of the indoor environment.
Made of aluminum alloy, it is lightweight and durable.
It is easy to install and clean, and can maintain its beauty for a long time.
-- Technical parameters
| Parameter name | Common range (actual application) | Description |
| Substrate thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm |
The thicker the thickness, the higher the hardness and the better the load-bearing capacity; 2.0 - 3.0mm is commonly used for exterior walls, and 1.5 - 2.0mm is commonly used for indoor ceilings. |
| Fluorocarbon coating thickness | 20 - 30μm (primer + topcoat + varnish) |
The thicker the coating, the stronger the weather resistance and corrosion resistance. A normal standard of over 20μm can meet the requirements for outdoor use. |
| Board specifications |
Regular size: 1220mm×2440mm; Customizable (width 1500mm, length unlimited) |
It can be customized according to the building size, without excessive cutting, reducing waste and making construction more convenient. |
| Hardness | ≥2H (pencil hardness) | The surface is not easily scratched, and no obvious marks will be left by daily collisions and frictions. |
| Adhesion | Grade 1 | The coating is tightly bonded to the substrate, and there will be no paint peeling or blistering. |
| Fire rating | Non-combustible |
It meets the national building fire protection standards. It will not burn in case of fire, nor will it produce toxic gases. |
| Operating temperature | -40℃~80℃ |
It can be used normally in most areas of the country (severe cold in the north and high temperature in the south), without deformation or cracking. |
-- Core features (advantages + practical functions)
1. Full of aesthetic appeal and customizability

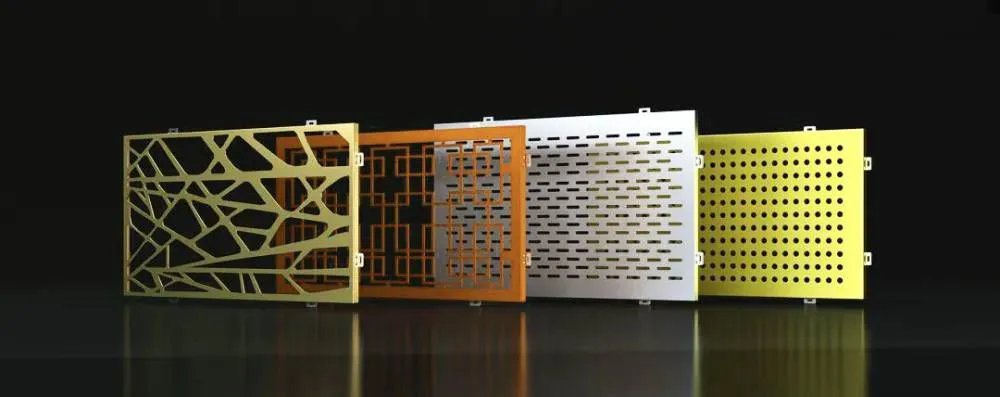

The hole shape, hole diameter, and arrangement can be customized (round, square, diamond, irregular artistic holes), capable of achieving effects such as gradients, logos, and patterns to create a high-class facade or ceiling.
The perforation rate can be varied, from micro-perforation to large-area hollowing, suitable for various styles such as modern, industrial, and minimalist.
2. Strong functional practicality
Ventilation and heat dissipation: Outdoor equipment covers, air conditioner outdoor unit covers, and ventilation shafts achieve air circulation through the holes.
Sound insulation and noise reduction: When combined with sound-absorbing cotton, it can reduce noise, suitable for subway stations, machine rooms, and large public area ceilings.
Light transmission / light and shadow effects: When used as a curtain wall or partition, light can pass through the holes to create a unique light and shadow atmosphere. It serves as a facade during the day and can be illuminated to become a glowing wall at night.
Reduce self-weight: Lighter than solid aluminum veneers, it reduces the building load.
3. The basic performance continues the advantages of aluminum veneers
The base material is aluminum alloy, and the surface can be fluorocarbon / powder sprayed. It has strong outdoor weather resistance, is resistant to ultraviolet rays and corrosion, and does not fade after long-term use.
Class A fireproof, moisture-proof and stain-proof, environmentally friendly and recyclable, suitable for various indoor and outdoor environments.

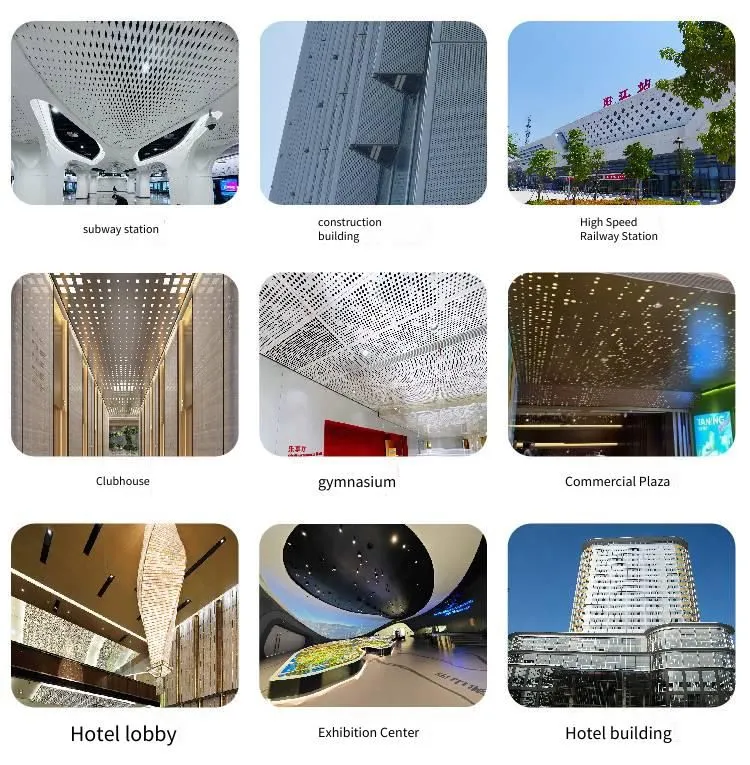

-- Application scenarios:
Suitable for various indoor decorations, such as offices, meeting rooms, restaurants, hotels, etc. It can not only enhance the overall aesthetics of the space but also effectively improve the indoor sound echo problem and provide more Add a comfortable working and living environment.

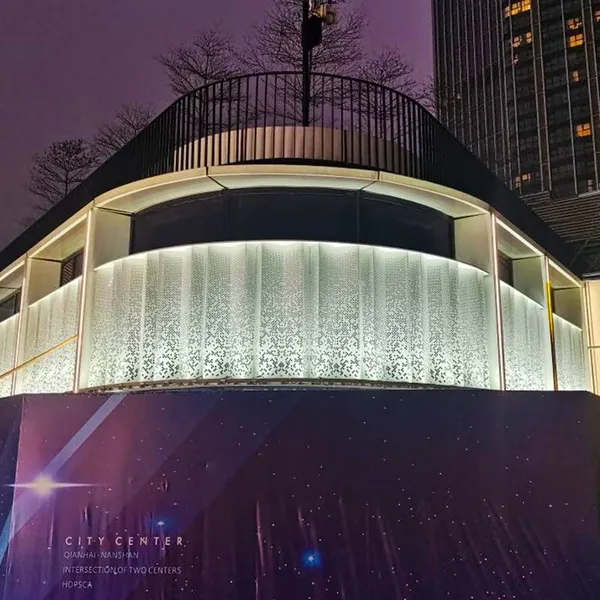

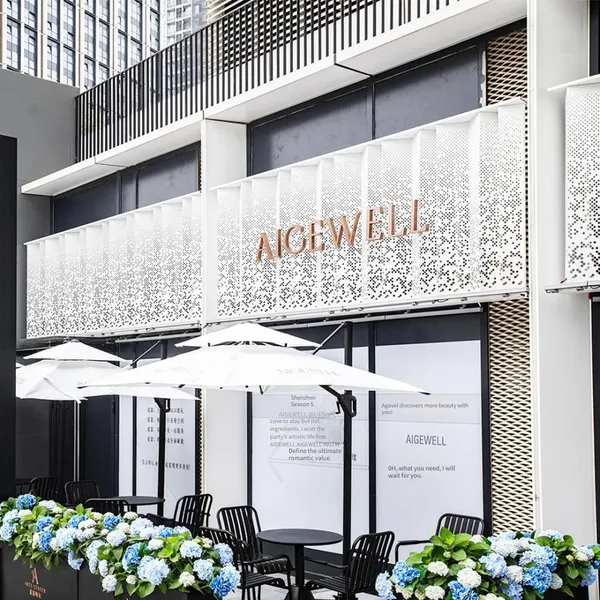

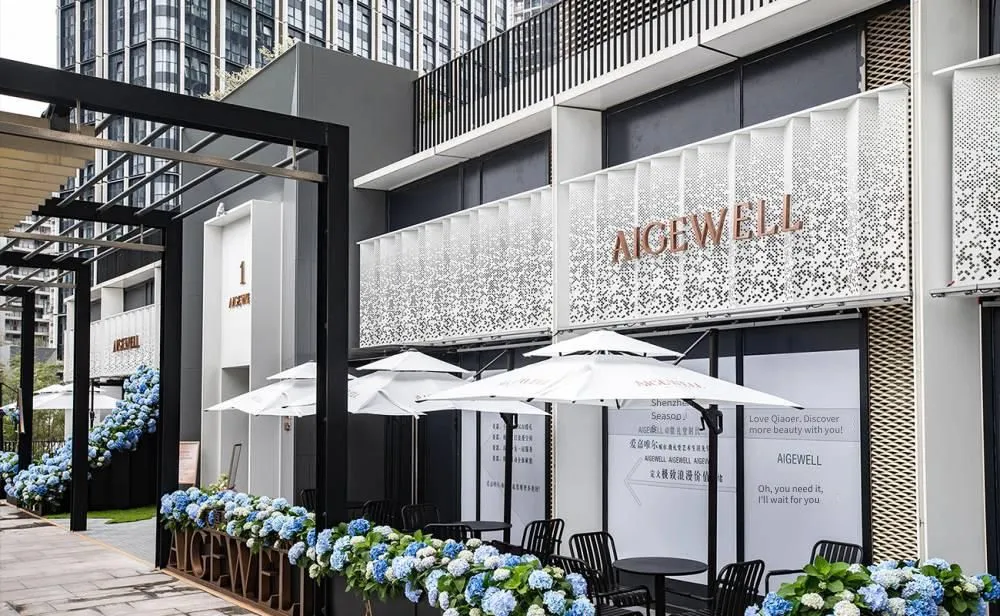

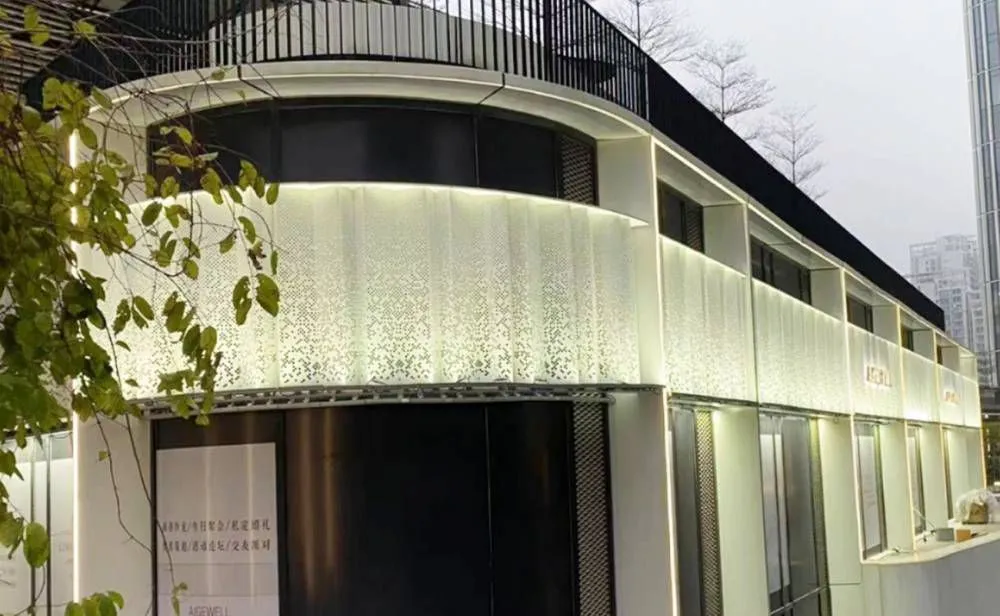

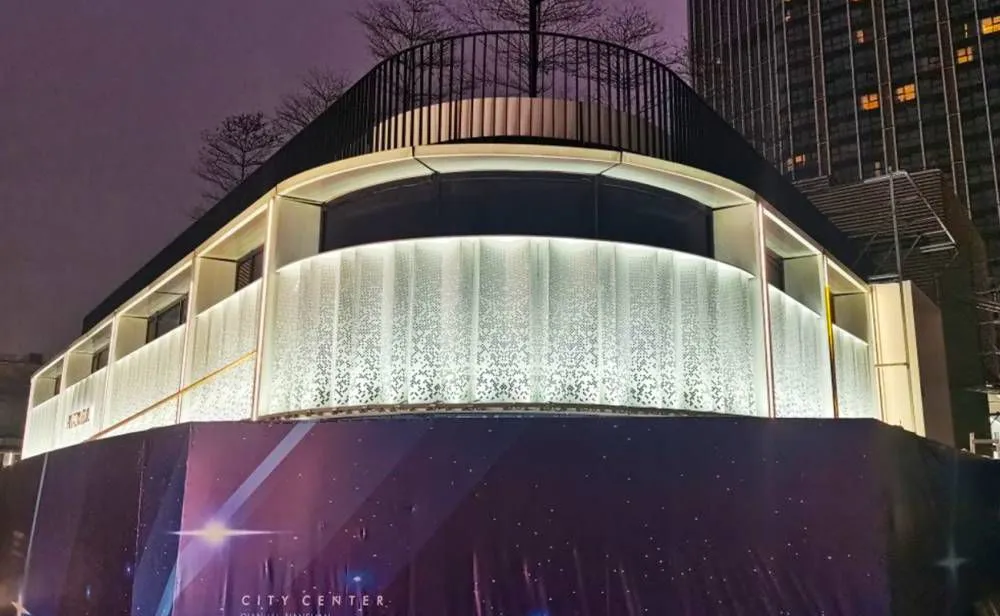

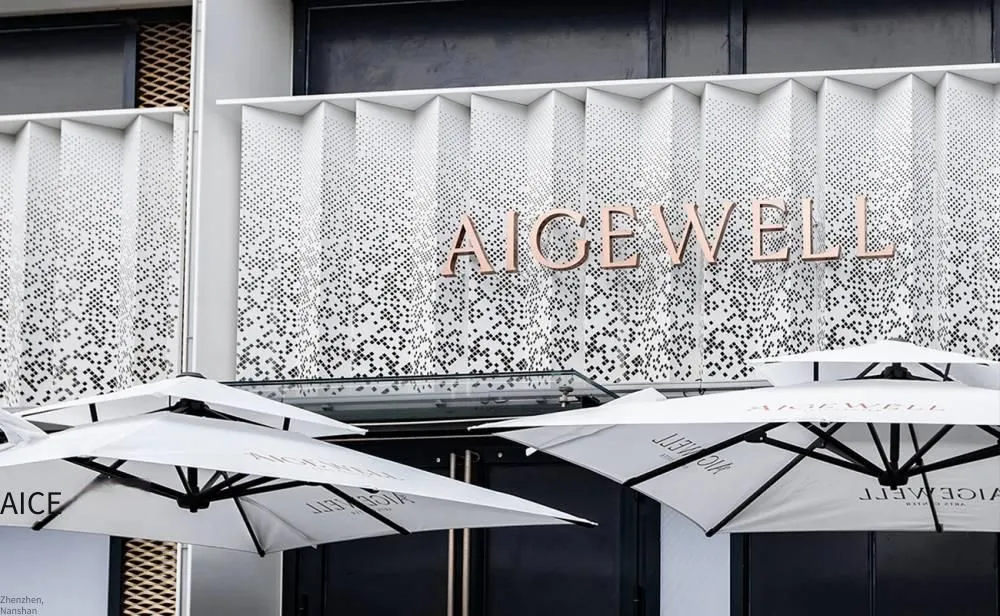

-- Case Display
