I. Basic Introduction
Fluorocarbon aluminum veneer is a kind of decorative and finishing material made of high-quality aluminum alloy sheets as the base material and sprayed with fluorocarbon paint (commonly known as "fluorocarbon coating") on the surface. It is mainly used in scenarios such as building exterior walls, curtain walls, indoor ceilings, and wall decorations. It is one of the high-end decorative materials with wide application and high cost performance in the field of building decoration at present.
Simply put, it is a combination of "aluminum alloy sheet + high-end fluorocarbon coating". It not only retains the characteristics of aluminum alloy such as light weight and easy processing, but also solves the problems of easy rusting and fading of ordinary aluminum materials with the help of the characteristics of fluorocarbon paint. It combines both decoration and practicality and is commonly seen in various buildings such as office buildings, shopping malls, airports, and high-speed railway stations.

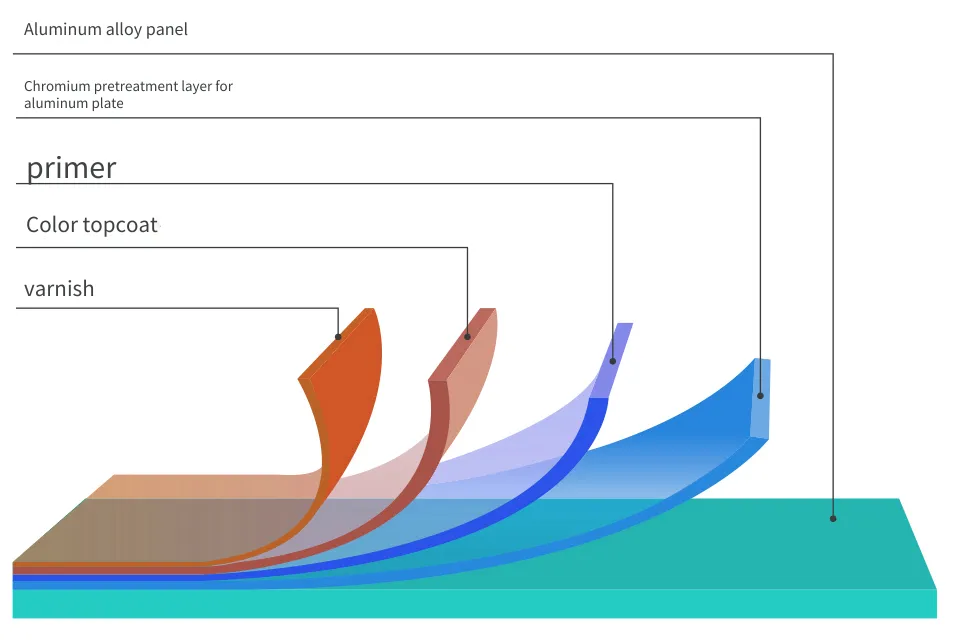

Structural Diagram
II. Performance Features
The core advantages of fluorocarbon aluminum veneer are "durable, good-looking, and easy to maintain". The specific features are as follows. Avoiding professional terms, the actual uses are explained straightforwardly:
Good weather resistance: It is not afraid of wind, sun, rain, snow, and frost. Even if it is exposed to the outdoors for a long time (even in coastal humid areas or areas with high-temperature exposure), it will not fade, crack, or powder. It can maintain a good appearance for 15 - 20 years under normal use without frequent maintenance and replacement.
Strong corrosion resistance: It can resist corrosive substances such as acid rain, sea breeze, and industrial waste gas. It is especially suitable for use in coastal and heavy industrial areas. It will not rust or oxidize like ordinary aluminum materials, greatly extending its service life.
Good decorative effect: The surface coating comes in a rich variety of colors (any color can be customized, such as white, gray, brown, metallic colors, etc.). It has a uniform gloss and a smooth feel. It can also be processed into various shapes such as flat, curved, and irregular shapes to match different architectural styles (modern minimalist, high - end and elegant, etc.).
Lightweight and easy to install: The aluminum alloy substrate is lightweight (much lighter than stone and ceramic tiles). The weight per square meter is only 2.5 - 5kg. There is no need to reinforce the wall additionally during installation. The construction efficiency is high, and it can also reduce the overall weight of the building and lower the construction cost.
Easy to clean and maintain: The surface fluorocarbon coating is smooth. Dust and stains can be quickly cleaned by simply wiping with water or a neutral cleaner. Almost no special maintenance is required in daily use. It is suitable for use on the exterior walls of large buildings and high - altitude areas.
-
Fire - resistant: The substrate is made of aluminum alloy, which is non - combustible. The surface fluorocarbon coating also has flame - retardant properties, meeting the fire - prevention requirements of buildings. It is safer to use and is suitable for densely populated places such as office buildings and shopping malls.

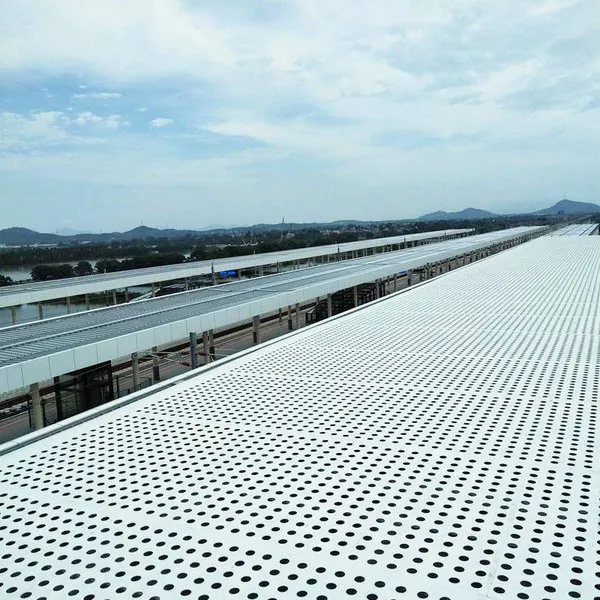

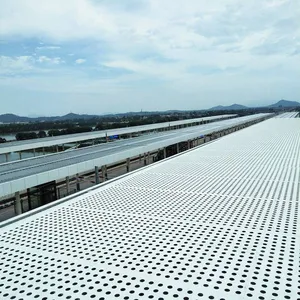

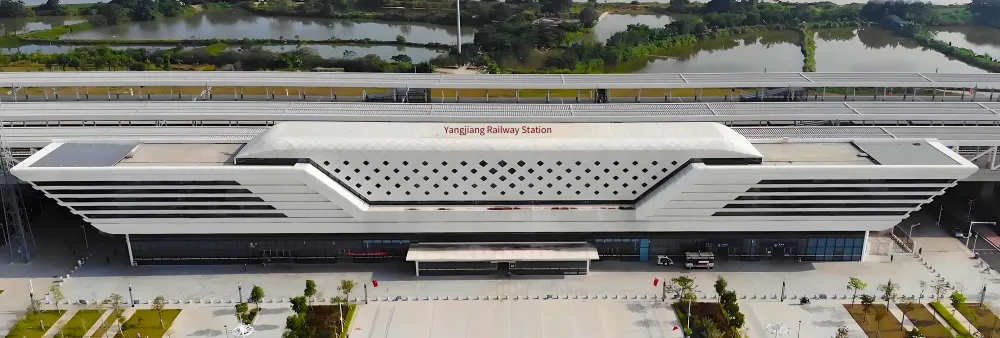

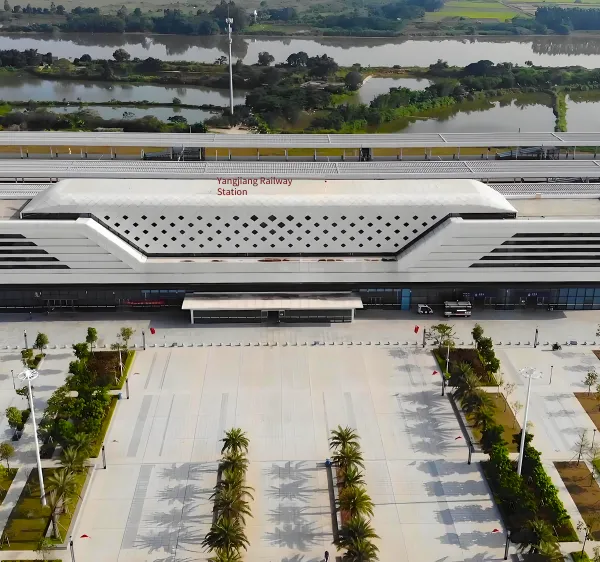

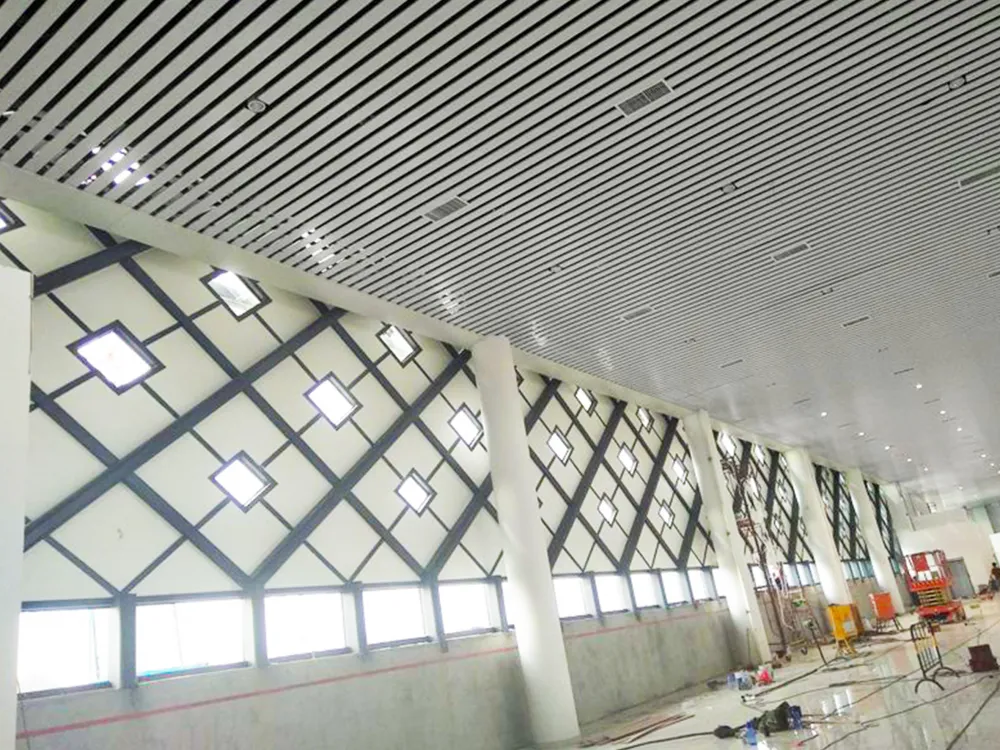

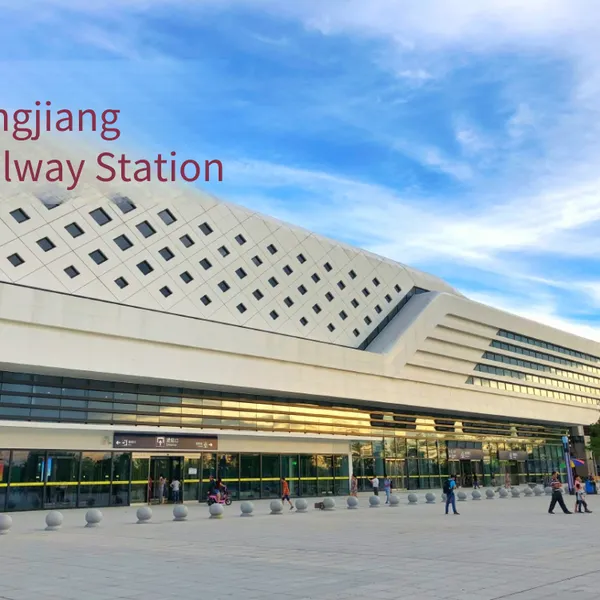

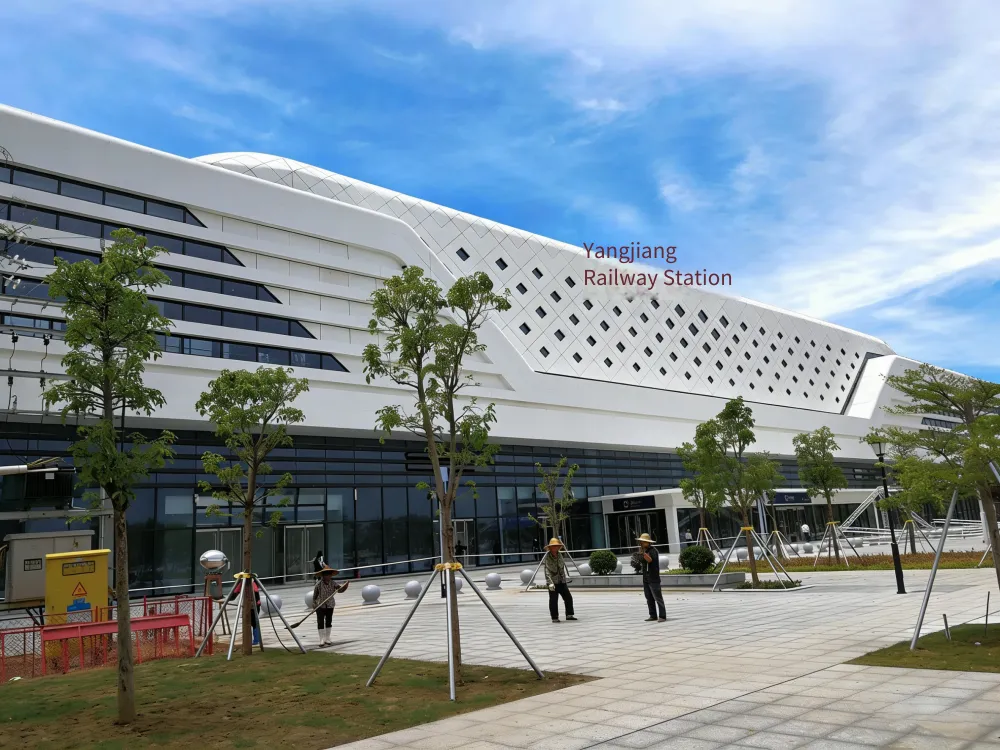

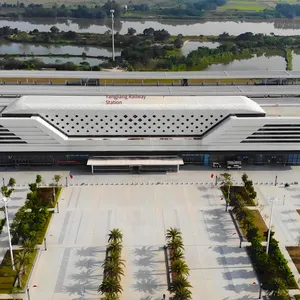

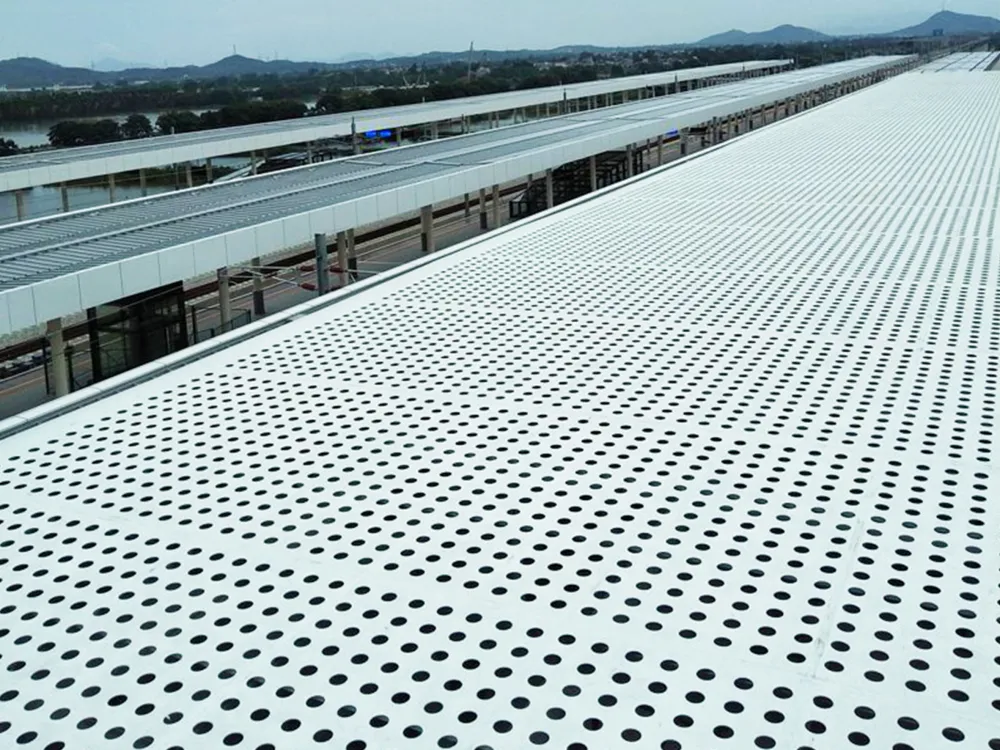

III. Case display
IV. Technical parameters
Parameter name |
Common range (practical application) |
Popular explanation |
Substrate thickness |
1.5mm, 2.0mm, 2.5mm, 3.0mm |
The thicker the thickness, the higher the hardness and the better the load-bearing capacity. 2.0 - 3.0mm is commonly used for exterior walls, and 1.5 - 2.0mm is commonly used for indoor ceilings. |
Fluorocarbon coating thickness |
20 - 30μm (primer + topcoat + varnish) |
The thicker the coating, the stronger the weather resistance and corrosion resistance. A normal standard of over 20μm can meet the requirements for outdoor use. |
Plate specifications |
Regular size: 1220mm×2440mm; customizable (width 1500mm, length is unlimited) |
It can be customized according to the building size, reducing excessive cutting, minimizing waste and making construction more convenient. |
Hardness |
≥2H (pencil hardness) |
The surface is not easily scratched, and there will be no obvious marks left by daily collisions and frictions. |
Adhesion |
Grade 1 |
The coating is tightly bonded to the substrate, and there will be no paint peeling or flaking. |
Fire rating |
Class A non-combustible |
It meets the national building fire protection standards. It will not burn in case of fire and will not produce toxic gases. |
Operating temperature |
-40℃~80℃ |
It can be used normally in most areas of the country (severe cold in the north and high temperature in the south) without deformation or cracking. |
V. Instructions for Use (Practical for Construction and Daily Maintenance, Easy to Understand)
(1) Construction Precautions
• Before installation, check the appearance of the aluminum veneer to ensure there is no paint loss, scratches, or deformation, and the size is consistent with the construction drawings to avoid rework after installation.
• During installation, fix it firmly with uniform gaps (the regular gap is 5 - 10mm), and reserve space for thermal expansion and contraction to prevent the panel from deforming or cracking due to temperature changes.
• Construction environment: Avoid construction on rainy days or windy days (wind force ≥ 5 levels). In high - temperature (≥ 35℃) or extremely cold (≤ - 5℃) weather, adjust the construction rhythm to prevent damage to the coating.
• After installation, promptly clean the construction stains (such as cement and glue) on the panel surface to prevent the stains from adhering for too long and being difficult to clean.
(2) Daily Maintenance Instructions
• Regular cleaning: Clean outdoors every 3 - 6 months and indoors every 6 - 12 months. Wipe with clean water or a neutral cleaner (such as dish soap), and avoid using strong acid or strong alkali cleaners (which will corrode the coating).
• Avoid collision and scratching of the surface by sharp objects. If there are small - area scratches, contact the manufacturer for paint touch - up to prevent the scratches from expanding and rusting.
• Regular inspection: Check the installation fasteners once a year. If they are loose, reinforce them in time. If the coating is peeling or cracking, handle it promptly to extend the service life.
• Special scenarios: In coastal areas, clean the surface additionally every 1 - 2 years to remove salt and prevent corrosion; in heavy - industrial areas, increase the cleaning frequency to avoid the adhesion of industrial waste gas.
(3) Common Problems and Solutions
• Problem 1: There are stains on the surface and they are difficult to clean? —— Solution: Use warm water + neutral cleaner and wipe with a soft cloth. Do not use a hard brush (which will scratch the coating). Soak stubborn stains for a while and then wipe.
• Question 2: The panel shows slight deformation? —— Solution: Check if the installation gap is sufficient. If the gap is too small, adjust the fasteners and reserve space for thermal expansion and contraction. If the deformation is severe, replace the panel.
• Question 3: Local paint peeling? —— Solution: Contact the manufacturer in time. Use special paint repair materials to touch up the paint. Before touching up the paint, clean off the loose coating to ensure that the color and gloss of the repaired paint are consistent with the original coating.
VI. Supplementary Instructions (Practical Tips)
1. Fluorocarbon aluminum veneers are divided into "sprayed fluorocarbon" and "rolled fluorocarbon". For outdoor use, it is recommended to choose sprayed fluorocarbon (better weather resistance), and for indoor use, rolled fluorocarbon can be selected (higher cost-effectiveness).
2. When customizing, clearly inform the manufacturer of the usage scenario (outdoor/indoor), size, color, and thickness to avoid products that do not meet the actual usage requirements.
3. Choose a regular manufacturer to ensure the quality of the fluorocarbon coating and the substrate, and avoid low-cost and inferior products (prone to fading, paint peeling, and short service life).
