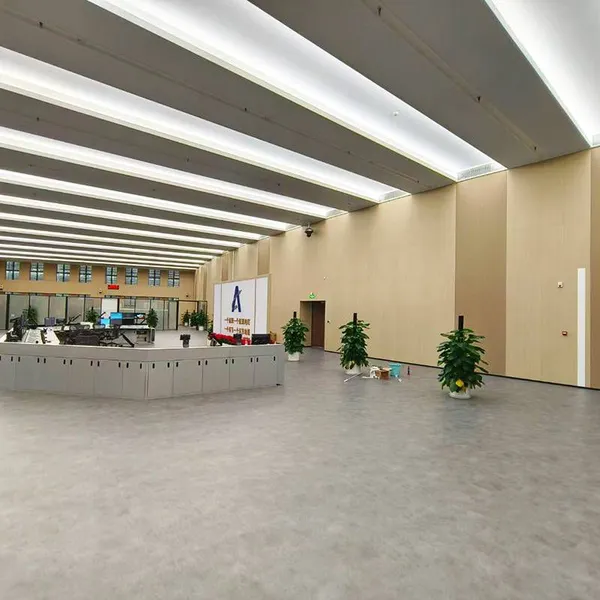

Help CenterManufacturer of Simulated Wood Grain Honeycomb Aluminum Panels for Interior and Exterior Curtain Walls and Ceilings, Customizable
Related Products
-
One-stop Supply of Fluorocarbon Aluminum Veneer, Curtain Wall Aluminum Veneer, and Indoor and Outdoor Decorative Aluminum VeneerNegotiableMOQ: 0 Square Meter -
Factory Supply of Fluorocarbon Aluminum Single Panels, Curtain Wall Aluminum Single Panels, and Customized In-depth Design of Aluminum Alloy Shaped Aluminum PanelsNegotiableMOQ: 0 Square Meter
-
Customized Non-standard Special-shaped Arc and Wavy Aluminum Square ChannelsNegotiableMOQ: 0 Square Meter
-
Factory Supply Fluorocarbon Aluminum Single Panel, Curtain Wall Aluminum Single Panel, Customized Aluminum Alloy Shaped Aluminum PlateNegotiableMOQ: 0 Square Meter
-
Perforated Aluminum Single Panel Ceiling Curtain Wall, Perforated Aluminum Single Panel for Sound Absorption and Heat Insulation for Interior DecorationNegotiableMOQ: 0 Square Meter
1. Popular Interpretation: What exactly is an aluminum alloy honeycomb panel? (Easy for beginners to understand)
Product Introduction

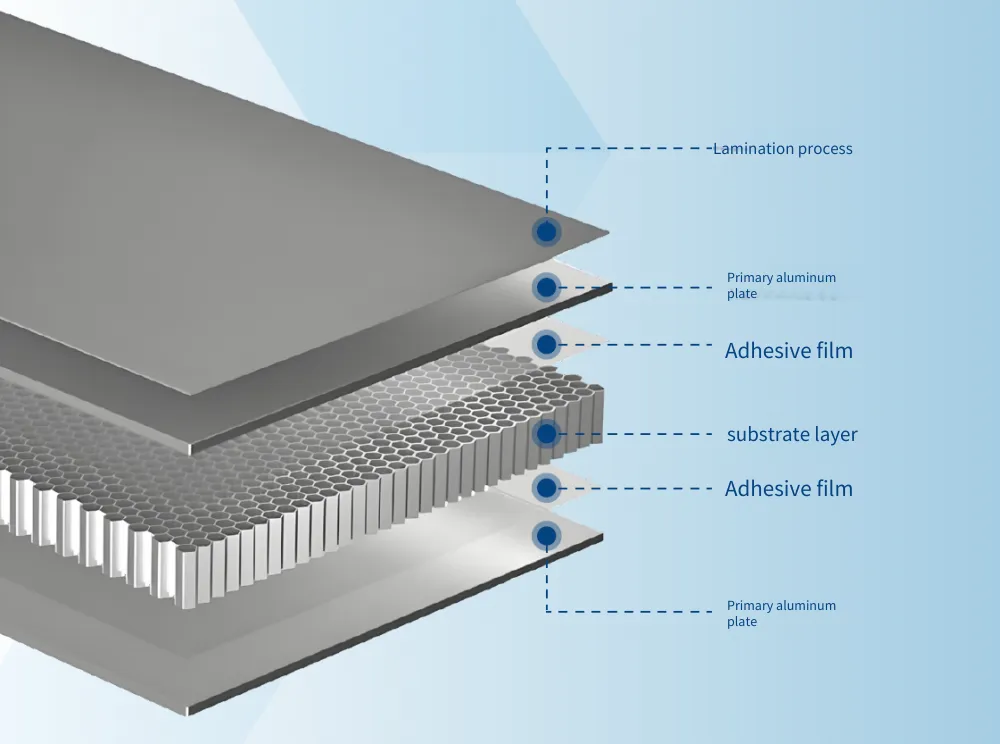

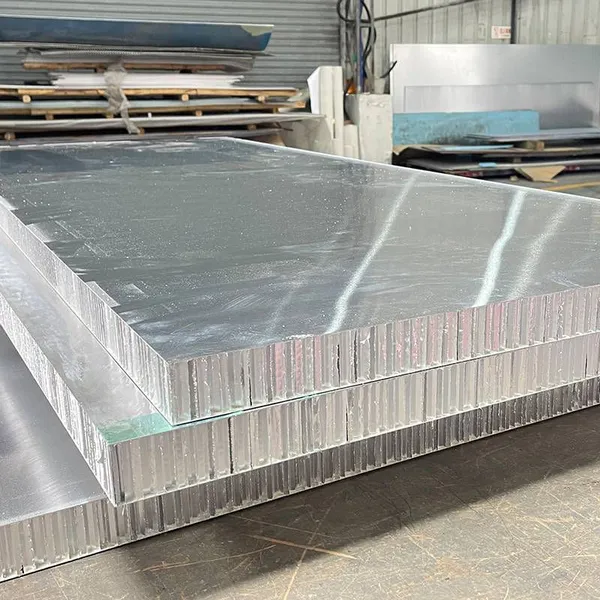

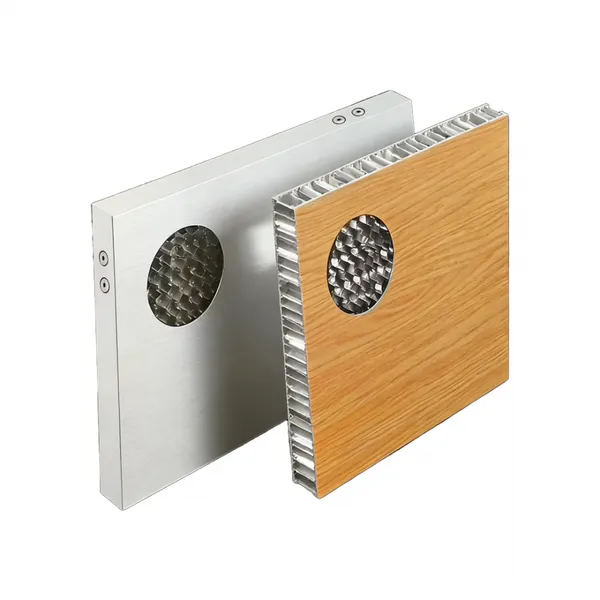

No need to memorize complex industry definitions. In one sentence: It is a "sandwich" - structured panel. The upper and lower layers are high - strength aluminum alloy panels, with a hexagonal aluminum honeycomb core in the middle, pressed through a glue - free composite process. The core advantages can be condensed into 4 words: light, hard, economical, and good. There are no fancy gimmicks, only real practical value. It is suitable for home decoration, commercial decoration, and special scenarios, and its cost - performance ratio is better than traditional panels.
Compared with traditional panels (wood, stone, ordinary aluminum plates), its core difference is that it retains the performance of aluminum materials and solves the pain points of traditional panels such as "heavy, easy to deform, and non - environmentally friendly". Moreover, with technological iteration, today's aluminum alloy honeycomb panels have long got rid of the "industrial style" label, with both good looks and strength, suitable for various decoration styles.
Genuine materials, visible safety

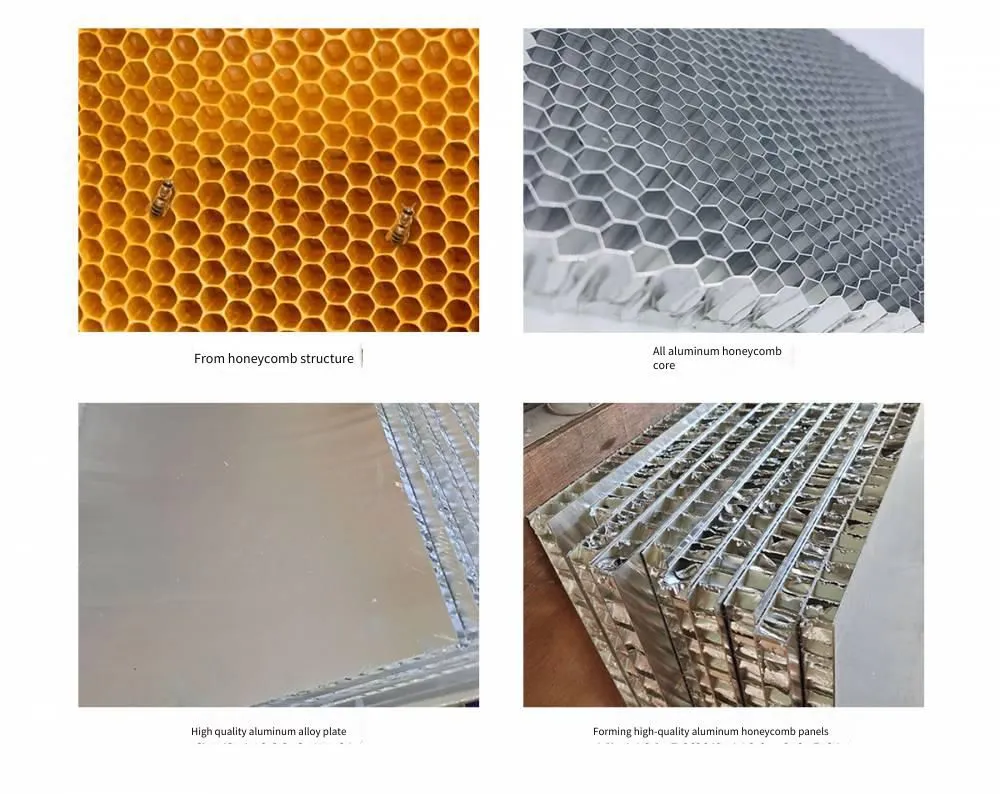

Derived from the honeycomb structure, scientifically designed
Lightweight, low cost, uniform stress, and stable structure
Product Technical Parameters
| Parameter Category | Specific Project | Standard Specifications/Performance Indicators | Remarks/Application Scenarios |
| Specifications and Dimensions | Common Thicknesses |
10mm, 15mm, 20mm, 25mm, 30mm | Different thicknesses meet the stiffness and strength requirements of different application scenarios. |
Panel Size |
1500mm x 5000mm | Customized production with flexible sizes. | |
| Panel/Bottom Plate Thickness | Commonly 0.8mm, 1.0mm, etc. | Can be adjusted according to requirements. | |
| Physical Properties | Surface Density | Approximately 4 - 7kg/m², commonly 5 - 5.5kg/m² | Much lighter than traditional stone and glass curtain walls. |
| Compressive Strength | 0.3 - 1.2MPa | Meets the requirements of curtain wall structures. | |
| Wind Load Bearing Capacity | The deformation is less than 5% of the span at 300kg/m2 | Suitable for high-rise buildings. | |
| Surface coating | Coating type | Fluorocarbon spraying (PVDF) is the mainstream, and powder spraying, etc. can also be provided | The fluorocarbon coating provides excellent weather resistance and long-lasting color. |
| Safety and environmental protection | Fire rating | Non-combustible/flame-retardant B1 grade or above | Ensure the fire safety of buildings. |
| Environmental protection features |
Completely recyclable | In line with the concept of green buildings. |
Core advantages of the product
Lightweight and high strength: Weight:Only 5 - 5.5kg/m2, and the size can reach 1500x5000mm. Under the same rigidity, the weight is about 1/5 of that of a pure aluminum plate of the same thickness and 1/10 of that of steel, effectively reducing the load on the building structure, and at the same time having superior wind pressure resistance and bearing performance.
Ultra-high flatness and rigidity:Adopting a scientific honeycomb structure, it can effectively disperse stress. It can maintain excellent flatness under a large panel size without additional reinforcement, with strong rigidity and stable shape.
Excellent physical properties:
Sound and heat insulation: The honeycomb core layer forms a sealed air cavity, effectively blocking the transmission of sound waves and heat.
Fireproof and flame-retardant: Both the aluminum panel and the core material are non-combustible materials, and the overall fire rating can reach Class A2 (or above Class B1 of difficult-to-burn materials).
Corrosion resistance: The surface is treated with epoxy fluorocarbon. After a salt spray test of more than 3000 hours, there is no discoloration, blistering or cracking, with excellent corrosion resistance.
Outstanding durability:Using fluorocarbon coatings such as KYNAR - 500, it has extremely strong weather resistance, excellent anti - ultraviolet and corrosion resistance, and a long service life.
Green and environmentally friendly:The product is made of pure aluminum. No harmful gases are emitted during the production and use process. It can be 100% recycled, meeting the standards of green buildings and environmental protection.
Product series and application fields
The aluminum honeycomb panel product series is rich and can meet the needs of different scenarios:

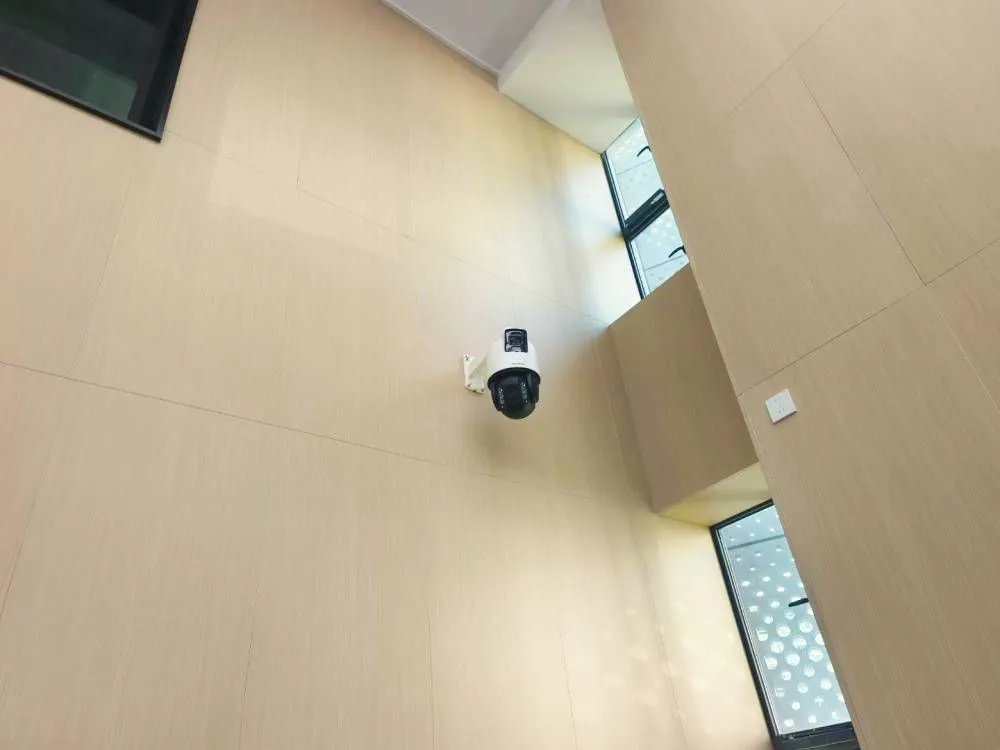

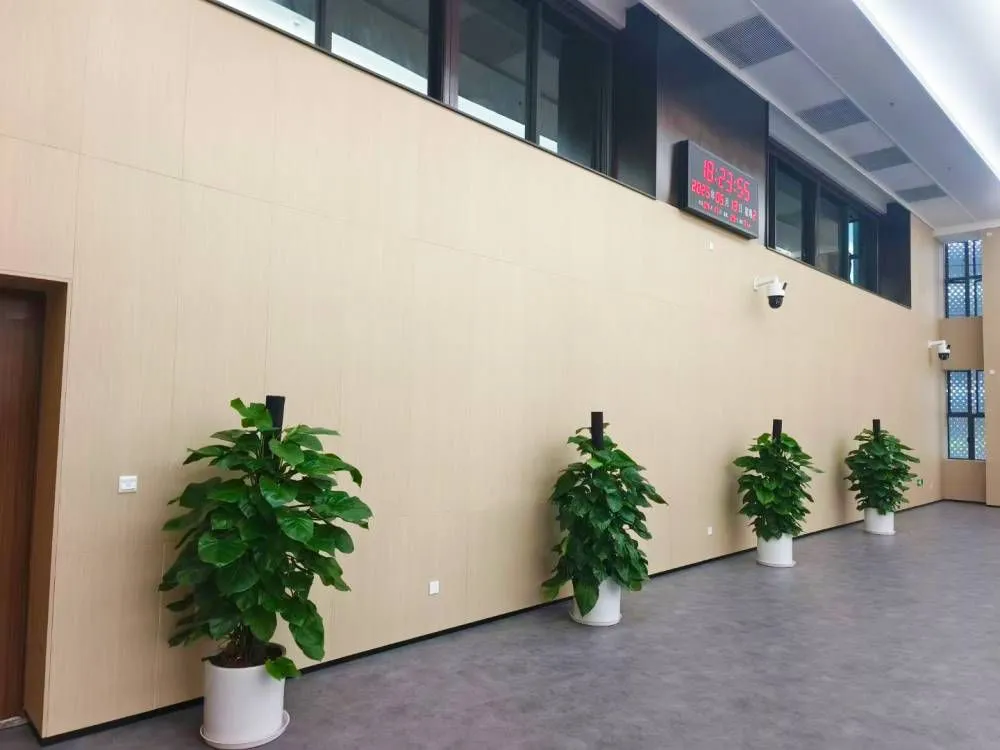

Building curtain wall decoration series:Large panel surface and high flatness can create a very straight and beautiful wall, suitable for high-end commercial buildings, office buildings, etc.

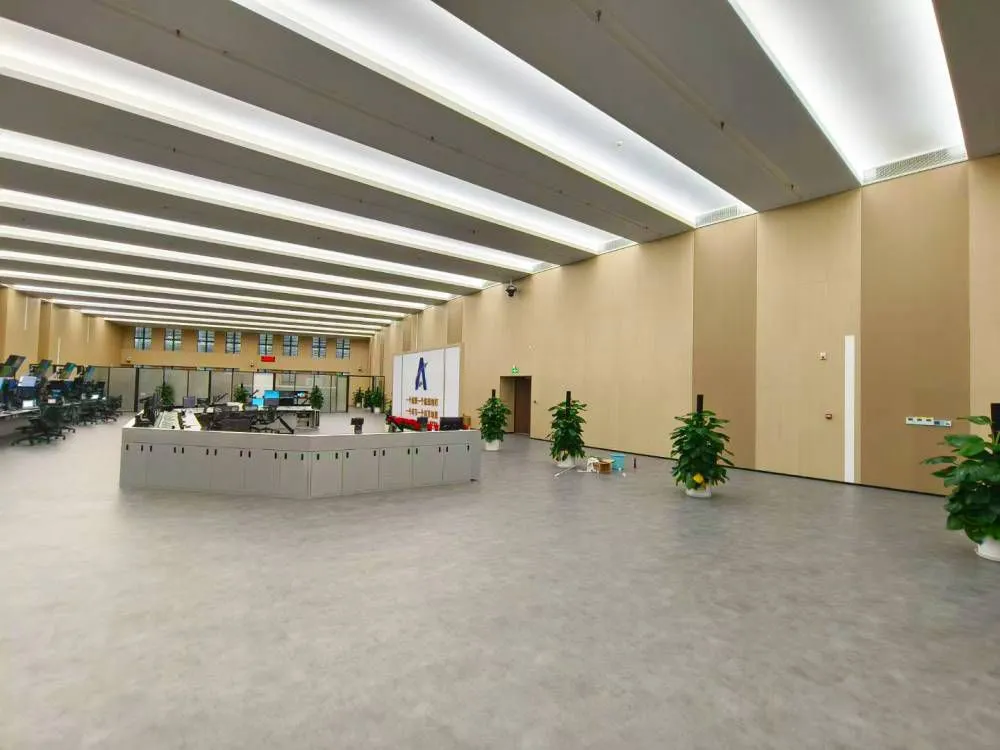

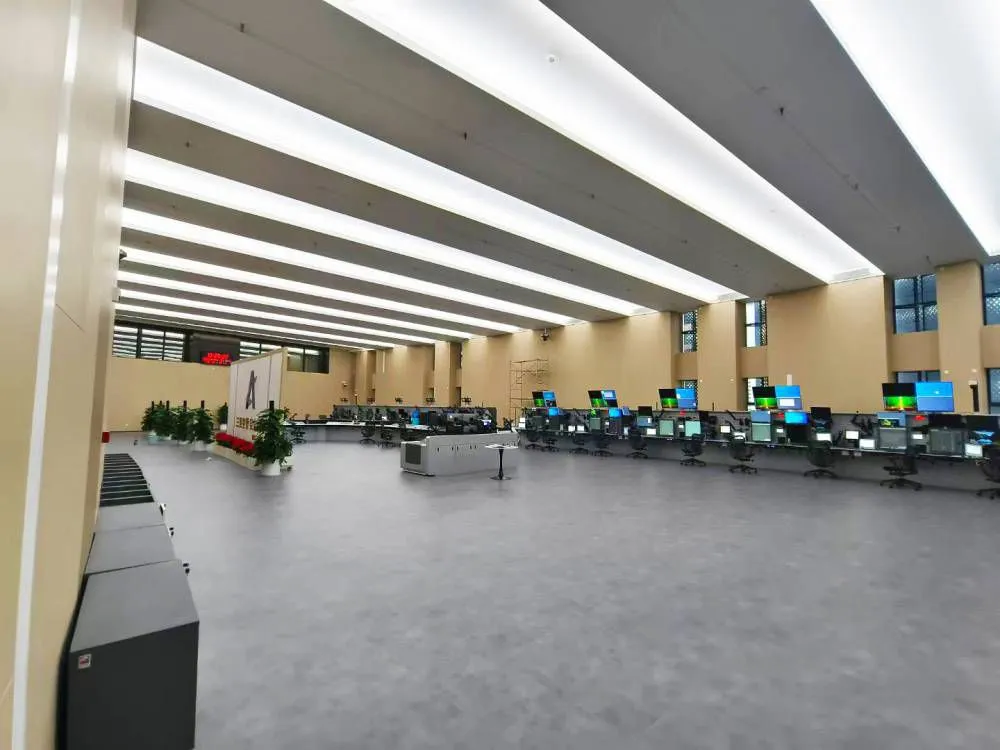

Ceiling series:Lightweight, good toughness and high strength, it is an ideal board for the ceiling of large projects.
Furniture honeycomb panel series:Environmentally friendly and non-toxic. The panel can choose a variety of materials such as solid wood and fireproof board, suitable for modern furniture manufacturing.
Partition series:It has the advantages of fire resistance, corrosion resistance, environmental protection and easy disassembly, suitable for office space partitions.
Rail transit series:It is used for the interior decoration and billboards of vehicles such as buses, trains and subways, meeting the requirements of lightweight and safety.
Elevator engineering series:Lightweight, fireproof and soundproof, it can significantly reduce the elevator load and is an ideal material for public elevators and freight elevators.
Typical applications
Building curtain walls, large indoor ceilings (airports, high-speed railway stations), ship interiors, partitions, table tops.
