I. Basic Introduction

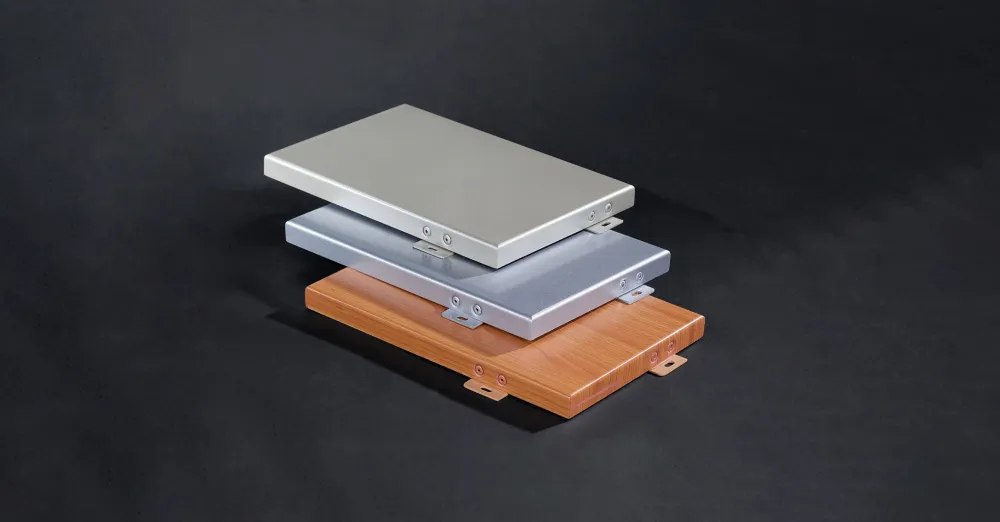

Fluorocarbon aluminum veneer is a kind of decorative material made of high-quality aluminum alloy sheets as the base material and sprayed with fluorocarbon coatings (commonly known as "fluorocarbon paint") on the surface. It is mainly used in scenarios such as building exterior walls, curtain walls, indoor ceilings, and wall decorations. It is one of the high-end decorative materials with wide application and high cost-performance ratio in the field of building decoration at present.
In simple terms, it is a combination of "aluminum alloy sheets + high-end fluorocarbon coatings". It not only retains the characteristics of aluminum alloy, such as light weight and easy processing, but also solves the problems of easy rusting and fading of ordinary aluminum materials by virtue of the characteristics of fluorocarbon coatings. It combines both decoration and practicality and is commonly seen in various buildings such as office buildings, shopping malls, airports, and high-speed railway stations.
II. Performance Characteristics
The core advantages of fluorocarbon aluminum veneer are "durable, good-looking, and easy to maintain". The specific characteristics are as follows. Avoiding technical terms, the actual uses are explained straightforwardly:
1. Strong weather resistance: It is not afraid of wind, sun, rain, snow, or freezing. Even if it is exposed to the outdoors for a long time (even in coastal humid areas or areas with high-temperature exposure), it will not fade, crack, or powder. It can maintain a good appearance for 15 - 20 years under normal use, and there is no need for frequent maintenance and replacement.
2. Strong corrosion resistance: It can resist corrosive substances such as acid rain, sea breeze, and industrial waste gas. It is especially suitable for use in coastal and heavy industrial areas. It will not rust or oxidize like ordinary aluminum materials, greatly extending its service life.
3. Good decoration: The surface coating has a rich variety of colors (any color can be customized, such as white, gray, brown, metallic color, etc.). The gloss is uniform, the hand feel is smooth, and it can be processed into various shapes such as flat, arc, and special shapes to match different architectural styles (such as modern minimalist, high-end and grand styles).
4. Lightweight and easy to install: The aluminum alloy base material is light in weight (much lighter than stone and ceramic tiles). The weight per square meter is only 2.5 - 5 kg. There is no need to reinforce the wall additionally during installation. The construction efficiency is ***, and it can also reduce the overall weight of the building and lower the construction cost.
5. Easy to clean and maintain: The surface fluorocarbon coating is smooth. Dust and stains can be quickly cleaned with just water or a neutral cleaner. There is almost no need for special maintenance in daily use. It is suitable for the exterior walls of large buildings and high-altitude areas.
6. Fireproof and flame-retardant: The base material is aluminum alloy, which does not burn itself. The surface fluorocarbon coating also has flame-retardant properties, meeting the fire protection requirements of buildings. It is safer to use and is suitable for crowded places such as office buildings and shopping malls.

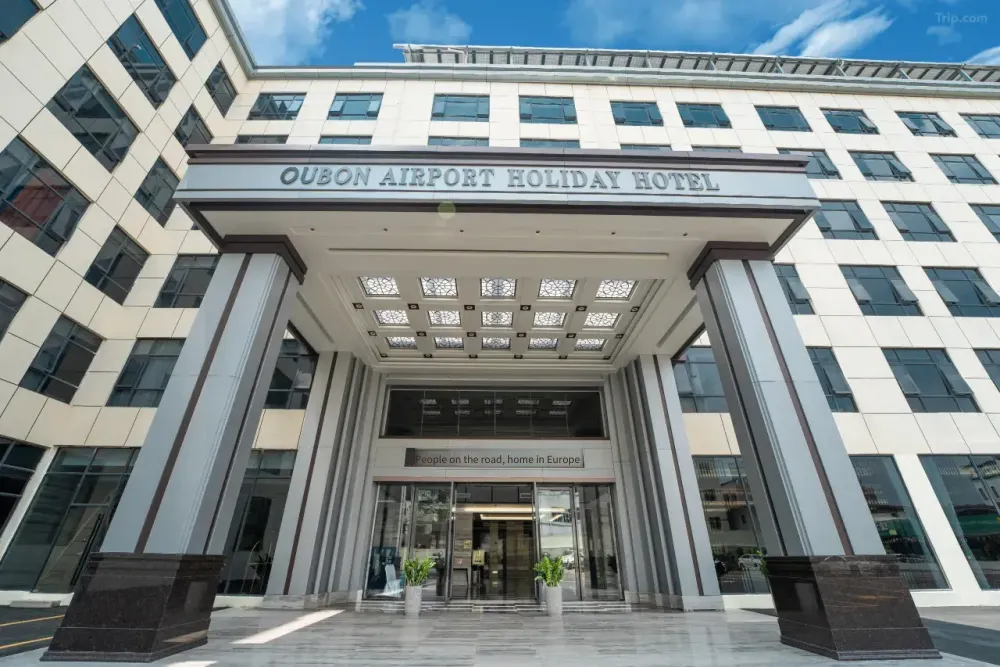

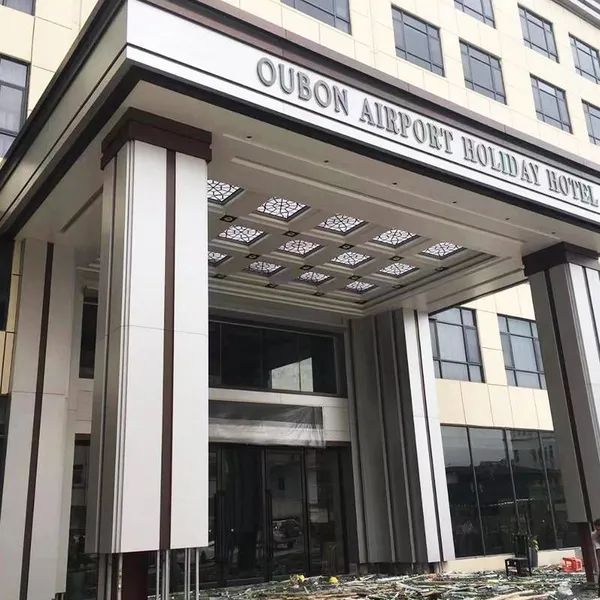

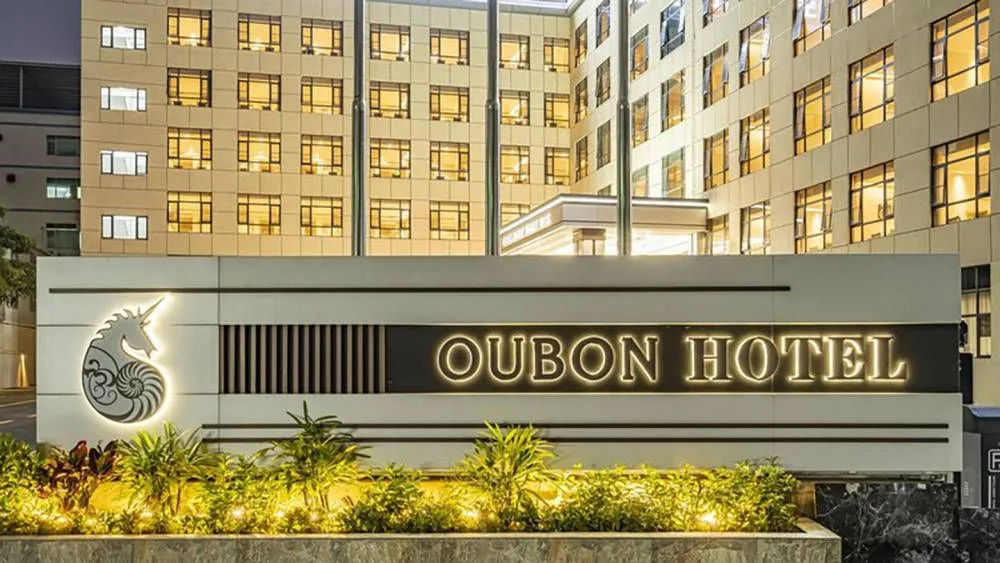

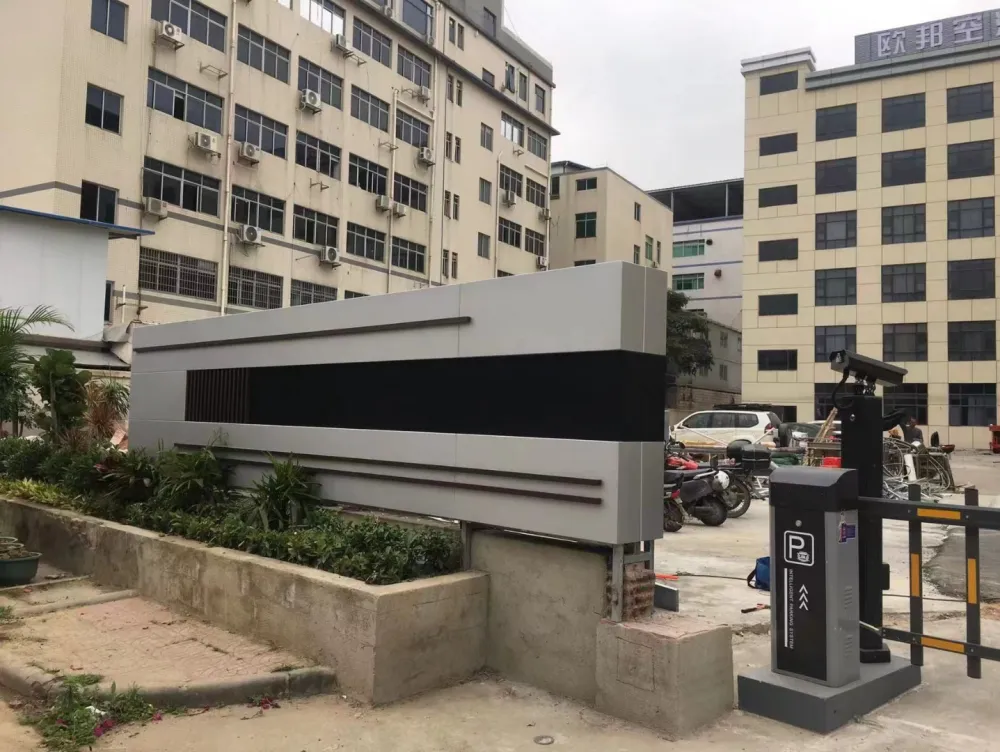

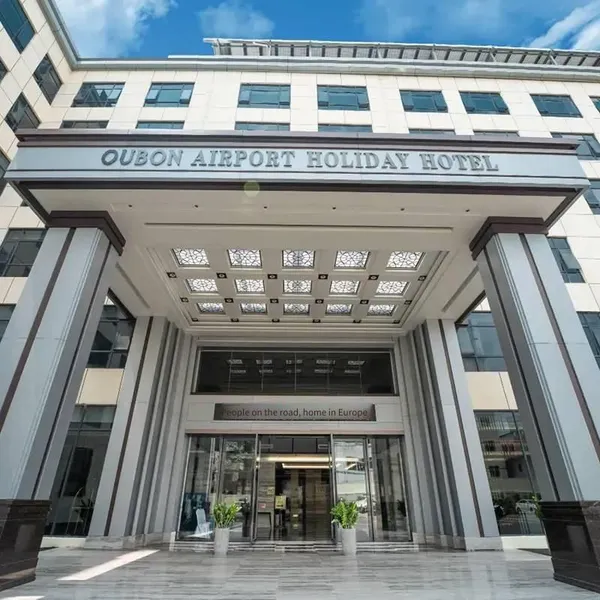

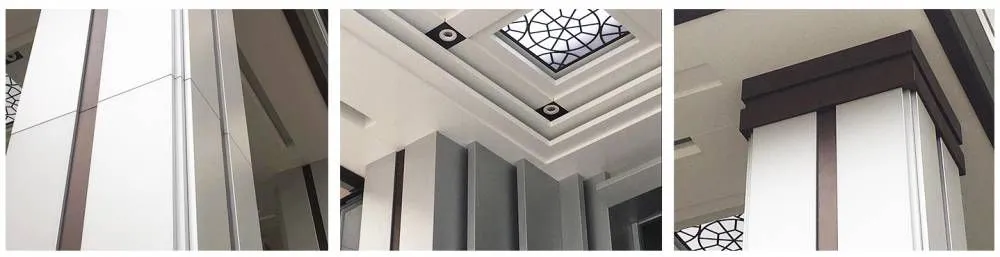

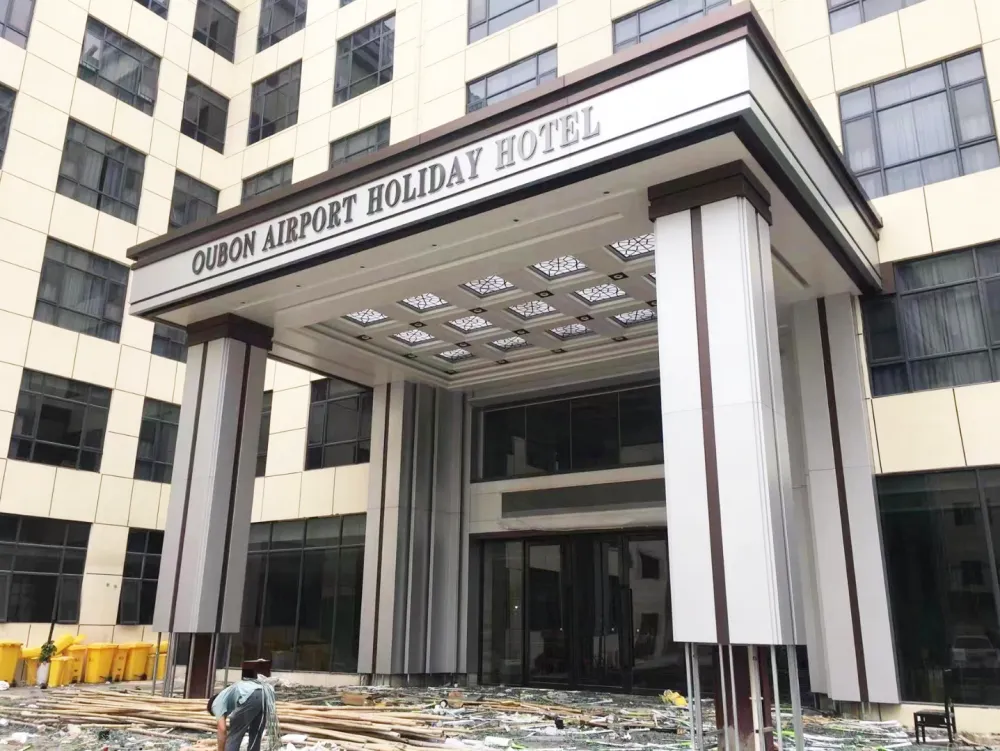

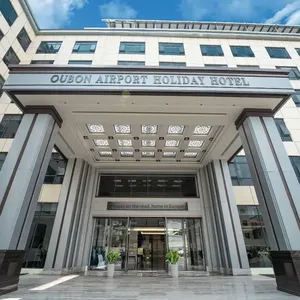

3. Case Display
4. Technical Parameters
Parameter Name |
Common Range (Actual Application) |
Popular Explanation |
|||
Substrate Thickness |
1.5mm, 2.0mm, 2.5mm, 3.0mm |
The thicker the thickness, the higher the hardness and the better the load-bearing capacity. 2.0 - 3.0mm is commonly used for exterior walls, and 1.5 - 2.0mm is commonly used for indoor ceilings. |
|||
Fluorocarbon Coating Thickness |
20 - 30μm (Primer + Topcoat + Clear Coat) |
The thicker the coating, the stronger the weather resistance and corrosion resistance. A normal standard of over 20μm can meet outdoor use requirements. |
|||
Board Specification |
Regular Size: 1220mm×2440mm; Customizable (Width 1500mm, Length Unlimited) |
It can be customized according to the building size, reducing excessive cutting and waste, and making construction more convenient. |
|||
Hardness |
≥2H (Pencil Hardness) |
The surface is not easily scratched, and daily collisions and frictions will not leave obvious marks. |
|||
Adhesion |
Level 1 |
The coating and the substrate are tightly combined, and there will be no paint peeling or blistering. |
|||
Fire Rating |
Class A Non-combustible |
It meets the national building fire protection standard. It will not burn in case of fire and will not produce toxic gases. |
Operating Temperature |
-40℃~80℃ |
It can be used normally in most parts of the country (severe cold in the north and high temperature in the south) without deformation or cracking. |
V. Instructions for Use (Practical for Construction and Daily Maintenance, Easy to Understand)
(1) Precautions for Construction
1. Before installation, check the appearance of the aluminum veneer to ensure there is no paint peeling, scratches or deformation, and the size is consistent with the construction drawing to avoid rework after installation.
2. During installation, it needs to be firmly fixed with uniform gaps (the regular gap is 5 - 10mm), and leave space for thermal expansion and contraction to prevent the board from deforming or cracking due to temperature changes.
3. Construction environment: Avoid construction on rainy days or windy days (wind force ≥ level 5). In high - temperature (≥35℃) or severe cold (≤ - 5℃) weather, adjust the construction rhythm to prevent damage to the coating.
4. After installation, promptly clean the construction stains (such as cement and glue) on the surface of the board to prevent the stains from adhering for too long and being difficult to clean.
(2) Instructions for Daily Maintenance
1. Regular cleaning: Clean outdoors every 3 - 6 months and indoors every 6 - 12 months. Wipe with clean water or a neutral cleaner (such as dishwashing liquid). Avoid using strong acid or strong alkali cleaners (which will corrode the coating).
2. Avoid collision and scratching of the surface by sharp objects. If there are small - area scratches, contact the manufacturer for touch - up painting to prevent the scratches from expanding and rusting.
3. Regular inspection: Check the installation fasteners once a year. If they are loose, reinforce them in time. If the coating is peeling or cracking, handle it promptly to extend the service life.
4. Special scenarios: In coastal areas, clean the surface additionally once every 1 - 2 years to remove salt and prevent corrosion. In heavy - industrial areas, increase the cleaning frequency to avoid the adhesion of industrial waste gas.
(3) Common Problems and Solutions
Problem 1: There are stains on the surface that are difficult to clean? —— Solution: Use warm water + neutral cleaner and wipe with a soft cloth. Do not use a hard brush (which will scratch the coating). Soak stubborn stains for a while and then wipe.
Problem 2: The board is slightly deformed? —— Solution: Check if the installation gap is sufficient. If the gap is too small, adjust the fasteners to leave space for thermal expansion and contraction. If the deformation is severe, replace the board.
Problem 3: Local paint peeling? —— Solution: Contact the manufacturer in time and use special touch - up paint materials. Before touch - up painting, clean the loose coating to ensure the color and gloss of the touch - up paint are consistent with the original coating.
VI. Supplementary Instructions (Practical Tips)
1. Fluorocarbon aluminum veneers are divided into "sprayed fluorocarbon" and "rolled fluorocarbon". For outdoor use, it is recommended to choose sprayed fluorocarbon (better weather resistance), while for indoor use, rolled fluorocarbon can be selected (higher cost - effectiveness).
2. When customizing, you need to clearly inform the manufacturer of the usage scenario (outdoor/indoor), size, color, and thickness to avoid products that do not meet the actual usage requirements.
3. Choose a regular manufacturer to ensure the quality of the fluorocarbon coating and the substrate, and avoid low - priced and inferior products (prone to fading, paint peeling, and short service life).
