1. A popular explanation: What exactly is an aluminum alloy honeycomb panel? (Newbies can understand it instantly)
Product Introduction

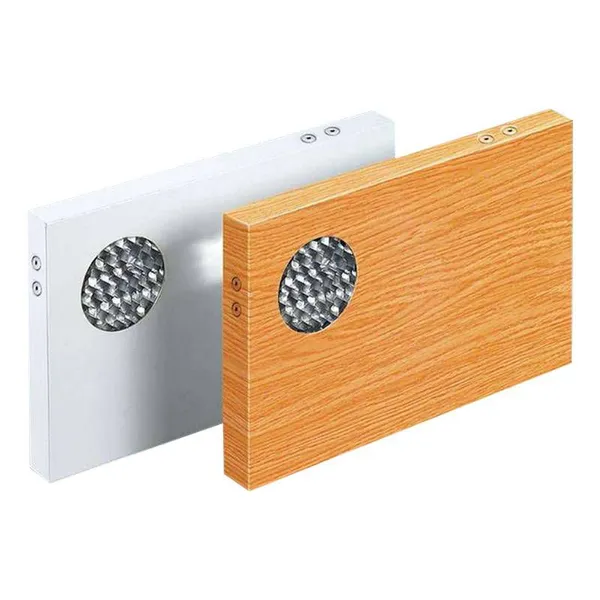

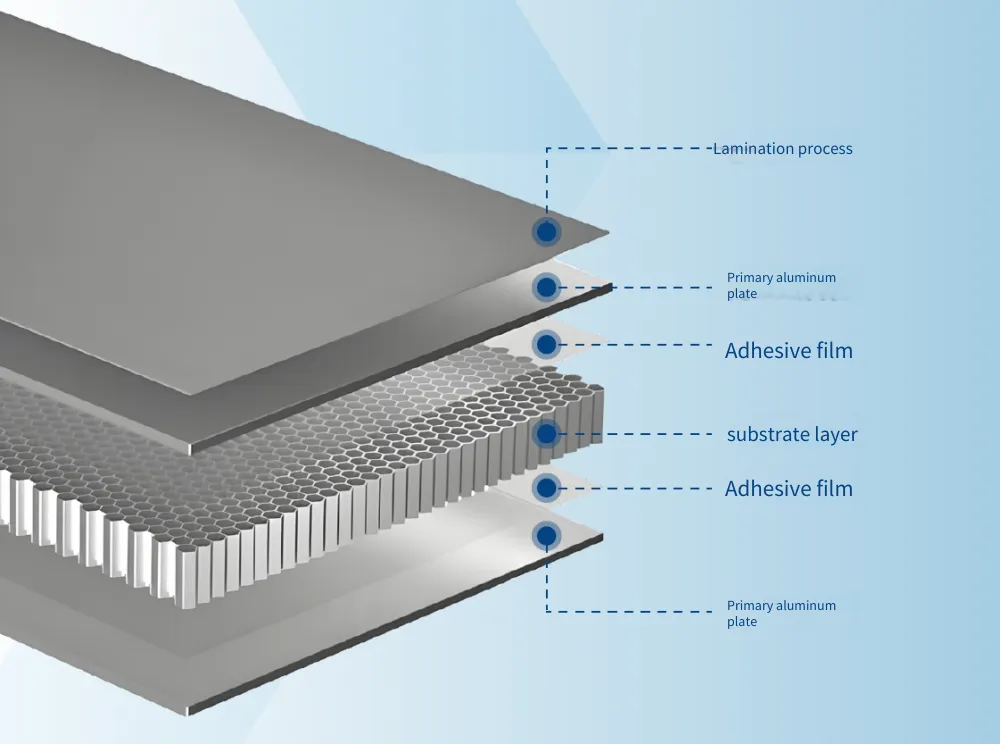

There's no need to memorize complex industry definitions. In a nutshell, it's a "sandwich" - structured panel. The upper and lower layers are high - strength aluminum alloy panels, with a hexagonal aluminum honeycomb core in the middle, and it's made through a glue - free composite process. Its core advantages can be summarized in four words: light, hard, cost - saving, and good. There are no fancy gimmicks, only real practical value. It's suitable for home decoration, commercial decoration, and special scenarios, and its cost - performance is better than that of traditional panels.
Compared with traditional panels (wood, stone, and ordinary aluminum plates), its core difference is that it retains the performance of aluminum materials while solving the pain points of traditional panels such as "heavy, easily deformed, and non - environmentally friendly". Moreover, with technological iterations, today's aluminum alloy honeycomb panels have long shed the "industrial style" label. They have both good looks and strong performance and are suitable for various decoration styles.
Genuine materials, visible safety

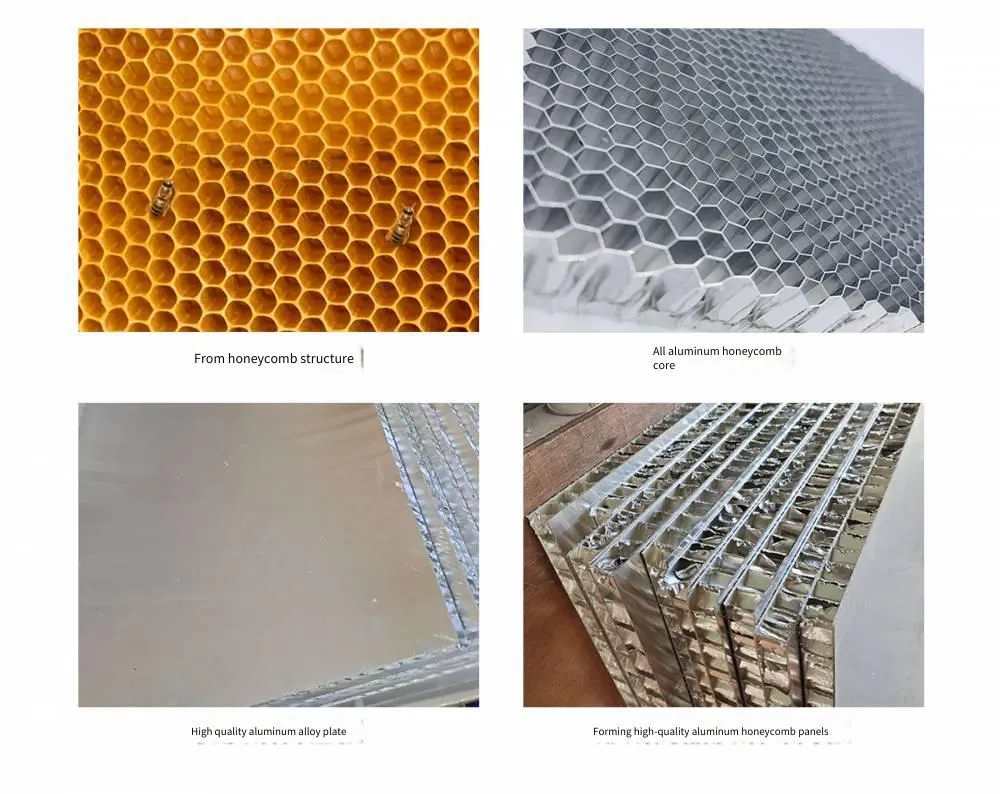

Derived from the honeycomb structure, scientifically designed
Lightweight, low cost, uniform stress, and stable structure
Product Technical Parameters
| Parameter Category | Specific Items | Standard Specifications/Performance Indicators | Remarks/Application Scenarios |
| Specifications and Dimensions | Common Thickness |
10mm, 15mm, 20mm, 25mm, 30mm | Different thicknesses meet the stiffness and strength requirements of different application scenarios. |
Panel Size |
1500mm x 5000mm | Customized production with flexible dimensions. | |
| Panel/Base Plate Thickness | Commonly 0.8mm, 1.0mm, etc. | Can be adjusted according to requirements. | |
| Physical Properties | Surface Density | Approximately 4 - 7kg/m², commonly 5 - 5.5kg/m² | Much lighter than traditional stone and glass curtain walls. |
| Compressive Strength | 0.3 - 1.2MPa | Meets the requirements of curtain wall structures. | |
| Wind Load Bearing Capacity | When the load is 300kg/m2, the deformation is less than 5% of the span. | Suitable for high-rise buildings. | |
| Surface coating | Coating type | Fluorocarbon spraying (PVDF) is the mainstream, and powder spraying is also available. | Fluorocarbon coating provides excellent weather resistance and long-lasting color. |
| Safety and environmental protection | Fire rating | Non-combustible/flame-retardant B1 grade or above | Ensure the fire safety of buildings. |
| Environmental protection features |
Completely recyclable | Meet the concept of green building. |
Core advantages of the product
Lightweight and high strength: Weight:Only 5 - 5.5kg/m2, and the size can reach 1500x5000mm. Under the same rigidity, the weight is about 1/5 of that of a pure aluminum plate of the same thickness and 1/10 of that of steel, effectively reducing the load on the building structure, and at the same time having superior wind pressure resistance and load-bearing performance.
Ultra-high flatness and rigidity:Adopting a scientific honeycomb structure, it can effectively disperse stress. It can maintain excellent flatness under a super-large panel size without additional reinforcement, with strong rigidity and stable shape.
Excellent physical properties:
Sound and heat insulation: The honeycomb core layer forms a closed air cavity, effectively blocking the transmission of sound waves and heat.
Fire and flame retardancy: Both the aluminum panel and the core material are non-combustible materials, and the overall fire rating can reach Class A2 (or above Class B1 for difficult-to-burn materials).
Corrosion resistance: The surface is treated with epoxy fluorocarbon. After a salt spray test of more than 3000 hours, there is no discoloration, blistering or cracking, with excellent corrosion resistance.
Outstanding durability:Using fluorocarbon coatings such as KYNAR - 500, it has extremely strong weather resistance, excellent anti-ultraviolet and corrosion resistance, and a long service life.
Green and environmentally friendly:The product is made of pure aluminum. No harmful gases are emitted during the production and use process. It can be 100% recycled, meeting the standards of green buildings and environmental protection.

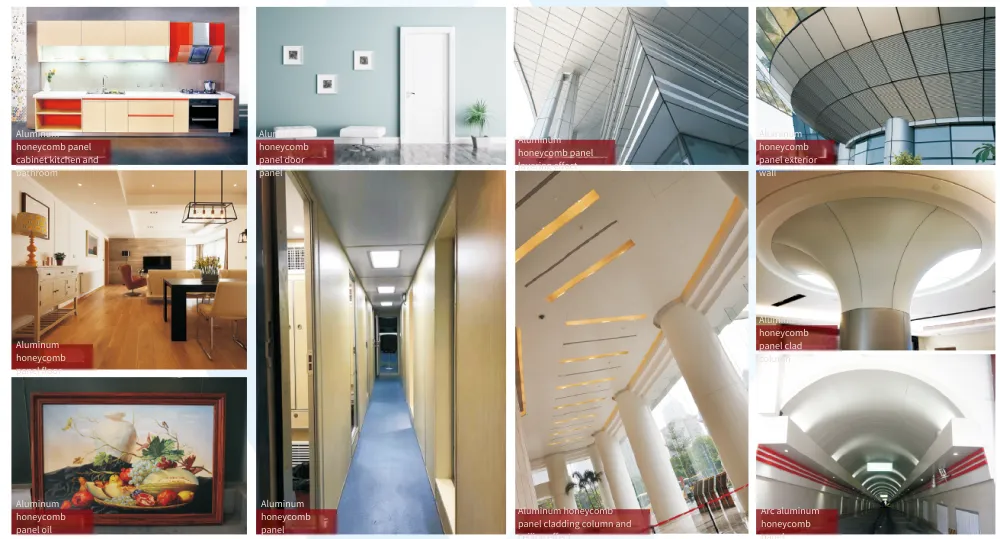

Product series and application fields
The aluminum honeycomb panel product series is rich and can meet the needs of different scenarios:
Building curtain wall decoration series:Large panel surface and high flatness can create a very straight and exquisite wall, suitable for high-end commercial buildings, office buildings, etc.

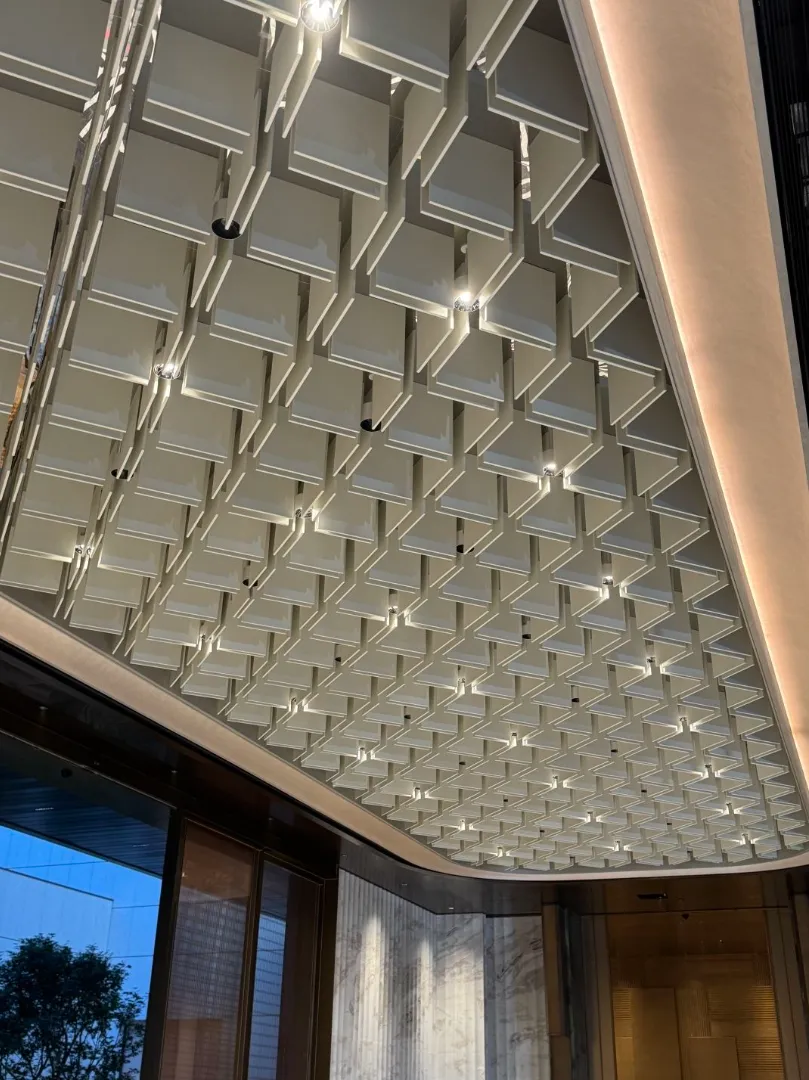

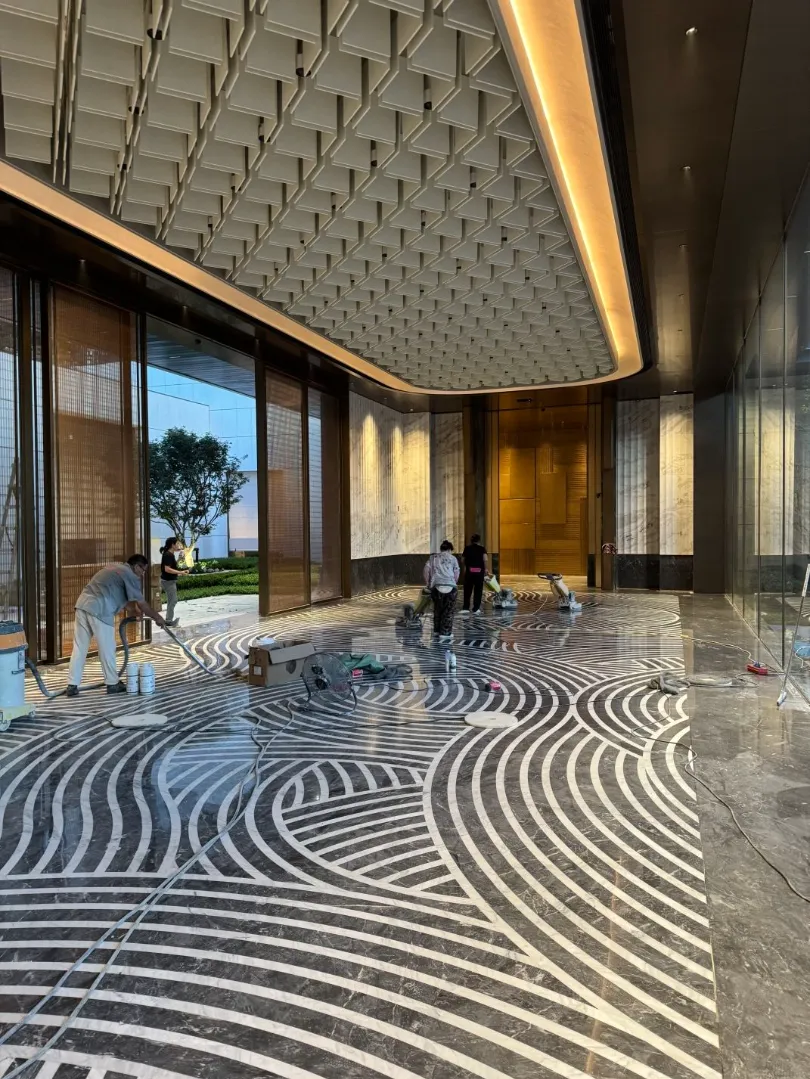

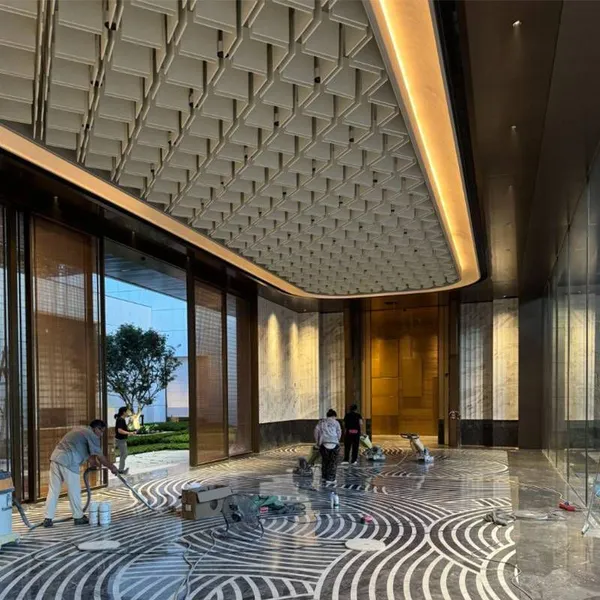

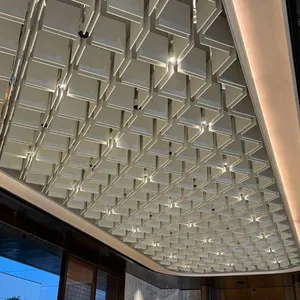

Ceiling series:Lightweight, good toughness and high strength, it is an ideal panel for the ceiling of large-scale projects.
Furniture honeycomb panel series:Environmentally friendly and non-toxic. The panel can be made of various materials such as solid wood and fireproof board, suitable for modern furniture manufacturing.
Partition series:It has the advantages of fire resistance, corrosion resistance, environmental protection and easy disassembly, suitable for office space partitions.
Rail transit series:Used for the interior decoration and billboards of vehicles such as buses, trains and subways, meeting the requirements of lightweight and safety.
Elevator engineering series:Lightweight, fireproof and soundproof, it can significantly reduce the load of the elevator and is an ideal material for public elevators and freight elevators.
Typical applications
Building curtain walls, large indoor ceilings (airports, high-speed railway stations), ship interiors, partitions, table tops.
