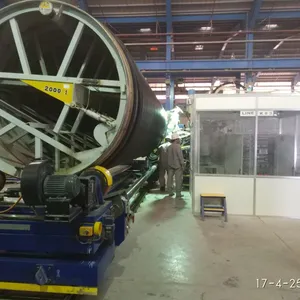

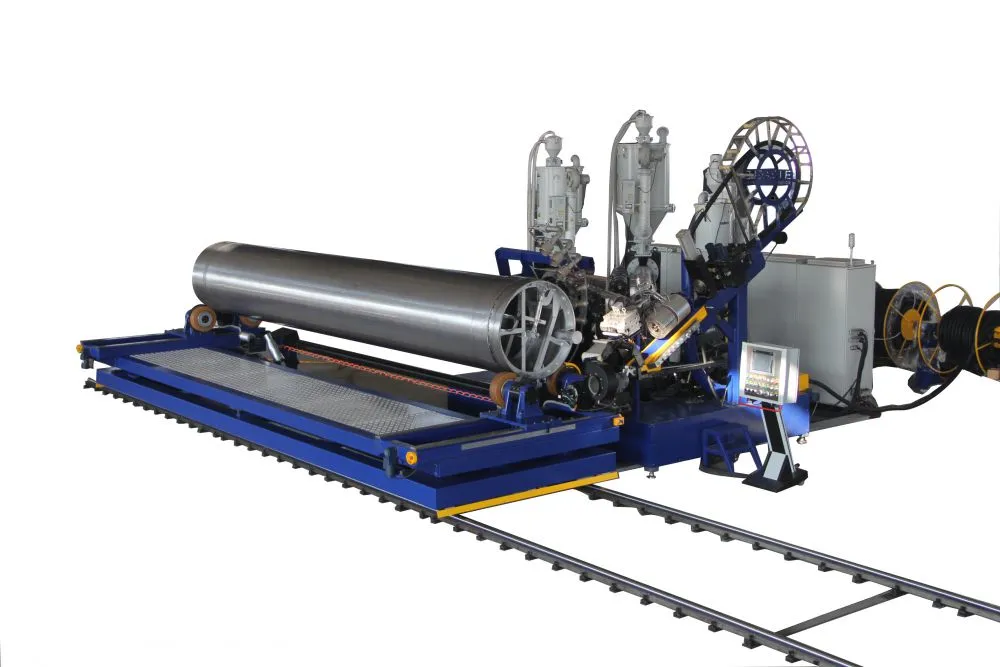

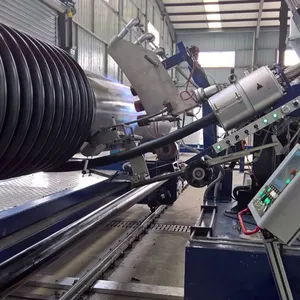

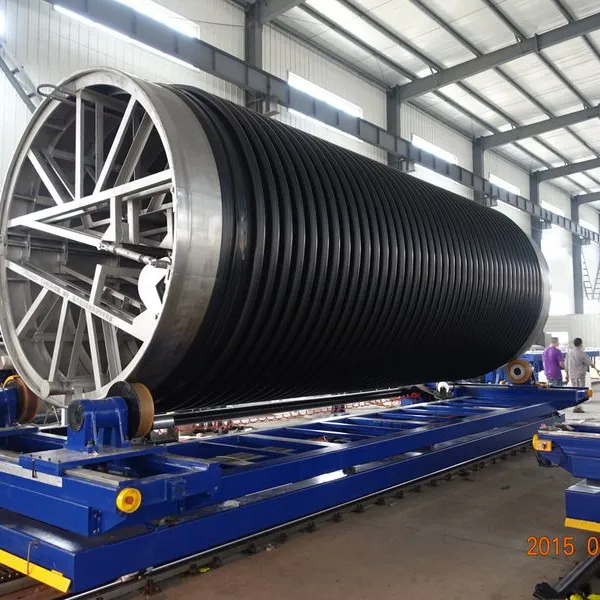

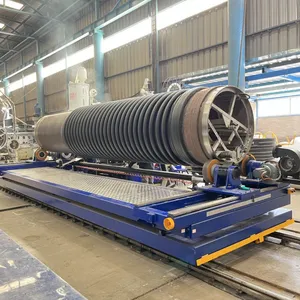

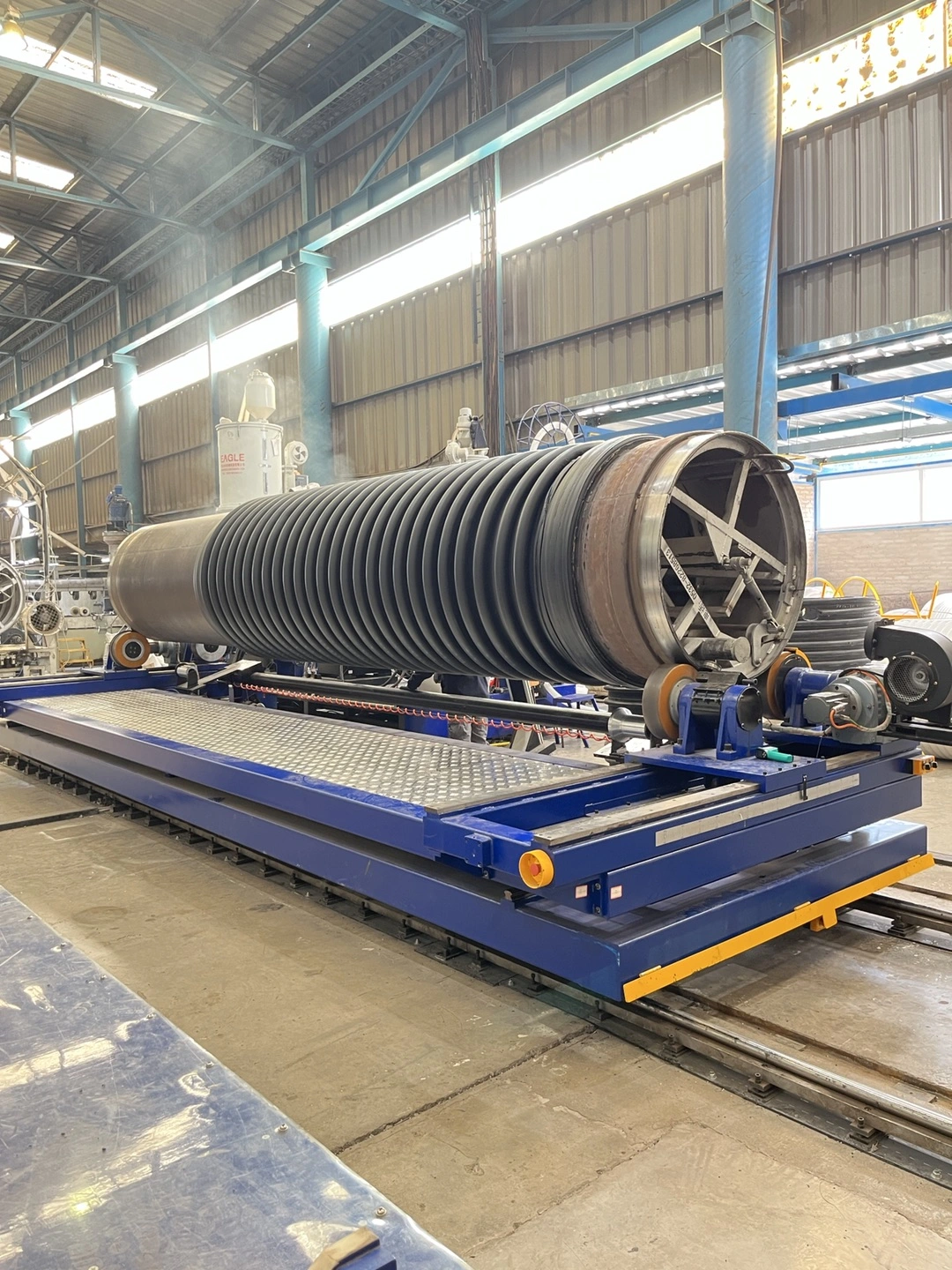

HDPE Structure Wall Marine Pipe Machine

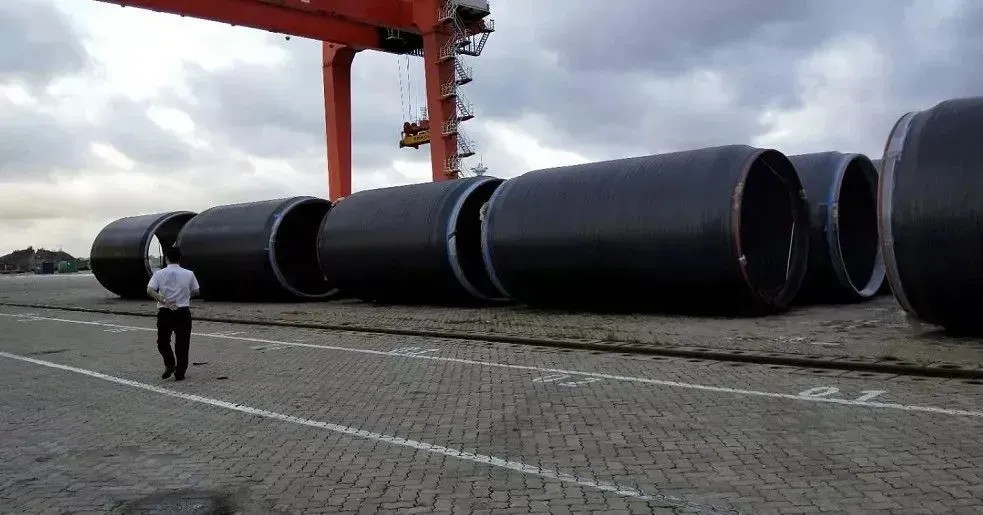

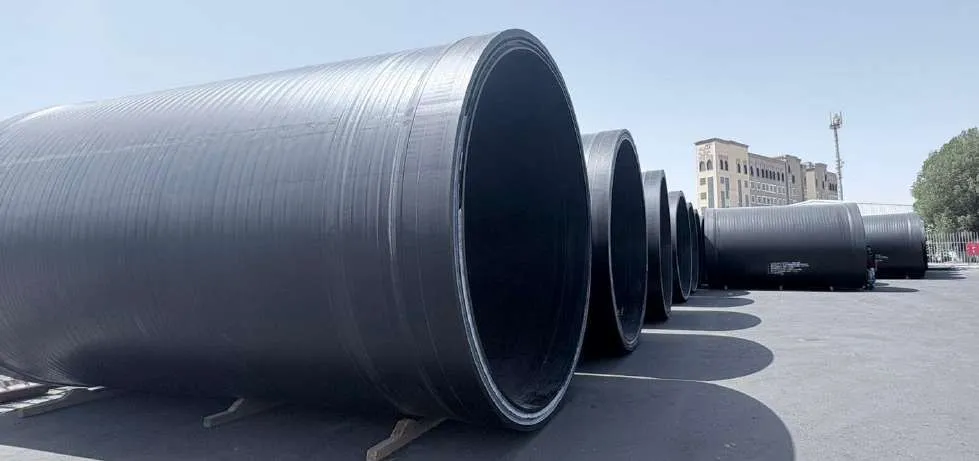

The HDPE structure wall marine pipes machine can produce large diameter HDPE/PP structure wall marine pipe and fittings from DN/ID300mm to DN/ID 4500mm. The HDPE structure wall marine pipe is for sea water intake, outfall and circulation water cooling in refinery plant, power plant and nuclear power plant. It is widely used in Europe, Middle East, Asia and South America.
|
|
The advantage of Krah helical extrusion technology is that production is very flexible that one HDPE structure wall marine pipe machine can produce the HDPE structure wall marine pipe from DN300 to DN4500. During the production, it is very fast to change one model(diameter) to another size within short time. It can produce the HDPE spiral marine pipe with different type of wall and ring stiffness classes from SN2 to SN16. It can produce the pipe with connection method of Electrial fusion.
Pipe Wall Structure(SQ, VW)
vw |
SQ1 |

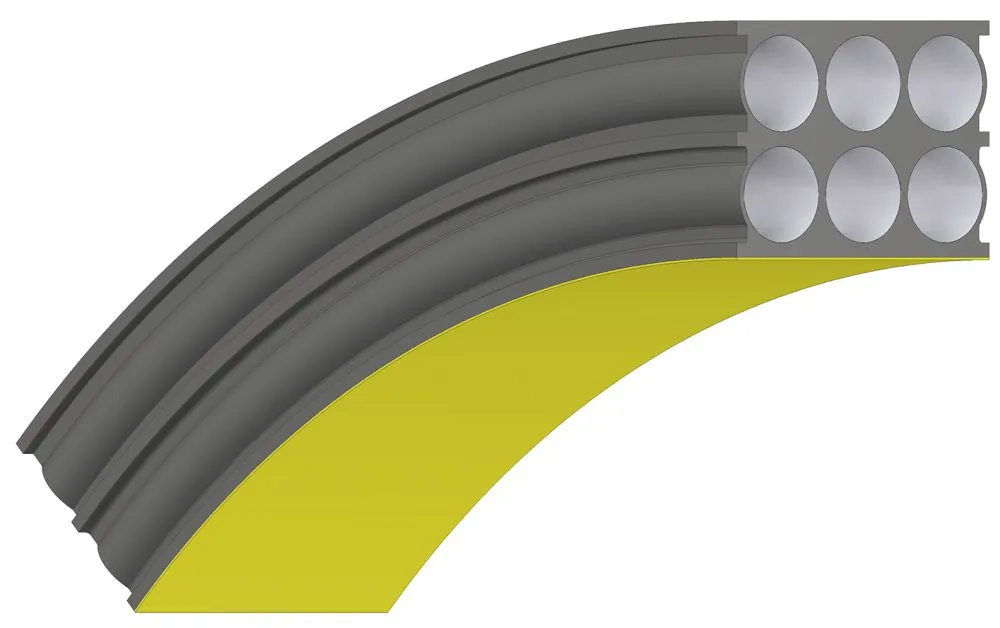

SQ2-4 |
|
|
|
|
Solid pipe with a smooth inner and outer surface. These pipes can be produced with a wall thickness of 5mm to 250mm for pressure pipe and storage tank. |

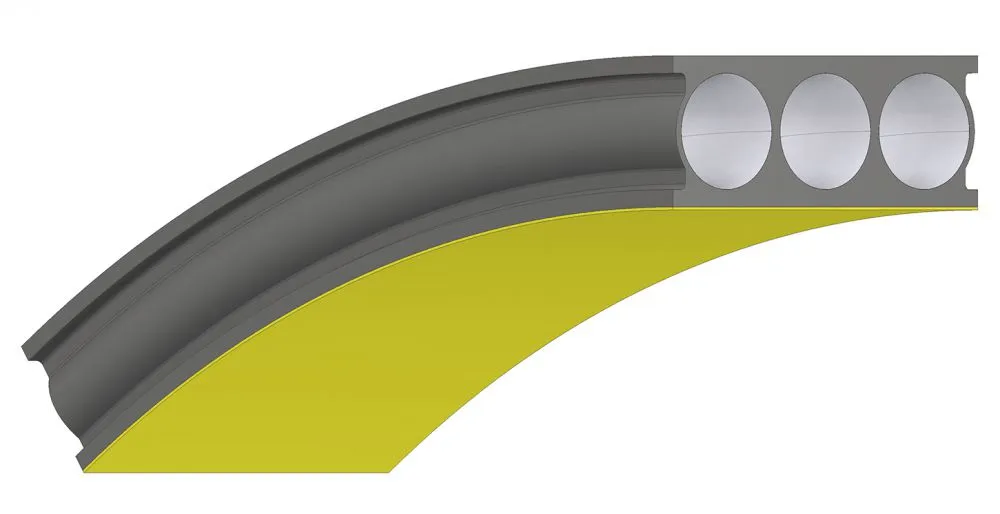

This profile option has a smooth inner and outer surface, including internal profile to one layer mainly for marine pipes,fittings, manhole, etc. |
Another one or several SQ1 profile layers ensure the very high ring stiffness for large diameter and special application such as marine pipe. |

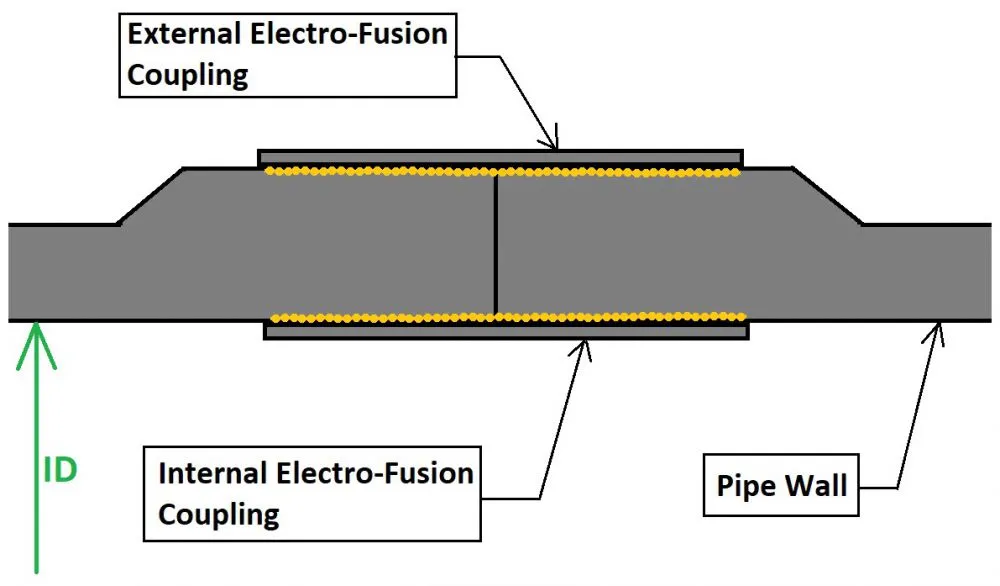

Connection method
|
E-fusion
|
E-fusion
|
Feature of HDPE structure wall marine pipe machine:
• Pipe diameters: DN/ID 1000 mm up to DN/ID 4500 mm
• Pipes length: 6-9meters.
• Material: HDPE
• Output: 700-1500kg/h, according to EN13476 all stiffness classes upto SN16
• Application: marine pipe for seawater intake, outfall and circulation water cooling in refinery plant, power plant and nuclear power plant
