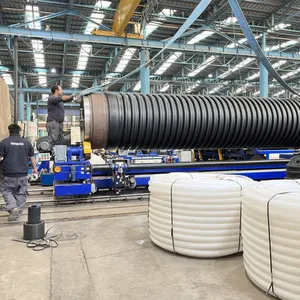

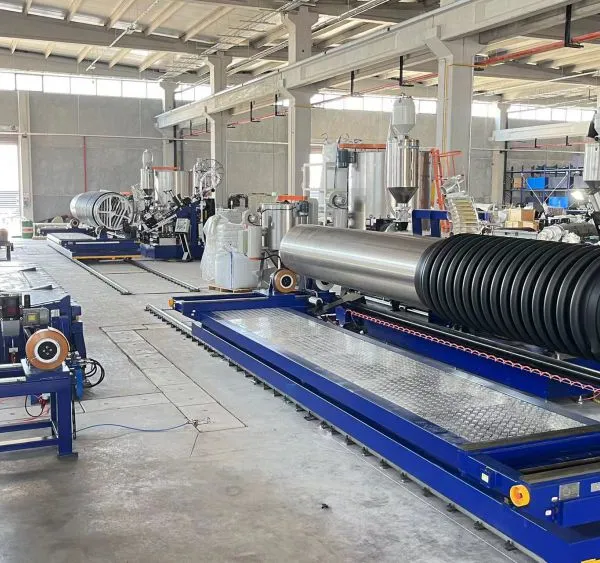

HDPE Spiral Corrugated Pipe Machine

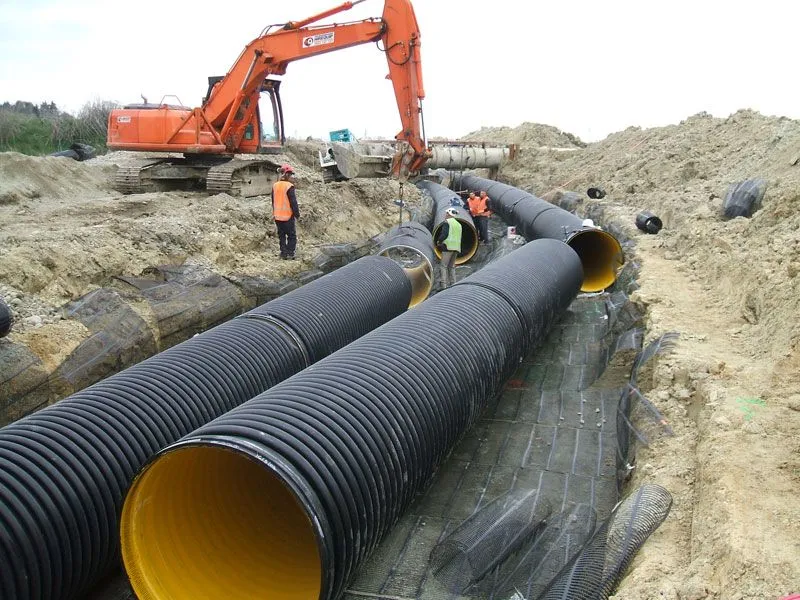

The HDPE spiral corrugated pipes machine is capabale to produce the HDPE/PP structure wall spiral corrugated pipe and fittings from DN/ID300mm to DN/ID 4500mm. The HDPE spiral corrugated pipe is mainly for drainage, storm drain, marine pipe, sewer pipeline, rain water retention tank and chemical storage tanks as well as low-pressure applications like irrigation systems,etc.
![DSC00510[1]](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
|
|

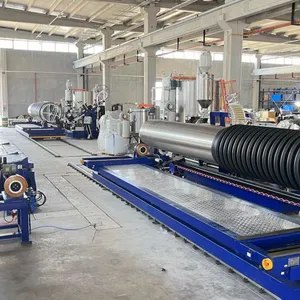

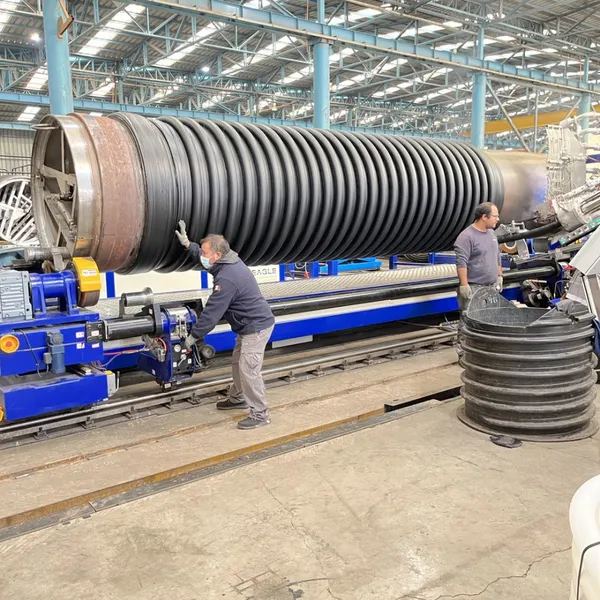

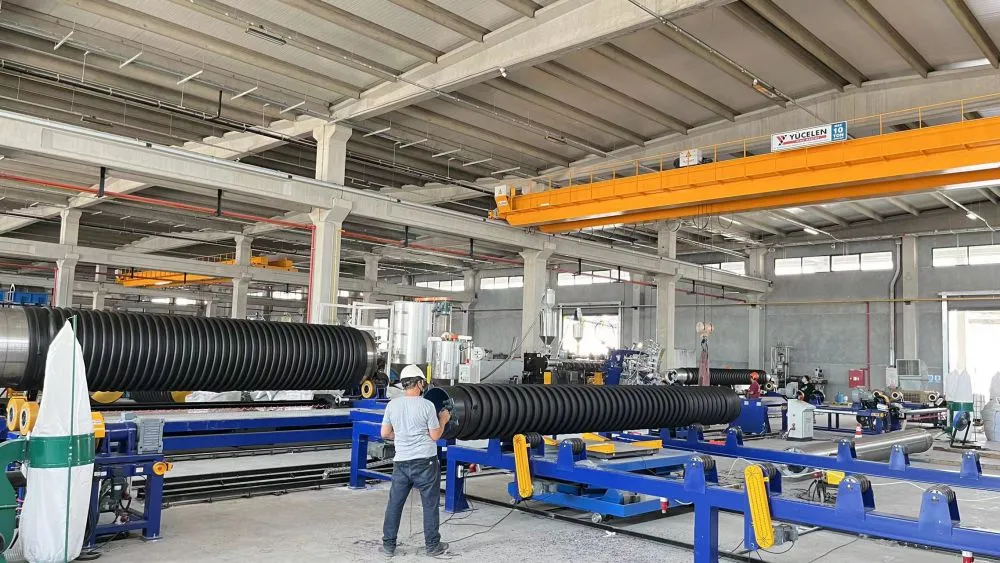

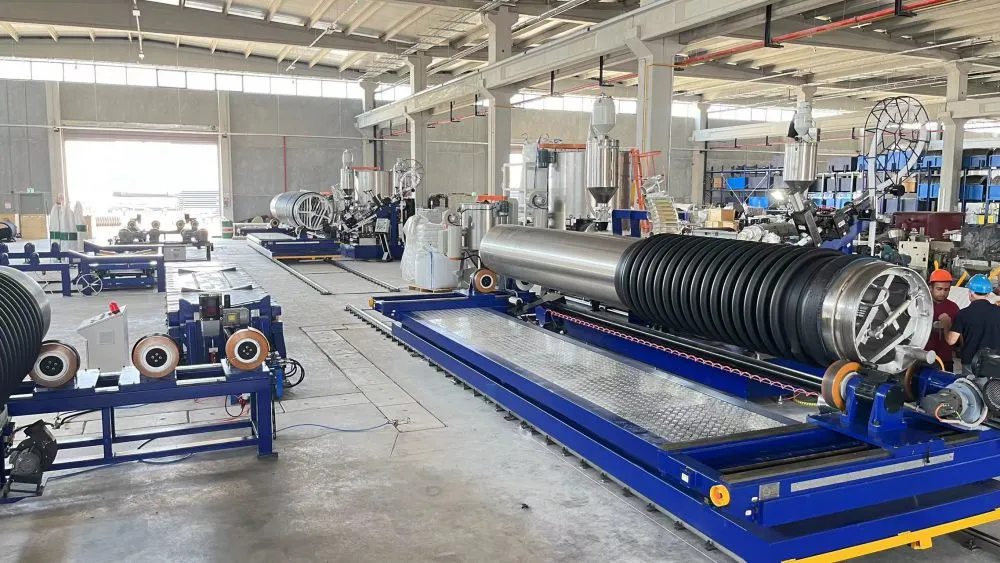

The advantage of Krah helical extrusion technology is that production is very flexible . One HDPE spiral corrugated pipe machine can produce the HDPE spiral corrugated pipe from DN300 to DN4500. Within shortime, one size can be changed to another size during production. Variety type of wall structure and ring stiffness pipe can be produced. The pipe connection can be Electrial fusion and rubber.
Pipe Wall Structure(PR, OP, CPR, SQ, VW, SP)
PR |
OP |
CPR |
|
|
|
|
PR profile achieve high stiffness with low weight. This is the most common profile for sewer and water drainage applications. |

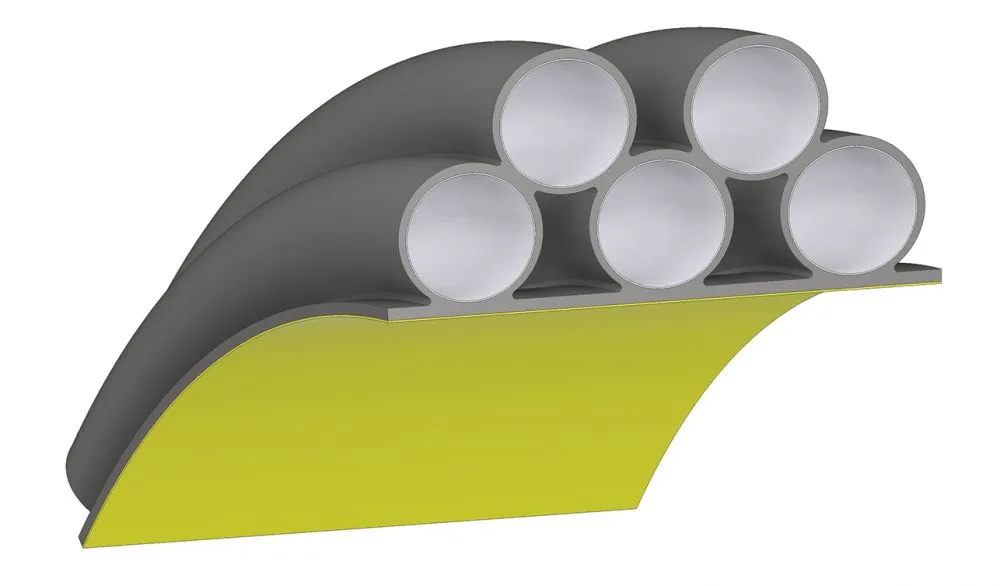

OP profile can achieve greater stiffness with a comparatively low weight for sewer and drainage application. |

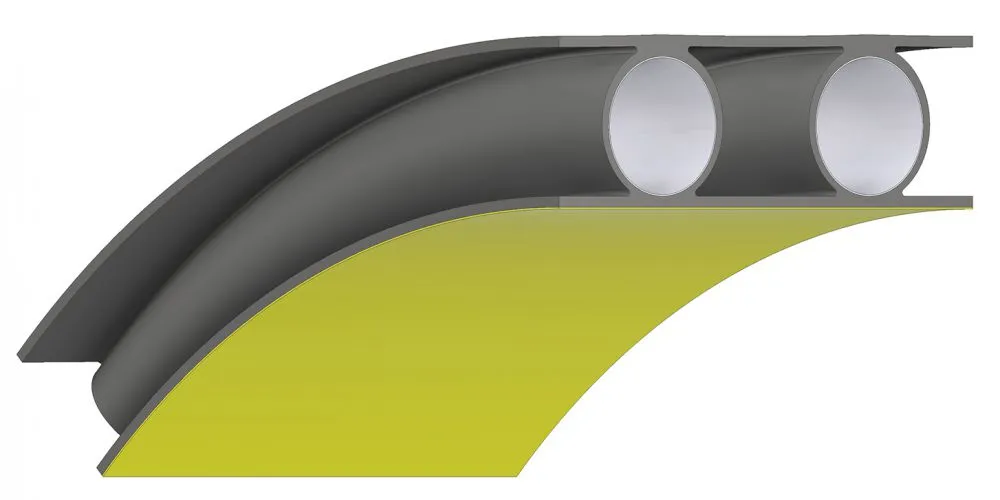

One more Water way layer on top of CPR profile, can achieve higher stiffness and lower weight for sewer and drainage application. |
vw |
SQ1 |
SQ2-4 |
|
|
|
|
Solid pipe with a smooth inner and outer surface. These pipes can be produced with a wall thickness of 5mm to 250mm for pressure pipe and storage tank. |

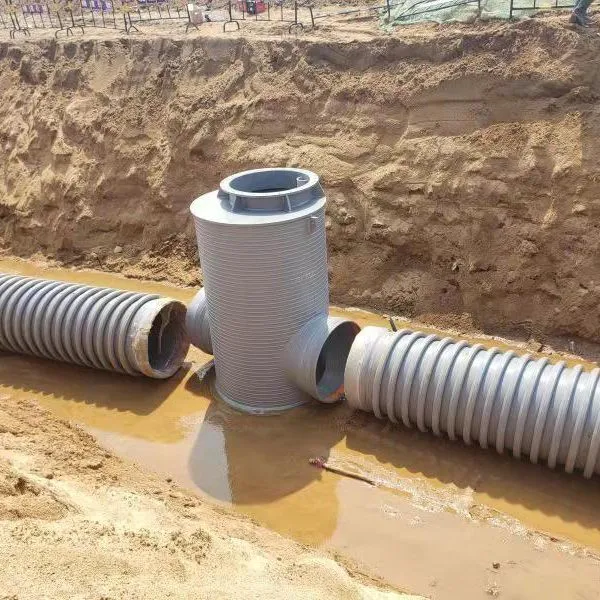

This profile option has a smooth inner and outer surface, including internal profile to one layer mainly for fittings, manhole, double wall tank, etc. |
Another one or several SQ1 profile layers ensure the very high ring stiffness for large diameter and special application. |
Connection method
|
E-fusion
|
Rubber
|
Main feature of HDPE Spiral corrugated pipe machine:
• Pipe diameters: DN/ID 300 mm up to DN/ID 4500 mm
• Pipes length: 6 -9meters, with integrated socket and spigot.
• Material: HDPE, PP-HM, PP-B
• Output: 700-1500kg/h, according to EN13476 all stiffness classes upto SN16
• Application: Drainage pipe, Sewage pipe, Industrial pipes, Relining, Outfall pipes, Marine pipe, chemical tank
