Help Center02EB230MEX Split Bearing 02EB230MGR Bearing
Product Spotlights
Related Products
-
02EB255MEX Split Bearing 02EB225MGR BearingNegotiableMOQ: 6 Combos -
02EB255MEX Split Bearing 02EB255MGR BearingNegotiableMOQ: 6 Combos
-
02EB245MEX Split Bearing 02EB245MGR BearingNegotiableMOQ: 6 Combos
-
02EB110MEX Split Bearing 02EB110MGR BearingNegotiableMOQ: 6 Combos
-
02EB100MEX Split Bearing 02EB100MGR BearingNegotiableMOQ: 6 Combos
1、 Model Definition
02: Wide cross-section heavy-duty series, wider and higher load-bearing capacity than 01 series with the same inner diameter
E: Enhanced structure, thickened and lengthened rollers, optimized raceway, impact resistance, and upgraded load capacity
B: Cylindrical roller split bearing
230: Bearing nominal inner diameter 230mm
M: Brass solid holder, resistant to high temperature, impact, heavy load and not easily deformed
2、 Standard size parameters
Inner diameter: 230 mm
Outer diameter: 360 mm
Width: 135 mm
3、 Basic performance
Material: High carbon chromium bearing steel GCr15, quenched hardness HRC60-64, wear-resistant and fatigue resistant

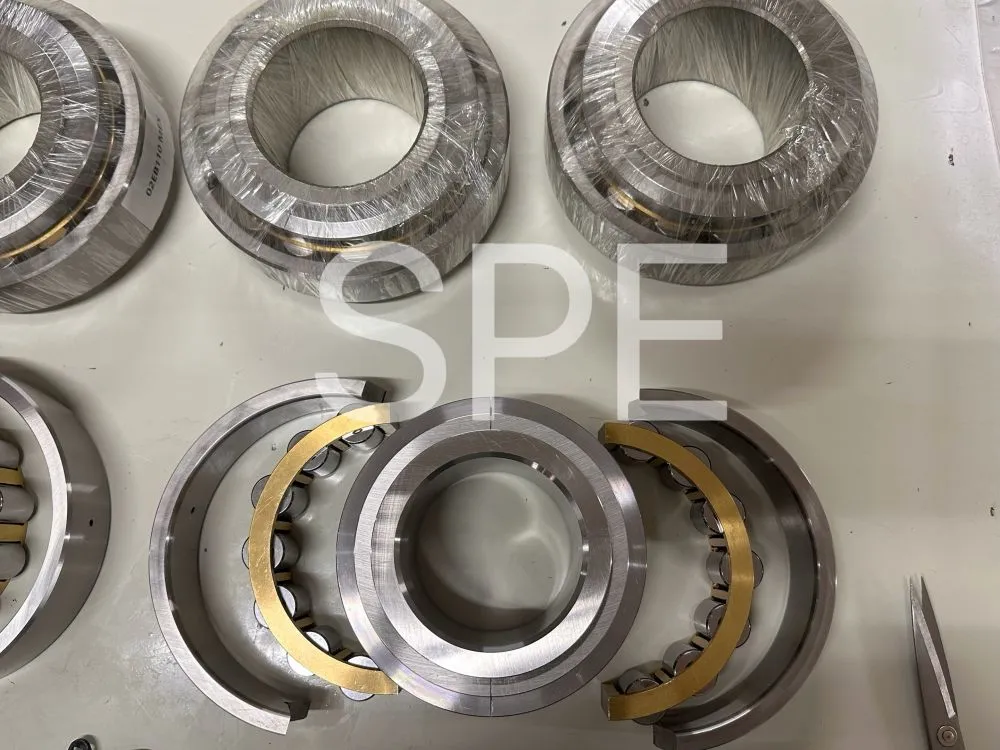

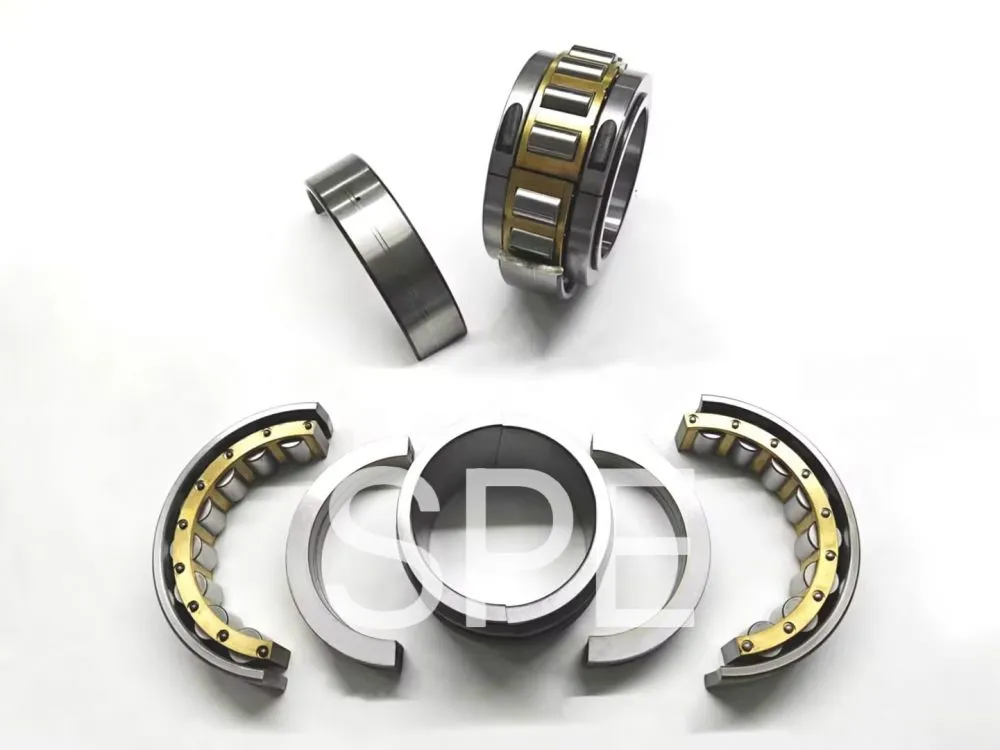

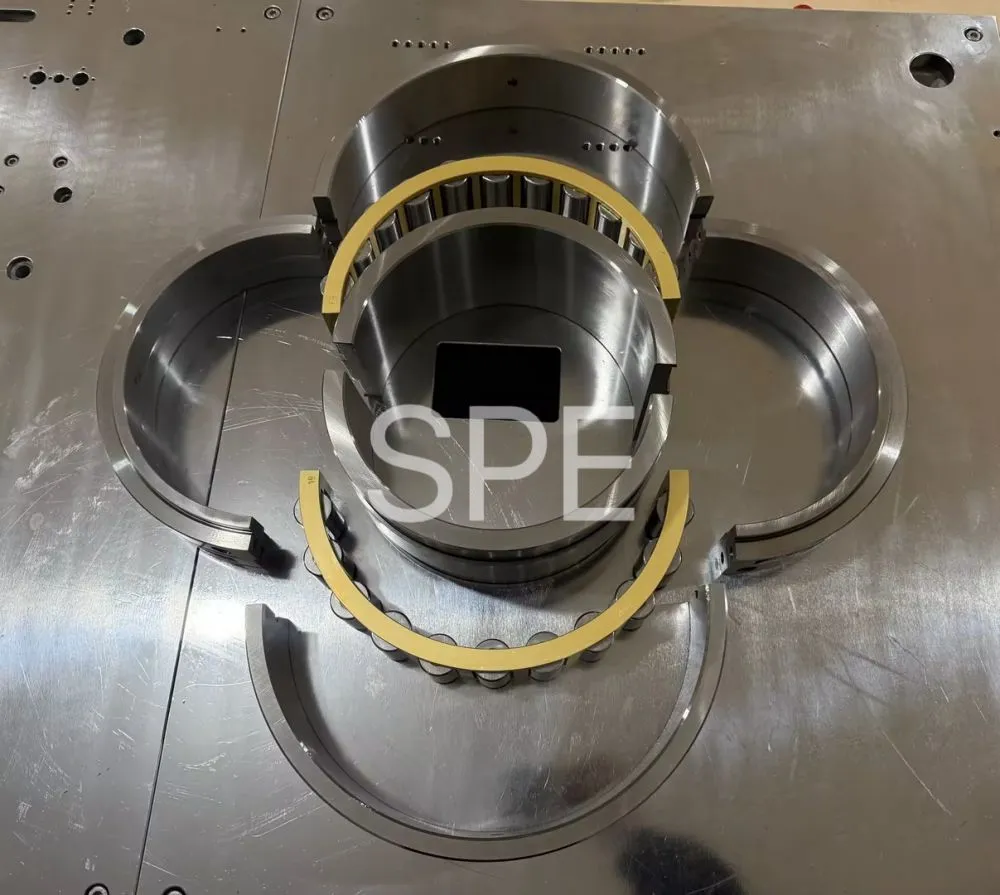

Structure: Fully split design, inner and outer rings, rollers, and retainers can all be split in half 180 °
Applicable working conditions: low-speed heavy load, alternating impact, dust and humidity, harsh industrial and mining conditions
Temperature resistance range: -30 ℃ to 180 ℃
Comes with micro adjustment, compatible with minor misalignment of the shaft system during installation
4、 Core product advantages
02 Wide Series Large Load Capacity
The cross-section is wider and wider, with more rollers and a larger load-bearing area. Compared to the 01EB model with the same inner diameter, it has stronger load-bearing capacity and is suitable for heavy load support of large and medium-sized heavy industry equipment.

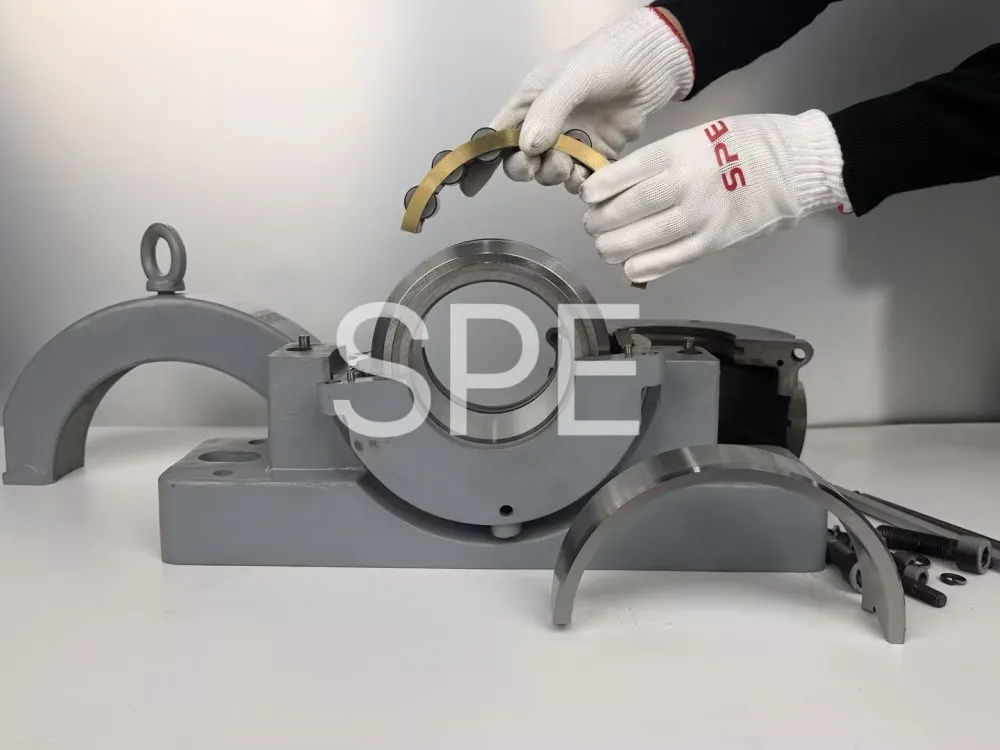

Full section detachable shaft replacement
No need to disassemble the main shaft, move the coupling and gears, directly open and close on the shaft for fast maintenance, labor-saving, and significantly reducing downtime losses.
E-type enhanced upgrade
Compared to the ordinary 02B230M, the raceway and roller structure are reinforced, resistant to impact and wear, and the overall service life is significantly improved.
Brass solid holder
Rigid enough, heat-resistant, and resistant to compression, it is not easy to deform or break during long-term continuous heavy load operation, suitable for all-weather continuous operation in mining and metallurgy.
Can be equipped with sealing protection
Optional labyrinth seals and skeleton oil seals are available, which are dustproof, waterproof, and prevent impurities from entering. They are suitable for harsh environments such as mines, cement plants, and ports.
5、 Applicable device scenarios
Mining: coal mining machine rocker arm, scraper conveyor, large ball mill, crusher Metallurgical cement: rotary kiln, large conveying transmission equipment, rolling mill auxiliary shaft system Port heavy industry: cranes, bucket wheel machines, large winch walking mechanism ships, papermaking, grain and oil heavy industry, etc. Heavy load support points with 230 shaft diameters, limited disassembly space, and requiring online maintenance
6、 Key points for installation and maintenance
Clean the mating surface between the journal and the bearing seat, align the two halves of the bearing seam, and tighten the splicing bolts diagonally and evenly; Add extreme pressure heavy-duty grease and fill two-thirds of the cavity; Daily regular grease replacement inspections, in case of high temperature rise, abnormal noise, or abnormal vibration, promptly check the bolt pre tightening force and sealing status.
