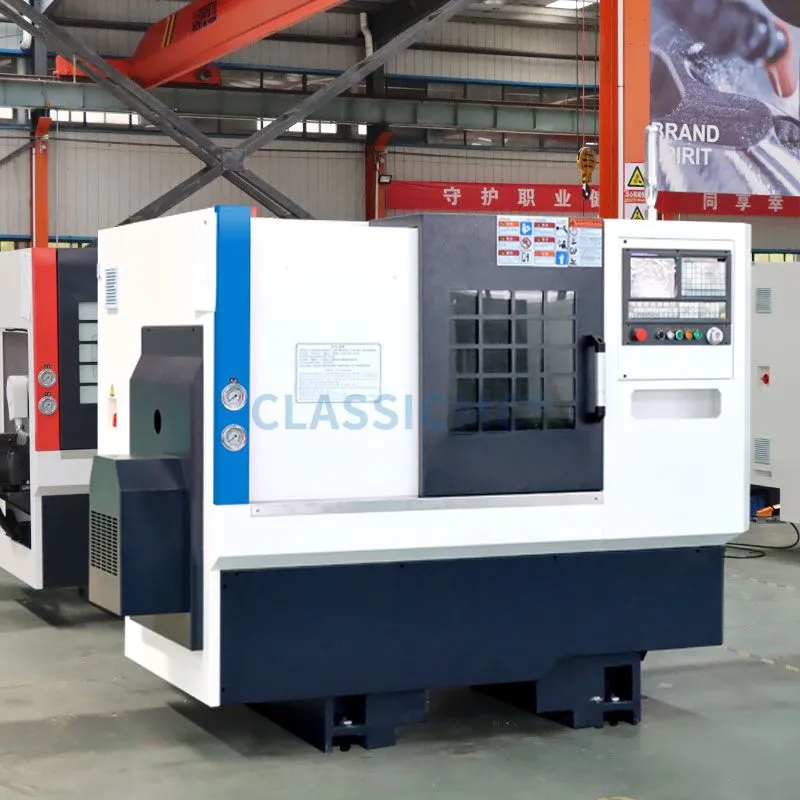

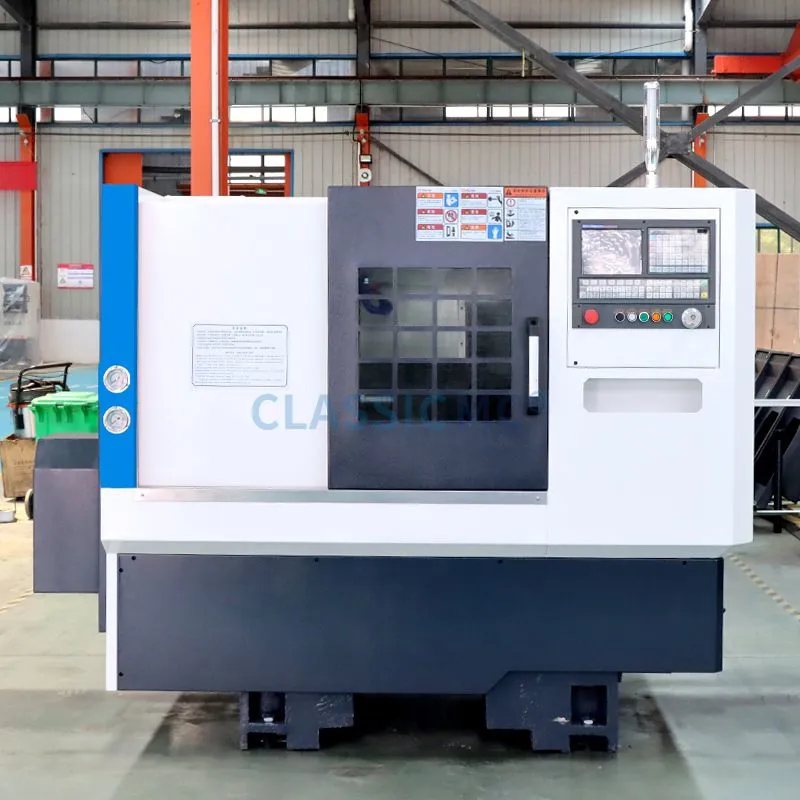

TCK6340 Slant Bed CNC Lathe
Overview
TCK6340 is a high-rigidity 45° slant bed CNC lathe, designed for high-precision turning, facing, grooving, threading and boring processing of shaft and disc parts. With integral cast iron bed, high-performance spindle, linear guideway and reliable servo drive system, it features stable precision, strong heavy cutting capacity and high working efficiency, widely used in batch production of mechanical parts, auto parts, hydraulic components and hardware industry.
Key Structural Features
1. High-Rigidity Integral Slant Bed
Adopts high-strength cast iron one-piece casting with strict stress relief treatment.45° inclined bed design optimizes force distribution and chip removal effect.Reasonably arranged inner rib structure effectively reduces cutting vibration and deformation.Wide guideway span improves overall rigidity, suitable for heavy roughing and precision finishing.
2. High-Precision Spindle System
Equipped with high-precision grade bearings, running smoothly with low noise and high rotary accuracy.Large spindle bore design matches hydraulic chuck and bar feeder for long bar continuous processing.High-power servo spindle motor realizes stepless speed regulation, with stable low-speed high torque and high-speed constant power output.
3. Precise Linear Guideway Feed System
X and Z axes adopt high-precision linear guideways and preloaded ball screws.Low friction resistance, fast moving speed, high positioning and repeat accuracy.Optimized transmission structure reduces idle time and improves overall processing efficiency.

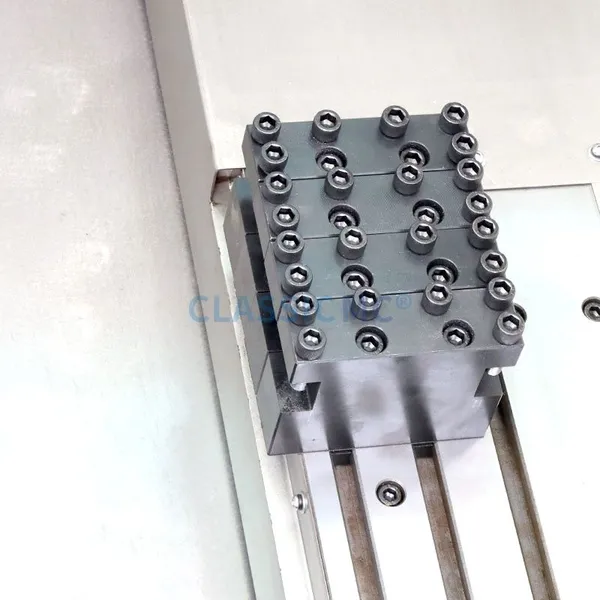

4. Reliable Tool Post Configuration
Standard with multi-station hydraulic turret or gang tool post.Fast tool changing speed, high indexing accuracy and stable running performance.Suitable for mounting various turning tools, grooving tools and threading tools.
5. Advanced CNC Control System
Compatible with FANUC, SIEMENS and other mainstream CNC systems.Human-machine friendly interface, simple operation and powerful programming function.Supports G-code, M-code, macro program and offline CAD/CAM programming.Absolute encoder configuration saves zero return operation after power off.
Application Range
Suitable for processing carbon steel, alloy steel, stainless steel, aluminum, copper and other metal materials.Widely applied in automotive parts, hydraulic valves, bearing parts, flanges, shaft sleeves and general mechanical batch production.
Product Advantages
Heavy-duty body structure, strong rigidity and excellent vibration resistance.
High positioning accuracy, stable long-term precision retention.
Fast feed and reasonable structural layout, high production efficiency.
Simple operation, easy maintenance and low failure rate.
Cost-effective, ideal equipment for medium and small batch precision part processing.
