1. Standard core size parameters
Inner diameter d: 185 mm
Outer diameter D: 285 mm
Total width B: 108.0 mm
Inner ring width: 108.0 mm
Weight: approximately 21.0 kg
Cage: M = High-strength brass solid cage

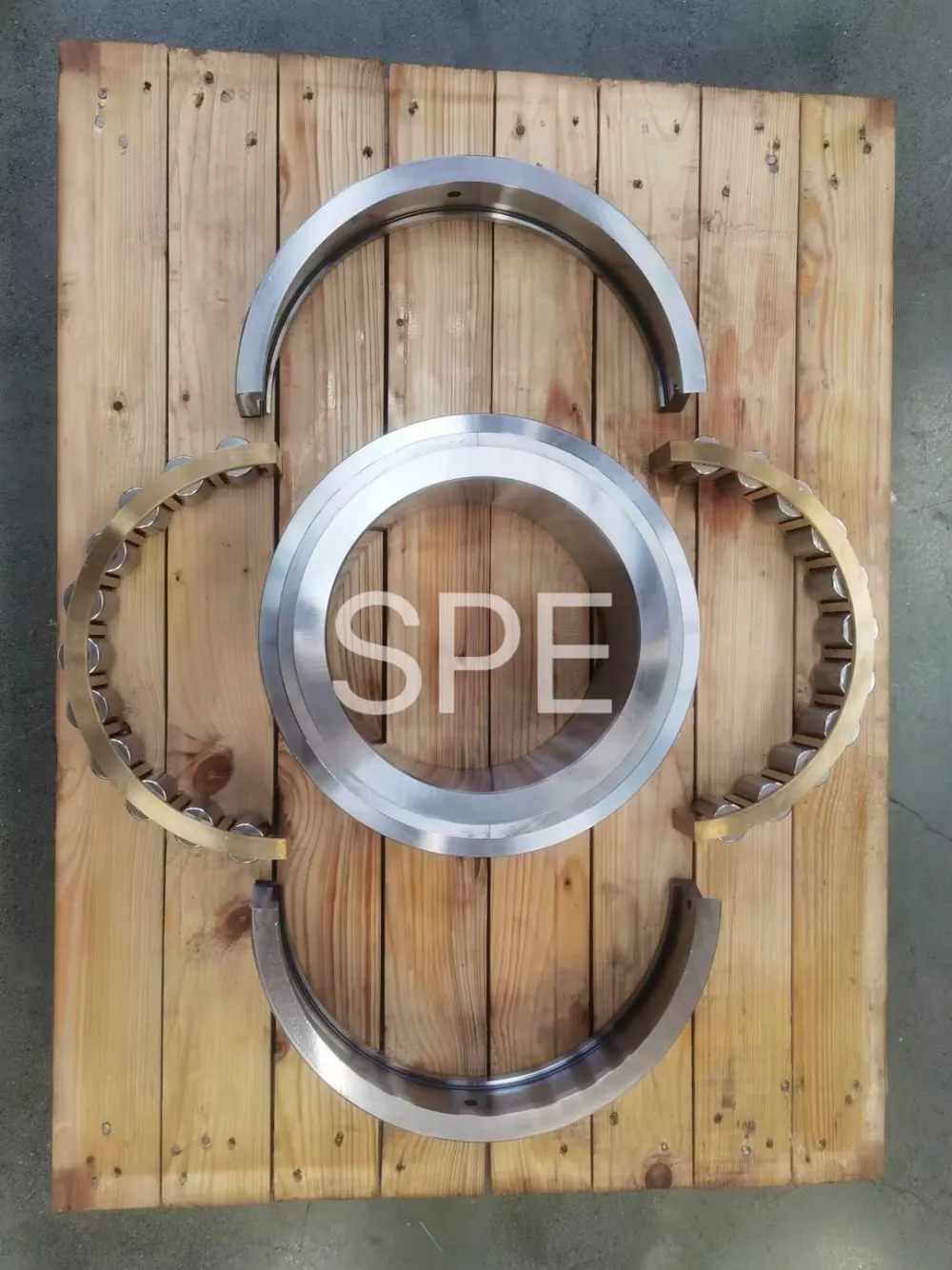

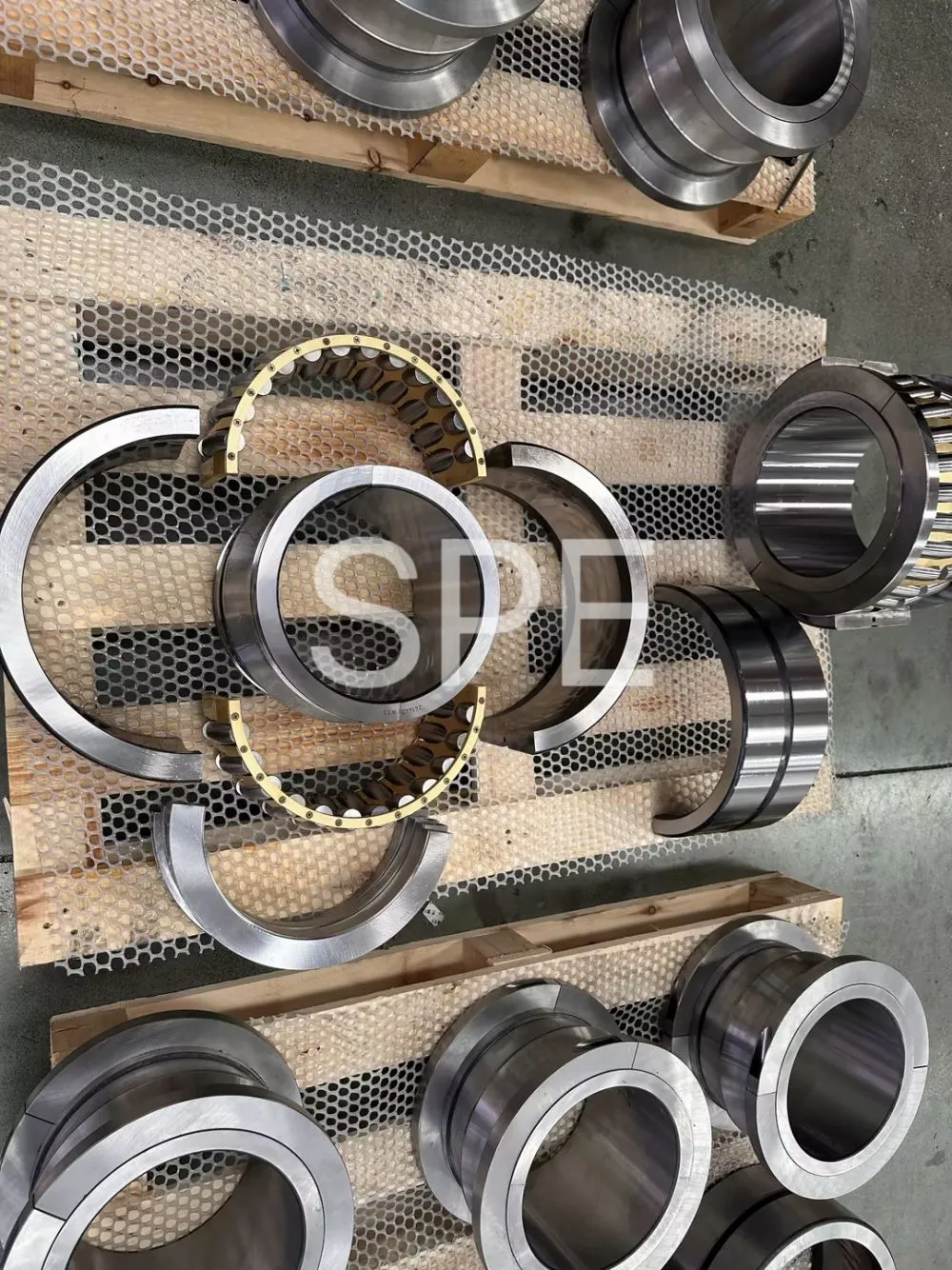

Structure: The inner and outer rings, rollers, and cage are all split in half, allowing for direct assembly on the shaft without dismantling it
II. Model Interpretation
01: Medium-sized heavy-duty split bearing series
E: Enhanced version, featuring a larger number of rollers and optimized arrangement, with a radial load capacity approximately 30% higher than the standard 01B
B: Standard width series
185: Nominal inner diameter 185mm
M: Brass solid cage
GR: Fixed end, bearing radial + bidirectional axial force
EX: Floating end, radial load only, allowing axial thermal expansion and sliding
III. Structural and Performance Advantages
Quick assembly without dismantling the shaft: No need to disassemble the main shaft, coupling, or the entire machine, significantly reducing downtime for maintenance
Heavy-duty impact resistance: suitable for low-speed heavy-load and alternating impact conditions, with strong stability
Self-aligning fault tolerance: ±0.5° misalignment is allowed statically, reducing the requirement for installation coaxiality
High temperature and wear resistance: Regular temperature resistance up to 120℃, and special modification can reach 180℃; excellent dustproof and waterproof sealing performance
Easy maintenance: Equipped with a dedicated split bearing housing, it facilitates convenient lubrication and high replacement efficiency
IV. Typical application industries
Metallurgy: rolling mill roller table, continuous casting equipment, universal drive shaft
Mine / Cement: Ball mill, rotary kiln, belt conveyor, bucket wheel machine
Electric power: long shafts for induced draft fans, coal mills, and auxiliary equipment in power plants
Ports/Ships: Conveyor machinery, deck heavy-duty equipment, long-span transmission shaft systems
V. Key points for installation and pairing
Shafting combination: one end 01EB185MGR (fixed) + one end 01EB185MEX (floating)
Adaptability: The original Cooper split bearing housing can be directly used without any modification to the shaft diameter or equipment base
Lubrication recommendation: For heavy-load, low-speed conditions, choose extreme pressure lithium-based grease to extend the maintenance interval
