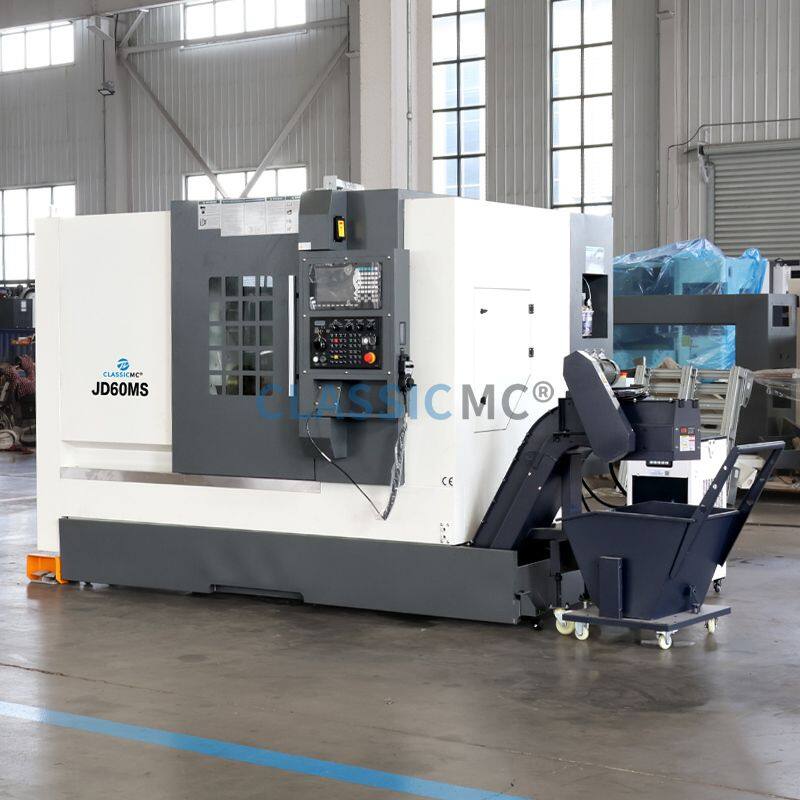

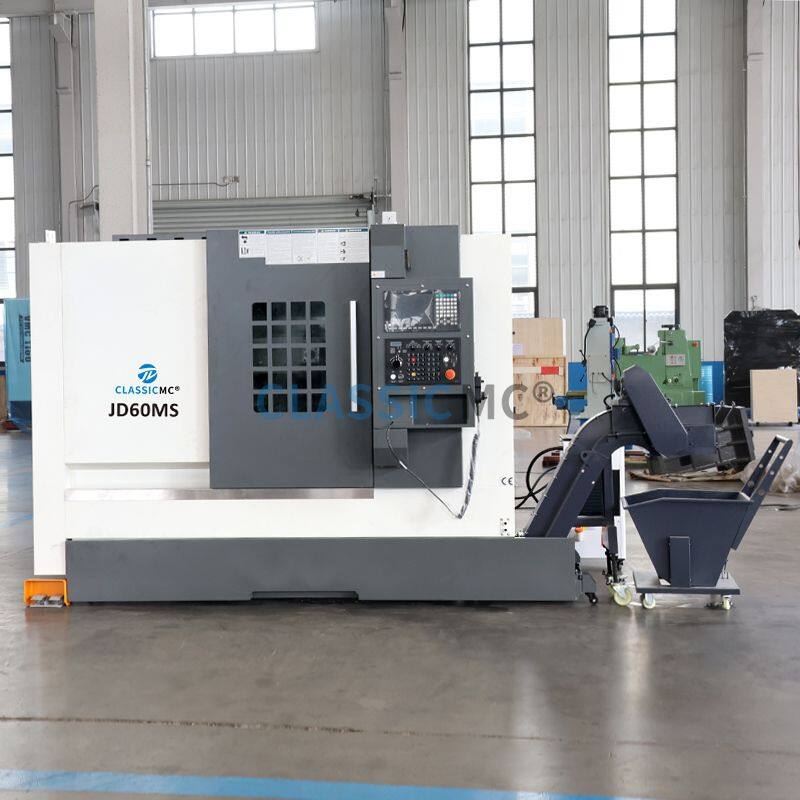

JD60MS Slant Bed CNC Turning & Milling Center
Overview
JD60MS is a high-performance slant bed CNC turning and milling center designed for multi-task machining of complex workpieces. It integrates turning, milling, drilling, tapping and other processes in a single clamping setup, delivering exceptional rigidity, precision and efficiency for high-volume and high-precision manufacturing applications. This machine is widely used in automotive, aerospace, hydraulic, and general machinery industries.
Key Structural Features
1. High-Rigidity Slant Bed Frame
Heavy-duty cast iron bed with a 45° slant design, optimized rib structure to minimize vibration and deformation under heavy cutting loads.
Stress-relieved one-piece casting ensures long-term geometric stability and excellent vibration damping performance.
Reinforced headstock base and wider guideway span enhance overall structural rigidity, supporting both heavy roughing and precision finishing operations.

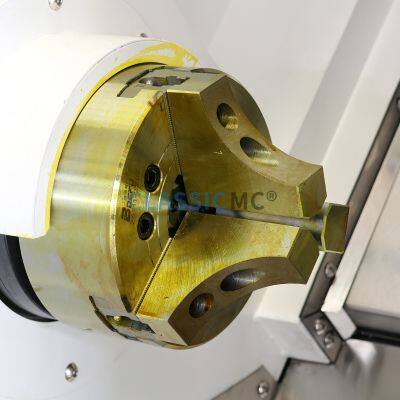

2. High-Precision Spindle System
Equipped with a high-precision spindle unit, featuring P4-grade bearings for low noise, high rigidity and superior rotational accuracy.
Large spindle bore diameter compatible with hydraulic hollow chucks and bar feeders, ideal for long bar processing.
High-torque spindle motor provides stepless speed regulation, enabling low-speed constant torque and high-speed constant power cutting.
3. Precision Feed System
X/Z axes are equipped with high-precision linear guideways and preloaded ball screws, ensuring smooth movement, low friction, and high positioning accuracy.
Rapid feed rate ensures fast positioning to reduce idle time, while variable cutting feed range accommodates diverse machining requirements.
Optional Y-axis configuration supports interpolation milling, enabling 4-axis linkage machining for complex contours.
4. Driven Tool Turret
12-station hydraulic turret with driven tool holders, supporting both turning tools and power tools for milling, drilling, and tapping operations.
Independent servo-driven driven tools with adjustable speed range, providing high torque and precise speed control for secondary operations.
High turret indexing accuracy guarantees reliable tool changes and repeatable machining results.

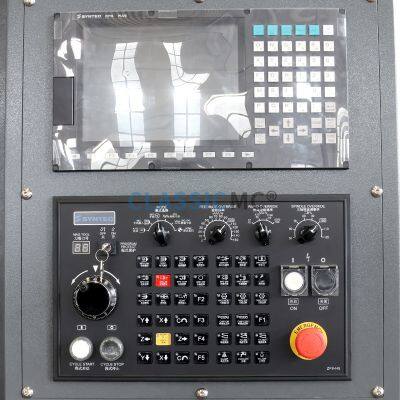

5. Advanced CNC Control System
Compatible with FANUC, SIEMENS, and other mainstream CNC controllers, offering user-friendly interfaces, powerful programming capabilities, and high-speed processing.
Supports G-code, M-code, macro programming, and CAD/CAM offline programming, compatible with various industrial design software.
Absolute encoders on all axes eliminate the need for zero return after power-off, improving work efficiency.
6. Efficient Chip Removal System
Equipped with a high-capacity chip conveyor and collection cart, ensuring smooth chip removal even during continuous production.
The slant bed design facilitates natural chip flow, reducing chip accumulation and simplifying maintenance.
Application Range
Automotive industry: Engine shafts, gears, hubs, brake discs, and other precision components.
Aerospace industry: Structural parts, turbine components, and precision shafts.
Hydraulic & pneumatic industry: Valve bodies, cylinders, pistons, and connectors.
General machinery: Flanges, shafts, sleeves, cams, and complex molds.
Medical equipment: Precision implants and instrument parts.
Product Advantages
Multi-Process Integration: Completes turning, milling, drilling, and tapping in one setup, reducing clamping times and improving efficiency.
High Rigidity & Stability: Robust cast iron structure and precision components ensure long-term accuracy stability.
High Machining Efficiency: Powerful spindle, fast feed system, and driven tools shorten production cycle times.
Easy Operation & Maintenance: User-friendly CNC interface and accessible design reduce labor intensity and simplify routine maintenance.
Wide Material Compatibility: Suitable for machining steel, aluminum, copper, stainless steel, and various alloy materials.
