Product Overview

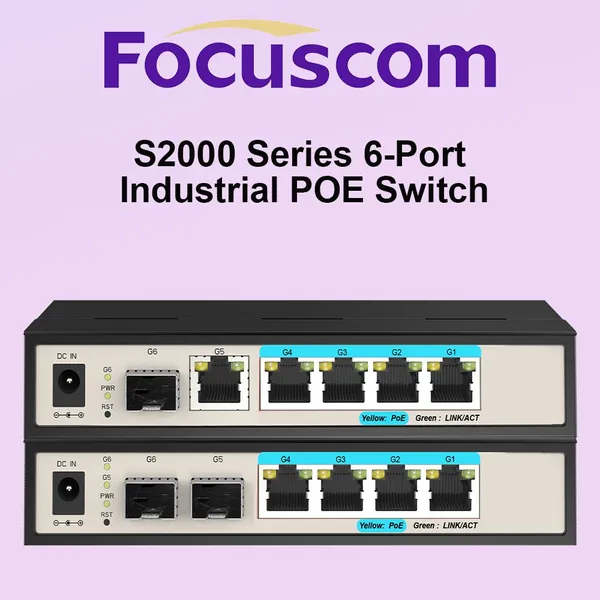

The Focuscom S2000 Series is an independently developed line of intelligent managed Ethernet switches designed for high performance and reliability. These compact switches feature a sophisticated architecture that minimizes energy consumption while providing a robust network environment for security monitoring (campus, residential), industrial automation, and SOHO applications.
Key Features
-
Industrial Grade Quality: Features a high-strength IP40 fully sealed metal shell with a fanless silent design. It supports a wide operating temperature range from -40°C to +75°C and is resistant to lightning and harsh electrical interference (EMC/EMS).
Flexible Port Configurations: Offers various combinations of 10/100/1000M RJ45 ports and 100/1000M SFP optical slots to adapt to diverse fiber and copper networking needs.
-
Advanced Layer 2 Management: Supports specialized visualized Web management and SNMP centralized management for easy configuration and maintenance.
-
Network Redundancy & Reliability: Supports G.8032 (ERPS) fast ring network protocol for rapid service switching and self-healing protection of the backbone network.
-
PoE Power Delivery: Selected models support IEEE 802.3af/at standards, delivering up to 30W per port with flexible power configuration options.
Technical Specifications
-
Switching Capacity: 14Gbps.
Management: Web, SNMP, CLI, and Telnet.
L2 Features: 802.1Q VLAN (up to 4K), QoS (WRR/HQ-WRR), IGMP Snooping, Port Mirroring, and Storm Suppression.
Security: Supports 802.1x, MAC access control, ACL rule configuration, and user hierarchical management.
Power Input: Wide voltage input (DC 10~60V for non-PoE; DC 45~57V for PoE models) with anti-reverse protection.
Installation: Supports Desktop, Rack-mount, or DIN-rail installation.
Dimensions: 160mm(L) × 105mm(W) × 28mm(H).
Ordering Information
-
S2000-5T-I: 5*Gigabit RJ45 Ports.
S2000-4T1S-I: 4Gigabit RJ45 + 1Gigabit SFP.
S2000-4TP1T-I: 5*Gigabit RJ45 (4 with PoE).
S2000-1T4TP1S-I: 5Gigabit RJ45 (4 with PoE) + 1Gigabit SFP
