Home > Hose Crimping Machine, 2-inch Quick Mold Change Tube Shrinking Machine, Manufacturer of Tube Shrinking Machines
Hose Crimping Machine, 2-inch Quick Mold Change Tube Shrinking Machine, Manufacturer of Tube Shrinking Machines
US$ 2769.23
1 - 2 Unit
US$ 2615.38
≥3 Unit
Key Specifications
Get Latest Price
Product Certifications:
ISO9001
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Hengshui, Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supply of Steel Bar Embedded Part Head Shrinking Machine and Greenhouse Pipe Necking MachineUS$ 16923.08 - 18461.54MOQ: 1 Unit -
do You Still Need to Obtain Qualifications for Fire Extinguisher Maintenance? New Policy for Dry Powder Filling MachinesUS$ 1307.69 - 1353.85MOQ: 1 Unit
-
Steel Pipe Crimping Machine, Greenhouse Pipe Butt End - Reducing Machine, Direct Sales From the Pipe - Reducing Machine ManufacturerUS$ 2615.38 - 2769.23MOQ: 1 Unit
-
Composite Pipe Head Shrinking Connection, Large-opening Crimping Machine, Field Grooved Crimping JointNegotiableMOQ: 0 Unit
-
Direct Sales From Pipe Shrinking Machine Manufacturers. Large Flange Hose Crimping MachineUS$ 27692.31 - 29230.77MOQ: 1 Unit

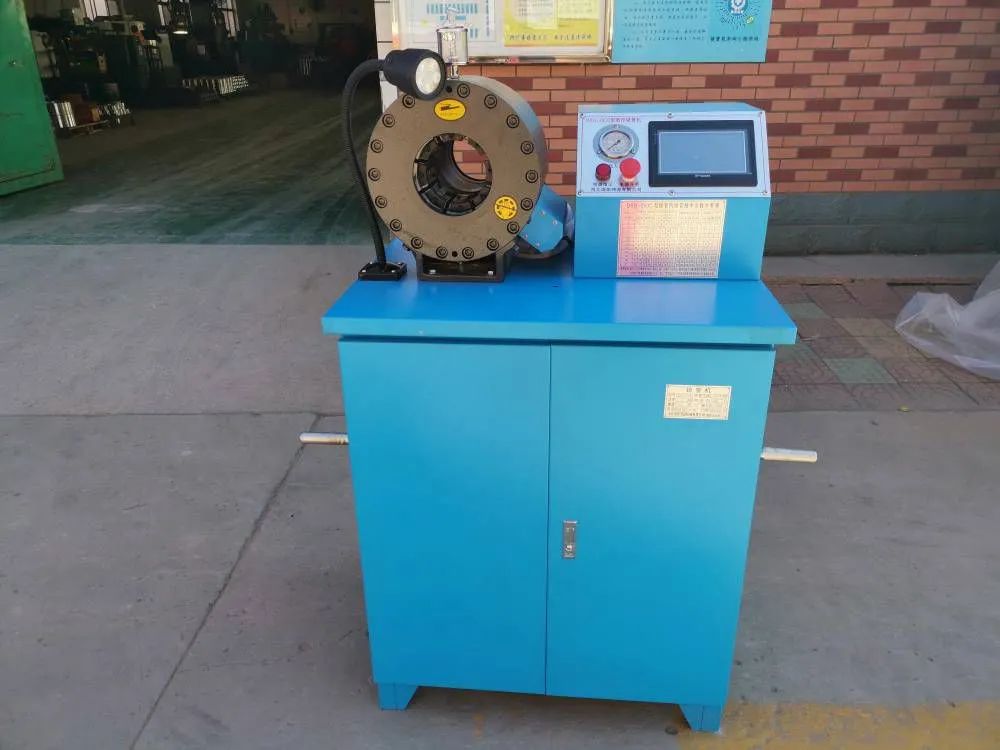

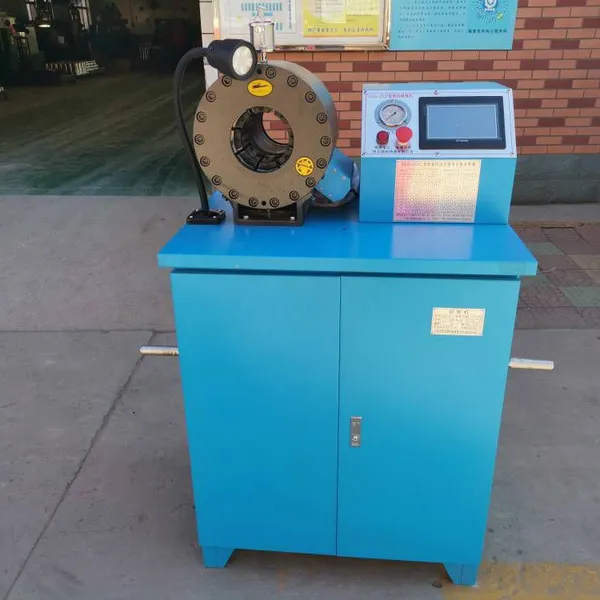

The DSG-250 pipe locking machine produced by our factory is suitable for the crimping processing of high-pressure rubber hoses, fiber hoses, and plastic pipe assemblies used in hydraulic transmissions of industrial, agricultural, and engineering machinery. It has the advantages of small size, light weight, multiple functions, fast mold opening, easy operation, and easy maintenance.
2. Main technical features
1. Inner diameter of crimped hose: φ6～φ51 mm
2. Opening: 120 mm
3. Expansion and contraction amount: ±25 mm
4. Scale accuracy: 0.02 mm
5. Power: 4KW (oil pump motor)
6. Crimping force: 540 T
7. Rated pump pressure: 30 MPa
8. Oil pump displacement: 14 L/min
9. External dimensions: 800×620×1300 (mm)
10. Weight: 200Kg
