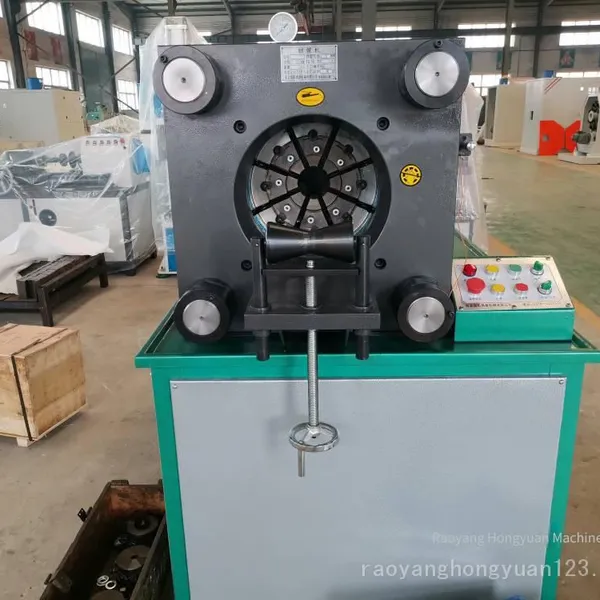

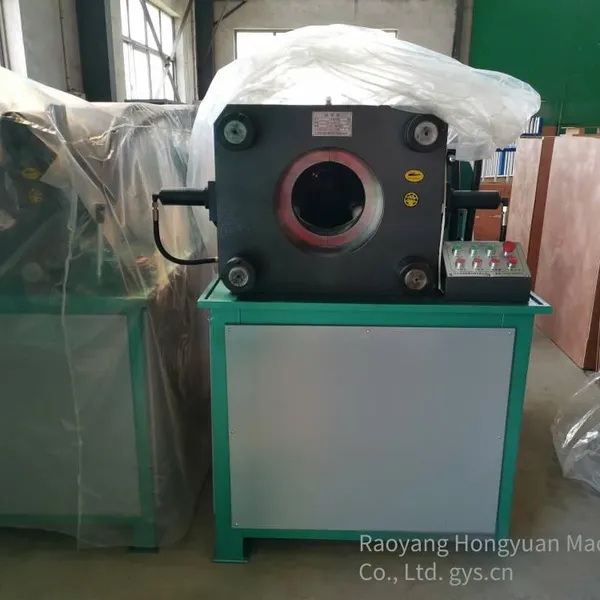

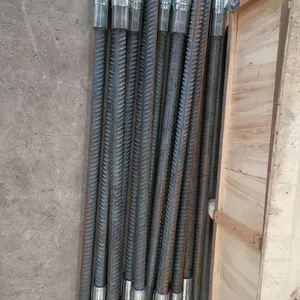

Supply of steel bar embedded part end shrinking machine and greenhouse pipe end shrinking machine
It applies contraction force to the matching metal joints through the mold of the crimping machine, and firmly crimps the metal joints onto the matching high-pressure oil pipes for construction machinery or the brake pipes, oil pipes, air-conditioning pipes, and power pipes on automobiles.

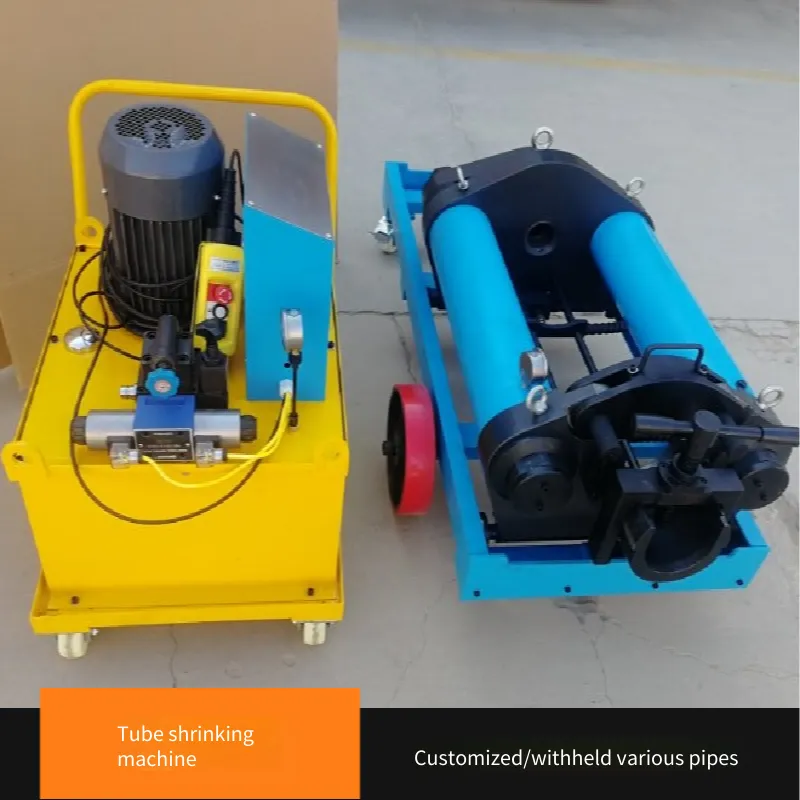

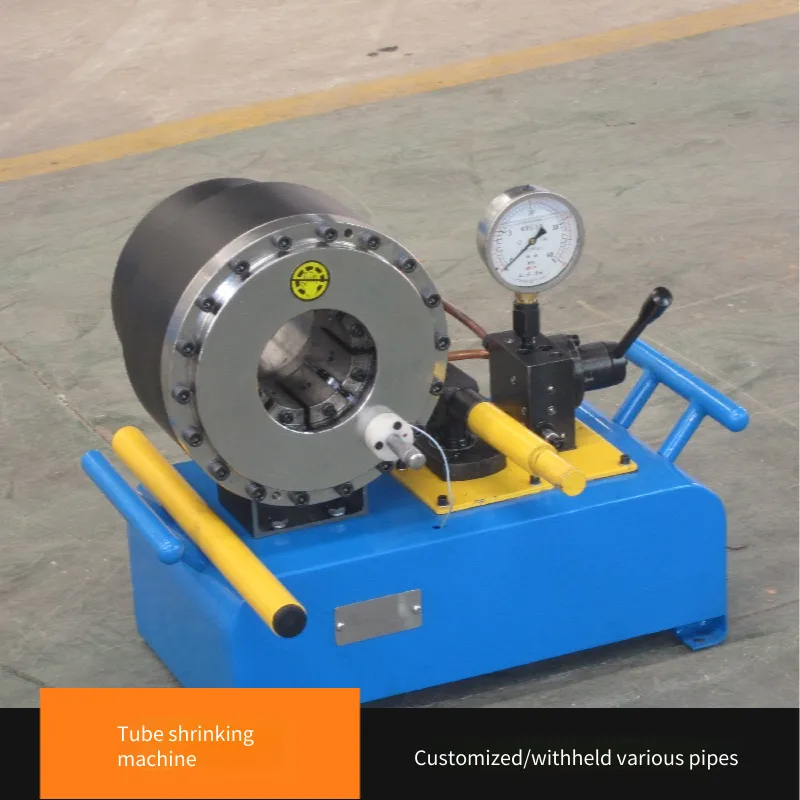

End shrinking machines for trenches. Customized PE pipe shrinking machines. Various models of crimping machines are suitable for crimping high and low-pressure oil pipes, air pipes, water pipes, cable joints, automobile air-conditioning pipes, automobile power steering pipes, oil pipes, gasoline supply pipes of various types of machinery, as well as construction accessories and daily hot water pipes. They are used in industries such as vehicles, construction machinery, hydraulic machinery, and welding and cutting equipment.
1. Open the air filter cover, and then add clean anti-wear hydraulic oil to the oil tank until it reaches 75% (about 160L) of the tank height.
2. Add 20# - 30# machine oil to each oil cup.

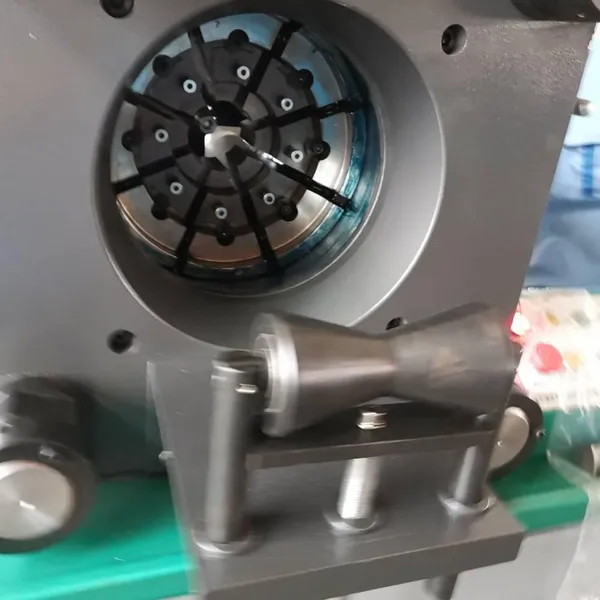

3. Before using this machine to crimp rubber hoses, the outer conical surface of the die seat and the inner conical surface of the pressing sleeve must be coated with high-grade lubricant (molybdenum disulfide) to reduce wear. Especially for rubber hoses with an inner diameter of Φ102 or more, it is necessary to apply the lubricant once every 3 - 5 hoses (not too much each time).

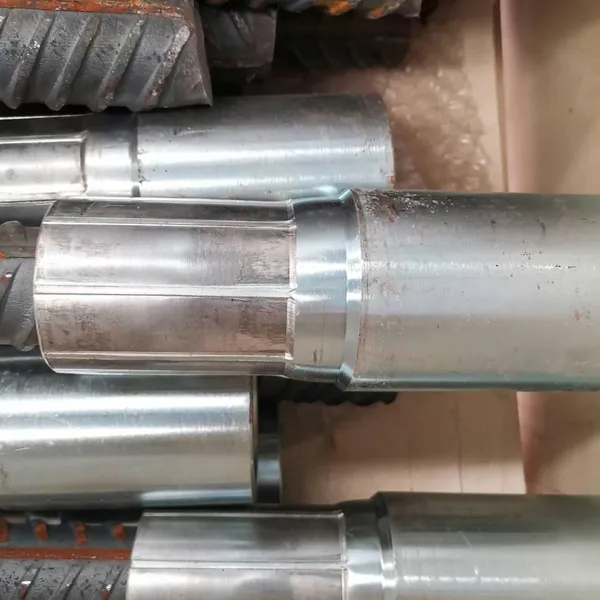

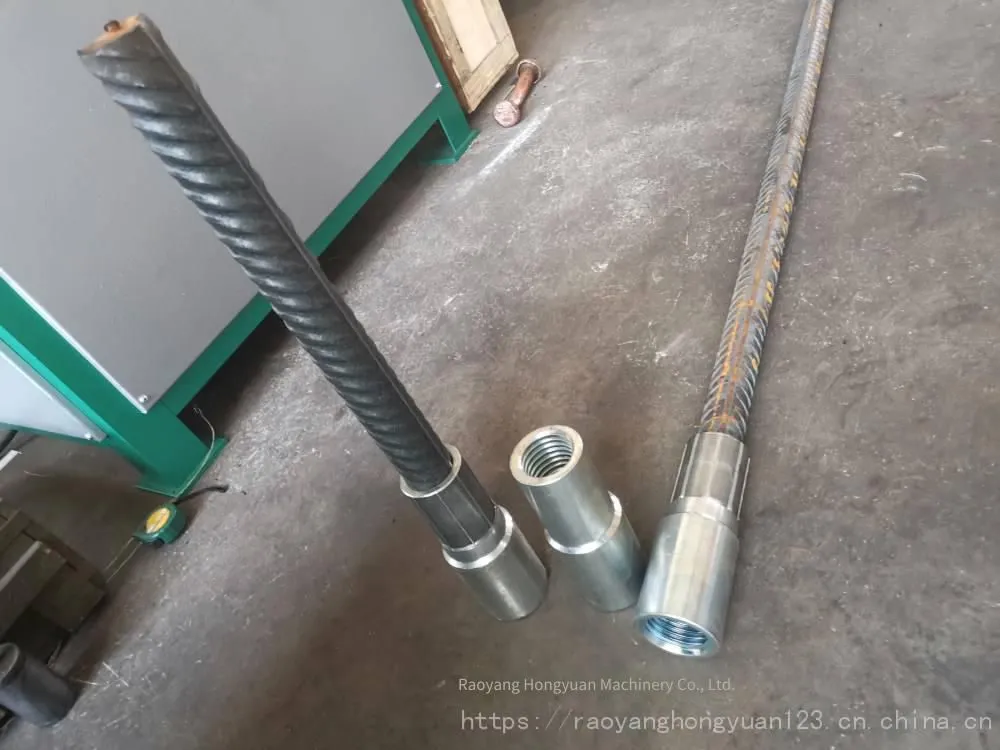

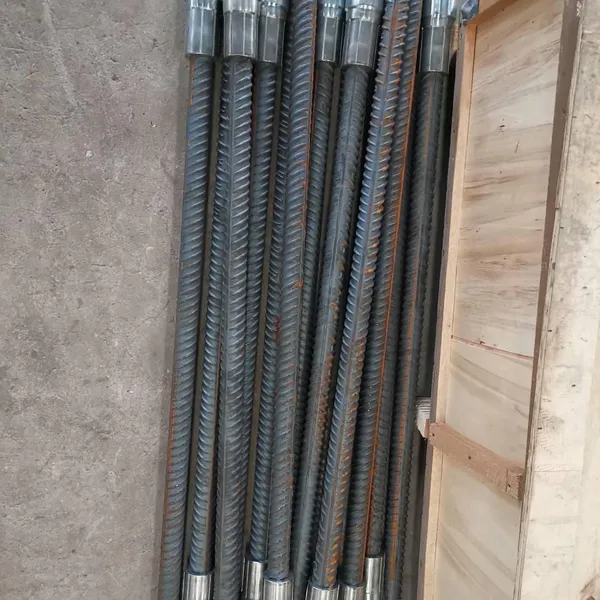

Embedded part shrinking machine, Embedded part crimping machine, Stadium fence welded pipe shrinking machine
1. Crimping range: φ20 mm
2. Power supply voltage: 380V/50Hz Three-phase four-wire
3. Rated pressure: 30MPa
4. Crimping force: 530 t
5. Opening degree: 0+24 mm
6. Reciprocating time: 20 seconds/time (full stroke)
7. Equipment weight: 124kg
8. Mold length: 50 mm
Supply of steel bar embedded part head shrinking machine and greenhouse pipe necking machine
1. Handling: The machine should be lifted by lifting rings for handling, and the bottom of the machine should bear the force. The machine body is not allowed to tilt. It is strictly forbidden to carry the ruler part.
2. Installation: The machine needs to be placed on a horizontal and stable foundation.
3. Oil injection: Before opening the chassis, unscrew the oil filler cap and add about 40 liters of clean anti - wear hydraulic oil to the oil tank (in winter: YB - N32; in summer: YB - N46).
4. Pipe connection: Install the two quick plugs of the hose assembly on the oil cylinder respectively. When installing the hose joints on the oil circuit block, the interfaces should be connected correspondingly. Reverse connection is strictly prohibited.
5. Power connection: Connect the power cord to the power supply specified by the machine. Start the motor briefly to observe the rotation direction. The rotation direction of the motor should be consistent with the direction indicated by the oil pump label or be clockwise.
5. Check the ruler: The ruler is located on the front end cover of the oil cylinder (see the above figure), which is used to adjust the shrinkage amount of the crimping sleeve. Adjust clockwise to reduce the shrinkage; adjust counter - clockwise to increase the shrinkage.
6. Pressure adjustment: The pressure setting value during crimping is 25MPa, which is adjusted by the mold - closing overflow valve. The opening mold setting pressure is 6MPa, which is adjusted by the opening mold overflow valve. Adjust clockwise to increase the pressure, and adjust counter - clockwise to decrease the pressure. (It has been adjusted at the factory. Please do not adjust it casually.)
Supply of steel bar embedded part head shrinking machine and greenhouse pipe necking machine:The product quotation is the average price, and the specific pricing is subject to the product model.
6. Both the mold closing and mold opening buttons are in the jog state. That is, when the button is pressed, the piston starts to move, and when the button is released, the movement stops.
5. Power connection: Connect the power cord to the power supply specified by the machine. Jog the motor to observe the rotation direction. The rotation direction of the motor should be consistent with the direction indicated by the oil pump label or be clockwise.
5. Check the scale: The scale is located on the front end cover of the oil cylinder (see the above figure) and is used to adjust the shrinkage of the crimping sleeve. Adjust clockwise to decrease the shrinkage; adjust counterclockwise to increase the shrinkage.
6. Pressure adjustment: The pressure setting value during crimping is 25MPa, which is adjusted by the mold closing overflow valve. The pressure setting for mold opening is 6MPa, which is adjusted by the mold opening overflow valve. Adjust clockwise to increase the pressure, and adjust counterclockwise to decrease the pressure. (It has been adjusted at the factory. Please do not adjust it at will.)
Supply of steel bar embedded part shrinker Greenhouse pipe shrinking machine Installation and commissioning
1. Handling: The machine should be lifted by the lifting ring for handling, and the bottom of the machine should bear the force. The machine body is not allowed to tilt. It is strictly prohibited to lift the scale part.
