Direct Sales From Pipe Shrinking Machine Manufacturers. Large Flange Hose Crimping Machine
US$ 29230.77
1 - 2 Unit
US$ 27692.31
≥3 Unit
Key Specifications
Get Latest Price
Product Certifications:
ISO9001
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Hengshui, Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hongyuan Supplies a Multi-functional Integrated Machine for Dry Powder Filling, Inflation, and Valve DisassemblyUS$ 4923.08 - 5384.62MOQ: 1 Unit -
Integrated Machine for Rubber Hose Core Ejection and Pressure Testing, Plunger Reciprocating Pump, Ultra-high Pressure Testing Machine ModelsUS$ 7538.46 - 8000MOQ: 1 Unit
-
Parameters of Hgg-i Type Fire Extinguisher Dry Powder Filling Machine, an All-in-one Machine for Powder Filling, Recycling, Inflating, and Valve DisassemblyUS$ 4923.08 - 5076.92MOQ: 1 Unit
-
High-pressure and Large-flow Pressure Test Pump, Cnc Pressure Tester, Hose Assembly Pressure Testing MachineUS$ 12615.38 - 13076.92MOQ: 1 Unit
-
High - Quality Fire Extinguisher Annual Inspection and Maintenance, Fire - Fighting Equipment for Shopping Malls, Wide Application Range and Good QualityUS$ 4923.08MOQ: 1 Unit

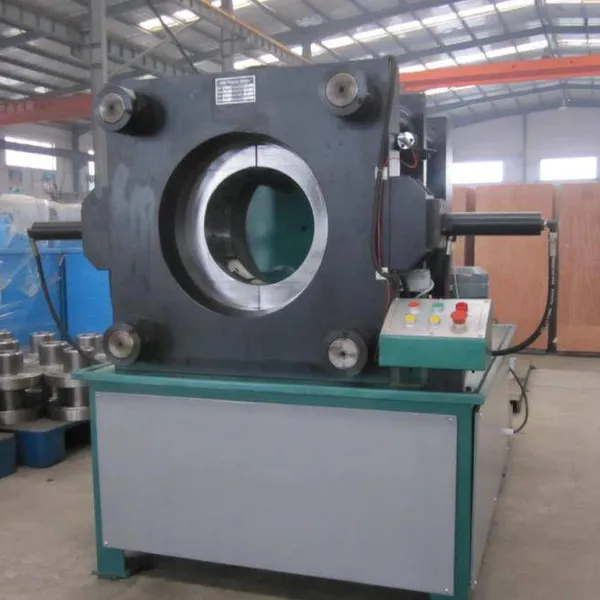

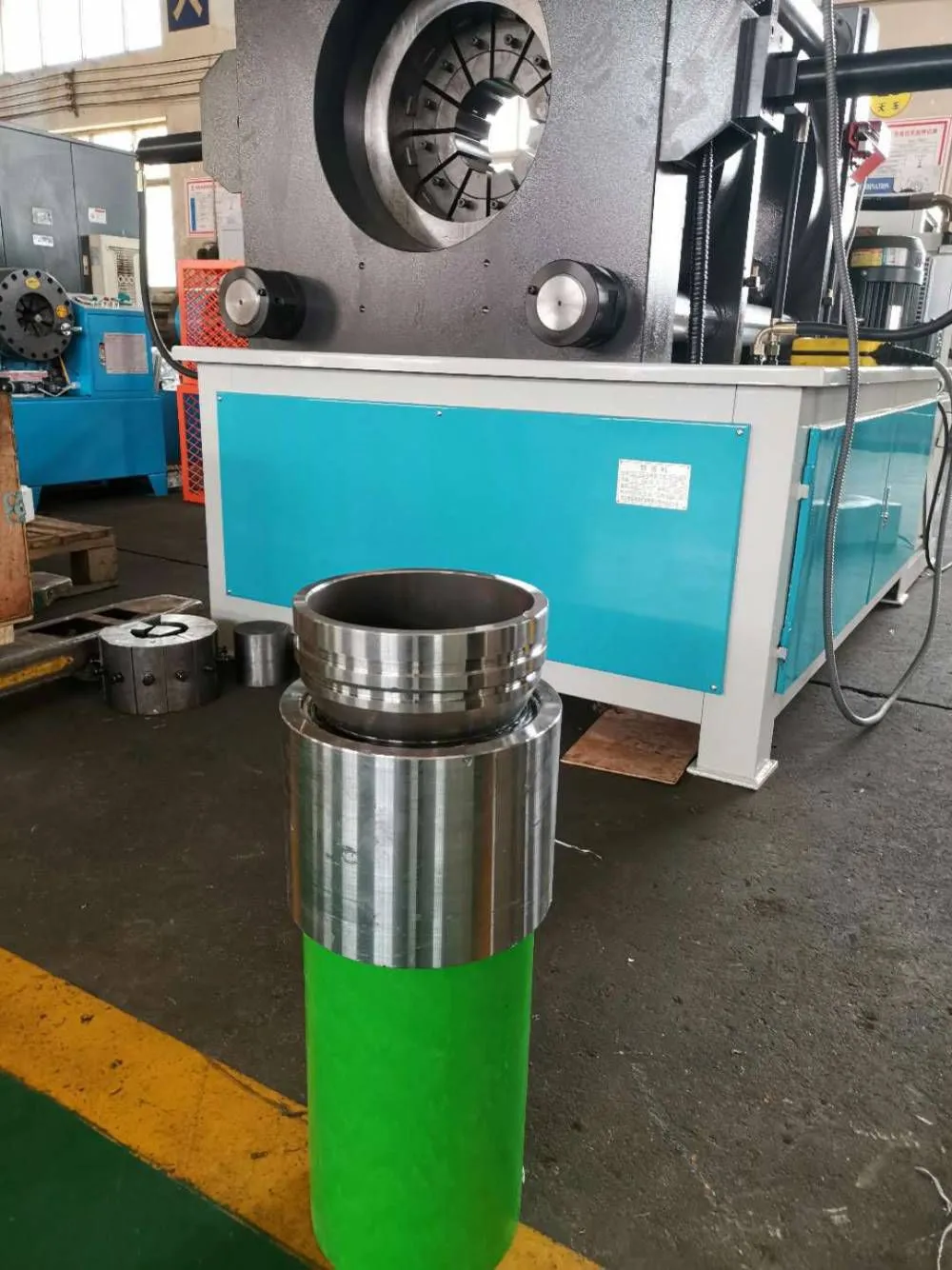

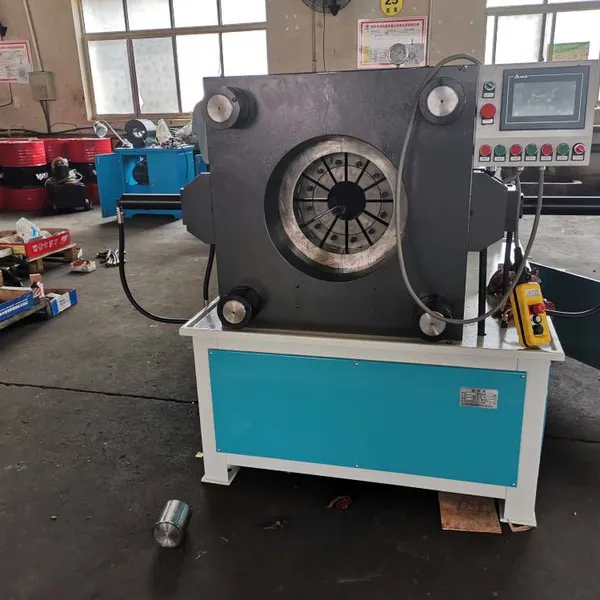

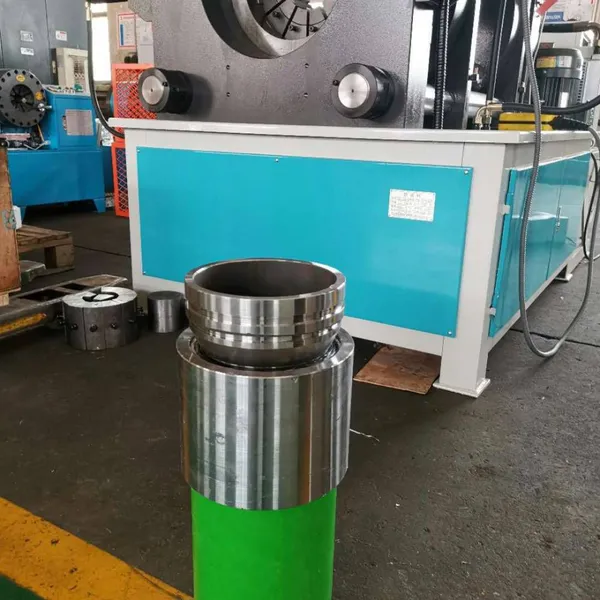

Components and main technical parameters of the DSG315-D Pipe Locking Machine
This equipment consists of main parts such as the crimping part, the frame part, and the hydraulic station.
The main technical parameters of this equipment are as follows:
1. Crimping range: 60 - 250mm (outer diameter of the hose)
2. Crimping force: 2000 t
3. Power supply voltage: 380V/50Hz, Three-phase three-wire
4. Motor power: 7.3kW
5. One-time opening degree: 25mm
6. Flange passing size: φ420
7. Rated pressure: 25MPa (large pump)
4MPa (small pump)
8. Time for the main cylinder to reciprocate once: 45s (no-load full stroke)
9. Time for the small cylinder to reciprocate once: 7s

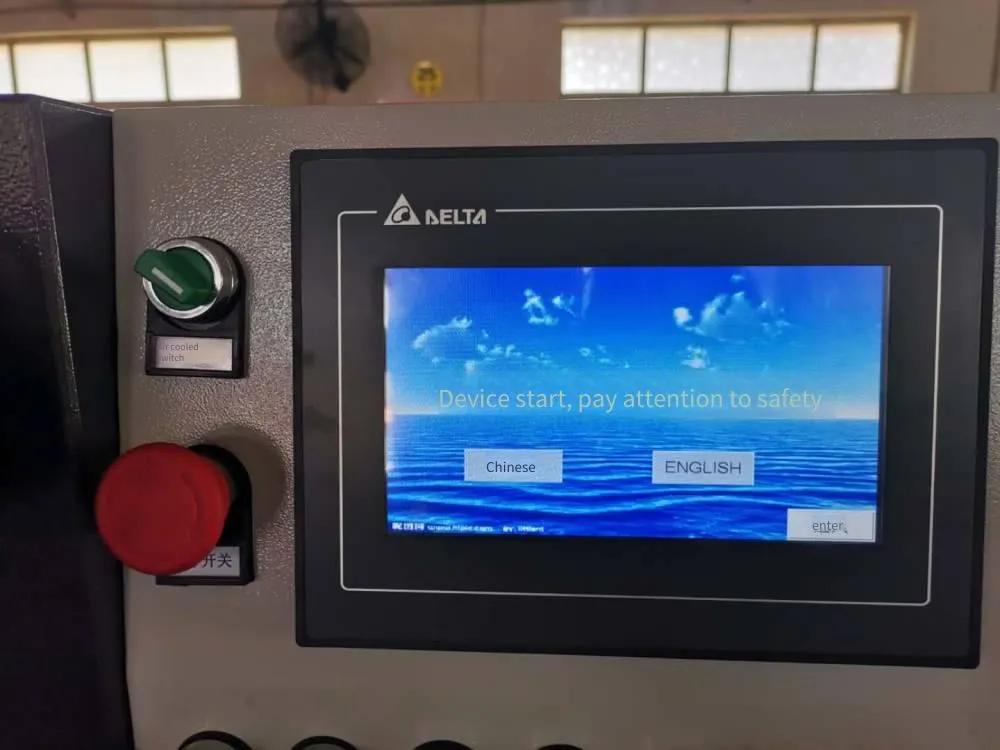

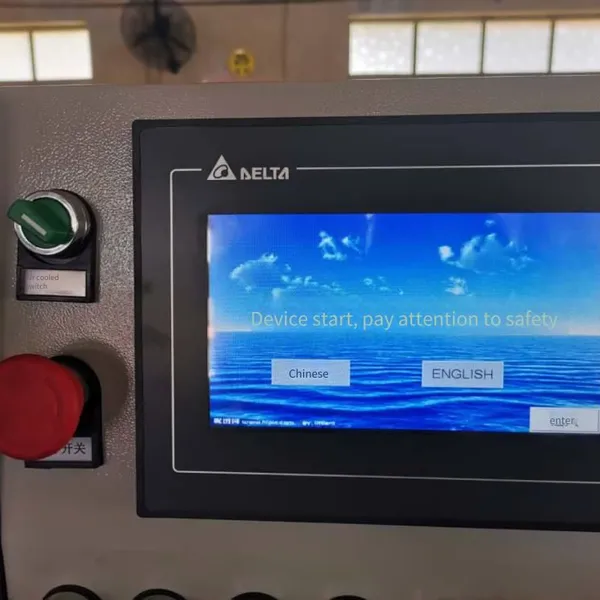

10. Crimping control method: PLC touch screen + button control
11. Mold installation method: Dovetail type
12. Oil tank capacity: 185L
13. Equipment weight: 6500kg
14. Overall dimensions: L2000×W1600×H1550(mm)
