Help CenterComposite Pipe Head Shrinking Connection, Large-opening Crimping Machine, Field Grooved Crimping Joint
Related Products
-
Direct Sales From Pipe Shrinking Machine Manufacturers. Large Flange Hose Crimping MachineUS$ 27692.31 - 29230.77MOQ: 1 Unit -
Hongyuan Supplies a Multi-functional Integrated Machine for Dry Powder Filling, Inflation, and Valve DisassemblyUS$ 4923.08 - 5384.62MOQ: 1 Unit
-
Integrated Machine for Rubber Hose Core Ejection and Pressure Testing, Plunger Reciprocating Pump, Ultra-high Pressure Testing Machine ModelsUS$ 7538.46 - 8000MOQ: 1 Unit
-
Parameters of Hgg-i Type Fire Extinguisher Dry Powder Filling Machine, an All-in-one Machine for Powder Filling, Recycling, Inflating, and Valve DisassemblyUS$ 4923.08 - 5076.92MOQ: 1 Unit
-
High-pressure and Large-flow Pressure Test Pump, Cnc Pressure Tester, Hose Assembly Pressure Testing MachineUS$ 12615.38 - 13076.92MOQ: 1 Unit

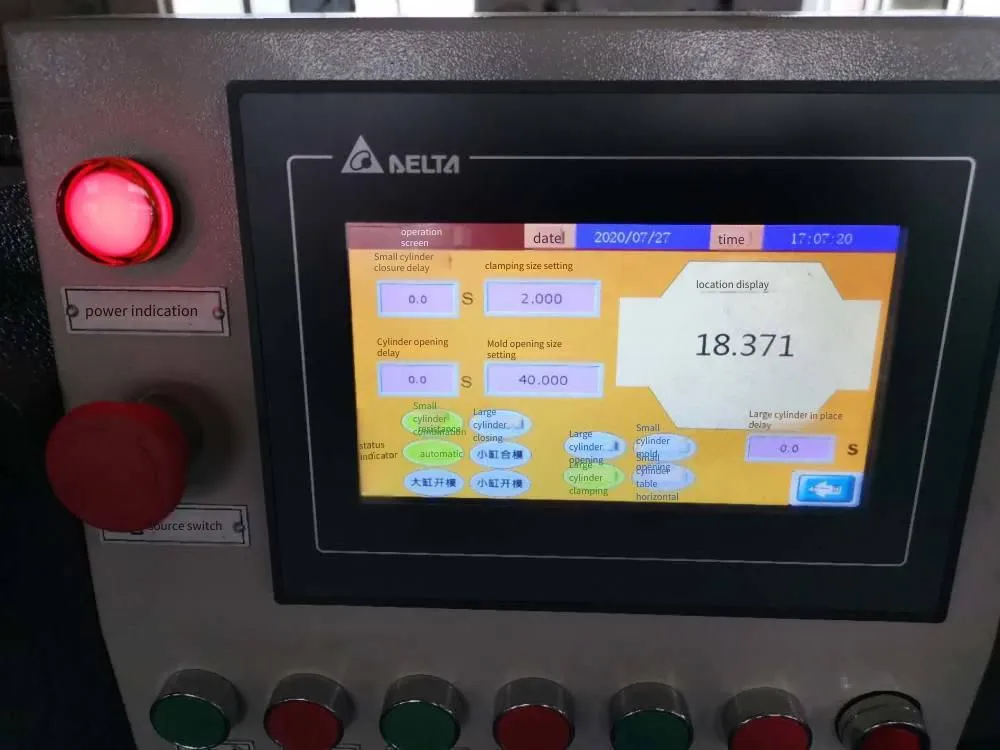

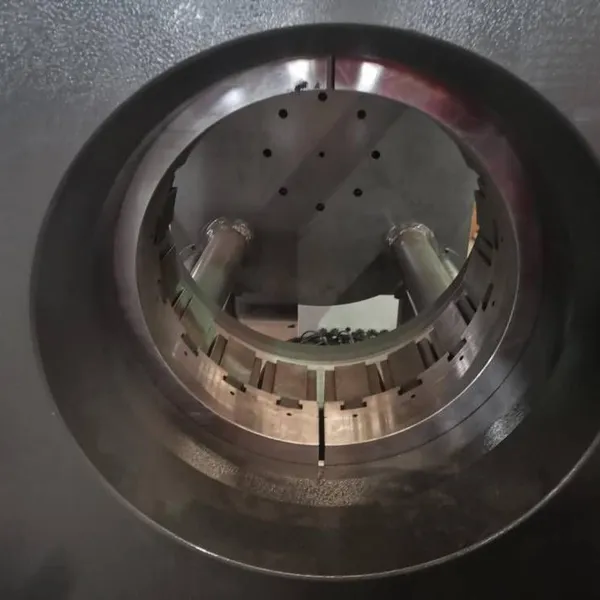

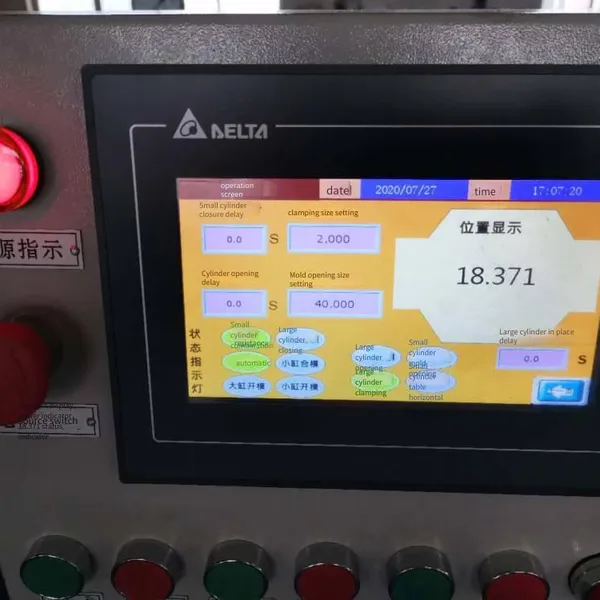

1. The crimping mechanism is the working mechanism of this machine. Driven by the cylinder piston, the pressing sleeve moves back and forth, causing the inner cone sleeve on the front sliding plate to push the die seat with the same taper to radially contract, achieving the crimping of the hose by the die blocks. When the contraction amount reaches the set value of the crimping size, the crimping stops automatically. After the solenoid valve is reversed, the hydraulic oil enters the mold-opening cylinder, pushing the piston to move in the opposite direction. The die seat drives the die blocks to return to their original positions under the action of the spring.

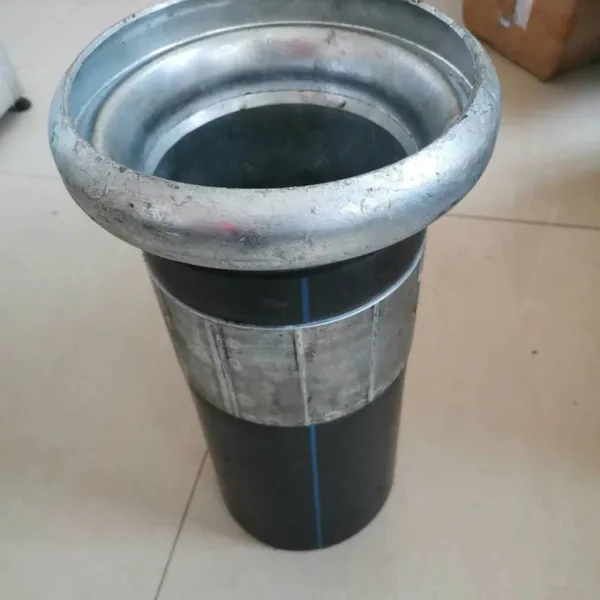

2. During operation, place the pipe end with the outer sleeve and the hose inner core installed into the middle circular hole of the pipe crimping die. Start the motor, oil pump, and control valve to drive the cylinder piston to move. Through the pressing sleeve with a tapered inner wall, compress the outer wall of the die seat with the same taper to achieve the crimping purpose. After reversing, the pressing sleeve moves in the opposite direction, the die seat returns to its original position, and then the crimped high-pressure hose fitting can be taken out.
