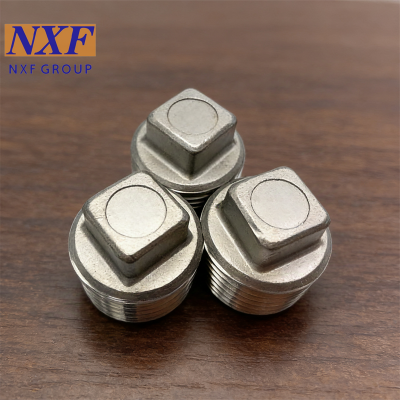

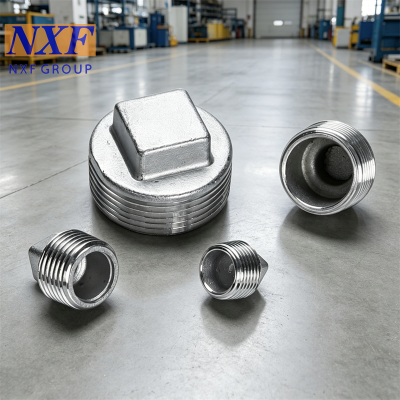

Help CenterNXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Pressure Class3000-9000 Nickel Alloy Forged Fitting Square Head Plug
Product Spotlights
Related Products
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Pressure Class3000-9000 Nickel Alloy Forged Fitting Hex Head PlugUS$ 3.5 - 4MOQ: 10 Pieces -
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy 90/45 Deg LR/SR Butt Welding ElbowUS$ 3.5 - 4MOQ: 10 Pieces
-
NXF UNS N06600 DIN2.4816 Alloy 600 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy Butt Welding Pipe Fitting End CapNegotiableMOQ: 1 Unit
-
NXF UNS N06600 DIN2.4816 Alloy 600 OD DN15-1200 Thickness SCH10-XXS Special Stainless Steel BW Fitting Lap Joint Stub EndNegotiableMOQ: 1 Unit
-
NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Nickel Alloy Forged Fitting Reducing/Straight Hexagonal NippleUS$ 3.5 - 4MOQ: 10 Pieces
Products Description
C276 Inroduction
Super alloys or high performance alloys are available in a variety of shapes and contain elements in different combinations to obtain a specific result. These alloys are of three types that include iron-based, cobalt-based and nickel-based alloys. The nickel-based and cobalt-based super alloys are available as cast or wrought based alloys according to composition and application.Super alloys have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. They can also function under high mechanical stress and high temperatures and also in places that require high surface stability.
HASTELLOY(r) C276 is a wrought corrosion-resistant alloy that resists the development of grain boundary precipitates that degrade corrosion resistance.

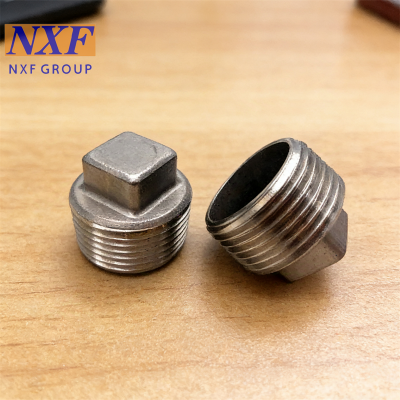

SQUARE HEAD PLUG INTRODUCTION
Threaded square-head plugs are a type of sealing plug. Their square head design makes them simple to operate with a wrench and suitable for applications such as sealing the ends of low-pressure pipelines. Sealing plugs work by physically blocking the passage of fluids or particles, achieving a sealed isolation of the enclosed space. Threaded sealing plugs tighten by engaging the external thread with the internal thread of the pipe or hole, relying on an interference fit between the threads or an end-face sealing ring to achieve a seal. This is the most common and traditional sealing method, suitable for applications requiring frequent disassembly and assembly.

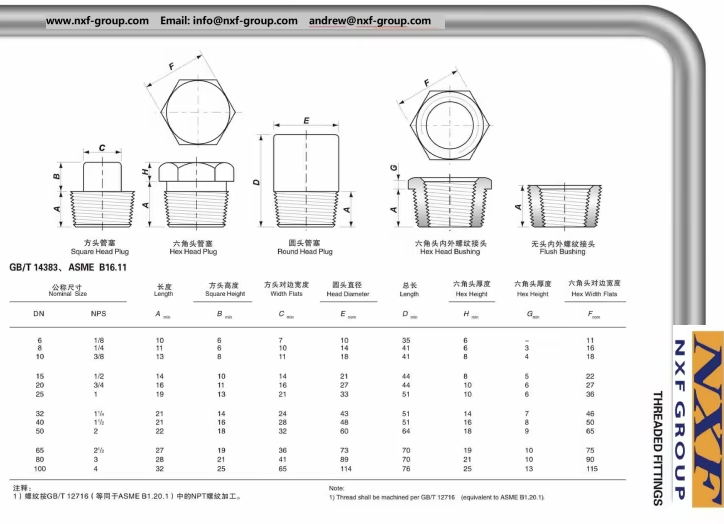

SQUARE HEAD PLUG DRAWING

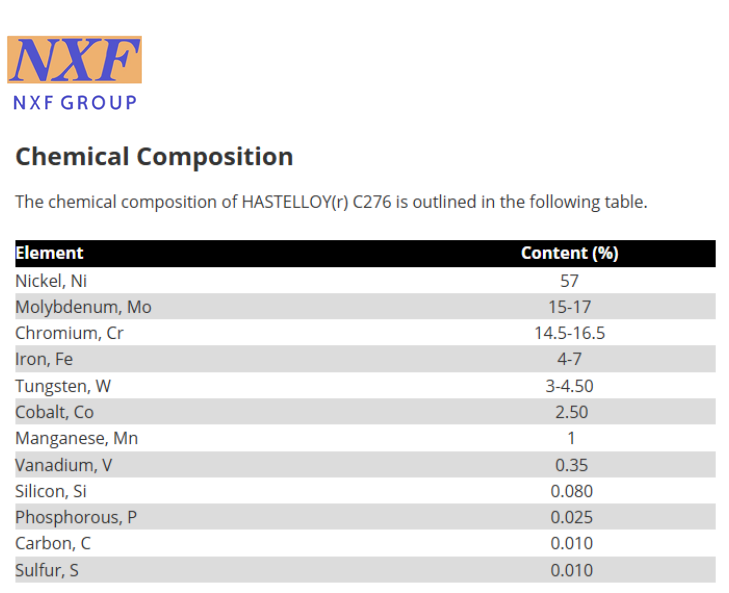

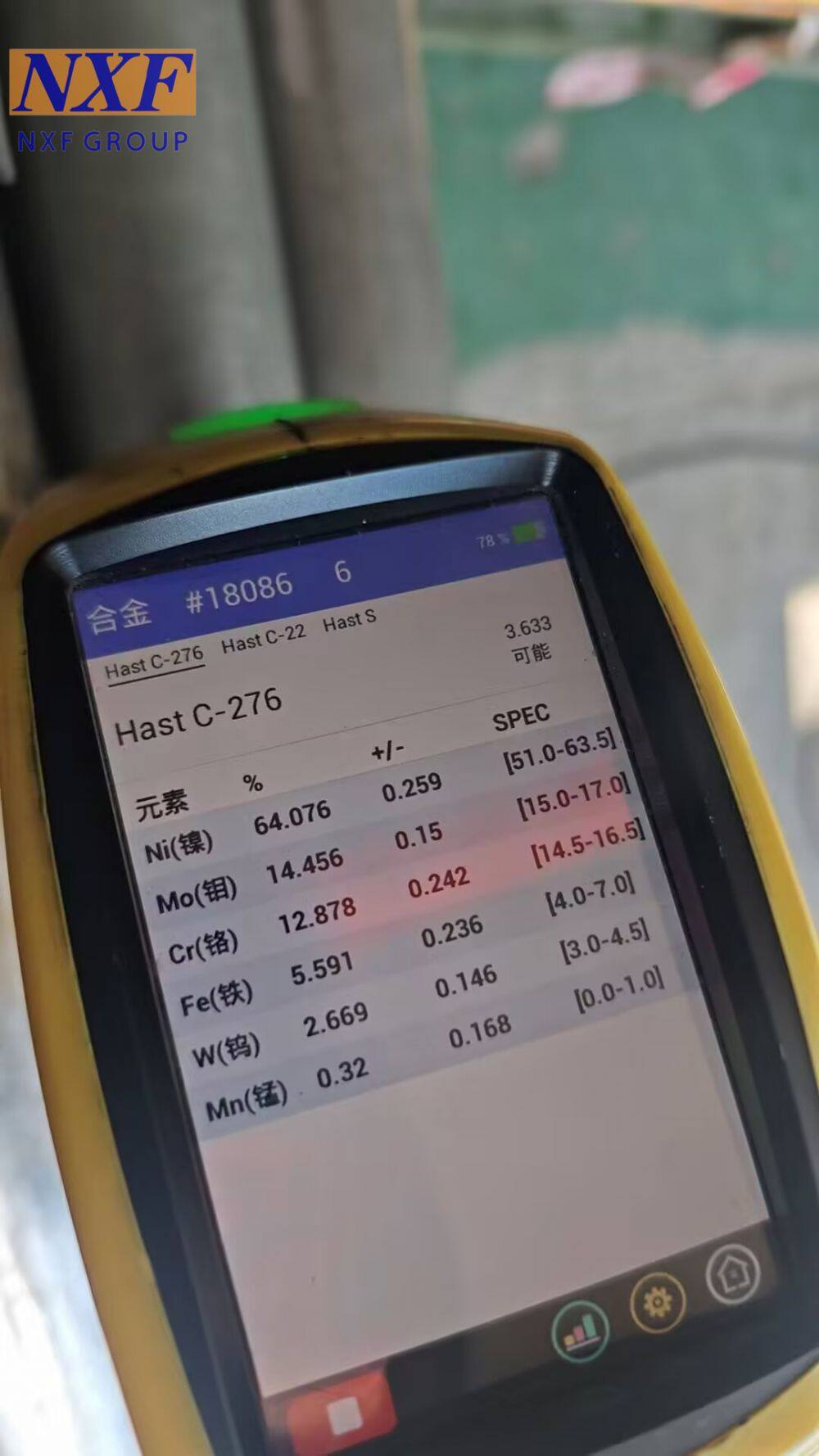

C276 Chemical composition and mechanical properties

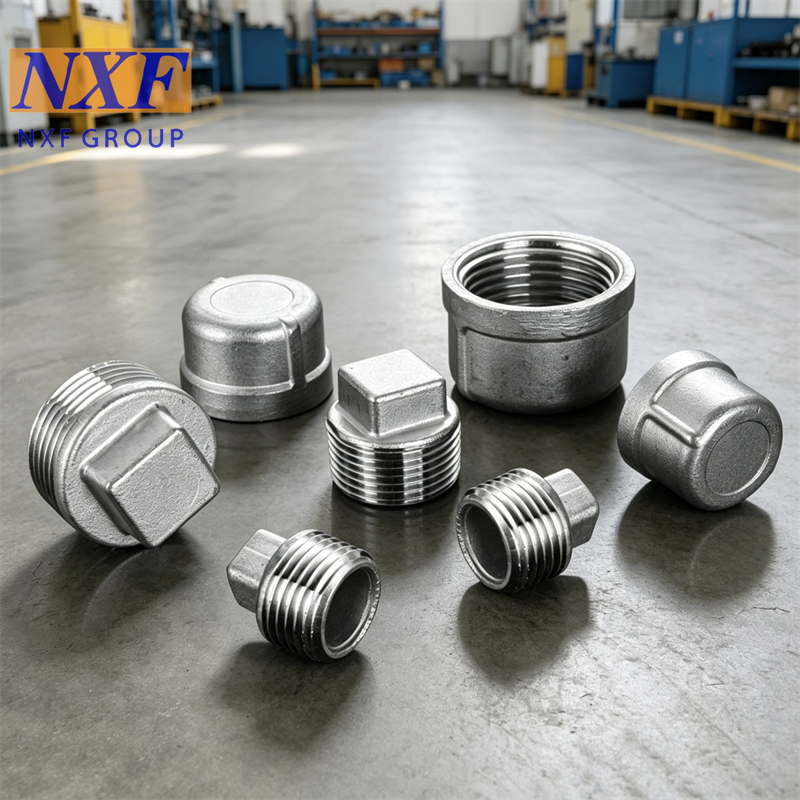

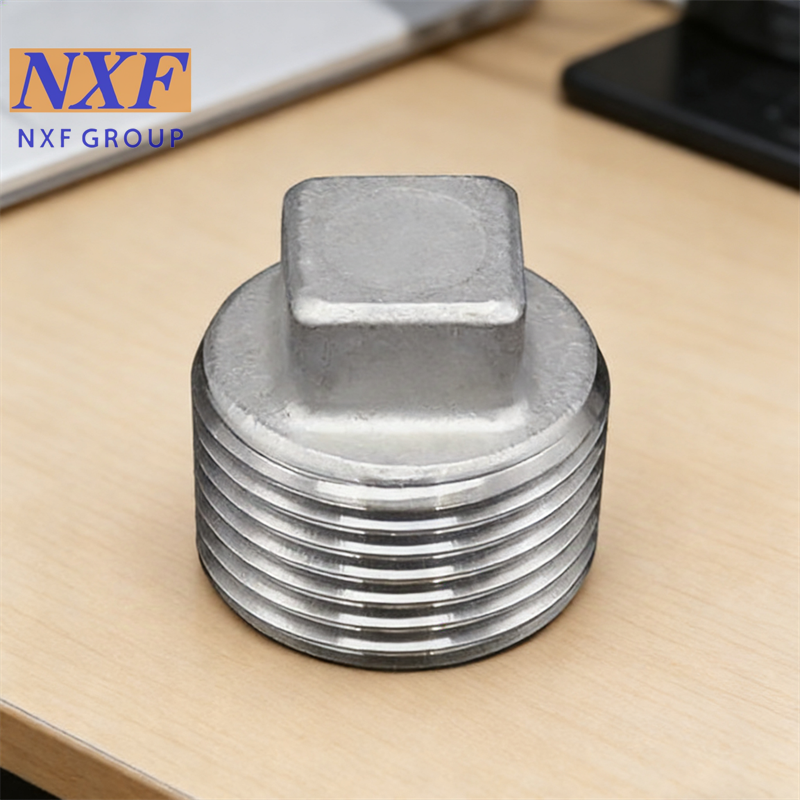

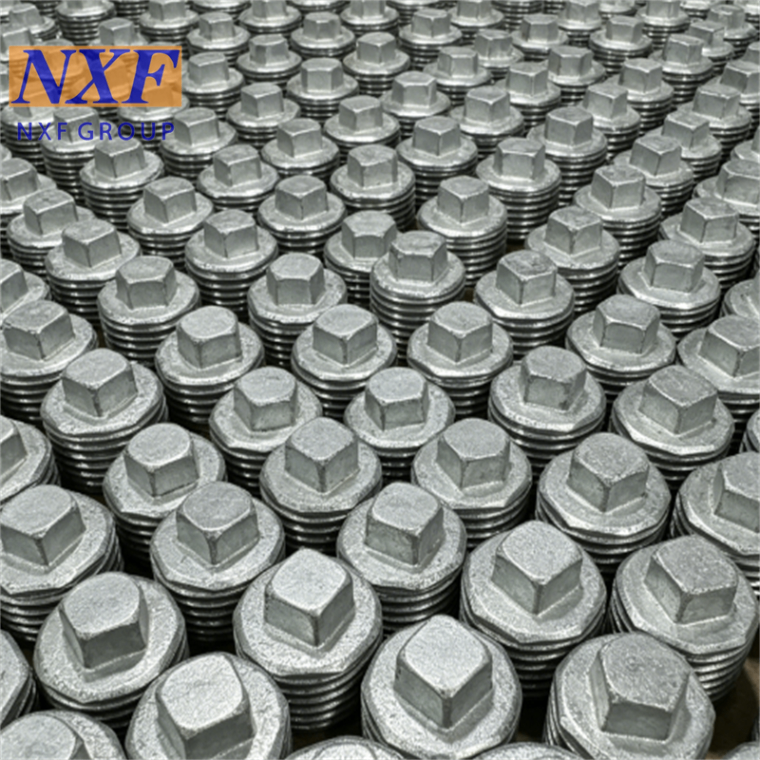

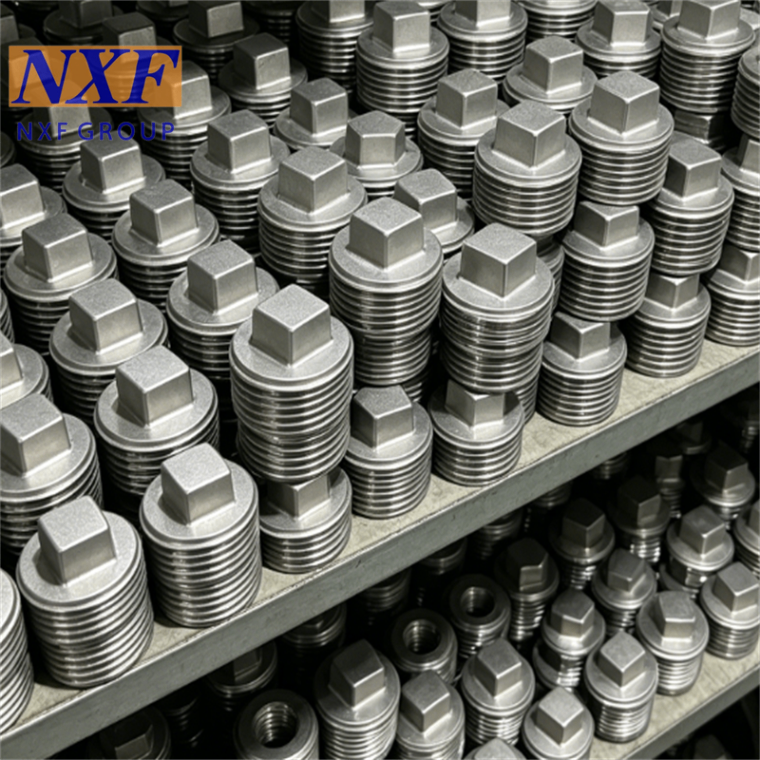

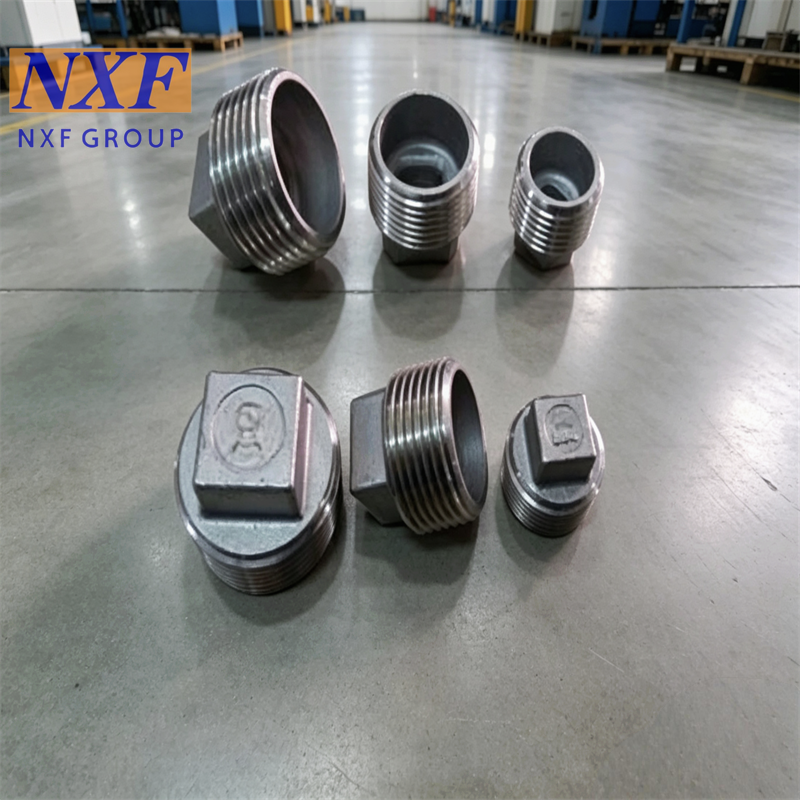

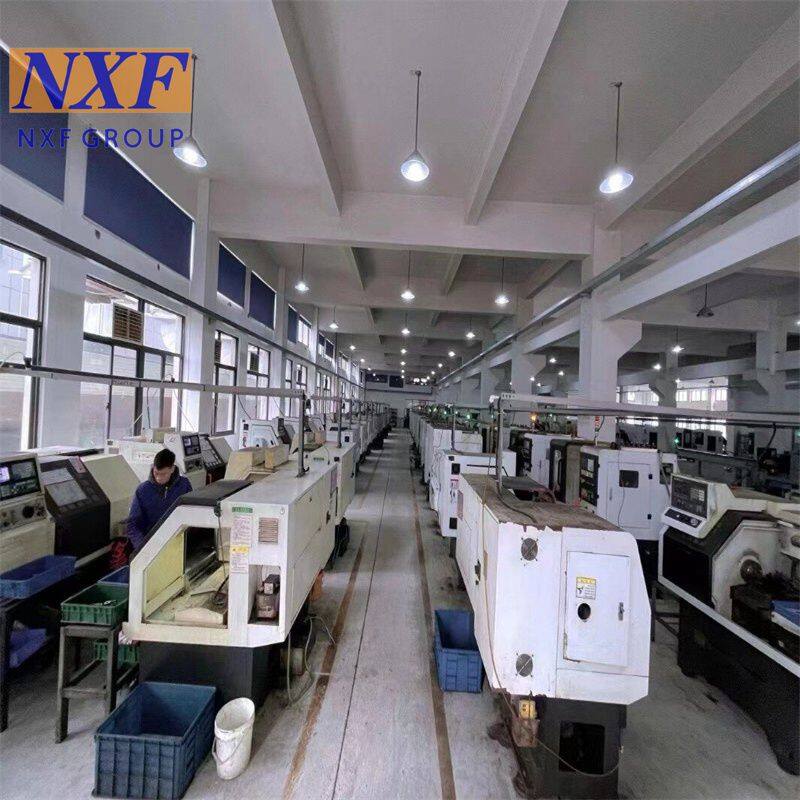

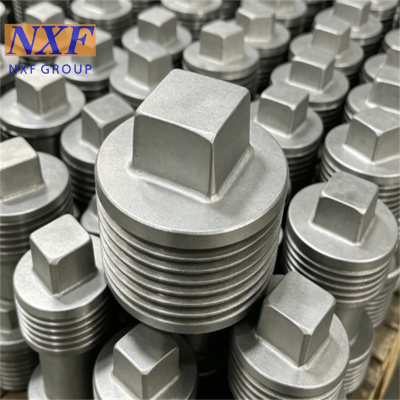

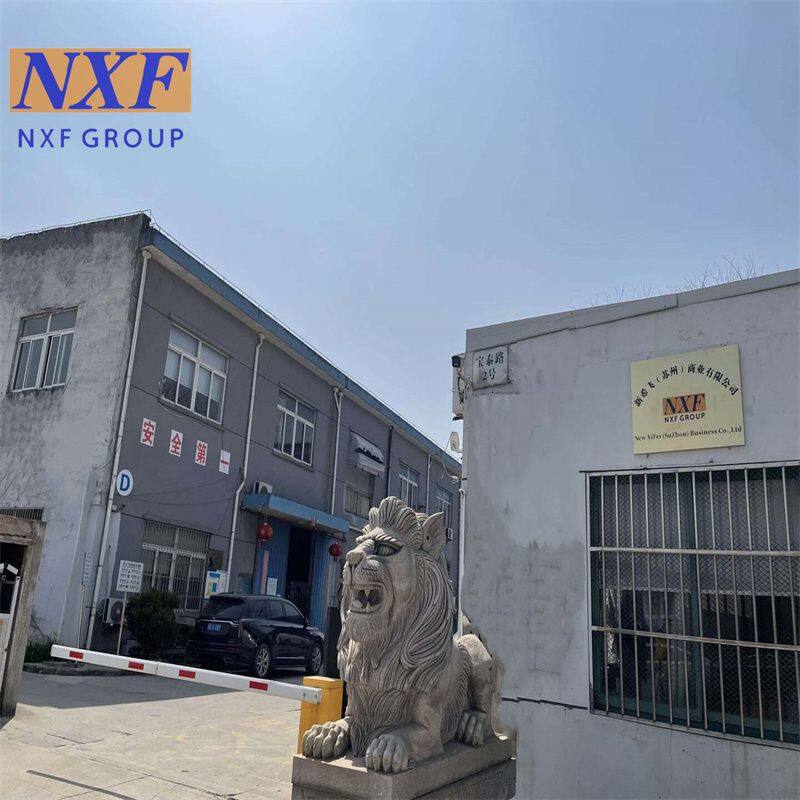

Factory and Product Pictures

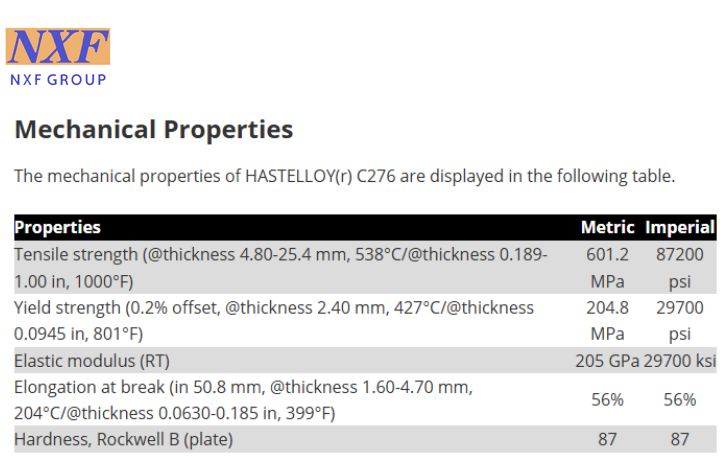

C276 Chemical composition and mechanical properties
Product Pricessing
Raw Material Cutting: Cut the selected material to a fixed length to obtain blank bar stock.
Square Head Upsetting: Use cold or hot upsetting processes to forge one end into a square head, replacing the hexagonal structure.
Lathe Rough and Finish Turning: Turn the outer diameter and end face of the workpiece, and machine the sealing conical surface or plane to ensure fitting accuracy.
4. Thread Rolling/External Threading: Select thread rolling or lathe threading according to specifications to machine the external threads for pipe connections.
5. Chamfering and Deburring: Chamfer the edges of the square head and both ends of the thread to remove all machining burrs.
6. Drilling (can be omitted if solid): For hollow plugs, drill a hole at the tail; skip this step for solid square head plugs.
7. Surface Treatment: Blackening, galvanizing, nickel plating, stainless steel passivation, and other rust and corrosion protection treatments.
8. Dimensional Inspection: Inspect the dimensions across the flats of the square head, thread accuracy, and appearance quality.9. Cleaning, rust prevention, packaging, and warehousing.
Our NXF GROUP advantage as follow:
1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.
2.Our NXF GROUP can strictly control the quality. We have production,quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.
3.OurNXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.
4.Our NXF GROUP have excellent quality certificate system and trademark certificate
5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by
International Station, as well as remote technical guidance and services.
6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you with a one-stop service.
Packing & Delivery
Compang Profile
New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals,machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."
Our advantage:3S Service(Small Quantity/Short Time/Special Material)
Certificstion
FQA
1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products
4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
6. Are you trading company or manufacturer ?
We are manufacturer.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
