Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line

Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-1
Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-2
Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-3
Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-4
Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-5
Canned Mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line photo-6
US$ 58000.00 1 Set
US$ 55000.00 ≥2 Set
Key Specifications
Get Latest Price
brand name:
Genyond
dimension(l*w*h):
customized
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
brand name Genyond
dimension(l*w*h) customized
place of origin Shanghai, China
automatic grade Automatic
voltage 380 V
Capacity 1~60 Tons, 1-60ton
key machines Fruit & Vegetable juicer machine, Food Sterilizer, Meat Mincer, bread making machine, Fruit & Vegetable peeling machine, Pasteurizer, Sausage Stuffer, Emulsifier, Fryer, Mixer, Heat Exchanger, packing machine, bottle wash machine
product type Vegetables, Fruit
Weight (KG) 1500
Name Vegetable Processing Machine
Function Multifunctional Fruit production line
usage Food Industry Equipment
Keywords Vegetable Fruits Cleaning Washing Line
Certification CE ISO
After Warranty Service Video technical support, Online support, Spare parts,
Application canned pineapple
Advantage Easy Operation High Efficiency
Finished Products canned food
Work flow

  (1) Acceptance of raw mushrooms:
Fresh mushrooms processed for export of canned mushrooms must be first-class mushrooms; second- and third-level mushrooms can be processed for general canning. As a raw material for canned sheet mushrooms, the cap diameter should not exceed 4.5 cm, and as a raw material for canned mushrooms, the cap diameter should not exceed 6.0 cm.
canned mushroom factory

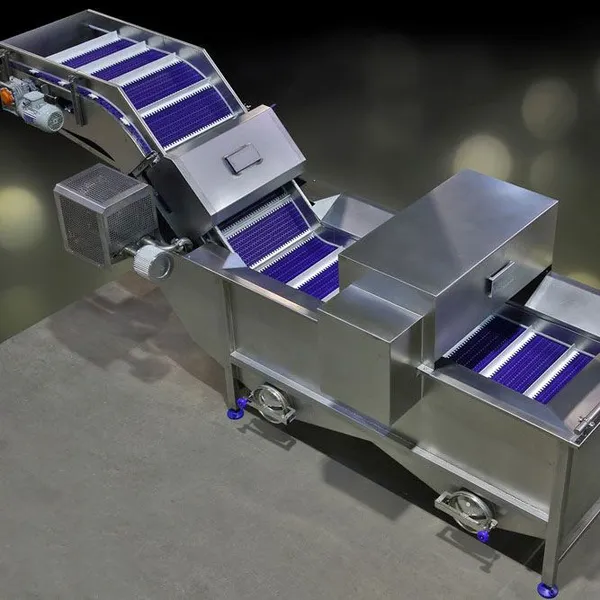

(2) Rinse:
Pour different grades of fresh mushrooms into 0.03% sodium metabisulfite solution, and gently flip up and down to wash away the sand, impurities, wax and lipids on the surface of the mushroom. After rinsing for 2 minutes, remove it and put it in running water for washing.
champion mushroom

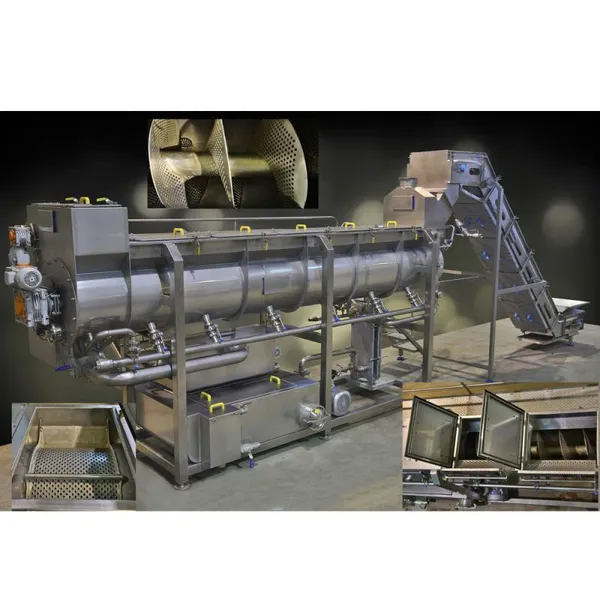

(3) Pre-cooking:
First boil the prepared 0.1% citric acid solution in the pre-boiler, and then put the rinsed mushrooms, the ratio of water to mushrooms is about 3: 2. Continue to boil until cooked through, 8-10 minutes in total, then quickly cool.
(4)Grading and slicing
Classification according to the specifications of canned mushrooms. Approximately 1.5cm in diameter is a grade mushroom; about 2.5cm in diameter is a second grade mushroom; about 3.5cm in diameter is a third grade mushroom; less than 4.5cm is used to process sliced mushrooms, large mushrooms and off-handled mushrooms with a diameter of more than 4.5cm It can be used for processing pieces mushrooms.
(5) Filling:
Tin cans or glass bottles should be strictly inspected before being filled, and unqualified empty cans should be removed. Then wash it in hot water at 90 ~ 95 ℃, put it on a clean shelf and drain it for use.
(6) Add soup:
The soup formula is 2.3% to 2.5% refined salt and 0.05% citric acid. When adding soup, the soup temperature should be above 80 ℃.
(7) Pre-sealing, venting and sealing:
Exhaust in time after pre-sealing. When heating the exhaust gas, the exhaust temperature of 3000g canning is 85 ~ 90 ℃, 17min; the exhaust temperature of 284g canning is 85 ~ 90 ℃, 7min. If it is sealed with vacuum exhaust, the vacuum degree is 3432 ~ 3922Pa.
champion mushroom wholesale
(8) Sterilization and cooling:
Cans after venting and sealing should be sterilized immediately. After sterilization, back pressure cooling is performed.
(9)Inspection and packaging,then shipping



canned mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line



Specification



The varieties of canned mushrooms produced in China include whole mushrooms, button mushrooms, piece and slice mushrooms. Tinplate cans for export cans are available in sizes ranging from 184g to 3000g.

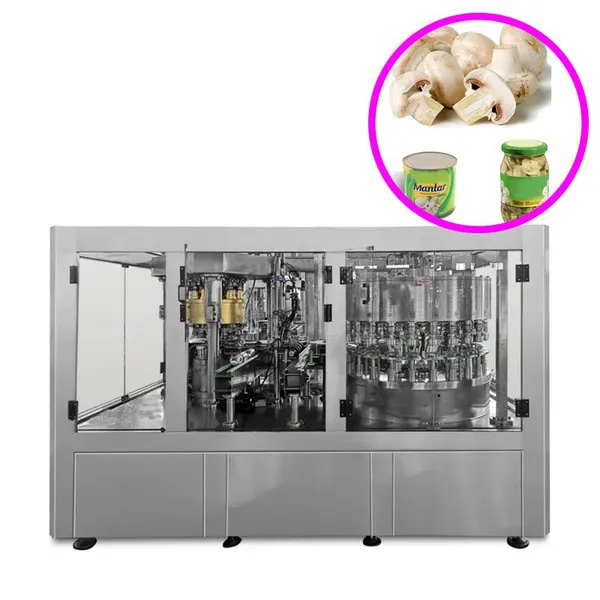

Liquid filling machine
Filling heads 2/4/6/8/10/12
capacity 600-5000 cans/H
Filling volume 10 ml- 5000 ml
Air consumption 120 L/min-300 L/min
Power 1-3 KW

Cans Sealing Machine

Capacity 30-100 cans/min
Can size D:50-400 mm H: 50-350 mm
Power 1-3 KW
System components

 canned mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line



Related Products



 Turnkey solution with after packing work flow:

canned fish Production Line

Canned meat Production Line

canned mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line

Canned Orange Production Line

Canned Pineapple Production Line

Strawberry Canned Production Line

Canned Corn Production Line

canned mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line



Advantages

As a group company, we have more than 10 factories in China. We have been in machines production more than 20 years. Our machines have been exported to more than 280 countries.

High quality of machine

From the raw material, we just buy the top quality product. For motor, electronic part, we use top quality brand in the world.

1

Low price in our product

For we buy high quantity raw material and spare part, we can get low price from our cooperated suppliers. So it reduce a lot cost.

2

Good after sale service

Before the machine is ship, it will test well. We will send our engineers for installation within 10 days after the goods reach your factory.

3

Warranty

We can offer 2 years warranty for free. Any problem for our machine, we can provide the spare parts for free.

4

canned mushroom Canned Mushroom Packaging Machine Filling Machine Cooling Machine Equipment Canned Mushroom Production Line
