Home > Security & Protection > Other Safety Products > High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC

High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC

High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC thumbnail-1
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC thumbnail-2
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC thumbnail-3
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC thumbnail-4
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC thumbnail-5
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC photo-1

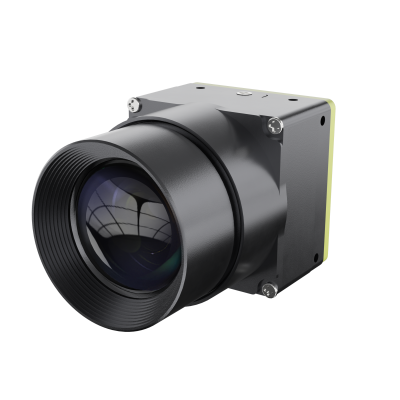

High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC photo-2
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC photo-3
High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC photo-4

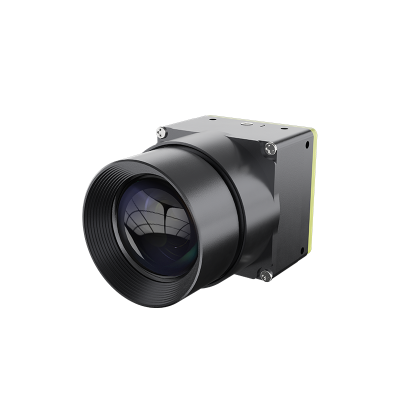

High-Resolution 1280×1024 Uncooled VOx Infrared Thermal Imaging Module With LY300 ASIC photo-5

Product Spotlights

SE5 1280 is a high-resolution (1280×1024) uncooled thermal camera with a self-developed infrared LY300, stable supply, high reliability, and a ceramic package detector for enhanced durability and performance.
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Trademark:
Raythink
Origin:
Yantai
Contact Supplier Request Quote Chat Now
Raythink Technology Co., Ltd.
Gold Verified Supplier
2Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
YanTai
Delivery Detail:
14 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Trademark Raythink
Origin Yantai

Raytron Microelectronics Co., Ltd. is a wholly-owned subsidiary of Raytron Technology Co., Ltd., providing global customers with infrared detectors, core modules, and industry solutions.

Our products are widely used in various fields, including infrared temperature measurement, night vision observation, machine vision, intelligent driving, Commercial Drone, smart industry, security monitoring, Internet of Things, medical epidemic prevention and gas detection.

With the mission of "to create incremental value for customers with technological advancements", we are committed to leaving a name in the history of constantly expanding human perception capabilities.


SE5 1280 is a high-resolution (1280×1024) uncooled thermal camera with a self-developed infrared LY300, stable supply, high reliability, and a ceramic package detector for enhanced durability and performance. It features a compact size, low power consumption and long standby time. SE5 1280 offers multiple image modes including edge outlining mode, allowing users to choose the best one for different industry applications. SE5 1280 applies to multiple scenarios, e.g. security, handheld devices, night vision, etc.

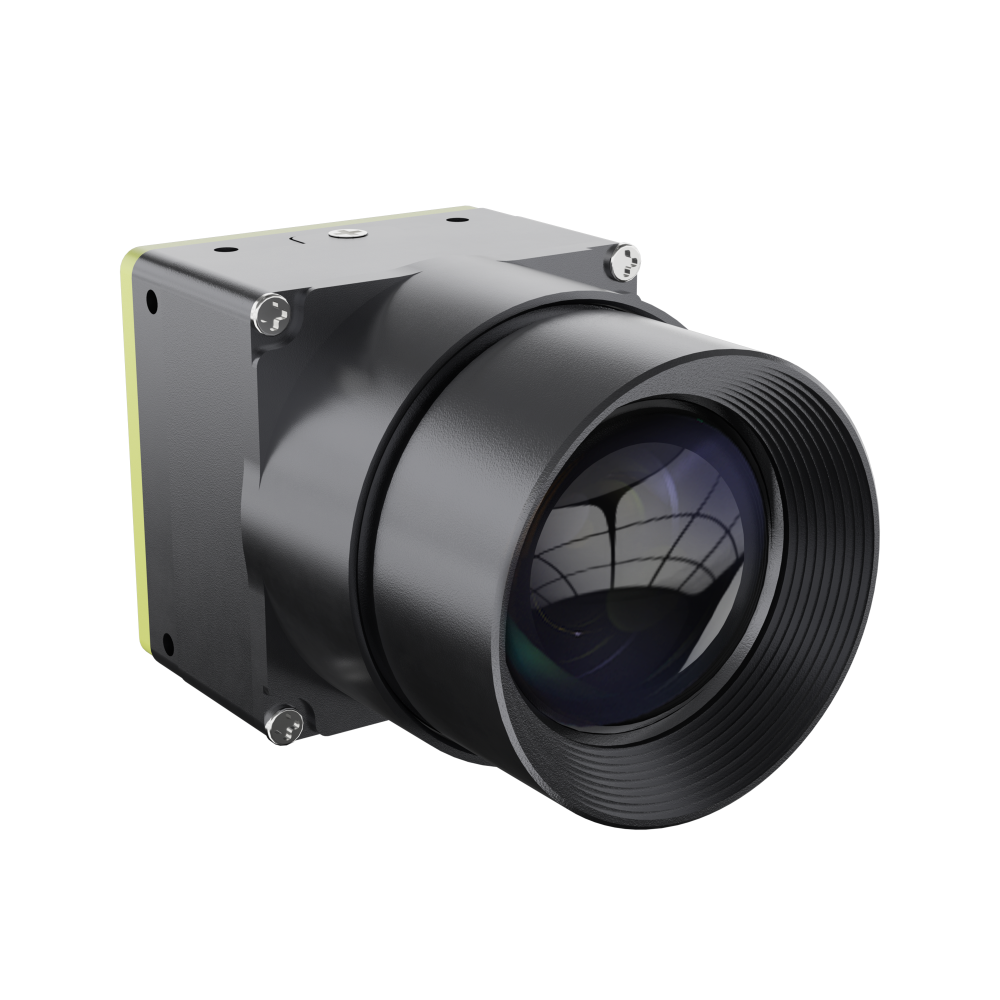

S5 1280 5.png


Technical Specifications
 SE5 1280
Detector Type Uncooled VOx infrared detector
Resolution 1280×1024
Frame rate Imaging at 50Hz (temperature measurement at 30Hz)
Pixel Pitch 12μm
Spectral range 8~14 μm
NETD ≤40mK @25°C, F#1.0, 25Hz
Thermal time constant

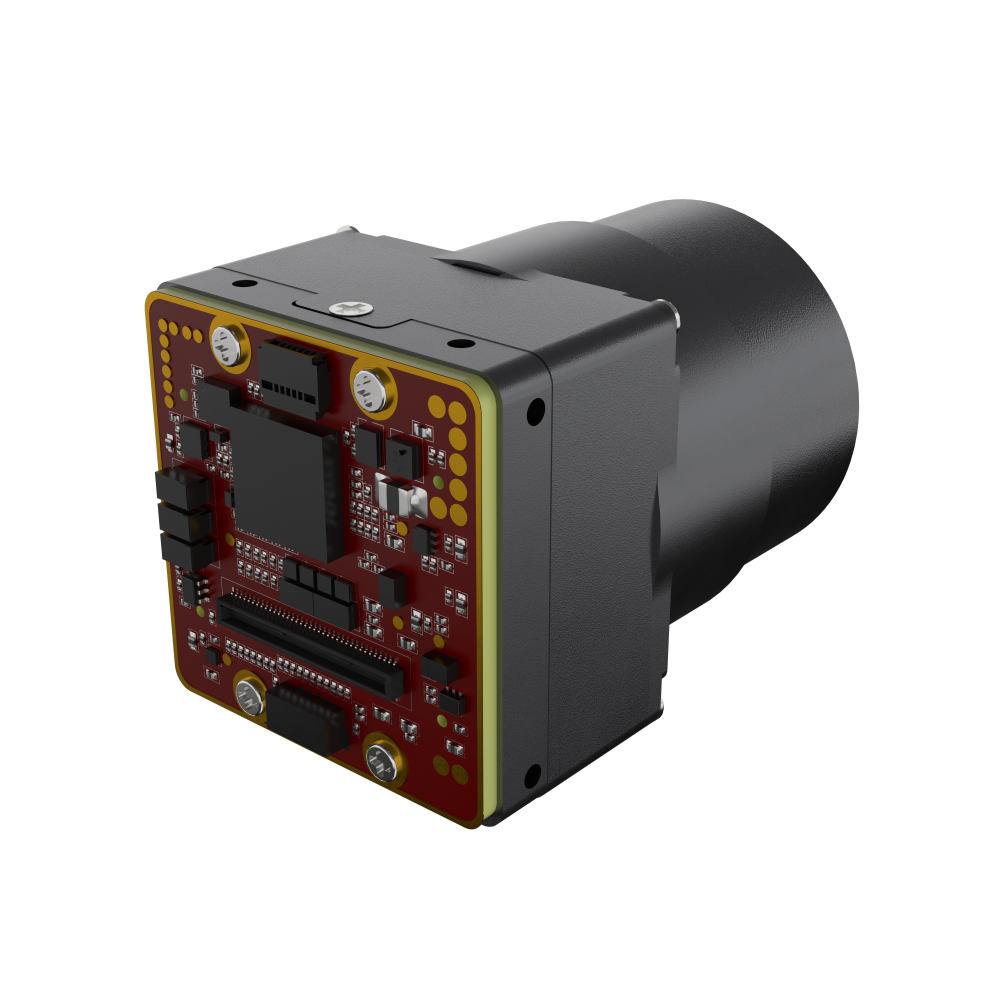

S5 1280 4 白底.png

Image Adjustement SE5 1280
Non-uniformity correction Shutter correction/Shutter-Less algorithm correction
Brightness/Contrast 0-100 optional
Polarity/Palette

White-hot/black-hot/Various palettes supported
Mirroring

Vertical/Horizontal/Diagonal


Product Tags: 1280x1024 thermal imaging module , uncooled VOx infrared module , long wave infrared thermal module
