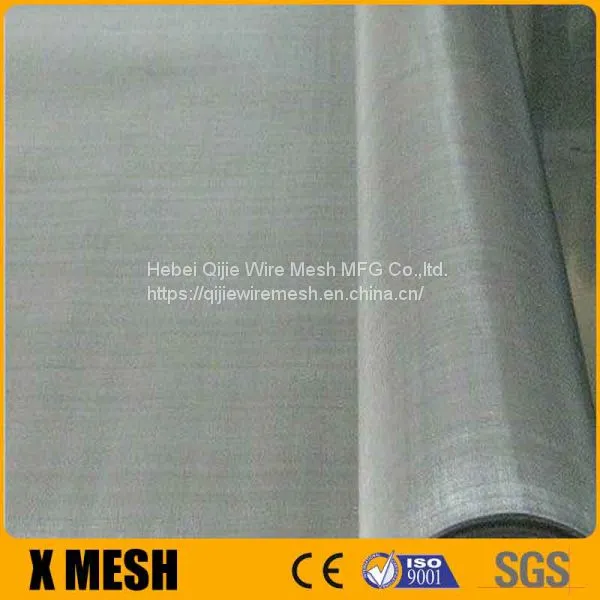

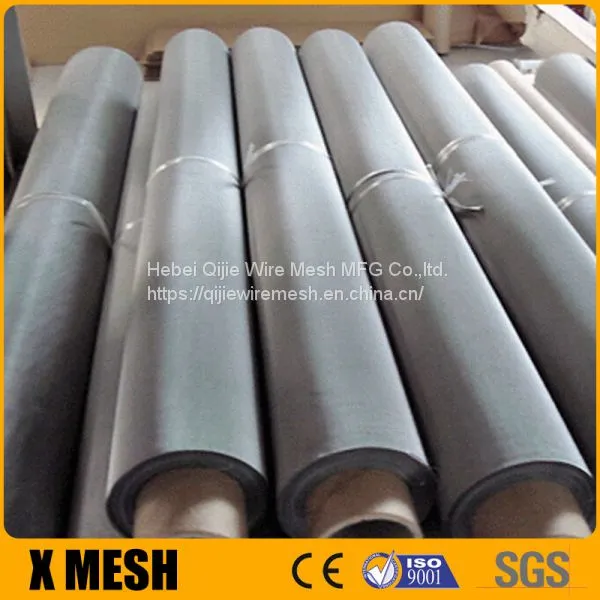

250 Mesh 0.03mm Stainless Steel Wire Mesh / Filter Wire Cloth for filter or sieve or Pharmaceuticals
Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. It has excellent resistance to acid, alkali, high temperature and abrasion.
Stainless steel wire cloth can be used for filter, sieve, insect screen and serve in electroplating, mining,oil, plastic, fiber, food, medicine industries.
Square weave is also called plain weave and it is the most commonly used weave.
Each weft wire passes alternatively over and under each warp wire and vice versa. Warp and weft wire diameters are usually the same.
Required parameters to correctly identify a wire mesh are: raw material, width and length of wire mesh, identification n° and wire diameter.
The identification n° of a wire mesh can be signified in these ways:
– french n° = number of meshes in a French Inch (mm 27,78)
– mesh n° = number of meshes in an English Inch (mm 25,40)
– nit = number of meshes in 50 mm
1.Name: Stainless Steel Wire Mesh, Stainless Steel Mesh Screen, Stainless Steel Filter Wire Mesh, Metal Wire Mesh, Stainless Steel Square Wire Mesh
2.Material: SS wire 201,304,304L,316,316L,431,321etc.
3.Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30 to 635mesh.
Common Width:0.914m,1.0m,1.22m,1.5m, Special requirement can be customized.
4.Characteristics of Stainless Steel Wire Mesh
Acid-resisting, alkali-resisting and anti-corrosion.
High strength, good tension toughness and abrasion performance, durable in use.
Resistance to high temperature oxidation
Highly polished, no need to do any surface treatment, with convenient and simple maintenance.
5.Wire Mesh Sizes
Specifications of plain weave stainless steel wire mesh:
N° 1
(french n°)
Mesh 0,9
NIT 1,8
| Wire diameter [mm] | Mesh opening [mm] | Open area [%] | Weight [Kg/m2] | Send inquiry |
|---|---|---|---|---|
| 1.8 | 25.98 | 87.6 | 1.46 | Inquiry |
| 2 | 25.78 | 86.3 | 1.8 | Inquiry |
| 2.2 | 25.58 | 84.9 | 2.18 | Inquiry |
| 2.5 | 25.28 | 82.8 | 2.81 | Inquiry |
| 3 | 24.78 | 79.6 | 4.05 | Inquiry |
| 4 | 23.78 | 72.3 | 7.2 | Inquiry |
| 5 | 22.78 | 67.2 | 11.25 | Inquiry |
