4 mesh To 300 mesh Plain Dutch Stainless Steel Wire Mesh
With special aperture, plain dutch weave stainless steel wire mesh has higher filtration rate than square weave mesh. Plain dutch weave mesh is mainly used as filter cloth in fine filtration industries.
For plain dutch weave wire mesh,warp wire diameter is larger than weft wire , and each warp wire passes alternately over and under each weft wire, as in normal plain weave. The wires are very closed to each other that not have a straight-through, filtration occurs at the point where warp and weft join.
We can offer plain dutch weave wire mesh in the various specifications, the apertures are from 23 micron to 210 micron, and manufactured width is up to 1.5 m. The wire mesh is commonly constructed with materials of grade 304 and grade 316 stainless steel.
| plain dutch woven wire mesh-001 | plain dutch woven wire mesh-002 |
Benefits
“Zero” open weave mesh
Every weft wire tight with each other
High precision and flow rate
Great hardness and tensile strength
Plain dutch weave stainless steel wire mesh materials
Plain dutch weave wire mesh is available in three different series of wire materials:
Stainless steel 200 series : Grade 201, Grade 202
Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321
Stainless steel 400 series : Grade 410, Grade 420, Grade 430
For a comparison of chemical and mechanical properties of stainless steel, see our stainless steel grade comparison chart.
Application
Usage of plain dutch weave stainless steel wire mesh includes:
In the filtration and separation industries, for manufacturing filter discs, drum filters, leaf filters and cartridge filters.

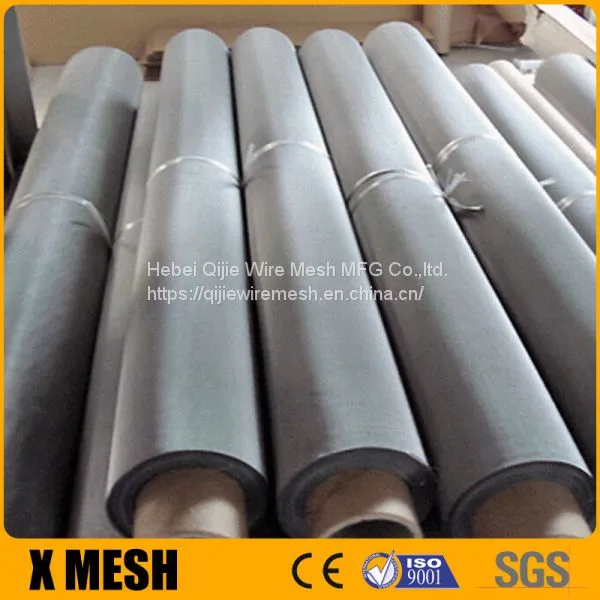

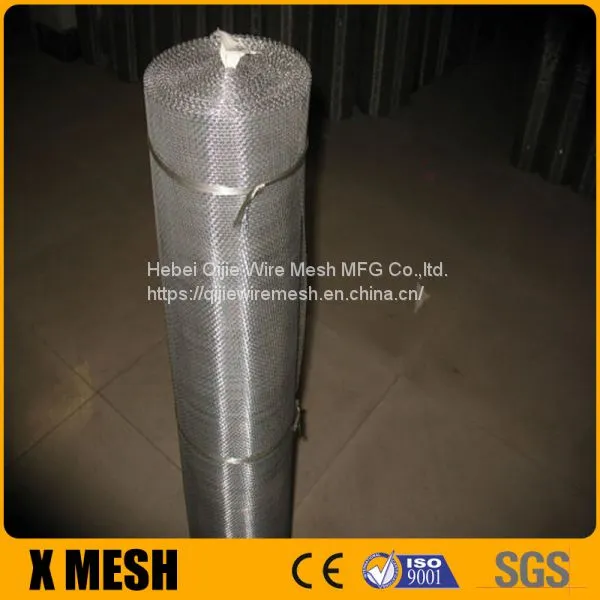

Plain dutch mesh rolls
Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.
Roll width 0.1 m, 0.15 m, 1 m to 1.5 m
Other rolls size on request
Plain dutch weave
Technical parameter
Plain dutch weave wire mesh data sheets
| Mesh Count | Particle retention (inch) | Thickness (inch) | Weight (lbs./sq.ft.) |
|---|---|---|---|
| 10 × 52 | 0.0128 | 0.059 | 1.03 |
| 12 × 64 | 0.0116 | 0.048 | 0.76 |
| 14 × 88 | 0.0096 | 0.037 | 0.69 |
| 24 × 110 | 0.0054 | 0.03 | 0.52 |
| 30 × 150 | 0.0042 | 0.021 | 0.37 |
| 40 × 200 | 0.0033 | 0.016 | 0.27 |
| 30 × 150 | 0.0032 | 0.02 | 0.38 |
| 50 × 250 | 0.0025 | 0.012 | 0.22 |
When ordering or requesting a quote for plain dutch weave wire mesh, please specify:
Number of length 30m for 1 m wide rolls or size required
Mesh eg. 24 x 110 mesh
Diameter of wire eg. 0.355 x 0.25 mm
Aperture eg. 97 micron
Material eg. Grade 304
