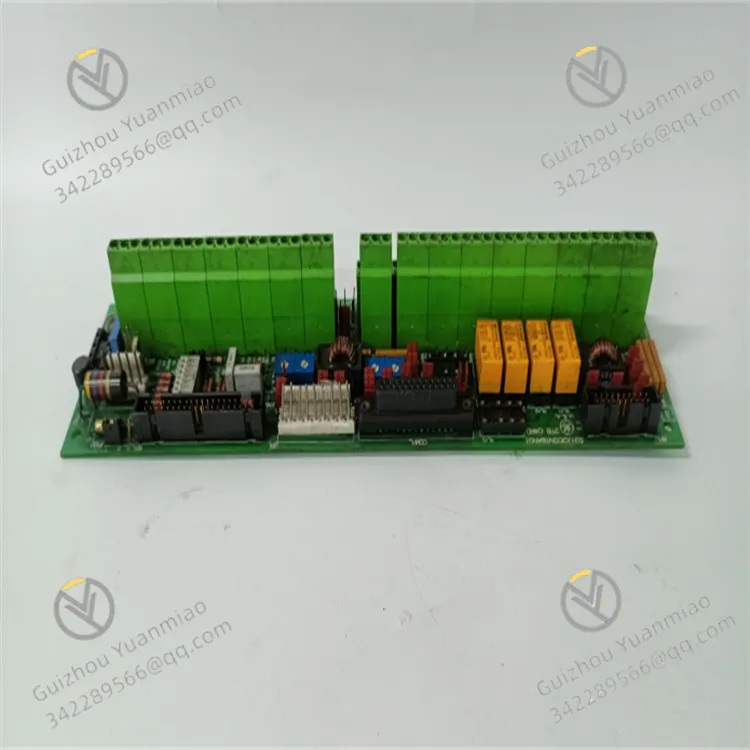

GE 531X307LTBAKG1 is a high-performance LAN I/O terminal board compatible with both GE EX2000 and Mark V Speedtronic control systems. Serving as a core interface unit of the system, it undertakes key responsibilities including field signal connection, distribution, conversion, and LAN signal interaction. It acts as an important bridge connecting external devices (contactors, interlocks, indicator lights, etc.) and system control boards. Adopting a standard PCB design, the board features multi-type signal compatibility, high reliability, and flexible configuration. It is widely used in industrial drive, excitation system, and turbine control applications, providing reliable support for signal transmission and stable operation of various critical equipment. It can also serve as a replacement board for multiple GE drive and excitation devices.
1. Core Positioning and System Relationship
System Affiliation: Part of the GE 531X series board, model 531X307LTBAKG1, essentially a LAN I/O terminal board (with relay output function), compatible with GE EX2000 and Mark V Speedtronic control systems. It is a dedicated interface replacement board for the system, not a standalone operating device. It must work in conjunction with 531X series control boards, GE drive/excitation equipment, and system racks, and cannot perform signal processing or control functions independently.
Core Role: Positioned as a hub for LAN and I/O signal interfaces, its core responsibility is to establish signal interaction links between control drive equipment and external connected devices, enabling reception and transmission of LAN signals, while completing connection, conversion, and distribution of various field voltage signals. It provides stable signal support for the execution of system control logic and serves as a key interface unit ensuring coordinated operation between the system and external devices.
Mounting Position: Standard PCB board design, compatible with standard industrial racks for GE 531X, EX2000, and Mark V series. It can be directly installed in designated slots and performs data exchange with system control boards via the backplane bus. The board integrates multiple wiring terminals and connectors, supporting direct field cable connection for quick installation and wiring.
System Architecture: As the core of the system interface layer, it forms a complete signal chain with 531X series control boards and external actuation/monitoring devices:External devices (contactors, interlocks, indicator lights, etc.) send signals → 531X307LTBAKG1 acquires and converts signals to 24VDC logic signals → transmits to system control board → control board issues commands, and the board outputs signals to drive external devices. It also enables bidirectional LAN signal interaction to ensure coordinated operation between the system and external devices.
2. Core Functions and Technical Features
1. LAN Signal Interaction and I/O Signal Processing
Equipped with complete LAN (Local Area Network) signal interface functions, it enables bidirectional LAN signal interaction between control drive equipment and external devices, establishing a stable network communication link to ensure high-speed transmission of control commands and feedback signals. It also integrates I/O signal processing capabilities and can serve as an I/O terminal node of the system, realizing centralized connection and distribution of field signals to support precise control and condition monitoring of external devices by the system.
2. Multi-Type Signal Connection and Conversion
Features 8 configurable control input interfaces supporting a wide voltage input range of 2–240V AC/DC, adapting to signal output specifications of different external devices. The connected voltage signals can be accurately converted to 24VDC logic signals before being transmitted to the system control board, ensuring signal compatibility and stability for various industrial field signal scenarios.
3. Relay Output and Signal Distribution
Onboard 7 output interfaces, each equipped with low-voltage, low-current Form C relay contact connectors, which can directly drive small external actuators (such as indicator lights, small contactors) to realize hardwired output of control signals. The contacts deliver stable performance and effectively ensure reliable signal transmission. It also supports bidirectional signal transmission and distribution among LAN terminals, drive control boards, and NTB terminals.
4. High Reliability and Replacement Compatibility
As a dedicated replacement board for the GE 531X series, it uses industrial-grade materials and manufacturing processes and has passed strict environmental adaptability tests. It features strong electromagnetic interference resistance and can operate stably in harsh industrial environments such as high temperature and high humidity, meeting the requirements for long-term continuous operation in industrial drive, excitation system, and turbine control applications. It also offers excellent compatibility and can be directly installed in multiple GE drive and excitation devices for quick replacement, reducing maintenance costs.
3. Technical Specifications
| Category | Details |
|---|---|
| Product Identification | Model: GE 531X307LTBAKG1; Series: 531X; Type: LAN I/O Terminal Board (with relay output); Attribute: Replacement board; Manufacturer: General Electric (GE) |
| Board Specification | Standard PCB board, LAN I/O terminal design with integrated relay output function, suitable for standard industrial rack mounting |
| Input Parameters | 8 configurable control input interfaces, supporting 2–240V AC/DC voltage input, convertible to 24VDC logic signals |
| Output Parameters | 7 output interfaces with low-voltage, low-current Form C relay contact connectors, supporting signal distribution and transmission |
| Physical Parameters | Dimensions: Approx. 285.75 mm × 76.2 mm × 31.75 mm (11.25 in × 3 in × 1.25 in); Weight: Approx. 662.24 g (23.36 oz) |
| Communication Function | Supports bidirectional LAN signal interaction, enabling signal transmission among LAN terminals, drive control boards, and NTB terminals |
| Compatible Systems | GE 531X series, EX2000 series, Mark V Speedtronic series control systems; can be used as a replacement board for multiple GE drive and excitation devices |
| Core Functions | LAN signal interaction, I/O signal connection and conversion, relay output, signal distribution, supporting linkage with external devices (contactors, interlocks, indicator lights, etc.) |
| Environmental Rating | Industrial-grade environmental resistance, strong EMI immunity, suitable for harsh industrial scenarios such as high temperature and high humidity (specific parameters subject to official manual) |
4. Compatible Systems and Supporting Components
1. Compatible Host Systems
Exclusively designed for the GE 531X series board system, while also compatible with GE EX2000 and Mark V Speedtronic turbine control systems. It can be installed as a replacement board in multiple GE drive and excitation devices. It is not applicable to GE Mark VI or other incompatible control system series, serving as a core component for system interface upgrades and fault replacement.
2. Supporting Components
Must be used together with 531X series control boards, GE drive/excitation equipment, and system racks. Standard industrial cables matching the board’s interface specifications are also required to ensure stable signal connection and transmission. During matched use, verify the board model and system version to avoid malfunction due to model mismatch.
5. Application Scenarios
Power Industry: In GE Mark V and EX2000 series turbine control systems, it realizes signal connection and LAN communication for gas turbines, steam turbines, and generators, supporting control functions such as equipment start/stop and speed regulation.
Industrial Drive Field: Signal interface replacement and upgrade for various GE drive devices, enabling signal linkage and control of external contactors, interlocks, indicator lights, and other equipment.
Excitation Systems: I/O signal processing and LAN signal interaction for generator excitation equipment, ensuring stable operation and signal transmission of excitation systems.
Other Industries: In industrial automation systems in petrochemical, metallurgy, and other fields, it serves as an I/O terminal board and LAN interface board to realize centralized connection, conversion, and distribution of field signals, supporting coordinated operation of systems and external devices.
