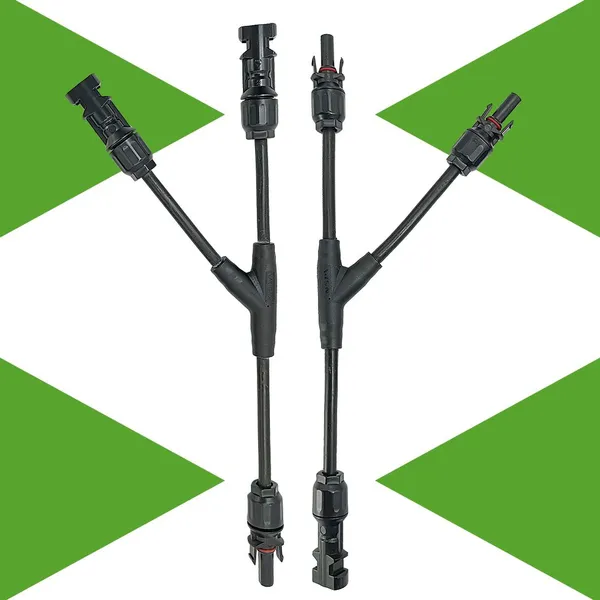

Help CenterNSPV Solar DC Y Cable Harness Y Branch Wiring 1500V Solution XLPE Copper Tinned Positive Negative
Product Spotlights
Copper cores or Aluminum cores can be customized based on requirements.
The length of the wires and the cross-sectional area (conductor size) can also be tailored to specific needs.
Related Products
-
NSPV Solar Spanner Wrench No2 Universal Mc4 Connectors ToolsUS$ 0.53 - 0.6MOQ: 10 Pieces -
NSPV Brand Solar MCB Lock Aluminum Material Product DescriptionUS$ 1.3 - 2MOQ: 10 Pieces
-
NSPV Launches Solar PV Cable Jumper With Inline Fuse Connector for Faster Installation and Reliable String Protection 250mUS$ 189MOQ: 100 Rolls
-
NSPV Solar PV Inline Fuses Connector 50cm MC Connector 20A Fuse IP68US$ 7.8 - 8MOQ: 10 Pieces
-
Wholesales NSPV MLJ-01 Connector Solar PV Panel Mini Junction BoxUS$ 3 - 5MOQ: 1000 Pairs
NSPV Solar DC T Cable Harness: Comprehensive Overview
Product Introduction
The NSPV Solar DC T Cable Harness is a high-performance electrical assembly specifically designed for solar photovoltaic (PV) systems. Engineered to meet the rigorous demands of outdoor solar installations, this cable harness ensures reliable and efficient power transmission under various environmental conditions.
Product Overview

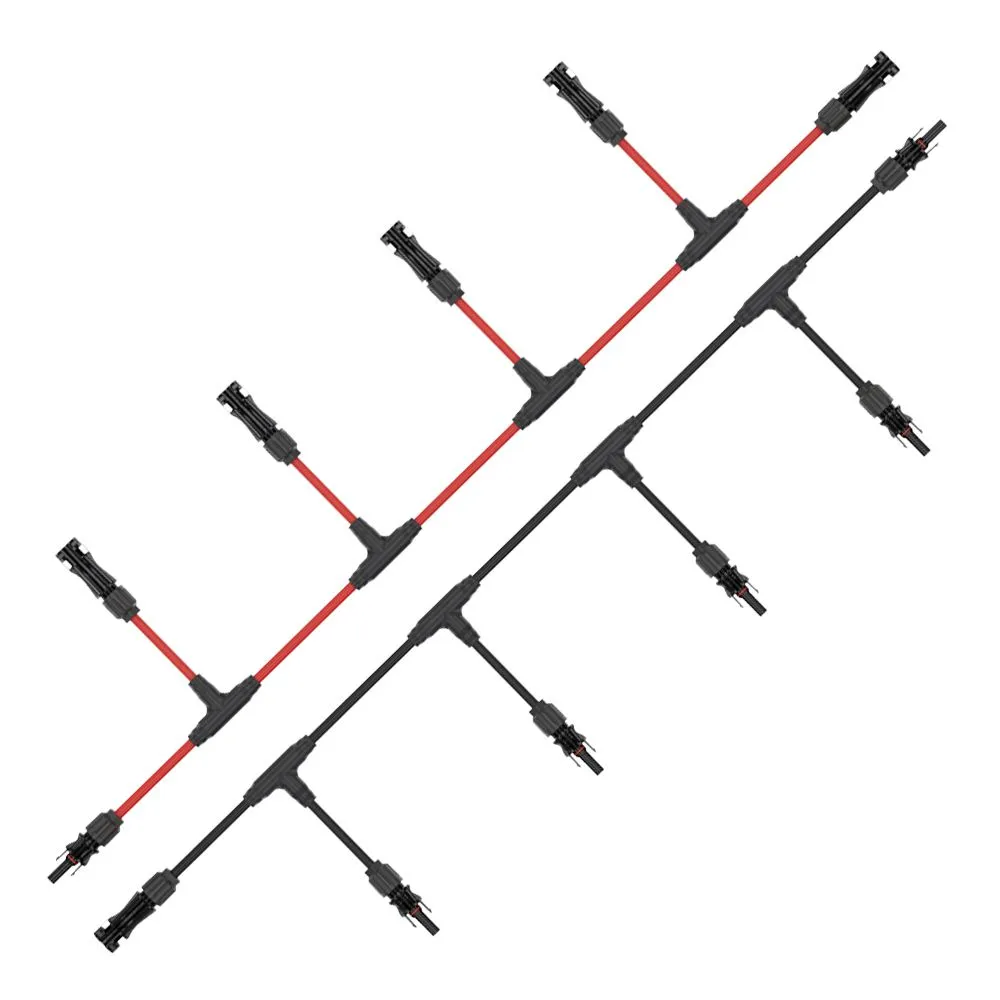

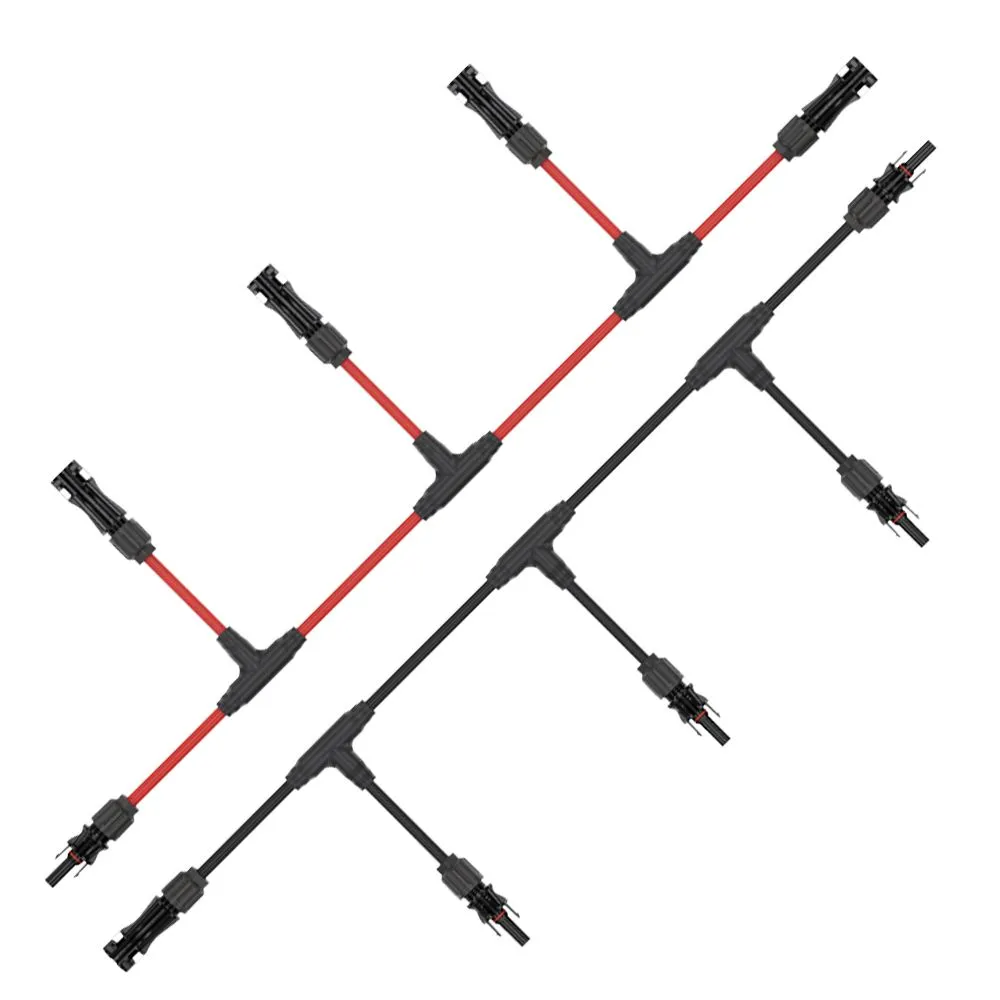

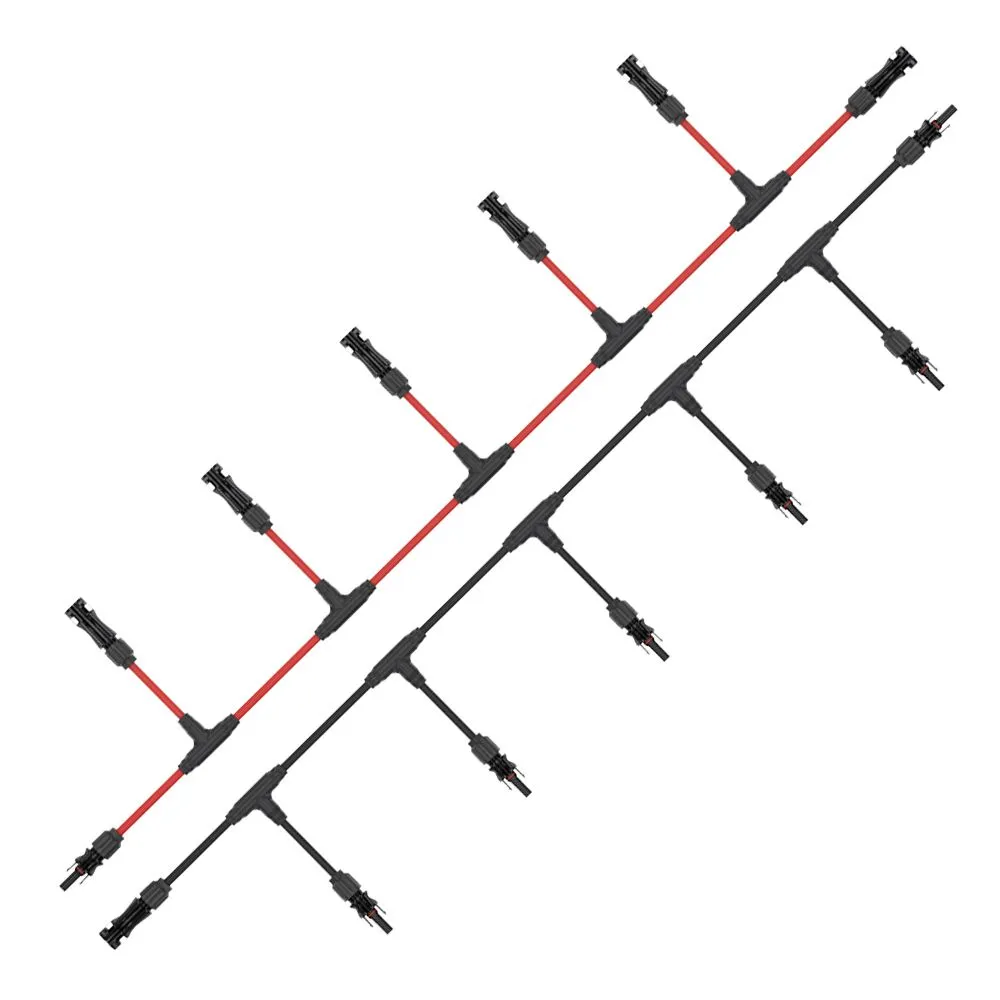

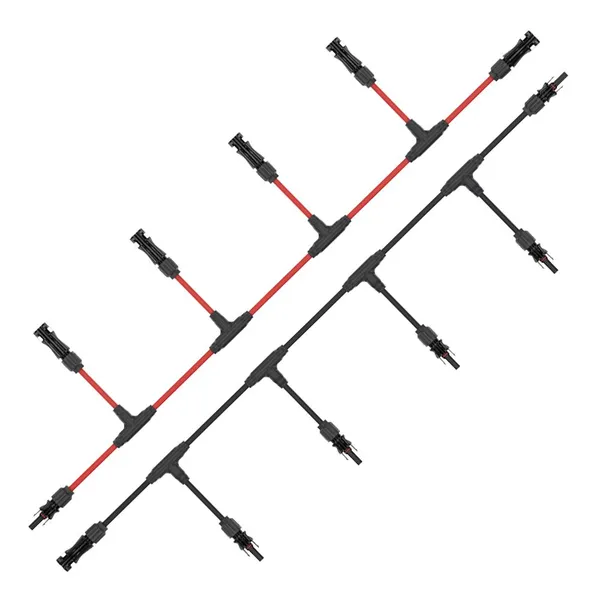

The NSPV Solar DC T Cable Harness is built with premium-grade materials and incorporates advanced design features to deliver exceptional performance in solar applications. It supports a rated voltage of 1500VDC and is equipped with T-type connectors that facilitate easy branching and interconnection within solar arrays. The harness is available in configurations with 2, 3, or 4 T-type connectors, with a maximum of 5 T-type connectors allowed in series, providing flexibility in system design and installation.
Product Features
High Voltage Rating: Rated for 1500VDC, suitable for modern high-voltage solar systems.
Superior Insulation: Utilizes PPE/TPE/PA insulation materials for excellent electrical insulation and durability.
Flame Retardancy: Meets UL94-V0 flame class standards, ensuring fire safety.
UV Resistance: Designed for outdoor use with UV-resistant properties to withstand prolonged sun exposure.
Wide Temperature Range: Operates efficiently in ambient temperatures ranging from -40℃ to +85℃.
High Protection Rating: IP68 rated, providing protection against dust and water immersion up to 1 meter for 1 hour.
Low Contact Resistance: Connector contact resistance ≤ 0.25 mΩ, minimizing power loss.
Crimp Connection: Employs a reliable crimp connection method for secure electrical connections.
Product Advantages
Enhanced Safety: The NSPV Solar DC T Cable Harness prioritizes safety with its high voltage rating, flame retardancy, and UV resistance, reducing the risk of electrical hazards and fire incidents in solar installations.
Reliable Performance: Built with durable materials and designed to withstand harsh environmental conditions, the harness ensures consistent and reliable power transmission over the lifespan of the solar system.
Flexible Configuration: The availability of multiple T-type connectors (2, 3, or 4, with a maximum of 5 in series) allows for flexible system design and easy expansion or modification of solar arrays.
Efficient Installation: The crimp connection method simplifies the installation process, reducing labor costs and time. Additionally, the harness's pre-assembled design eliminates the need for on-site wiring, further streamlining installation.
Cost-Effective Solution: By minimizing power loss and ensuring long-term reliability, the NSPV Solar DC T Cable Harness offers a cost-effective solution for solar power transmission, contributing to the overall profitability of solar projects.
FAQs
Q: What is the maximum voltage the cable harness can handle?
A: The NSPV Solar DC T Cable Harness is rated for a maximum voltage of 1500VDC.
Q: Are the connectors UV resistant?
A: Yes, the connectors are designed to be UV resistant, making them suitable for outdoor solar installations.
Q: How many T-type connectors can be used in series?
A: A maximum of 5 T-type connectors can be used in series.
Q: What is the protection rating of the cable harness?
A: The cable harness has an IP68 protection rating, providing dust and water resistance.
Q: Is the cable harness compliant with international standards?
A: Yes, the cable harness complies with TUV and CE standards, as well as IEC62852:2014.
Application
The NSPV Solar DC T Cable Harness is ideal for use in residential, commercial, and utility-scale solar photovoltaic systems. Its high voltage rating, durability, and flexible configuration make it suitable for various solar array designs, enabling efficient and reliable power transmission from solar panels to inverters and other electrical components. Whether in rooftop installations or ground-mounted solar farms, the NSPV Solar DC T Cable Harness is a trusted choice for solar professionals worldwide.
