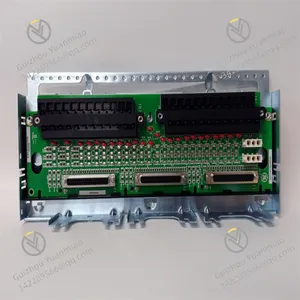

GE IS200TBCIH2CCD is a group-isolated dry contact input terminal board (TBCI-H2) dedicated for the Mark VIe/VIeS Speedtronic turbine control system. It provides centralized wiring, signal conditioning and isolated transmission for safety interlocks, status feedback and alarm contacts of industrial equipment such as gas/steam turbines and wind turbines. Its core function is to accurately forward 24 channels of 24VDC dry contact inputs to the VTCC/VCRC processor modules after hardware filtering and electrical isolation, supporting both simplex and TMR (Triple Modular Redundant) system architectures. Featuring industrial-grade isolation design and surge/high-frequency noise suppression circuits, it adapts to harsh operating conditions with strong electromagnetic interference, high vibration and wide temperature ranges in thermal power, wind power, oil and gas compressor applications, serving as a core I/O terminal component for highly reliable contact signal acquisition in the Mark VIe system.
I. Specifications and Physical Parameters
(I) Electrical and Signal Parameters
Input channels: 24 independent dry contact inputs, divided into 2 groups (TB1/TB2) of barrier terminals, 12 channels per group; nominal excitation voltage 24VDC, compatible with industrial standard 24VDC switch/relay contacts.
Hardware filtering: 4ms hardware filter standard on each channel, effectively suppressing high-frequency noise and surge impacts.
Electrical isolation: Enhanced isolation between input groups and between inputs and backplane, compliant with IEC 61010 safety standards, suppressing common-mode/differential-mode interference and protecting the main system.
Power consumption and current: Single-channel current load is 2.5mA for the first 21 channels and 10mA for the last 3 channels; board power consumption approx. 20.6W; no jumpers or hardware DIP switches, fully configurable via software.
Diagnostics: Excitation voltage monitoring, contact open/short detection, TMR voting comparison; generates alarms and forces safe mode upon abnormality.
Power interface: Dedicated JE1/JE2 connectors for 24VDC excitation power input, with reverse polarity and overcurrent protection.
Communication connection: Locking DC-37 aviation connectors (JR1/JS1/JT1); JR1 for simplex operation, JR1+JS1+JT1 connected simultaneously for TMR operation.
(II) Physical and Installation Parameters

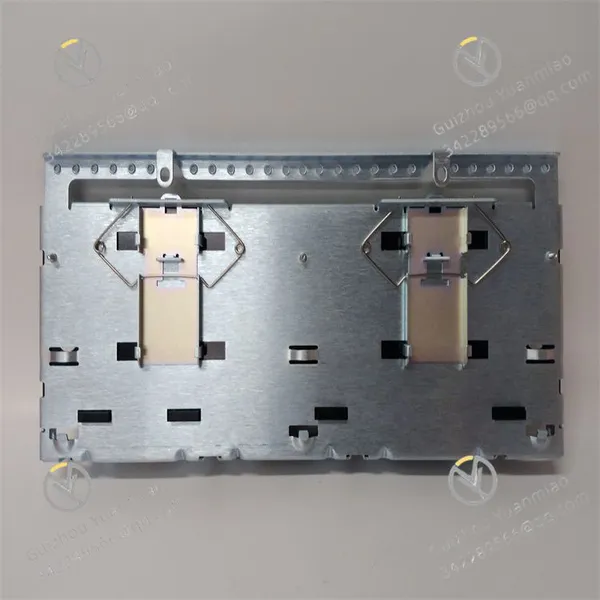

Mounting method: Standard DIN rail mounting with auxiliary cabinet panel fixing, suitable for standard Mark VIe control cabinet layout.
Terminal design: Removable barrier terminals, supporting #12 AWG cables, allowing terminal block removal without disconnection during maintenance.
Connectors: Industrial anti-vibration, anti-loosening latching design, DC-37 female connectors, ensuring stable signal connection under vibration conditions.
Dimensions and weight: Complies with standard Mark VIe module dimensions, compact structure; net weight approx. 0.3kg, lightweight for easy cabinet layout.
Panel labeling: Clearly printed model IS200TBCIH2CCD, GE Logo, terminal numbers and interface function labels for quick on-site identification and verification.
(III) Environmental and Protection Parameters
Operating temperature: -20℃ to +60℃, wide-temperature adaptation for stable operation in outdoor wind turbine nacelles and thermal power plant buildings.
Relative humidity: 5%–95% (non-condensing), moisture and corrosion resistant, suitable for coastal/high-humidity power plant environments.
Protection degree: IP20 front panel protection, must be installed in enclosed control cabinets; metal housing grounded for strong electromagnetic interference shielding.
Vibration and shock resistance: Meets IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock), withstanding long-term vibration from turbines and units.
Electromagnetic compatibility: Complies with EN 61000-6-2/6-4 standards, operating normally in strong electromagnetic environments from frequency converters, high-voltage busbars and generators.
II. Functions and Features
24-channel centralized wiring: Unifies dispersed field contacts to the terminal board, simplifying wiring, reducing connection errors and improving cabinet neatness.
Seamless redundancy compatibility: Supports both simplex and TMR architectures without hardware replacement, directly adapting to projects with different safety levels.
Fully software configurable: No hardware DIP switches or jumpers; parameters, diagnostics and alarm thresholds configured via GE Proficy Machine Edition software.
Hot-plug friendly design: Terminal blocks can be individually plugged and removed for maintenance without system interruption; module supports power-off hot replacement (live plugging of backplane connectors is strictly prohibited).
High reliability: Industrial-grade long-life capacitors, gold-plated contacts and anti-vibration connectors ensure long MTBF, suitable for long-term maintenance-free operation in unattended power stations.
III. Application Scenarios
Thermal/gas power plants: Acquisition of dry contact signals for emergency shutdown, overspeed protection, valve position and oil system pressure of steam/gas turbines; compatible with main Mark VIe unit control systems.
Wind power industry: Contact feedback for wind turbine pitch position, nacelle lock, overspeed protection and yaw limit, enduring low-temperature, high-wind and high-vibration field conditions.
Oil, gas and chemical industry: Connection of contact signals from compressors, pipeline valves and fire-gas detection systems for safety interlocking and process monitoring.
Mark VI upgrade and retrofit: Used for upgrading legacy Mark VI systems to Mark VIe/VIeS by replacing older terminal boards, improving signal reliability and diagnostic capability.
Industrial redundant control systems: High-safety projects requiring TMR, such as nuclear power plant auxiliary systems and large grid frequency-regulating units.
IV. Operating Notes
Pre-installation preparation: Verify model IS200TBCIH2CCD and compatibility with Mark VIe/VIeS system version; completely disconnect power and wait for internal capacitors to discharge for ≥5 minutes; wear insulated gloves; live plugging of DC-37 communication and power connectors is strictly prohibited.
Wiring specifications: Strictly separate excitation power (JE1/JE2), signal terminals (TB1/TB2) and grounding busbar; use single-ended grounding for shielded cables and avoid routing with high-voltage cables in the same trunking; securely tighten terminal block screws to prevent loosening from vibration; all three communication connectors must be connected simultaneously in TMR mode.
Parameter configuration: Set excitation voltage thresholds and alarm levels via Proficy Machine Edition; perform offline debugging first and confirm normal diagnostic function before connecting to the operating system; modification of safety-related diagnostic parameters during unit operation is strictly prohibited.
Environmental control: Install in enclosed, dry and ventilated control cabinets; keep away from strong interference sources such as frequency converters, high-voltage busbars and excitation transformers; maintain operating temperature of -20℃ to +60℃ and humidity of 5%–95% non-condensing; reserve sufficient heat dissipation space in the cabinet and do not block the module heat dissipation surface.
Routine maintenance: Regularly clean dust from terminals and connectors using dry compressed air; inspect connector locking latches and terminal screws monthly; monitor excitation voltage and contact status daily via the system diagnostic interface; store spare modules in a dry environment and perform power-on testing every 6 months; unauthorized circuit modification or use of non-original spare parts is strictly prohibited, as it will void the warranty and create safety hazards.
