LC-8686 High and Low Temperature Creep (Stress Relaxation) Testing Machine



This testing machine is suitable for determining the long-term creep and stress relaxation properties of materials

under various temperature environments.

It measures the relationship between the displacement of materials under constant temperature conditions

and the creep and stress relaxation under external forces.



Reference standards: GB/T 1685, GB/T 11546.1, ISO 3384, ISO899-1, GB/T 19242

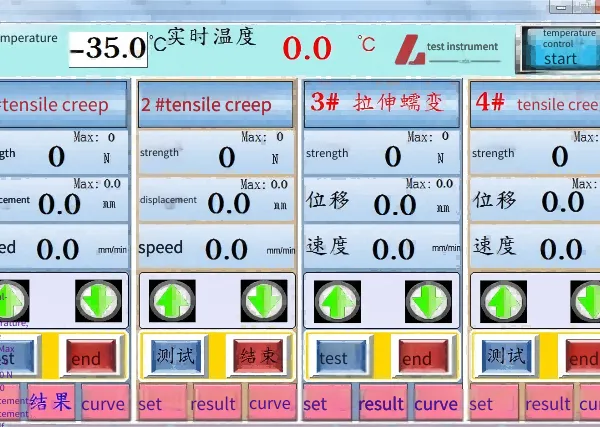

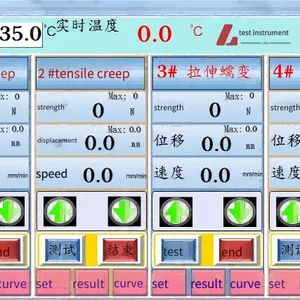

Control mode: PLC + HMI

Number of test groups: 4 groups (or 3 workstations)

Test environment: Normal temperature - +250℃ or -50℃ - Normal temperature or -50℃ - +150℃ or Normal temperature

Single group capacity: 200kg or specified

Test speed: 0 - 30mm/min

Test stroke: 0 - 50mm (0 - 100mm)

Fixture selection: Configure corresponding fixtures according to different standard requirements

Test items: Tensile creep, Compressive creep, Tensile stress relaxation, Compressive stress relaxation

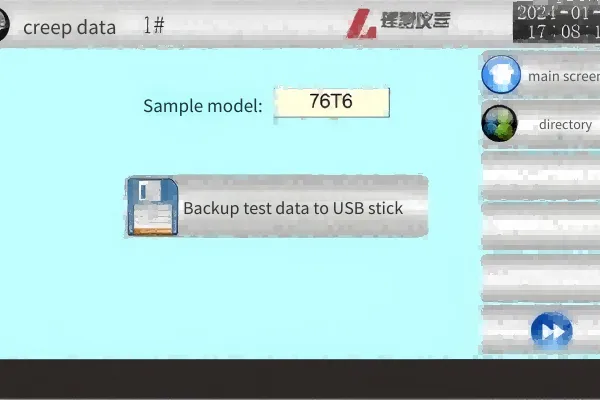

Test data: Can be exported via USB flash drive

Inner box size: 500x700x600mm (WxDxH)

Volume: 1100x1100x1950mm (WxDxH)

Power supply: 1∮, AV220 (or specified)




Product Tags: Rubber creep , Rubber stress relaxation , High and low temperatures
