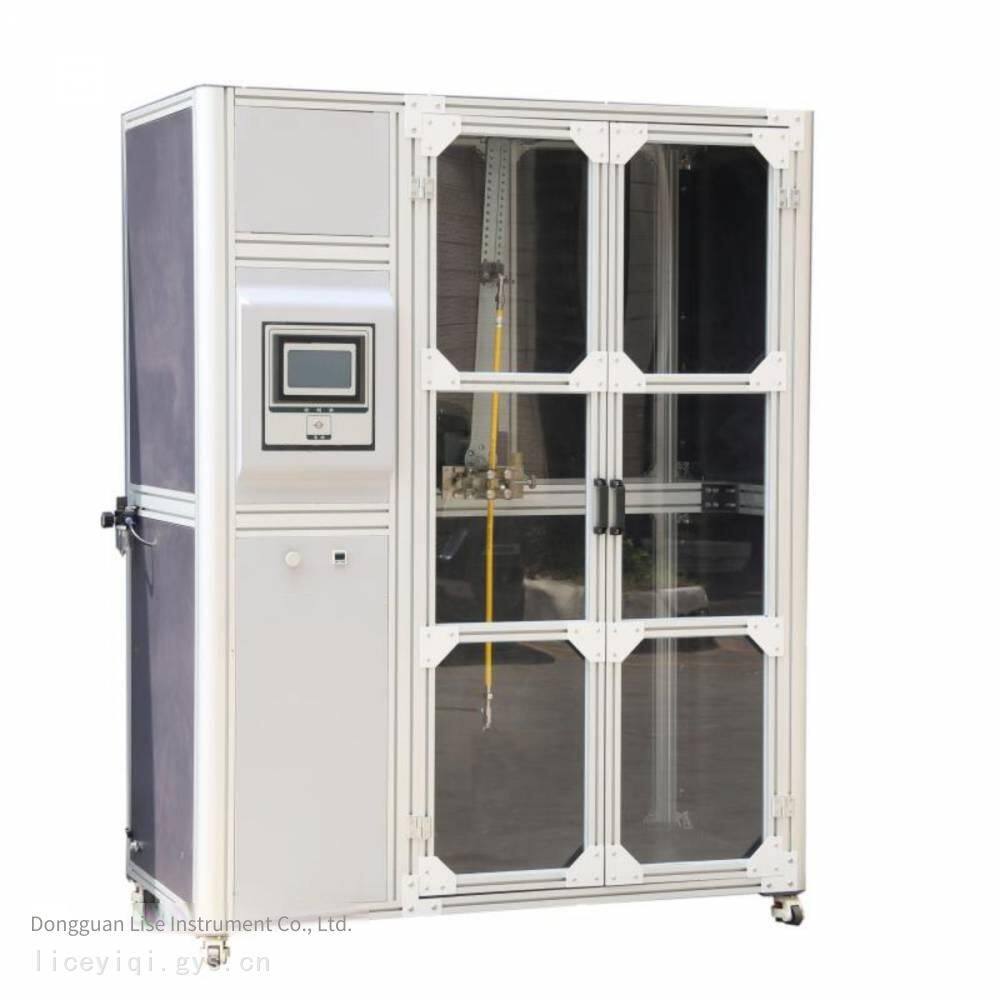

1. Overview: The skipping rope fatigue testing machine is mainly used for the fatigue test of skipping ropes. After installing a skipping rope with a rope body diameter greater than 3mm on the equipment and conducting a 100,000 - revolution test, the rope body of the skipping rope should not break and it should be able to be used normally.
2. Technical parameters
1. Test stations: 2 groups (1 pair is 1 group)
2. Test speed: Adjustable from 60 to 400 times/min

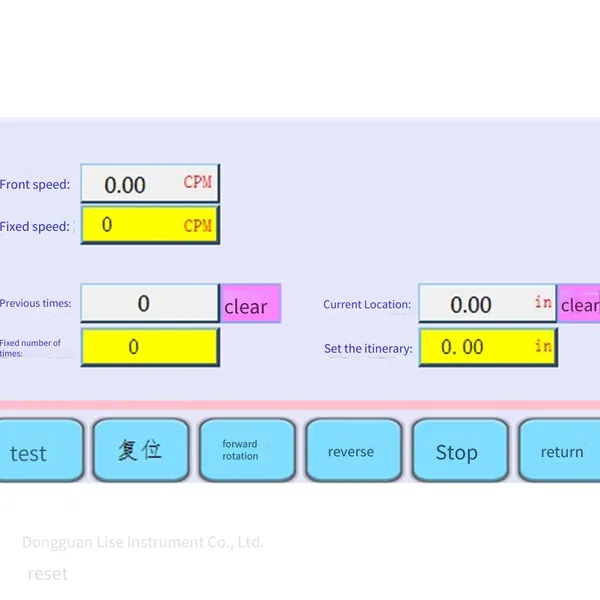

3. Control method: Operated, controlled and displayed via the touch screen.
4. Set number of times: 0 to 9,999,999 times
5. It has the power - off memory function.
6. Automatic shutdown function when the sample breaks (only applicable to skipping ropes with ropes)
7. Applicable range of skipping ropes: The height of the equipment fixture is adjustable, suitable for different distances from the skipping rope to the ground, and is electrically adjustable.
8. Transmission structure: Driven by the rotation of the motor eccentric wheel.
9. Safety performance
The controller and the main unit are designed separately.
There are protective fences around it.
8. Overall dimensions: 160CM*220CM*200CM
9. Power supply: 220V 50HZ
Accessories:
1. One copy of the Chinese manual of the instrument.
2. One copy of the instrument warranty card.
3. One special ceramic tile
4. One copy of the calibration report of the third - party tester.
