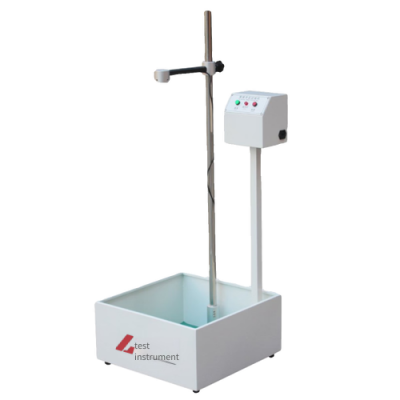

LC-8805 Glove (Armguard) Impact Penetration Tester

I. Overview:

1. This tester is mainly used for the anti-impact and anti-puncture test of products such as motorcycle clothing.

2. By allowing the blade to freely fall from a specific height at a fixed speed onto the surface of the specimen, check the puncture situation of the specimen.

3. It is manufactured according to the standards of GB 30865.1-2025, EN 13595-4, and EN412.

II. Technical Parameters:

1. Mass including the blade: 110±2g

2. Length of the blade protruding from the fixture: 40MM

3. Sample support plate: Plastic cushion wood with a diameter of 125MM, a thickness of 80MM, a middle hole of 5MM, and a depth of 30MM

4. Test height: 200MM, speed 2±0.2M/S; 400MM, speed 2.8±0.2M/S

5. Sample tensioning weights: 8 * 400±10g

6. Kolamtesi: Reference fabric

7. Specimen sample: 220*220MM

8. Ring hole size: Diameter not less than 80CM

9. Blade falling height: 200MM, 400MM

10. Hammer lifting method: Manual lifting

11. Hammer release device: Manual release by magnet.

12. Blade size: As shown in the figure


Product Tags: GB30865.1-2025 , EN13595-4 , EN412 , EN13634 , Impact penetration
