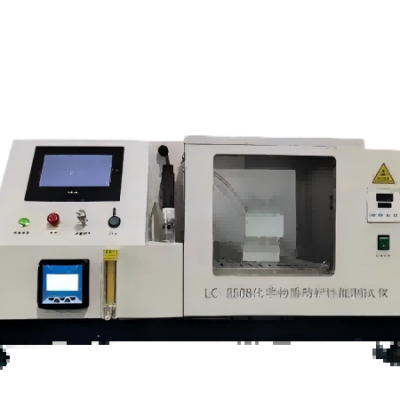

LC-8508 Chemical Resistance Penetration Tester
It is applicable to protective materials such as protective clothing, protective gloves, and protective shoes, and is used to test the ability to resist the penetration of chemical liquids. Under continuous contact conditions, it tests the penetration resistance of chemical protective materials to liquid chemicals, and is suitable for testing the penetration performance of airtight chemical protective materials. The test cell of the chemical liquid penetration resistance tester is controlled at a constant temperature. The protective material sample in the test cell is in continuous contact with the chemical liquid substance. The trapping medium in the trapping chamber traps the penetrated chemical substances. Through quantitative analysis, the concentration of the penetrated chemical substances is measured, so as to calculate the breakthrough time, standard breakthrough time, and penetration rate of the chemical substances through the protective material, and then obtain the penetration resistance level of the protective material. This equipment consists of a penetration test device (including a penetration cell, a trapping cell, a constant temperature water bath system, and a magnetic stirrer), a PH electrode, a gas chromatography system, and customized software.
According to the standards:
ISO 6529-2013 Protective clothing - Protection against chemicals - Determination of resistance to penetration by liquids and gases;
GB/T 23462-2009 Protective clothing - Test method for chemical penetration;
GB 24539-2021 Protective clothing - Chemical protective clothing;
GB 20265-2019 Foot protection - Chemical protective shoes;
EN 14325-2018 Chemical protective clothing - Test methods and performance classification for seams, joints and assemblies of chemical protective clothing materials;
EN 374 Protective gloves against chemicals and micro-organisms - Part 4: Determination of resistance to permeation by chemicals;
ASTM F739 Standard test method for resistance of protective clothing materials to permeation by liquids or gases under continuous contact;
EN16523-1 Determination of the resistance of materials to permeation by chemicals - Part 1: Permeation by liquid chemicals under continuous contact;
EN 13832-1 Chemical protective boots;
ASTM D6978 Standard practice for assessment of medical gloves for resistance to penetration by chemotherapy drugs;
GB 28881 Glove chemical penetration resistance tester;
XF 770-2008 Firefighting chemical protective clothing;
YY/T 0616.5-2019 Single-use medical gloves;
Product features:
Three test units for conductivity, open-loop, and closed-loop.
Touch screen control panel with real-time penetration curve.
Borosilicate glass cell or PTFE test cell
Specifications:
Test stations: 3 units or more
Sample holders: 3 units or more
PH sensor: 0 - 14 with temperature compensation
Constant temperature circulation: Yes
Optional detectors: FID, PID, PH, etc.
Sampling flow rate: Up to 200 ml/min
Sampling tube: Norbornadiene
Exhaust fan: Yes
Power supply: 220V 50Hz
Dimensions: 650mm×450mm×1000mm
Net weight: 35 kg
