Mainly used for: Anti-smashing performance tests of transparent protective materials with anti-smashing performance levels from Z1 to Z4 and Z5. Different specifications of test impact heads can be replaced according to the grade requirements. It has the function of single or cyclic impact tests as required.

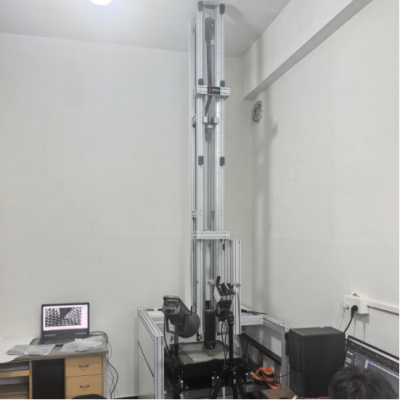

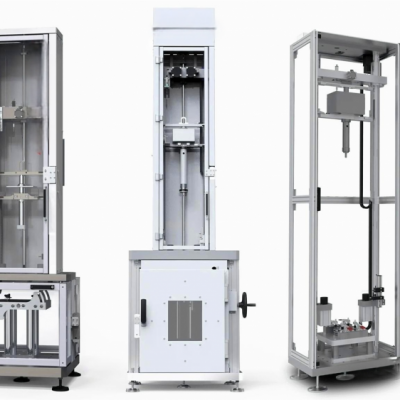

The equipment is mainly composed of a falling hammer lifting device, a speed measuring device, an impact hammer clamping device, a sample rack base and an azimuth adjustment mechanism, an anti-secondary impact device, etc. It uses imported servo motors and PLC control technology. The impact height and the number of impacts can be preset. It can automatically lift the hammer to the preset height and display the height and falling hammer speed at any time. It is a fully automatic test machine with good reliability, high accuracy and convenient operation.

According to the standard: GB46036 - 2025

Technical parameters:

1. Z1 impact head: φ82.5mm  Weight: 2260 + 20g

2. Z2 - Z4 impact heads: Size 30*5MM  Weight: 12000g + 20g  Hardness: 40HRC - 45HRC

3. Z5 impact head: CFP810 fire axe 3.5kg   Size 30*5MM  Weight: 12000g + 20g  Hardness: 40HRC - 45HRC

4. Impact height: Adjustable from 100 to 3400MM

5. Height positioning error: ±2mm

6. Number of impacts: Can be set from 0 to 999 times.

7. Impact speed: Can be set from 0 to 10 times/MIN

8. The test frame is welded and formed by section steel with a wall thickness of not less than 4mm, with sufficient stiffness and strength.

10. Test frame adjustment method: Horizontal and vertical

11. The margin of the test sample clamping is 30mm, and the exposed part of the sample is not less than 440mmX440mm.

12. The bottom rubber of the test frame pressing strip: Chlorine rubber strip with a thickness of (4 ± 0.4)mm, a width of (30 ± 5)m and a Shore hardness of 70A - 80A.

13. Lifting control: Use a Japanese Panasonic A6 400W servo motor for lifting and positioning, and use a synchronous wheel + synchronous belt for precise positioning.

14. Displacement induction device: Servo pulse feedback

15. The equipment is equipped with an anti-secondary impact device.

16. Release method: Electric cylinder push release control, with a release alarm caution light.

17. Equipped with a speed sensor to calibrate the G acceleration loss caused by frictional resistance; High-speed optical fiber acquisition read head

18. Machine base: The whole machine base is made of cast iron.

19. Safety door protection: The test cannot be carried out when the door is open.

20. Control method: Use PLC + touch screen operation control.

21. Adopt a separate design of the control box and the main machine (to ensure personnel safety)

22. The machine has an automatic positioning function. Just input the test height and the number of parameters, and the machine will automatically perform the lifting and releasing actions.

23. Power supply: AC 220V±10% 10A

24. Operating temperature: 15-35℃

25. Dimensions: Main unit (Length × Width × Height) 1240mm×600mm×3800mm

26. Weight: 300KG




Product Tags: GB46036 - 2025 , Fully automatic anti - smashing , With anti - secondary impact
